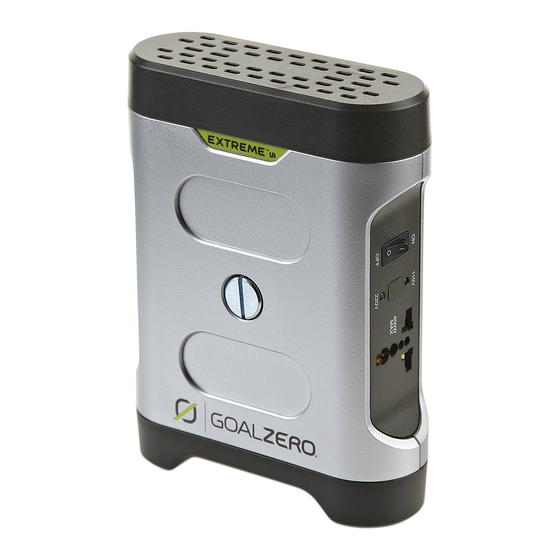

GOAL ZERO EXTREME UI 350 User Manual

Get to Know Your Gear
The EXTREME UI snaps into the side of
Make sure to flip the power switch to 'on' before use.
Allows you to use AC plugs from 110-220V at
400 Watts, as well as USB and 12V outputs.
Getting Started
1. Be sure to ACTIVATE YOUR WARRANTY at www.GOALZERO.com/warranty
2. Attach the EXTREME UI to the EXTREME 350 power pack via the red and black
plugs located on both the power pack and the UI.
3. Turn the EXTREME 350 power pack on.
4. Turn the EXTREME UI to on.
5. Ensure it is on the right voltage setting and plug in your device.
How to Use Your Gear
Power switch
Push the rocker switch to the ON position to use the EXTREME UI with
2 or 3 pronged devices.
Plug
The universal outlet accepts all common Western, European, and
Asian plug types with a max of 400 Watts. It also helps to power
SECURE IT
USB and 12V DC products.
Voltage
the EXTREME 350 power pack.
A green light indicates which voltage (110 or 220) is selected. To
POWER IT
change the voltage flick the switch found on the side of the UI
(next to the On/Off switch).
Chain
USE IT
The EXTREME UI is not a battery. It is meant for use with the
EXTREME 350 power pack. To use it with EXTREME 350
power packs that are chained together, plug it into the last
power pack on a chain.
Cooling
There's no need to worry about your EXTREME UI over-heating.
It comes with a built-in fan to keep it cool.
Technical Specs
Usage
Use with the following:
EXTREME 350
Inputs
12V port Powerpole or male car adapter
11-14V, 30A max (400W)
Outputs
12V port 6.0mm and female car adapter
11-13V, 10A max (120W)
USB port 5V, 0.5A max (2.5W)
AC Multi-standard outlet 110/ 220VAC, user switchable
400W max
General
Weight 1.5 lbs (0.7 kg)
Dimensions 8x6x2 in (20x15x5 cm)
Warranty 12 months
Operating usage temp. 32-104°F (0°-40°C)
