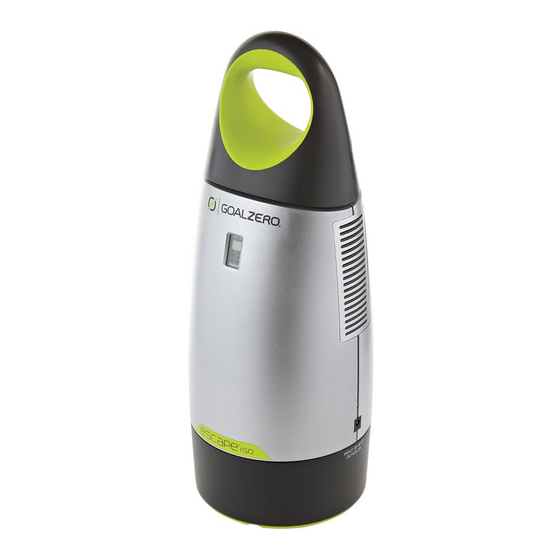

GOAL ZERO Escape 150 Quick Start Manual

Get to Know Your Gear

-

Getting Started

1. Be sure to ACTIVATE YOUR WARRANTY at www.GOALZERO.com/warranty
2. Charge your ESCAPE 150 through the input port.
3. Recharge from GOAL ZERO NOMAD 13.5, NOMAD 27, or USB power source.
CARRY IT
The handle on top of the ESCAPE 150
makes it easy to carry.
CHARGE IT
The ESCAPE 150 can be powered completely
from solar power. Recommended for usage
with the BOULDER 15 or larger solar panels.
PLUG IT
The ESCAPE 150 is capable of charging
devices through a USB or AC outlet.

How to Use Your Gear

USB output port
Accepts any standard USB cable for charging USB devices.
AC output port
Use any AC 110V device up to 80 watts.
Car adapter and 12V output port
Connect the car adapter (included) to charge 12V devices or plug
GOAL ZERO lights directly into it.
Comes With
12V car adapter
AC wall adapter

Technical Specs

Usage

Charges from the following: Approx. charge time:
AC wall charger 5 hours
12V car adapter 5-6 hours
BOULDER 30 5 hours
BOULDER 15 10 hours
NOMAD 13.5 12 hours
NOMAD 27 6 hours
ESCAPE 30 5 hours

Inputs

Charging port (4.7mm) 15-16V, 3A max (45W)

Outputs

AC US/EURO port* 80W, modified-sine wave
US port: 110VAC
EURO port: 220VAC
USB port 5V, 0.5A (2.5W), buck regulated
12V port (6.0mm) 11-14V, 10A max (120W)

Internal

Battery type Lead-acid (AGM)
Battery capacity 150Wh (12V, 14Ah)
Battery voltage range 11-14.4V
Life-span hundredsof cycles
Fuses Output: 20A, standard car fuse
Input: 5A, standard car fuse
USB: 1A, standard car fuse

General

Weight 3.7 lbs (1.7 kg)
Dimensions 5.5x5.5x15.5 in (14x14x39 cm)
Warranty 12 months
Tested and Certified FCC and CE
Operating usage temp. 32-104°F (0°-40°C)
Optimal storage temp. 70°F (21°C)
*ESCAPE 150 comes preconfigured as either 110VAC or 220VAC
