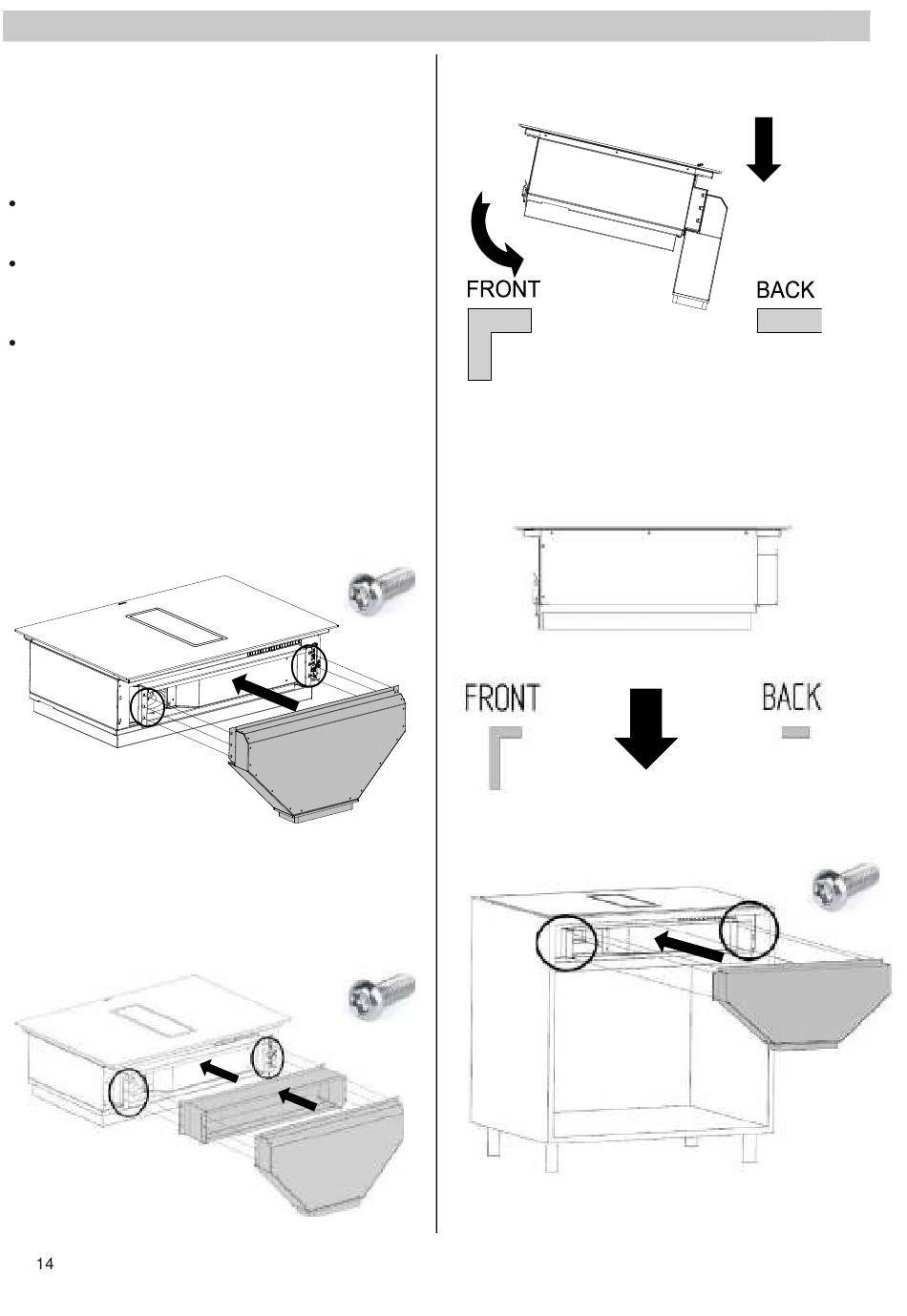

4.7 Inserting the cooktop and connection to the
ducting system
The duct system must be fitted to the device free of
load and with the power supply switched off.
For correct installation, the drawers of the floor unit
must be shortened depending on the installation
situation.
Use the duct tape in order to seal the ducting parts.

4.7.1 Wall kitchen

The metal sheet black canalization must be fixed to the
cooktop before its insertion in the worktop.
Duct connection for worktop depth 600 mm
Fix the metal sheet black canalization to the cooktop
with 4 X Torx screws.
Duct connection for worktop depth > 600 mm
Installation
Inserting the cooktop
4.7.2 Kitchen island (free access to kitchen cabinet
With a kitchen island it is easier to insert the cooktop
before fixing the sheet black canalization.
4 X
Duct connection for worktop depth 600 mm
8 X
Fix the metal sheet black canalization to the cooktop
with 4 X Torx screws.
2
back side)
1
4 X
