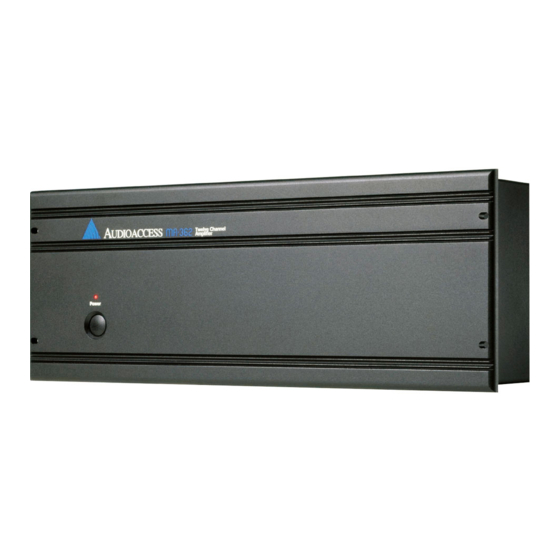

Audioaccess MA-362 Quick Start Manual

Audioaccess MA-362 Quick Start Manual

Twelve channel amplifier
Hide thumbs Also See for MA-362:

Advertisement

Quick Links

MA-362
Twelve Channel
Amplifier
Quick Start Guide
502-00085-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MA-362 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Audioaccess MA-362

  • Page 1 MA-362 Twelve Channel Amplifier Quick Start Guide 502-00085-00...
  • Page 2 Like any other high-powered amplifier, the MA-362 will generate heat during normal operation. In order to provide sufficient air flow around the MA-362 when installed on the shelf, make sure there is at least three inches of clearance above the amplifier and at least two inches of clearance on each side.
  • Page 3 ❑ Connect the left and right input signals to the left and right RCA jacks Stereo Operation of a MA-362 Zone. ❑ Set Input Link to “L ” (note: Zone 1 always uses the local input). OCAL ❑ Set Mode to “S ”.
  • Page 4 L & R Audio IN 12V Trigger Bridged Signal Sensing Bridged 12 Volt Trigger Method Two ❑ Connect the left input signal to the Left RCA jack of a MA-362 Zone. ❑ Set Input Link to “L ”. OCAL ❑ Set Mode to “B /L”.
  • Page 5 The unused RCA jacks on any linked zone may be used as a buss output to connect to another MA-362 or other amplifier. ❑ Connect the left and right input signals to the Left and Right RCA jacks of a MA-362 Zone.
  • Page 6 BUSS OPERATION (Stereo Mode) Zone Zone Zone Input Level Input Level Input Level Input Input Input Link Mode Trigger Link Mode Trigger Link Mode Trigger Stereo Stereo Stereo Link Link Link Link Link Link Mono Mono Mono Signal Signal Signal Bridge/R Bridge/R Bridge/R...
  • Page 7 Harman International a Harman International company © 502-00085-00 11/2001 Audioaccess. All rights reserved.
