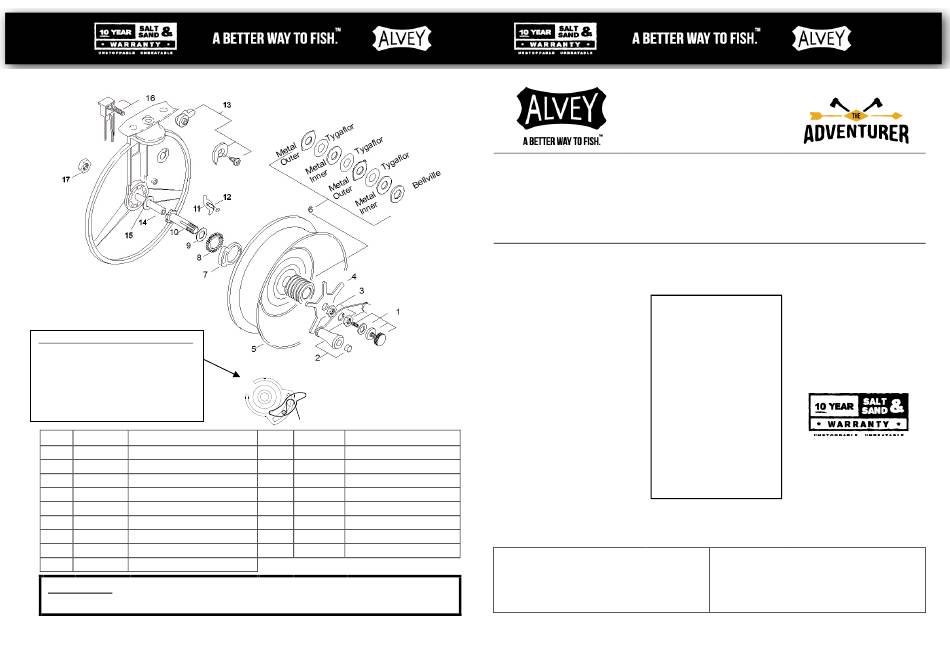

Alvey Adventurer 45GCZ Quick Start Manual

Correct assembly for silent drag pawl & cam
Ensure that Drag pawl pin is inside of silent
drag cam slot or reel will click when winding.
Spring loop to go over pin for correct
operation of the drag.
In assembling spool to reel, have the drag in
OFF position.
Key Part Description
1 R6E2 Spindle Screw Set
2 R7E3 Handle Plate Assy
3 R7F1 Handle Plate Lock Nut
4 R7D3 Star Drag Nut
5 R4A Spool Only
6 R7B/C3 Drag Washer Set
7 R7L3 Silent Drag Cam
8 R5B6 Fish Alert Wheel
9 R7H4 Friction Tube Washer
Special Note: The 45GCZ cannot be converted from right hand wind to left hand wind.
A left-hand wind version is available.
Key Part Description
10 R7A2 Drag Friction Tube
11 R7J9 Pawl
12 R5G4 Drag Pawl Spring
13 R7K9 Drag Knob Assy
14 R6A22 Spindle
15 R6J7 Spindle Washer
16 R5E9 Fish Alert Button
17 R6F1 Spindle Hex Nut
45GCZ
CONGRATULATIONS and thank you for purchasing one of our Australian
made easy cast reels as your choice of fishing reel. These reels are
constructed from the highest quality materials to ensure your reel will
last for many years.
Plus, all these other
advantages -
Long, accurate casts:
Now, with only the minimum of

Special Features

practise you will be able to
cast further and more
accurately than ever before.
→ Star Drag
Control large fish with ease:
→ Easy Cast
Powerful one-to-one wind
means you only need about a
quarter of the effort required to
→ Belleville Power
lift a similar weight on a
spinning reel.
You can fish harder and
→
longer: Simple, rugged
construction means you can
forget that fiddly maintenance,
because your Alvey reel will
resist the effects of saltwater
and sand.
