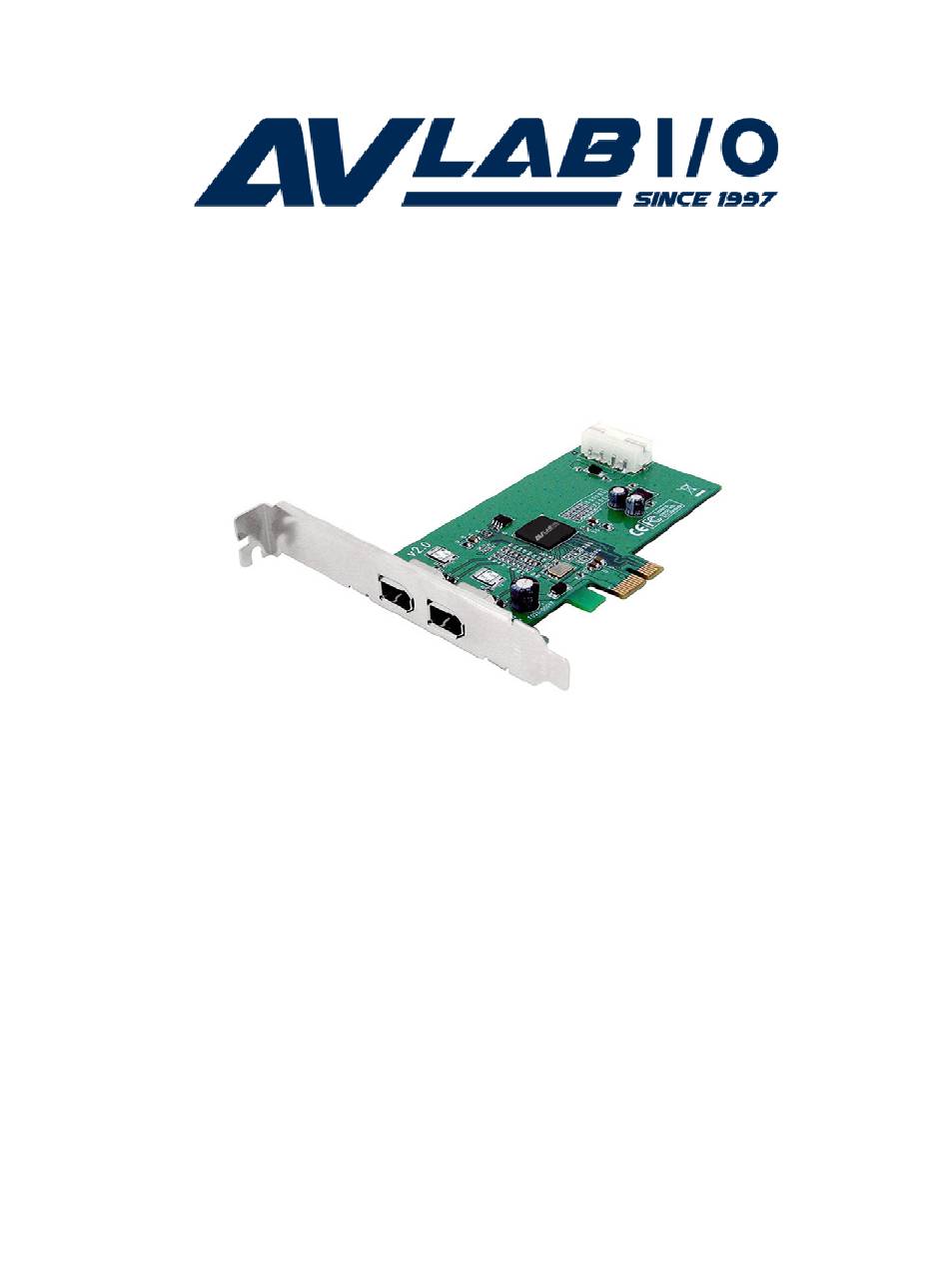

- Page 1 DP FireWire 2-Port PCIe Installation Guide...
- Page 2 Introducing the DP FireWire 2-Port PCIe The DP FireWire 2-Port PCIe is designed to add FireWire interface to your PCI Express-enabled system. Features and Benefits • Compliant with PCI Express Base Specification 1.0a • Compliant with IEEE 1394-1995, 1394a-2000 and OHCI 1.1 Standards •...
- Page 3 Package Contents • DP FireWire 2-Port PCIe • Spare enhanced low profile bracket • "Y" split power cable • Installation guide Layout Power Connector (optional) FireWire ports Figure 1: Layout Note: The power connector is designed to provide additional power to the board when needed.
- Page 4 Hardware Installation Note: For Low Profile systems, replace the currently mounted bracket with the included Low Profile bracket. Static Electricity Discharge may permanently damage your system. Discharge any static electricity build up in your body by touching your computer case for a few seconds. Avoid any contact with internal parts and handle cards only by their external edges.
- Page 5 Windows 8 / 7 / Vista / XP / Server 2003 & 2008 / Server 2008 R2 / 2000 Windows will automatically detect and install the correct driver for the DP FireWire 2-Port PCIe. No driver installation is needed. To Verify Windows Installation Check Device Manager to verify installation.
- Page 6 Mac OS X v10.4 or later Mac OS X will automatically detect and install the correct driver for the DP FireWire 2-Port PCIe. No additional driver installation is needed. To Verify Mac OS Installation Click Go, then click Utilities. Double click System Profiler.
