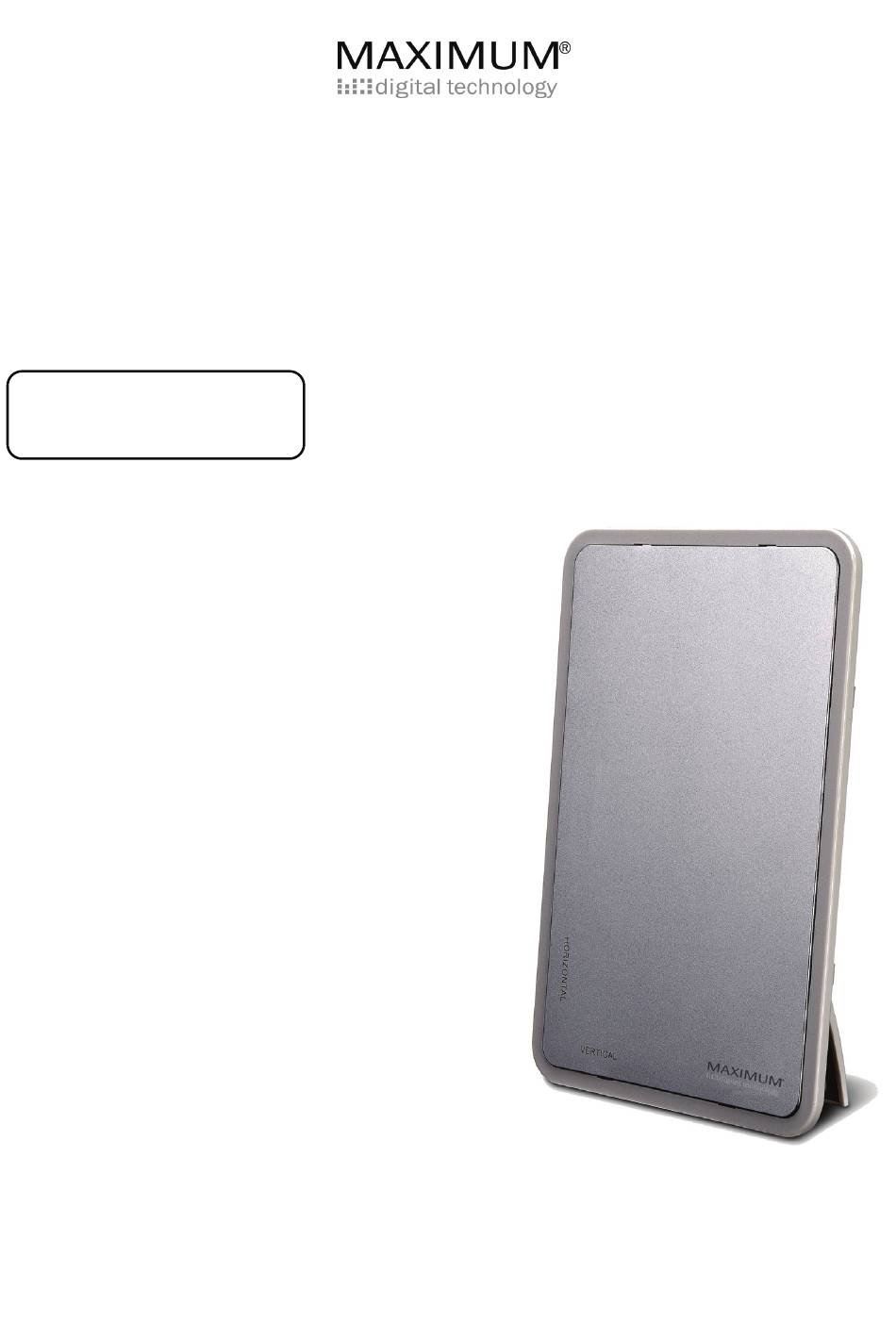

- Page 1 User Manual DA-1200 Thank you for purchasing DA-1200 Digital Indoor Antenna. Before installation, please read this manual carefully and keep it for future refference.
- Page 2 INTRODUCTION DA-1200 is a specially designed antenna for digital terrestrial broadcasting reception. With state-of-the-art low noise amplifier technology and circuitry, it provides optimal reception. With compact and stylish housing, it can accompany your digital STB. You can mount the antenna in two different ways: on the top of your TV set or Set Top Box, or mount it on the wall.
- Page 3 DESCRIPTION Front panel Vertical Back panel Fixing socket DC IN STB or Digital TV AC Adaptor AC Outer...
- Page 4 Step 3. Connect the Coaxial Cable to the antenna and your Set Top Box or TV Set. Step 4. Connect the AC-DC adaptor to the DA-1200. Please use the supplied AC adaptor only Step 5. Adjust the orientation of DA-1200. (it is suggested to use the horizontal alignment.) When you have finished the installation, you can use your Set Top Box to check the signal strength and quality.
- Page 5 Installing the antenna on a wall: Steps 1-5 are the same as when installing the antenna near a Set Top Box or a TV. When you have found a suitable position continue with the following: Step 6: mark the position with pencil or a pen When mounting on a wooden wall: Step 7: Using a screw driver fix the provided screws in the marked position.
