- Page 1 2 Port HDMI / Audio KVM Switch User Manual @Copy Right: Shenzhen Kinan Technology Co., Ltd. Print Date: 2021/11 Version: V1.3...

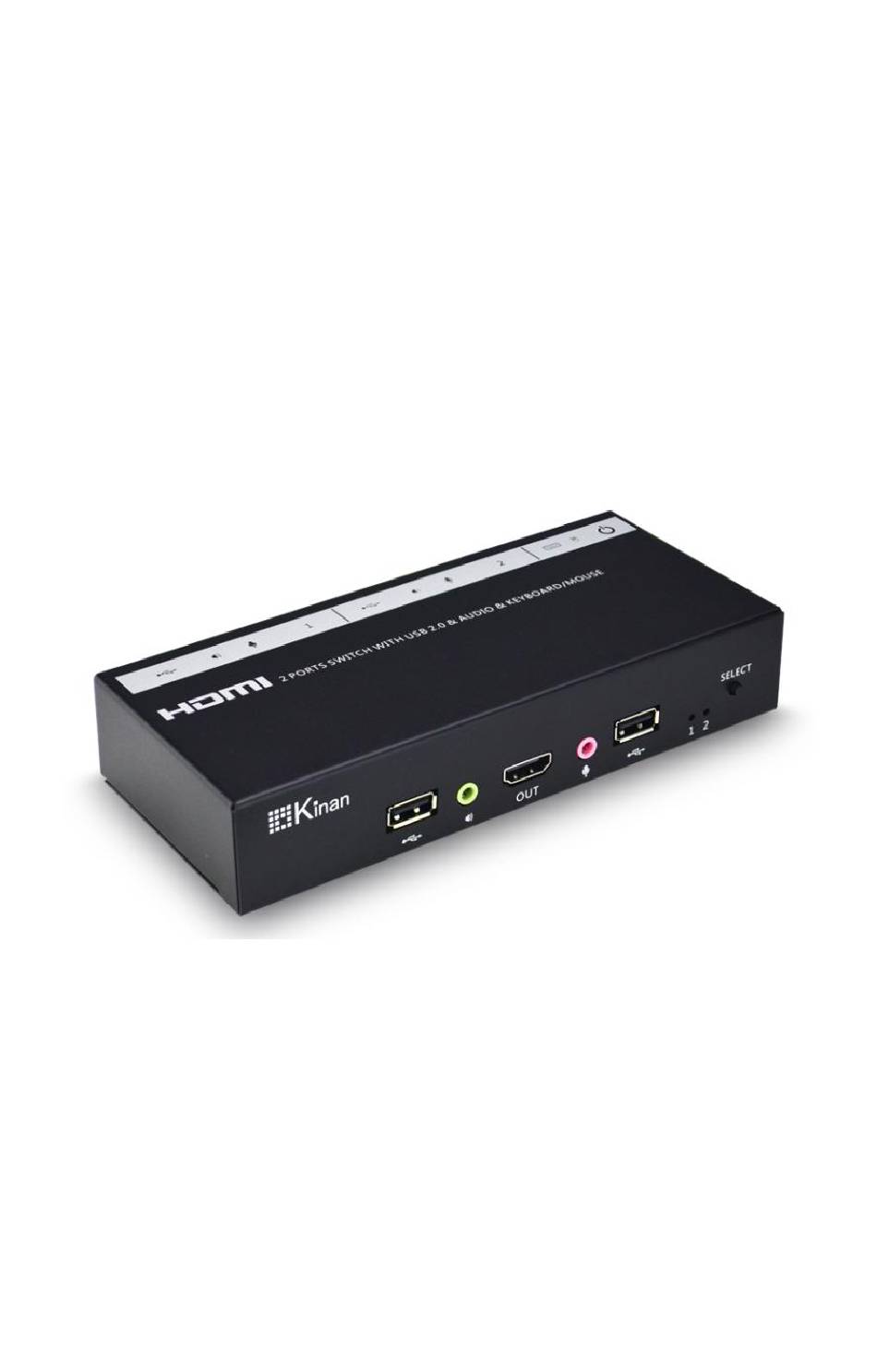

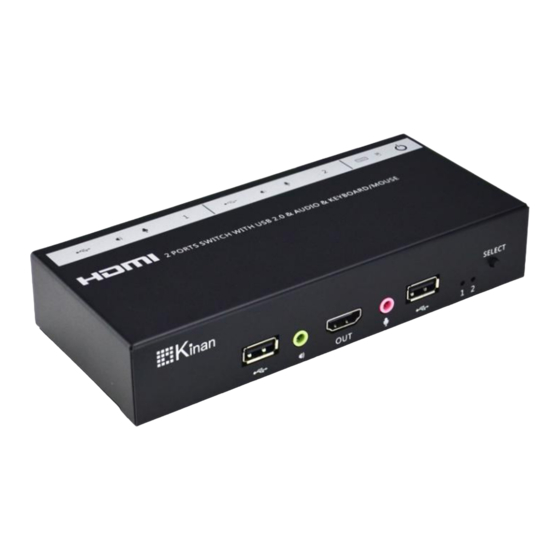

- Page 2 HD1102 User Manual Product Description HD1102 is HDMI KVM switch which support 4K high definition video and USB 2.0. User can switch the computer simply and quickly with the hotkey Scroll-Lock or the button Product Features One HD1102 controls 2 HDMI computers or HDMI devices ...
- Page 3 HD1102 User Manual Connection Diagram * If the console display has built-in speakers and audio is supported via the HDMI interface, there is no need to use separate speakers. - 2 -...
- Page 4 HD1102 User Manual Hotkey Operation Instructions Press【Scroll-Lock】 key twice (Time interval within 2S) to enter the hotkey command mode, if no key is pressed within two seconds of the keyboard hotkey mode, the keyboard will exit the hotkey mode Hotkey Operation Description Switch between port 1 and port 2.
- Page 5 HD1102 User Manual Specifications Model HD1102 Computer Connection Port Selection Hotkey, button Monitor 1* HDMI Type A Keyboard 1* double layer USB type A Mouse Console 1 * Min stereo port (pink) Speaker 1 * Min stereo port (green) Monitor...
- Page 6 HD1102 User Manual Issue Solution Check whether the USB cable is connected (USB-B connects to the KVM switch, USB-A connects to the PC host) Check whether the monitor is connected to the No display KVM switch Check whether the monitor and the PC host...
