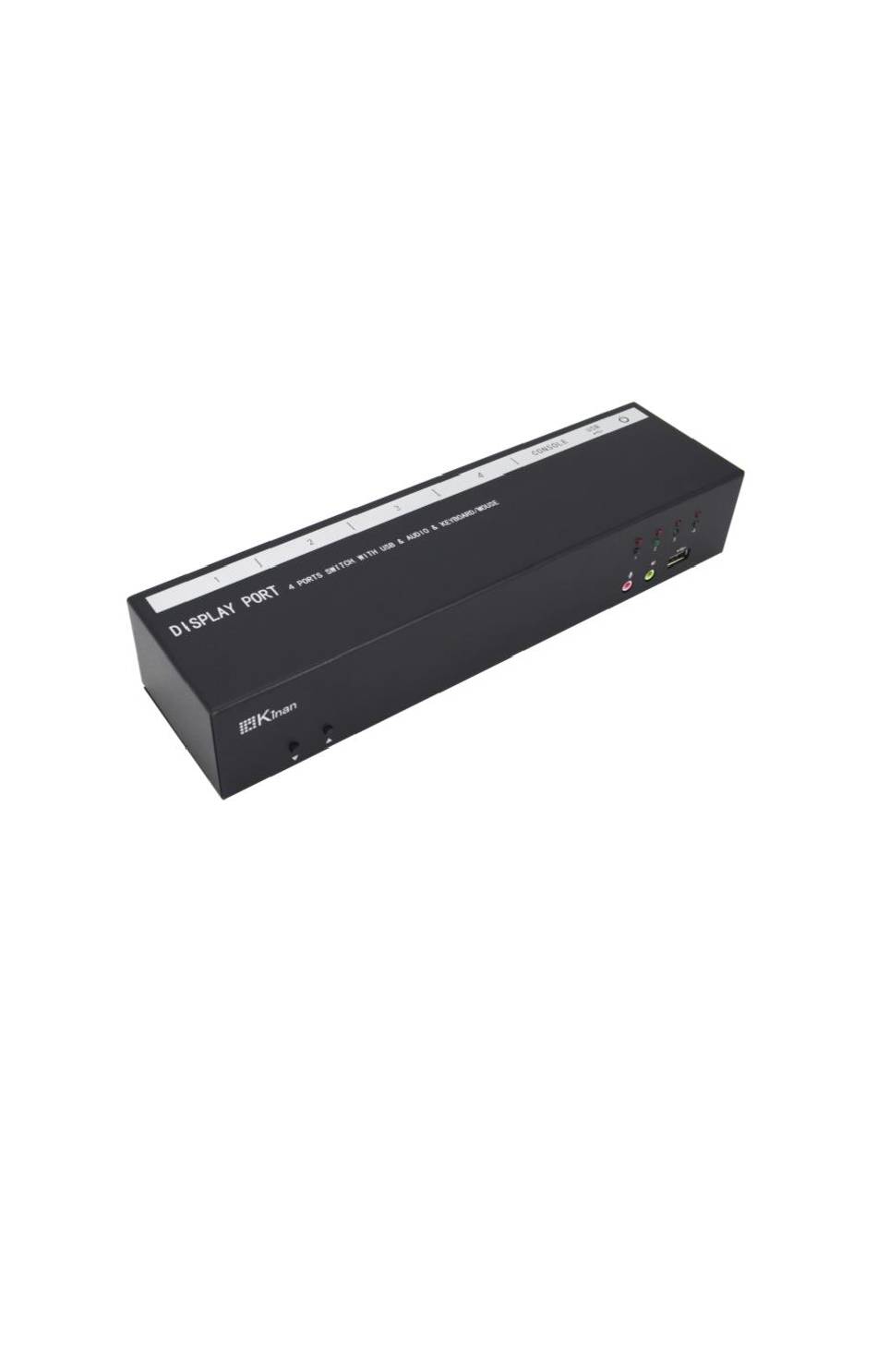

- Page 1 4 Port DisplayPort USB3.0 KVM Switch User Manual www.kinankvm.com @All right reserved by Shenzhen Kinan Technology Co.,Ltd. Date：2020/03 Version: V1.0...
- Page 2 DPU204 User Manual Overview DPU204 is 4 port DisplayPort KVM Switch that support 4K DisplayPort video output and USB3.0. It support convenient switching between 4 DisplayPort computers via keyboard hotkey or front panel pushbutton. Product Features Control up to 4 DisplayPort hosts from a single console ...
- Page 3 DPU204 User Manual Structure and Size Rear View Instruction Power port Console USB port Console display port KVM port Firmware upgrade port USB3.0 port Mic / Audio port - 2 -...
- Page 4 DPU204 User Manual Installation Diagram Please make sure all the devices have been powered off before installation 1) Connect display, USB keyboard, mouse ( ) connect to local CONSOLE ① port 2) Connect PC and KVM with DP cable, Audio cable and USB cable (②) 3) Connect power adapter (③) 4) Turn on the PCs and control the PCs with mouse, pushbutton and hotkey Console port Connection Device support (...
- Page 5 DPU204 User Manual LED Operating Instructions Mark Function 1）Red LED indicates the PC and KVM connected and powered on 2）Green LED indicates the related port are using 1）Switch to next or previous port 2）Press both above 2S to restore factory setting Mic port Connect to microphone Audio port...
- Page 6 DPU204 User Manual Hotkey Operation Instructions Press【L_Ctrl】 key twice (Time interval within 2S) to enter the hotkey command mode, if no key pressed within two seconds of the keyboard hotkey mode, the keyboard will exit the hotkey mode Function Operation Detail +【M】+【F】...
- Page 7 DPU204 User Manual Specifications Model DPU204 Direct Computer Connections Port Selection Hotkey, Pushbutton, Mouse Monitor 1x DisplayPort Keyboard 1x double layer USB Type A Mouse Console 2x Min stereo interface (pink) Speaker 2x Min stereo interface (green) Monitor 4x DisplayPort Connectors Keyboard 4x USB3.0 Type B (Blue)
