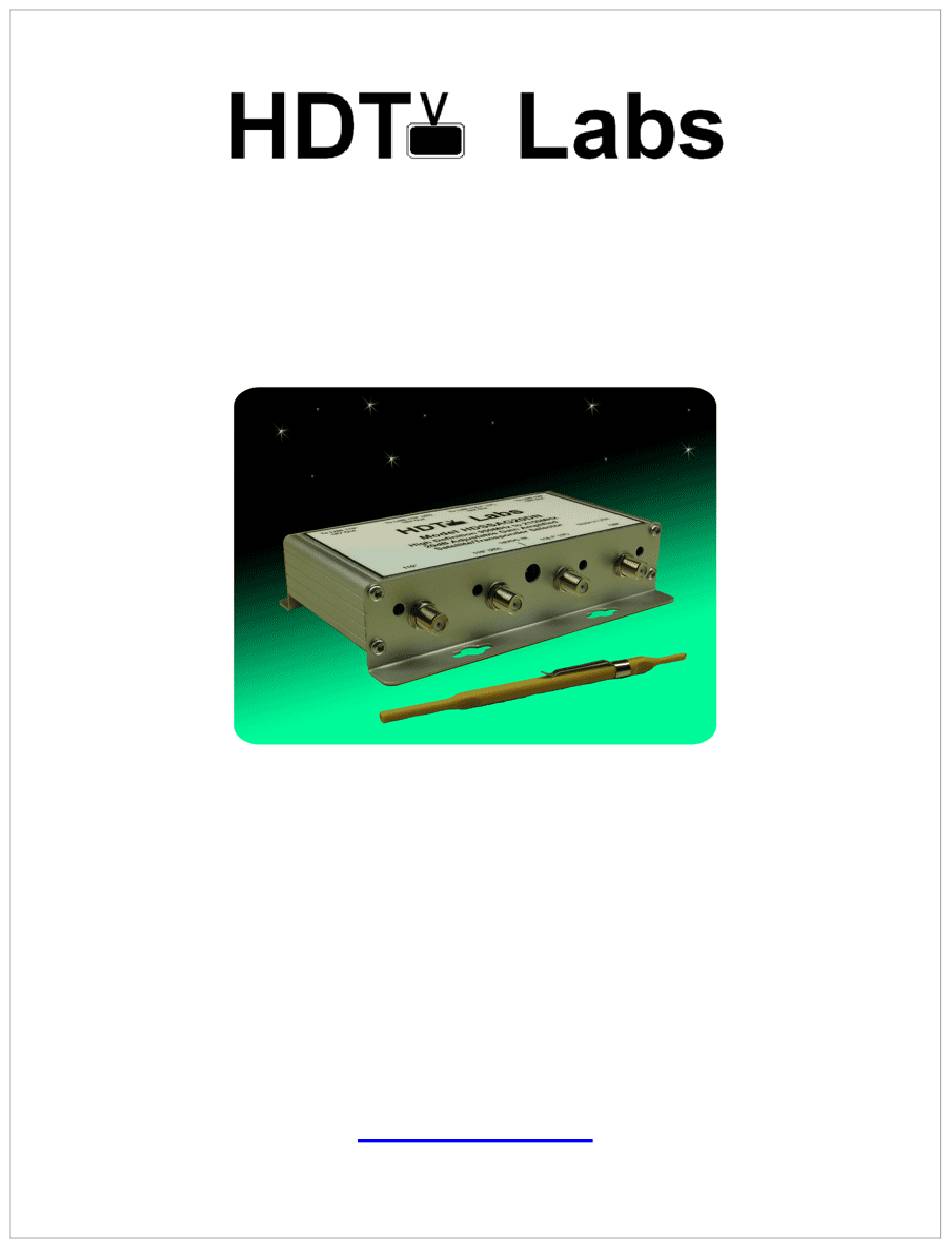

- Page 1 20 dB Adj. Gain Satellite Selector for DISH Network Model HDSSAG20DN Instruction Manual www.hdtvlabs.tv...

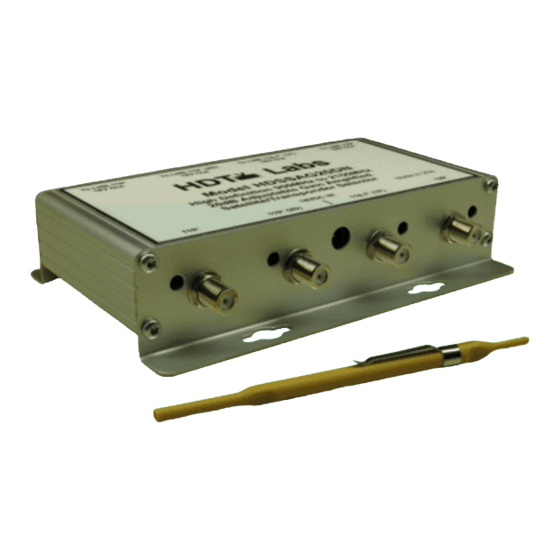

- Page 2 * Mechanical dimensions are 6.4”W x 4.4”L x 1.5”H The High Definition 20dB Adjustable Gain Satellite Selector for DISH Network (HDSSAG20DN) is a combination of four power inserters, a 20dB adjustable gain amplifier, and independent power supply that ensures strong and consistent DC voltage levels to Dish Pro and Dish Pro Plus LNBs while also adding signal strength to the system.
- Page 3 4. Proper output signal should be checked with a meter to prevent overdriving any of the system’s four channels. 5. Check our website at www.hdtvlabs.tv for the latest instruction manual updates. This is HDSSAG20DN Rev. 1.2.
- Page 4 Multi-Switch Connection Diagram Although the Satellite Selector may have input ports designating particular LNBs as a guide, any of the four input ports can be connected to single or multiple dish outputs in order to receive the desired satellite signals. Care must be taken, however, to ensure that the desired satellite signal connected to an input port of the Satellite Selector is also...
- Page 5 Upconverter / Multiplexer Connection Diagram Although the Satellite Selector may have input ports designating particular LNBs as a guide, any of the four input ports can be connected to single or multiple dish outputs in order to receive the desired satellite signals. Care must be taken, however, to ensure that the desired satellite signal connected to an input port of the Satellite Selector is also...
- Page 6 950MHz to 2150MHz. The amplifier is designed to recover low-level signals that may be well below the threshold of most satellite power meters. The HDSSAG20DN is used in conjunction with residential, stacked, multiswitch, and head-end systems.
- Page 7 17.0VDC 18.00VDC 20.0VDC For Indoor Use Only. The HDSSAG20DN is supplied with an external 18VDC power supply. Operating temperature of the HDSSAG20DN is –40 C to +85 C. The mechanical dimensions are 6.4”W 4.4”L 1.5”H. (Specifications subject to change without notice.) Notes: Absolute Maximum Power is the total power that arrives at the amplifier input from 950MHz to 2150MHz.
