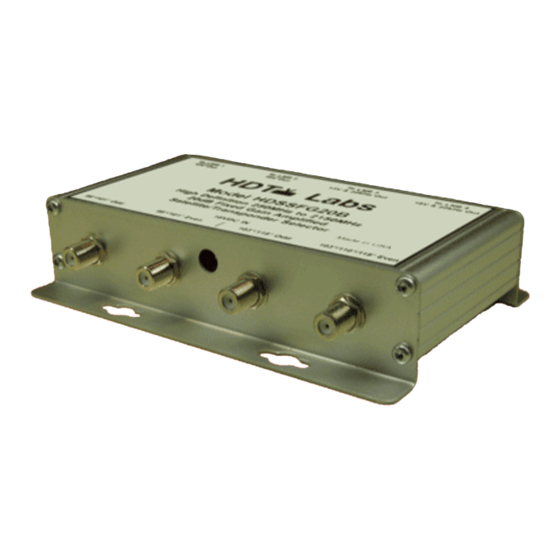

- Page 1 20dB Fixed Gain Satellite Selector for DIRECTV Model HDSSFG20B Instruction Manual www.hdtvlabs.tv...
- Page 2 Connect the 103°/110°/119° Even Satellite Selector output to the Sat 103°/110°/119° 18V 22kHz Multi-Switch input. Connect the external power supply to the Satellite Selector “18VDC IN” jack. Check our website at www.hdtvlabs.tv for the latest instruction manual updates. This is HDSSFG20B Rev.1.1...
- Page 3 The HDSSFG20B is a Professional-Grade 4-channel fixed 20dB gain satellite/transponder selector designed to work with DIRECTV 5 LNB dish antennas. The HDSSFG20B selects and amplifies even and odd transponder signals from satellites 99 , 101 , 103 , 110 , and 119 . Each channel has a gain in excess of 20dB and covers a frequency range of 250MHz to 2150MHz.
- Page 4 22kHz 0.3Vp-p 0.4Vp-p For Indoor Use Only. The HDSSFG20B is supplied with an external 18VDC power supply. Operating temperature of the HDSSFG20B is –40 C to +85 C. The mechanical dimensions are 6.4”W 4.4”L 1.5”H. (Specifications subject to change without notice.) Notes: Absolute Maximum Power is the total power that arrives at the amplifier input from 250MHz to 2150MHz.
