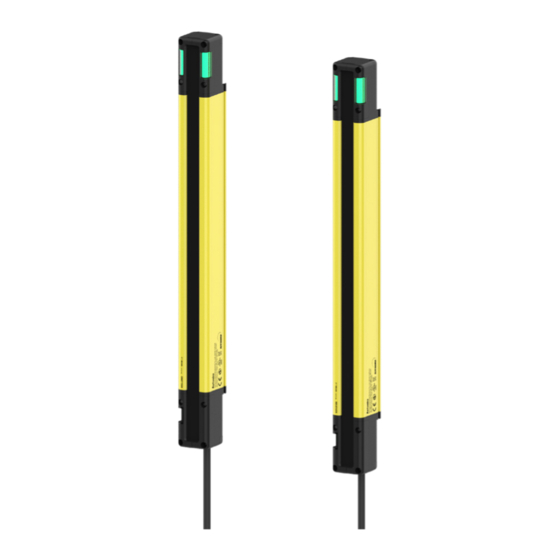

Autonics SFL Series User Manual

Safety light curtains
Hide thumbs Also See for SFL Series:
Table of Contents

Advertisement

Quick Links

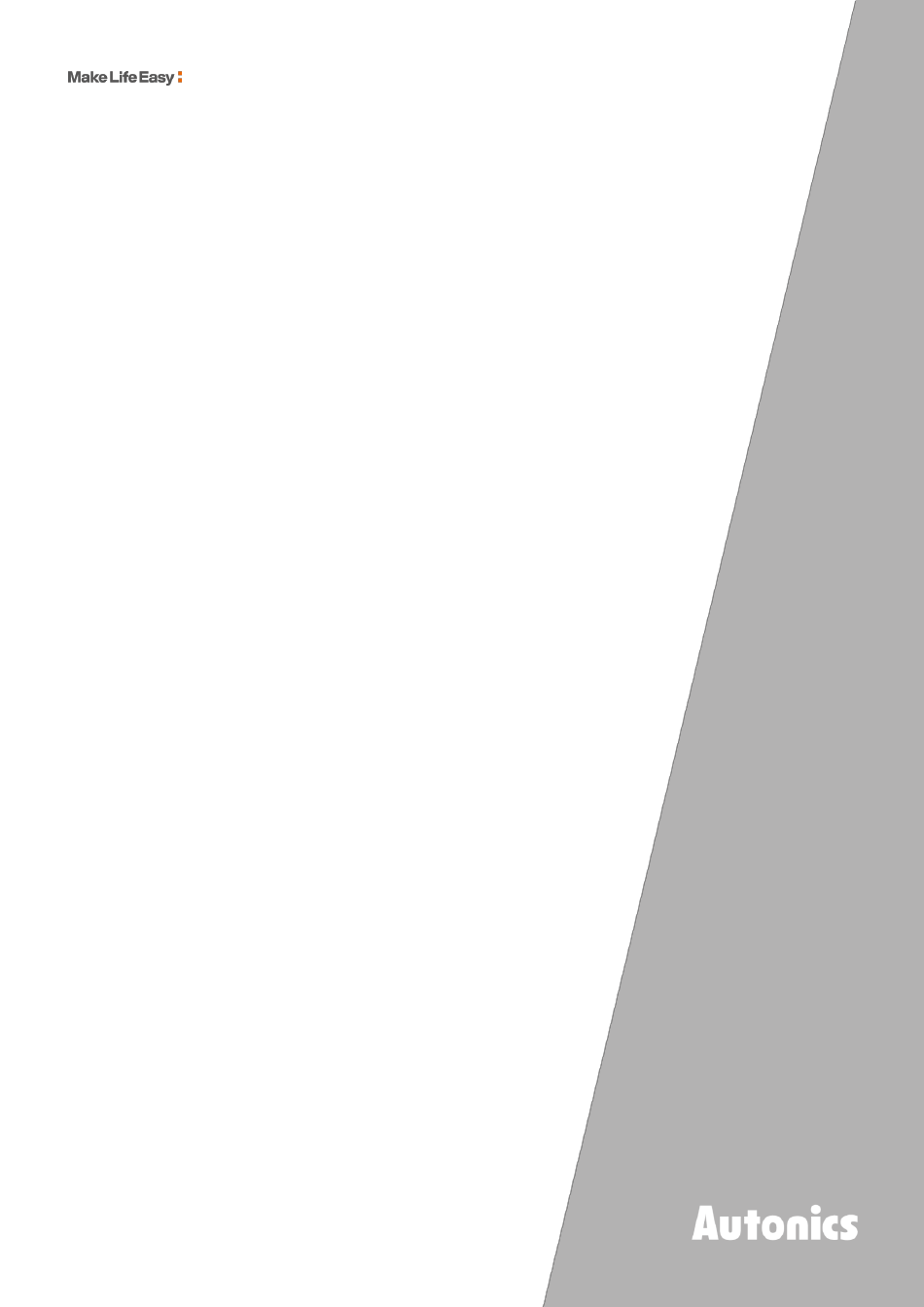

User Manual
Safety Light Curtains
SFL/SFLA Series
MSO-SFL(A)U1-V1.2-2106US
Thank you for purchasing an Autonics product.
This user manual contains information about the product and its proper use,
and should be kept in a place where it will be easy to access.
www.autonics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SFL Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Autonics SFL Series

Summary of Contents for Autonics SFL Series

  • Page 1 Safety Light Curtains SFL/SFLA Series MSO-SFL(A)U1-V1.2-2106US Thank you for purchasing an Autonics product. This user manual contains information about the product and its proper use, and should be kept in a place where it will be easy to access. www.autonics.com...
  • Page 2 © Copyright Reserved Autonics Co., Ltd.

  • Page 3: Preface

    Preface Preface Thank you for purchasing Autonics product. Please familiarize yourself with the information contained in the Safety Considerations section before using this product. This user manual contains information about the porduct and its proper use, and should be kept in a place where it will be easy to access.

  • Page 4: User Manual Guide

    User Manual Guide User Manual Guide   • Please familiarize yourself with the information in this manual before using the product.   • T his manual provides detailed information on the product's features. It does not offer any guarantee concerning matters  beyond the scope of this manual.   • T his manual may not be edited or reproduced in either part or whole without permission.   • A user manual is not provided as part of the product package.  Visit our web site (www.autonics.com) to download a copy.   • T he manual's content may vary depending on changes to the product's software and other unforeseen developments  within Autonics, and is subject to change without prior notice. Upgrade notice is provided through our homepage.   •  We contrived to describe this manual more easily and correctly. However, if there are any corrections or questions,  please notify us these on our website. © Copyright Reserved Autonics Co., Ltd.

  • Page 5: User Manual Symbols

    User Manual Symbols User Manual Symbols Symbol Description Supplementary information for a particular feature. Failure to follow instructions can result in serious injury or death. Failure to follow instructions can lead to a minor injury or product damage. An example of the concerned feature’s use. ※1 Annotation mark. © Copyright Reserved Autonics Co., Ltd.

  • Page 6: Safety Considerations

    12. Do not arrange or use the light curtain as a reflective or retro-reflective type with reflector. If the installation does not detect the human body, it may result in personal injury. 13. Do not use the light curtain to detect flying objects toward the detection zone. If there is a risk, take additional safety measures, such as installing an additional safety guard. © Copyright Reserved Autonics Co., Ltd.
  • Page 7 33. When the override function is activated, make sure that no operator is in the hazardous zone. Take additional safety measures to prevent the human body from entering the hazardous zone. 34. When you need to inform that the override function is activating, install the indicators with any forms (e.g. © Copyright Reserved Autonics Co., Ltd.
  • Page 8 51. Use a separate power supply for the load and the product, and do not exceed the specified ratings. Failure to follow this instruction may result in damage or malfunction of the product. © Copyright Reserved Autonics Co., Ltd.

  • Page 9: Caution During Use

    ※The above specifications are subject to change and some models may be discontinued without notice. ※ Be sure to follow cautions written in the instruction manual, user manual and the technical descriptions (catalog, homepage). © Copyright Reserved Autonics Co., Ltd.

  • Page 10: Table Of Contents

    Self-test ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 40 4.3 Alarm for incident light level ����������������������������������������������������������������������������������������������������������������������������������������������������������������������� 41 4�4 OSSD output �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 42 4�5 Mutual interference prevention ������������������������������������������������������������������������������������������������������������������������������������������������������������������ 42 4.5.1 Change settings ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 42 5� Safety-related function ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 43 5.1 Interlock ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 44 5.1.1 Auto-reset ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 44 © Copyright Reserved Autonics Co., Ltd.

  • Page 11: Table Of Content

    Safety distance according to ISO 13855 (EN ISO 13855, KS C 13855) ����������������������������������������������������������������������������� 101 9.3 How to install and adjust your light curtain �������������������������������������������������������������������������������������������������������������������������������������������� 104 9�4 Installation for mutual interference prevention ������������������������������������������������������������������������������������������������������������������������������������� 104 9.4.1 When using a series connection �������������������������������������������������������������������������������������������������������������������������������������������� 104 9.4.2 When using one set of the light curtain ������������������������������������������������������������������������������������������������������������������������������� 105 © Copyright Reserved Autonics Co., Ltd.

  • Page 12: Table Of Content

    Daily inspection ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 114 10.6 Regular inspection �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 114 11. Troubleshooting ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 115 11.1 Error code (Lockout condition) ����������������������������������������������������������������������������������������������������������������������������������������������������������������� 115 11.2 Warning code ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 117 12� Appendix ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 118 12�1 Glossary �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 118 12.2 KCs model ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 119 12.3 Manual revision history ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 120 © Copyright Reserved Autonics Co., Ltd.

  • Page 13: 1� Overview

    Sold separately It is not included in the box. You can purchase them separately. i.  Power I/O cable (connector type, SFL-BCT(R)) ii.  Power I/O cable (wire type, SFL-C□T(R)) iii.  Connector cable (socket type, CID8-□T(R)) iv.  Connector cable (socket-plug type, C1D8-□T(R)) v.  Y type connector cable (SFL-YC, SFL-YCR) vi.  Series connection cable (SFL-EC□T(R)) vii. Lamp output cable (SFL-LC) viii. Brackets (Top/Boittom (adjustable), Side (adjustable): BK-SFL- ix.  SFL / SFLA dedicated USB / Serial communication converter (SCM-SFL) x.  Test piece (SFL-T□) xi.  LOTO (Lockout-Tagout) Device (SFL-LT□) © Copyright Reserved Autonics Co., Ltd.

  • Page 14: Ordering Information

    Safety-related  Muting ○ functions Override ○ Blanking × (Fixed blanking and floating blanking) Reduced resolution × Series connection Select sensing distance ○ ○ Select NPN or PNP Other functions External test (light emission stops) ※1 Auxiliary output (AUX) ○ Lamp output (Lamp) ○ PC connection ○ ※1: In case of external test, it can be set by wiring. ※When setting with the switch, you can select either activated or deactivated state.    ※When connecting to a PC, you can set the details besides selecting to enable or disable the functions via atLightCurtain.  For more information, refer to the “user manual for atLightCurtain.” ※For more information on the general functions, refer to the "4. General functions". ※For more information on the safety-related functions, refer to the "5. Safety-related function". ※For more information on the other functions, refer to the "6. Other functions". © Copyright Reserved Autonics Co., Ltd.

  • Page 15: Specifications

    0.2 to 8 m 0.2 to 8 m Long mode 0.2 to 10 m 0.2 to 15 m 0.2 to 15 m Detection capability Ø 14 mm (finger) Ø 20 mm (hand) Ø 30 mm (hand-body) Detection object Opaque object Number of optical axes 15 to 199 12 to 124 9 to 75 Protective height 144 to 1,800 mm 183 to 1,863 mm  218 to 1,868 mm Optical axis pitch 9 mm 15 mm 25 mm Series connection Max. 4 SET (≤ 400 optical axes) ※01) It may differ depending on the models. For more information, see the "2.5 Models". © Copyright Reserved Autonics Co., Ltd.

  • Page 16: Common

    06)  Approved certification protection ratings are IP65 and IP67. 07) The model SFL□-□-A is KCs certified. The certified models for S mark and KCs have the same functional basis. Refer to the "12.2 KCs model" © Copyright Reserved Autonics Co., Ltd.

  • Page 17: Iec 61508 Parameters

    IP67G (JEM standard) Special coating prevents penetration of oil (drops and powder) into the product. It obtains the protection rating of enbanced oil resistance. (Pass the dropping test for 240 hours with the above oil)   • Used oil (for reference only) Kinetic viscosity Oil type JIS standard Oil name (mm2/s, 40 ℃) Lubricating oil ㅡ Velocite Oil No.3 ㅡ Water-insoluble  Tectyl Cut 527 ㅡ cutting fluid Water-soluble  9.5  ㅡ Tectyl Cool 263C ㅡ cutting fluid (10 % Solution) © Copyright Reserved Autonics Co., Ltd.

  • Page 18: Models

    70.9ms 1.60×10 103mA 173mA (≈ 4.485g) □ ≈ 6.880g SFLA14-191- 1,728 31.2ms 73.4ms 1.66×10 104mA 177mA (≈ 4.680g) □ ≈ 7.475g SFLA14-199- 1,800 32.2ms 75.9ms 1.73×10 106mA 181mA (≈ 4.875g) □ ※1. Response time is based on when the switch is factory settings. The time may differ if the setting is changed. ※2: The weight includes packaging. The weight in parenthesis is for unit only. ※ T  - Time when OSSD output is switched from ON to OFF state  - Time when OSSD output is switched from OFF to ON state (When the time of shading object in the detection zone is less than 80ms, the OSSD output remains OFF state for at least 80ms. And then it is switched to ON state.) © Copyright Reserved Autonics Co., Ltd.

  • Page 19: Hand Detection (Sfl(A)20-□-□, Ø20Mm)

    30.7ms 72.6ms 93mA 148mA 1.32×10 □ (≈ 4,721g) SFLA20-120- ≈ 7,483g 1,803 31.5ms 74.6ms 94mA 150mA 1.35×10 □ (≈ 4,883g) SFLA20-124- ≈ 7,646g 1,863 32.3ms 76.6ms 95mA 152mA 1.39×10 □ (≈ 5,046g) ※1. Response time is based on when the switch is factory settings. The time may differ if the setting is changed. ※2: The weight includes packaging. The weight in parenthesis is for unit only. ※ T  - Time when OSSD output is switched from ON to OFF state  - Time when OSSD output is switched from OFF to ON state (When the time of shading object in the detection zone is less than 80ms, the OSSD output remains OFF state for at least 80ms. And then it is switched to ON state.) © Copyright Reserved Autonics Co., Ltd.

  • Page 20: Hand-Body Detection (Sfl(A)30-□-□, Ø30Mm)

    - Time when OSSD output is switched from OFF to ON state (When the time of shading object in the detection zone is less than 80ms, the OSSD output remains OFF state for at least 80ms. And then it is switched to ON state.) © Copyright Reserved Autonics Co., Ltd.

  • Page 21: How To Calculate The Response Time (Rt) For The Series Connection

    (4) 3 SET series connection of the standard type   • Connected light curtains: (SET 1 - SFL30-75, SET 2 - SFL30-75, SET 3 - SFL30-75)   • Total response time(T ): 23.1ms + 23.1ms + 23.1ms + 1ms = 70.3ms   • Total response time(T ): 53.9ms + 53.9ms + 53.9ms + 1ms = 162.7ms (5) 4 SET series connection of the advanced type   • Connected light curtains: (SET 1 - SFLA20-124, SET 2 - SFLA20-124, SET 3 - SFLA20-124, SET 4 - SFLA20-28)   • Total response time(T ): 32.3ms + 32.3ms + 32.3ms + 12.6ms + 2ms =111.5ms   • Total response time(T ): 76.6ms + 76.6ms + 76.6ms + 27.8ms + 2ms = 259.6ms © Copyright Reserved Autonics Co., Ltd.

  • Page 22: 3� Dimensions

    -|Transparent setting guide|- 3. Dimensions 3. Dimensions Emitter / Receiver 3.1.1 Fingter detection (Ø14mm) (unit: mm) © Copyright Reserved Autonics Co., Ltd.
  • Page 23 SFLA14-119-□ 1,080 1,062 SFLA14-127-□ 1,152 1,134 SFLA14-135-□ 1,224 1,206 SFLA14-143-□ 1,296 1,278 SFLA14-151-□ 1,368 1,350 ㅡ SFLA14-159-□ 1,440 1,422 SFLA14-167-□ 1,512 1,494 SFLA14-175-□ 1,584 1,566 SFLA14-183-□ 1,656 1,638 SFLA14-191-□ 1,728 1,710 SFLA14-199-□ 1,800 1,782 © Copyright Reserved Autonics Co., Ltd.

  • Page 24: Hand Detection (Ø20Mm)

    -|Transparent setting guide|- 3. Dimensions 3.1.2 Hand detection (Ø20mm) (unit: mm) © Copyright Reserved Autonics Co., Ltd.
  • Page 25 SFLA20-84-□ 1,263 1,245 SFLA20-88-□ 1,323 1,305 SFLA20-92-□ 1,383 1,365 SFLA20-96-□ 1,443 1,425 ㅡ SFLA20-100-□ 1,503 1,485 SFLA20-104-□ 1,563 1,545 SFLA20-108-□ 1,623 1,605 SFLA20-112-□ 1,683 1,665 SFLA20-116-□ 1,743 1,725 SFLA20-120-□ 1,803 1,785 SFLA20-124-□ 1,863 1,845 © Copyright Reserved Autonics Co., Ltd.

  • Page 26: Hand - Body Detection (Ø30Mm)

    -|Transparent setting guide|- 3. Dimensions 3.1.3 Hand - Body detection (Ø30mm) (unit: mm) © Copyright Reserved Autonics Co., Ltd.
  • Page 27 SFLA30-60 -□ 1,493 1,475 SFL30-63 -□ SFLA30-63 -□ 1,568 1,550 SFL30-66 -□ SFLA30-66 -□ 1,643 1,625 SFL30-69 -□ SFLA30-69 -□ 1,718 1,700 SFL30-72 -□ SFLA30-72 -□ 1,793 1,775 SFL30-75 -□ SFLA30-75 -□ 1,868 1,850 © Copyright Reserved Autonics Co., Ltd.

  • Page 28: Sold Separately

    -|Transparent setting guide|- 3. Dimensions Sold separately 3.2.1 Brackets Tighten the brackets screws with a torque of 0.98 N m. (1) Top/Bottom adjustable bracket (BK-SFL-TBA) (unit: mm) 13.5 M8-BOLT M6-BOLT M4-BOLT 12.8 (2) Top/Bottom bracket (BK-SFL-TBF) (unit: mm) 13.5 12.8 M8-BOLT M6-BOLT M4-BOLT © Copyright Reserved Autonics Co., Ltd.
  • Page 29 -|Transparent setting guide|- 3. Dimensions (3) Side adjustable bracket (BK-SFL-SA) (unit: mm) 49.9 10.5 M6-BOLT M6-BOLT (4) Side bracket (BK-SFL-SF) (unit: mm) 10.5 11.5 M6-BOLT M6-BOLT © Copyright Reserved Autonics Co., Ltd.

  • Page 30: Power I/O Cable

    Ø 6 20  Model name Length (L) Emitter (black) Receiver (black) SFL-BCT SFL-BCR 0.3m (2) Power I/O cable (wire type) Ø 6   • PVC Ø 6 20  Model name Length (L) Emitter (black) Receiver (black) SFL-C3T SFL-C3R SFL-C7T SFL-C7R SFL-C10T SFL-C10R SFL-C15T SFL-C15R ※ See the connector cable (socket type) for the color of wire.  © Copyright Reserved Autonics Co., Ltd.

  • Page 31: Connector Cable

    CID8-5T CID8-5R CID8-7T CID8-7R CID8-10T CID8-10R (2) Socket-plug type   • PUR 46.8   • PVC 43.8 Ø 6 Model name Length (L) Emitter (black) Receiver (black) C1D8-3T C1D8-3R C1D8-5T C1D8-5R C1D8-7T C1D8-7R C1D8-10T C1D8-10R C1D8-15T C1D8-15R C1D8-20T C1D8-20R © Copyright Reserved Autonics Co., Ltd.

  • Page 32: Y Type Connector Cable

    Color ② Emitter ③ Emitter Brown +24 VDCᜡ Blue 0 V White Reset input Orange Reset hold input / Mute 1 input Blue 0 V Yellow RS485 (B) Black AUX 2 output  RS485 (A) Pink AUX 2 output / Mute 2 input Black External test input White Reset input Brown +24 VDCᜡ  01)  U se the connector cable for the emitter to connect with the receiver.  02)  U se the power I/O cable for the emitter to connect with the product. © Copyright Reserved Autonics Co., Ltd.

  • Page 33: Series Connection Cable

    Lamp output 3.2.7 SFL / SFLA dedicated USB to Serial communication converter 1500 40.3 21.1 A.C.C (green, Rx / Tx Data Transmission) O.P.R (red, Power) Model name Length (L) SCM-SFL 1500mm 3.2.8 Test piece The test piece is a black opaque object. Model name Diameter(D) Length(L) SFL-T14 Ø14mm SFL-T20 Ø20mm 200mm SFL-T30 Ø30mm © Copyright Reserved Autonics Co., Ltd.
  • Page 34 -|Transparent setting guide|- 3. Dimensions 3.2.9 LOTO (Lockout-Tagout) device The optical axis is forcibly blocked to maintain the interlock condition to prevent the equipment from restarting. For using the safety related functions (muting, blanking, reduced resolution) that disable detection, thoroughly analyze the  potential for hazards and install this device.  (1) SFL-LT (unit: mm) 37.5 ± 0.5 29    + 0.5 - 0.2 14.6 Ø 6.4 (2) SFL-LT2 (unit: mm) 64.5 © Copyright Reserved Autonics Co., Ltd.

  • Page 35: Unit Descriptions

    4. Bottom beam indicator: It light up when the bottom beams are in the normal state without interruption. [Emitter] 5. Frequency indicator (FREQ): When using mutual interference prevention, it shows the frequency you set. 6. External test indicator (TEST): It lights up when the external test signal is applied. 7. Interlock indicator (INTL): It lights up when entering to the interlock. [Receiver] 8. EDM indicator (EDM): It lights up when EDM input is on. 9. NPN/PNP indicator (NPN): It lights up in the NPN and is turned off in the PNP. 10. OSSD indicatr (OSSD): I t lights up in green when the OSSD outputs are in the ON state, and in red when the OSSD outputs are in the OFF state. ※For more information on the indicators, see "3.4.1 Status indicators". © Copyright Reserved Autonics Co., Ltd.
  • Page 36 11. 7-Segment display: It shows the status of light curtain. ※For more information on the indicators, refer to the "3.4.2 7-Segment display".  12. PC communication port: Insert the connect to the SFL / SFLA dedicated USB to Serial communication converter. 13. Setting switch: You can set the function. ※For more information on the setting swtich, refer to the "3.4.3 Setting switch". (3) Upper part 14. Lamp output terminal : I t is located on the top of the emitter and receiver. Insert the lamp output cable and connect the external output indicator. Tighten the end cap screws with a torque of 0.59 N m.        In case of the series connection, use dedicated series connection cable to connect light curtains. (4) Bottom part 15. Power supply terminal : I t is located on the bottom of the emitter and receiver. Insert the power I/O cable for power supply. Tighten the end cap screws with a torque of 0.59 N m.        In case of the series connection, use dedicated series connection cable to connect light curtains. © Copyright Reserved Autonics Co., Ltd.

  • Page 37: Status Indicators

    Set frequency A External test input is ON state. 6. External test indicator (TEST) Green Emitter External test input is OFF state. Interlock condition 7. Interlock indicator (INTL) Yellow Flashing Reset-hold condition Release interlock condition EDM input is ON state. 8. EDM indicator (EDM) Green Flashing EDM error ※2 EDM input is OFF state or EDM is deactivated. Receiver NPN output 9. NPN/PNP indicator (NPN) Green PNP output Green OSSD is ON 10. OSSD indicator (OSSD) OSSD is OFF ※1: It flashes if the amount of received light on the top or bottom beam decreases less than from 15 to 35%, and lasts for      more than 30 minutes. ※2: The light curtain enters the lockout condition. For more information on error and warnings, see "11. Troubleshooting". ※In series connection, the indicators all but OSSD indicators at top and bottom are displayed based on the master status of  the receiver. You can check error and warnings saved for each set via the dedicated software (atLightCurtain).  ※The indicator flashes every 1 second. © Copyright Reserved Autonics Co., Ltd.

  • Page 38: 7-Segment Display

    Blanking Displays when the blanking function is activated. Muting Displays when in the muting state. Emitter Override Displays when in the override state. Reset-hold Displays when waiting for reset-hold input. Reduced resolution Displays when the reduced resolution function is activated. Displays the sensitivity level of beams with the lowest light  Receiver Light incident incident (from 0 to 9 level). (3) During error condition When entering lockout condition or warning condition, codes are displayed every 2 seconds based on the following order. i.  Error code [E] or warning code [A] ii.  1 level of error or warning code [0 to  9 ] iii.  2 level of error or warning code [0 to 9] iv.  After turning off, repeat ⅰ, ⅱ, and ⅲ.  ※In series connection, the segment indicators all but light incident display are displayed based on the master status of the  emitter and receiver. However, when an error or warning occurs, all connected light curtains enter the lockout state.  And the relevant condition is displayed at the segment LEDs of the light curtain that has the error. ※For more information on error and warnings, see "11. Troubleshooting". © Copyright Reserved Autonics Co., Ltd.

  • Page 39: Setting Switch

    Frequency A or B Reset-hold Reset-hold (R-H) Deactivated (OFF) Interlock Manual reset (MAN) Auto reset (AUTO) Deactivated (OFF) Muting MUTE Deactivated (OFF) Apply settings atLightCurtain (PC) Setting switch (SW) When you change the switch settings, keep the following points in mind.   • Be sure to complete the settings before applying the power. When the switch settings is changed during operation, light  curtain enters lockout condition because of switch error.    • When the reset hold switch and muting switch are in ON state at the same time, they enter the lockout conditon.   • When the switch settings of muting is ON position, the auxiliary output 2 (AUX 2) is deactivated.   • When the switch settings of applying setting is OFF position, the switch settings are applied to the light curtain. If it is ON  position, the settings of atLightCurtain is applied to the light curtain. The switch settings are ignored.   • In case of SFL (standard type), the position 8 of the setting switch is always OFF. ※For more information on error and warnings, see "11. Troubleshooting". © Copyright Reserved Autonics Co., Ltd.

  • Page 40: 4� General Functions

      • Light receiving circuit   • Setting switch   • Setting switch   • Memory   • Memory   • Communication   • Communication   • Configuration of product connection   • Configuration of product connection   • Lamp 2 output (when connected)    • Lamp 1 output (when connected)   • Setting information © Copyright Reserved Autonics Co., Ltd.

  • Page 41: Alarm For Incident Light Level

    For more information on error and warnings, see "11. Troubleshooting". 150% Stable light ON  30min Sensitivity  reduction  level OSSD ON level Unstable light ON  OSSD OFF level Stable light OFF  OSSD Auxiliary output [Output phase:  reverse] Auxiliary output [Output mode:  sensitivity reduction] For the sensitivity level based on the incident light level, see the table below. Sensitivity level  Incident light level(%) 15 to 30 30 to 45 45 to 60 60 to 75 75 to 90 90 to 105 105 to 121 121 to 135 135 to 150 © Copyright Reserved Autonics Co., Ltd.

  • Page 42: Ossd Output

    ※2: It may differ depending on the series connection. ※If the pattern timing by the feedback signal is incorrect due to overcurrent or short-circuit of the output cable, light  curtain enters lockout condition due to incorrect wiring or internal circuit damage of OSSD. Make sure that devices  connected to the OSSD do not respond to any OFF signal from self-diagnosis. ※For more information on error and warnings, see "11. Troubleshooting". Mutual interference prevention When you install more than two products, there is a risk of mutual interference. Change the frequency to prevent this interference. Change to frequency A or B using setting switch or atLightCurtain. If you change the frequency, the response time may be changed and affect original response time. 4.5.1 Change settings You can change settings via setting switch or atLightCurtain. Only SFLA (advanced type) support atLightCurtain to change settings. Setting method Setting item Setting range Factory default atLightCurtain Setting switch (pin.no) Frequency Frequency A/B Frequency A ○ ○(3) ※When setting to frequency A, the frequency indicator turns off, and when setting to frequency B, it lights green.  For more information, see "3.4.1 Status indicators". © Copyright Reserved Autonics Co., Ltd.

  • Page 43: 5� Safety-Related Function

    × × ※2 Fixed × × Blanking ※3 ※4 ※5 Floating × × Blanking ※3 ※4 ※5 Reduced × × × × Resolution ※1: The reset-hold function is available only when the manual reset is activated. ※2:  T he auxiliary output of emitter (AUX2) and reset-hold functions are not available when the muting or override is  activated. ※3: The functional combination of the reset-hold with fixed blanking and floating blanking is unavailable. ※4: Both the muting zone and blanking zone can be set simultaneously.  ※5:  B oth Functions, fixed blanking and floating blanking, are simultaneously configurable, but a zone where the two  functions overlap cannot be set. © Copyright Reserved Autonics Co., Ltd.

  • Page 44: Interlock

    The interlock condition is released by applying the reset input. Apply reset input for more than 250ms. (In this case, the reset-hold function is deactivated.) Power Interlock condition Clear Light curtain Blocked min.  250ms  Reset input max. 50ms   ※1 OSSD ※1: It may differ depending on the series connection. Entry condition of start interlock:   • When power is on   • Performs self-test after lockout reset   • Performs self-test after changing PC settings © Copyright Reserved Autonics Co., Ltd.
  • Page 45 Clear all works in the hazardous zone and then press the ② Reset hold (Wait for reset hold) reset hold switch (S2). Interlock Go back to the safety zone passing by the detection zone ③ Enter safety zone (Wait for reset hold) within the maximum timeout ④ Reset input Reset interlock Press the reset switch (S1) to reset the interlock If interlock is not released when reset input is applied, check the following cases and start the procedure again from the beginning.   • When the reset input is applied without applying the reset hold input   • When the reset input is applied without passing by the detection zone after applying the reset hold input    • When reset input or reset hold input is less than 250ms   • When reset input or reset hold input is applied while the detection zone is interrupted   • The reset hold wait time is released exceeding the reset-hold timeout after the reset hold input is applied © Copyright Reserved Autonics Co., Ltd.
  • Page 46 Interlock condition ① ② ③ ④ Clear Light curtain Blocked min.  250ms Reset-hold input min.  250ms Reset input max. T1 Reset-hold condition Auxiliary output (AUX, Lamp) OSSD max. 50ms ※1 ※1: It may differ depending on the series connection. ※If the reset hold input is applied, light curtain enters the reset hold condition, is maintained for the reset-hold timeout (T1). ※The interlock condition is released only when the reset input is applied after passing by the detection zone  within the maximum timeout (T1).  In the series connection, the light curtains judge that an object passed by the detection zone if one light curtain is  blocked. The interlock condition is not released unless the reset input is applied even if an object passing by the  detection zone several times within the reset-hold timeout(T1). The reset-hold condition has been deactivated after the  reset-hold timeout(T1). ※Please apply over 250ms for reset hold input or reset input. ※In case of advanced type, auxiliary output (AUX) and lamp output (Lamp) can be set to reset hold condition via atLightCurtain. © Copyright Reserved Autonics Co., Ltd.

  • Page 47: Wiring

    Factory default atLightCurtain Setting switch (pin no.) Auto reset Auto reset Enable/Disable Enable ○(5) Start interlock Enable/Disable Disable Manual reset ○(5) Restart interlock Enable/Disable Disable ○ Reset-hold Enable/Disable Disable ○(4) Reset-hold Timeout(T1) 1-60s ※When the function is activated by the setting switch, the setting range is the factory default. ※When setting manual reset by setting switch, the state of start interlock and restart interlock are the same. ※Combination of auto reset and reset hold is unavailable. When setting these at the same time, operating as auto reset. ※Combination of reset hold, muting, and override is unavailable. When setting these at the same time, entering the lockout  condition. ※For more information on error and warnings, see "11. Troubleshooting". © Copyright Reserved Autonics Co., Ltd.

  • Page 48: Lockout Reset

    The lockout is reset from all sets when releasing lockout. : OSSD response time OSSD Release lockout condition Lockout condition min. 1s Self-test Reset input 5.2.1 Wiring NPN output PNP output (Brown)+24VDC (Brown)+24VDC (White)Reset input Emitter Emitter (White)Reset input (Blue)0V (Blue)0V ※Install reset switch (S1) to release lockout and use normally closed (N.C.) contact switch. ※Install reset switch (S1) in a position where the entire hazardous zone is visible and cannot be used in the hazardous  zone. ※The reset hold input is unavailable to reset the lockout. ※For more information on error and warnings, see "11. Troubleshooting". © Copyright Reserved Autonics Co., Ltd.

  • Page 49: External Device Monitoring (Edm)

    Receiver (Orange)EDM input (Blue)0V (Blue)0V ※Install external relay (K1, K2) for EDM input and use normally closed (N.C.) contacts switch for the rated voltage. ※Be sure to use a magnetic contactor or external relay with force-guided contacts as the K1 and K2 for proper usage.  5.3.2 Change settings You can change settings via setting switch or atLightCurtain. Only SFLA (advanced type) support atLightCurtain to change settings. Setting method Function Setting item Setting range Factory default atLightCurtain Setting switch (pin no.) EDM function Enable/Disable Disable ○(6) ○ Timeout(T1) 0.1 - 4sec 0.3sec ※When the function is activated by the setting switch, the setting range is the factory default. ※The EDM function should be activated by the setting switch or atLightCurtain to monitor the EDM indicator on the  receiver. If not, the indicator doesn't show the status of EDM. ※For more information on error and warnings, see "11. Troubleshooting". © Copyright Reserved Autonics Co., Ltd.

  • Page 50: Muting

    For more information on error and warnings, see "11. Troubleshooting". For more information on the external indicators, see "6.6 Lamp output (Lamp 1/2)" 5.4.1 Standard mode The standard mode is the factory default of muting. Muting starts by signals from the correct mute input sequence which you set. The initial setting of mute input sequence is 1 → 2 and it can be changed via atLightCurtain.   • Muting start condition (All conditions are required.) i.  Not lockout condition ii.  There is no object in the detection zone and the OSSD output is in ON state.  (If you use the muting function with the blanking function, keep the blanking zone blocked.) iii.  Mute 1 and mute 2 inputs are applied within the range of mute input time limit (T1min - T1max)  based on the sequence you set. iv.  The monitoring result of lamp output is normal. (The output mode of lamp output should be set to Muting/Override.)Muting end condition (One or more conditions are  required.) © Copyright Reserved Autonics Co., Ltd.
  • Page 51 ※2 ※2 max. T2 Muting Upper OSSD  indicator (green) ※1 Clear Light curtain Blocked OSSD ※1: The upper OSSD indicator flashes every 1 second. ※2: It may differ depending on the series connection. ※ M ute input time limit (T1min - T1max) is the time difference between mute 1 input, and mute 2 input. Muting starts by  signals from the correct mute input sequence which you set. The signals should be applied within a range of the mute  input time limit.(T1min < T1max) ※The muting timeout (T2) is the maximum value that the muting condition can be maintained. ※If the mute input is temporarily interrupted during the muting, it will operate normally when it returns within the  allowable mute input time (0.1 sec.). If the mute input is not applied within the allowable mute input time or the mute  input is unstable, the light curtain operates like below.   - In muting condition:  M uting ends and goes into warning condition. OSSD output is displayed based on the state of  beams that are clear or blocked.   - Not in muting condition:  M uting does not begin even if the sequence of the mute inputs are correct.  Muting sensor error is displayed on the segment LEDs. ※The auxiliary output (AUX 1/2) or lamp output (Lamp 1/2) can display the muting condition. For more information, see "6.5 Auxiliary output (AUX 1/2)", "6.6 Lamp output (Lamp 1/2)" ※For more information on error and warnings, see "11. Troubleshooting". © Copyright Reserved Autonics Co., Ltd.
  • Page 52 T1min sec Min value of mute Input time limit (T1) T1max sec Max value of mute Input time limit (T1) ※To begin the muting and maintain it, make sure that the distance (D) must be smaller than the length (L) of the detection  object. (D < L) ※Be sure to set the time between first mute input and the second mute input (D/V) within the mute input time limit. (T1min < (D/V)< T1max)  Example of operation Order ●: ON, ●: OFF) Safety zone Hazardous zone Reflector Receiver ※1 Workpiece ① Emitter Reflector The muting sensors (S1, S2) are in OFF state before the workpiece passes. Mute 1 input Muting is deactivated but the sensing function is activated. ● ● ※1: I nstall the muting sensors whose intersection should be located in a hazardous Mute 2 input zone to prevent starting the muting by an operator. ● ● © Copyright Reserved Autonics Co., Ltd.
  • Page 53 Order ●: ON, ●: OFF) Safety zone Hazardous zone Reflector Receiver ② Emitter Reflector The muting sensors (S1, S2) detect the workpiece and outputs go to ON state in Mute 1 input ● ● order and muting begins. The sensing function is deactivated. Even if the beams of muting zone are blocked, the OSSD output maintains ON. Mute 2 input ● ● Safety zone Hazardous zone Reflector Receiver Workpiece ③ Emitter Reflector The output of muting sensor (S2) maintains ON state but the muting sensor (S1) is Mute 1 input ● ● in OFF state. The muting ends and the sensing function is activated. Mute 2 input ● ● © Copyright Reserved Autonics Co., Ltd.
  • Page 54 -|Transparent setting guide|- 5. Safety-related function (3) Timing chart T1min: Min value of mute input time limit T1max: Max value of mute input time limit T2: Muting timeout ① ② ③ Sequence T1min- T1max Mute 1 input (muting sensor S1) Mute 2 input (muting sensor S2) max. 50ms max. 0.15s   ※1 ※1 max. T2  Muting Upper OSSD  indicator (green) Clear Light curtain Blocked OSSD ※1: It may differ depending on the series connection. © Copyright Reserved Autonics Co., Ltd.
  • Page 55   • Installation example Muting sensors (S1, S2, S3, S4): T hrough-beam photoelectric sensor (Output is ON when sensing the object, Dark ON mode) Muting sequence: Mute input 1 → 2 ※Connect the outputs of muting sensors (S1, S3) to mute 1 input. ※Connect the outputs of muting sensors (S2, S4) to mute 2 input. Item Unit Description Length of the object Velocity of the object The distance at the muting sensors labeled S1/S2 firstly detect an object. (When the detection object moves to the right.) Distance between the muting sensors labeled S2/S4 Distance between the muting sensors labeled S1/S3 T1min Min value of mute Input time limit (T1) T1max Max value of mute Input time limit (T1) ※Be sure to install the muting sensors for the values of D2 and D3 shorter than the L. (D2 < L, D3 < L) ※ M uting begins when mute 2 input is applied after mute 1 input is applied within the mute input time limit (T1).  (T1min < (D/V) < T1max) © Copyright Reserved Autonics Co., Ltd.
  • Page 56 Connect the outputs of muting sensors (S2, S4) to mute 2 input. ● ● All muting sensors (S1 - S4) are in OFF state before the workpiece passes. ● Mute 2 input Muting is deactivated but the sensing function is activated. ● ● Safety zone Hazardous zone Receiver Workpiece ② Emitter ● ● ● ● (ON) (ON) (OFF) (OFF) The muting sensors (S1, S2) detect the workpiece and outputs go to ON state in Mute 1 input  ● ● order and muting begins. The sensing function is deactivated. ● Even if the beams of muting zone are blocked, the OSSD output maintains ON. Mute 2 input ● ● ● © Copyright Reserved Autonics Co., Ltd.
  • Page 57 ● (S1, S2) are in OFF state, the OSSD output is in ON state. ● The sensing function is deactivated. Mute 2 input  ● ● ● Example of operation Order ●: ON, ●: OFF) Safety zone Hazardous zone Receiver ④ Emitter ● ● ● ● (OFF) (OFF) (OFF) (ON) Mute 1 input ● The output of muting sensor (S3) is switched to OFF state and the mute 1 input is in ● ● OFF state. The muting ends and the sensing function is activated. Mute 2 input ● ● ● © Copyright Reserved Autonics Co., Ltd.
  • Page 58 T1min: Min value of mute input time limit T1max: Max value of mute input time limit T2: Muting timeout ① ② ③ ④ Sequence Muting sensor S1 (Mute 1 input) Muting sensor S2 (Mute 2 input) Muting sensor S3 (Mute 1 input) Muting sensor S4 (Mute 2 input) Mute 1 input T1min- T1max Mute 2 input max. 50ms max. 0.15s   ※1 ※1 max. T2  Muting Upper OSSD  indicator (green) Clear Light curtain Blocked OSSD ※1: It may differ depending on the series connection. © Copyright Reserved Autonics Co., Ltd.
  • Page 59   • Installation example Muting sensors (S1, S2, S3, S4): T hrough-beam photoelectric sensor (Output is ON when sensing the object, Dark ON mode) Muting sequence: Mute input 1 → 2 ※Connect the outputs of muting sensors (S1, S4) to mute 1 input. ※Connect the outputs of muting sensors (S2, S3) to mute 2 input. Item Unit Description Length of the object Velocity of the object The distance at the muting sensors labeled S1/S2 firstly detect an object. (When the detection object moves to the right.) The distance at the muting sensors labeled S3/S4 firstly detect an object. (When the detection object moves to the left.) Distance between the muting sensors labeled S1/S4. T1min Min value of mute Input time limit (T1) T1max Max value of mute Input time limit (T1) ※Be sure to install the muting sensors for the value of D3 shorter than the L. (D3 < L) ※Muting begins when mute 2 input is applied after mute 1 input is applied within the mute input time limit (T1).  (T1min < (D1/V) < T1max or T1min < (D2/V) T1max) © Copyright Reserved Autonics Co., Ltd.
  • Page 60 (OFF) (OFF) S1 ● Mute 1 input ● The muting sensors (S1, S2) detect the workpiece and outputs go to ON state in order and muting begins. The sensing function is deactivated. ● Even if the beams of muting zone are blocked, the OSSD output maintains ON. Mute 2 input ● ● ● Safety zone Hazardous zone Receiver Workpiece ③ Emitter ● ● ● ● (OFF) (OFF) (ON) (ON) S1 ● Mute 1 input ● The muting sensors (S3, S4) are switched to ON state even if the muting sensors (S1, S2) are in OFF state, the OSSD output maintains ON state. ● The sensing function is deactivated. Mute 2 input ● ● ● © Copyright Reserved Autonics Co., Ltd.
  • Page 61 -|Transparent setting guide|- 5. Safety-related function Example of operation Order ●: ON, ●: OFF) Safety zone Hazardous zone Receiver Workpiece ④ Emitter ● ● ● ● (OFF) (OFF) (OFF) (ON) S1 ● Mute 1 input ● The output of muting sensor (S3) is switched to OFF state and the mute 2 input is in ● OFF state. The muting ends and the sensing function is activated. Mute 2 input ● ● ● © Copyright Reserved Autonics Co., Ltd.
  • Page 62 T1min: Min value of mute input time limit T1max: Max value of mute input time limit T2: Muting timeout ① ② ③ ④ Sequence Muting sensor S1 (Mute 1 input) Muting sensor S2 (Mute 2 input) Muting sensor S3 (Mute 1 input) Muting sensor S4 (Mute 2 input) Mute 1 input T1min- T1max Mute 2 input max. 50ms max. 0.15s   ※1 ※1 max. T2  Muting Upper OSSD  indicator (green) Clear Light curtain Blocked OSSD ※1: It may differ depending on the series connection. © Copyright Reserved Autonics Co., Ltd.

  • Page 63: Exit-Only Mode

    However, the both directions (1↔2) is unavailable.   • Muting start condition (All conditions are required.) xi.  Not lockout condition xii. There is no object in the detection zone and the OSSD output is in ON state. (If you use the muting function with the blanking function, keep the blanking zone blocked.) xiii. Mute 1 and mute 2 inputs are applied within the range of mute input time limit (T1min - T1max)  based on the sequence you set. xiv. The monitoring result of lamp output is normal. (The output mode of lamp output should be set to Muting/Override.)   • Muting end condition (One or more conditions are required.) i.  Enter lockout condition ii.  The muting zone is not blocked within the maximum mute input time limit (T1max) after the muting is activated. iii.  Mute 1 input or mute 2 input maintains OFF state for more than the allowable mute input time (max. 0.1 seconds) and  remains the blocked state during the exit-only muting wait time (T3). iv.  The mute input is unstable within the allowable mute input time. v.  The beams except the muting zone are blocked. (If you use the muting function with the blanking function, the muting ends if there is no object in the blanking zone.)  vi.  The muting end wait time (0.1sec) is exceeded after the object passes through the detection zone. vii. The muting timeout (T2) is exceeded. viii.  T he monitoring result of lamp output is abnormal.  (The output mode of lamp output should be set to Muting/Override.) © Copyright Reserved Autonics Co., Ltd.
  • Page 64 Upper OSSD  indicator (green) ※1 Clear Light curtain Blocked Muting end max. T1max wait time OSSD ※1: The upper OSSD indicator flashes every 1 second. ※2: It may differ depending on the series connection. ※Mute input time limit (T1min - T1max) is the time difference between mute 1 input, and mute 2 input. Muting starts by  signals from the correct mute input sequence which you set. The signals should be applied within a range of the mute  input time limit.(T1min < T1max) ※The muting timeout (T2) is the maximum value that the muting condition can be maintained. ※Exit-only muting wait time (T3) is the time until the muting function ends after the mute input is switched to the OFF  state. ※ I f the mute input is temporarily interrupted during the muting, it will operate normally when it returns within the  allowable mute input time (0.1 sec). If the mute input is not applied within the allowable mute input time or the mute  input is unstable, the light curtain operates like below. - In muting condition:  M uting ends and goes into warning condition.  OSSD output is displayed based on the state of beams that are clear or blocked. - Not in muting condition:  M uting does not begin even if the sequence of the mute inputs are correct.  Muting sensor error is displayed on the segment LEDs. ※The auxiliary output (AUX 1/2) or lamp output (Lamp 1/2) can display the muting condition. For more information, see "6.5 Auxiliary output (AUX 1/2)", "6.6 Lamp output (Lamp 1/2)" ※For more information on error and warnings, see "11. Troubleshooting" © Copyright Reserved Autonics Co., Ltd.
  • Page 65 T1max sec Max value of mute Input time limit (T1) ※ I f mute 2 input is applied within mute input time limit (T1) after mute 1 input is applied, the muting starts.  (T1min <(D1 / V) <T1max) ※Be sure to maintain the muting condition after the detection object passes through the muting sensor and  the detection zone. The following formula must be satisfied. ((D2/V) < T3) Example of operation Order ●: ON, ●: OFF) Hazardous zone Safety zone Receiver Workpiece ① Emitter ● ● (OFF) (OFF) The muting sensors (S1, S2) are in OFF state before the workpiece passes. Mute 1 input ● S1 ● The muting condition does not start and sensing function is activated. ※ : I nstall the muting sensors located in a hazardous zone to prevent starting the Mute 2 input ● muting by an operator. ● © Copyright Reserved Autonics Co., Ltd.
  • Page 66 Hazardous zone Safety zone Receiver Workpiece ③ Emitter ● ● (OFF) (ON) Even if the output of the muting sensor(S2) maintains ON state, the muting Mute 1 input ● S1 ● sensor(S1) is switched to OFF state. The muting condition is maintained for the exit- only muting wait time (T3). The sensing function is deactivated. Mute 2 input ● ● Hazardous zone Safety zone Receiver Workpiece  ④ Emitter ● ● (OFF) (OFF) Even if both muting sensors (S1, S2) are switched to OFF state within exit-only Mute 1 input ● S1 ● muting wait time (T3), the muting condition is maintained. The sensing function is deactivated. Mute 2 input ● ● © Copyright Reserved Autonics Co., Ltd.
  • Page 67 (3) Timing chart T1min: Min value of mute input time limit T1max: Max value of mute input time limit T2: Muting timeout T3: Exit-only muting wait time Muting end wait time: 0.1sec ① ② ③ ④ ⑤ Sequence T1min- T1max Mute 1 input (Muting sensor S1) Mute 2 input (Muting sensor S2) max. 0.15s max. 50ms ※1 ※1 max. T2 Muting max. T3  Upper OSSD  indicator (green) max. T1max Muting end wait time Clear Light curtain Blocked OSSD ※1: It may differ depending on the series connection. © Copyright Reserved Autonics Co., Ltd.

  • Page 68: Change Settings

    ○ Muting sensor 2 N.O./N.C. N.O. Min value of mute input time limit 0.03-3.9sec 0.03sec (T1min) Max value of mute input time limit 0.1-10sec 3sec (T1max) Muting timeout (T2) 0-3600sec 60sec ※3 Exit-only muting wait time(T3) 0.1-4sec 4sec ※When the function is activated by the setting switch, the setting range is the factory default. ※1:  E ven if the beams set to the muting zone are blocked, the OSSD output remains ON state. When using a combination  of muting and blanking functions, the muting zone and the blanking zone can be overlapped.  The muting zone can be set manually or automatically in atLightCurtain.  atLightCurtain User Manual For more information, see “ .” ※2: When muting mode is set to exit-only mode, the muting sequence cannot be set in both directions. ※3:  I f you set the Muting timeout (T2) to 0, it is set to 'unlimited' and it may cause continuous muting condition  unintentionally. In this case, the operator should perform a sufficient risk assessment and take additional safety  measures. © Copyright Reserved Autonics Co., Ltd.

  • Page 69: Override

    It may result in personal injury.   • Override start conditions (All conditions are required.) ix.  Not lockout condition x.  The object is in the detection zone and the OSSD output is in OFF state. xi.  One or more mute input is in ON state. xii. Reset input is in OFF state for more than override input time limit (T1). xiii. The monitoring result of lamp output is normal. (The output mode of lamp output should be set to Muting/Override.)   • Override end condition (One or more conditions are required.) i.  Enter lockout condition ii.  All mute inputs are in OFF state. (In case of the exit-only muting mode, the override is deactivated after the exit-only muting wait time and  cannot exceeds override timeout (T2).) iii.  All beams are clear and the muting end wait time is exceeded. (This is only for the exit-only muting mode.) iv.  The duration of override period exceeds the override timeout (T2). v.  The reset input is switched to the ON state from the OFF state. vi.  The monitoring result of lamp output is abnormal.  (The output mode of lamp output should be set to Muting/Override.) © Copyright Reserved Autonics Co., Ltd.

  • Page 70: Wiring

    ※1 max. T2  Clear Light curtain Blocked OSSD ※1: The upper OSSD indicator flashes every 1 second. ※2: It may differ depending on the series connection. ※The auxiliary output (AUX 1/2) or lamp output (Lamp 1/2) can display the override condition. For more information, see "6.5 Auxiliary output (AUX 1/2)", "6.6 Lamp output (Lamp 1/2)". 5.5.1 Wiring NPN output PNP output (Brown)+24VDC (Brown)+24VDC (White)Reset input (Orange)Mute 1 input (Pink)Mute 2 input Emitter Emitter (Pink)Mute 2 input (Orange)Mute 1 input (White)Reset input (Blue)0V (Blue)0V ※Install override switch (S3) and muting sensors (S1, S2) to start override. ※Muting sensors (S1, S2) have the same output type (NPN, PNP) and 3-wire transistor output.  Use sensors that output is ON when detecting an object, and operate in Dark ON mode. ※ I n case of SFL (standard type), use the muting sensors with N.O. contact.  In case of SFLA (advanced type), use atLightCurtain to set N.O. or N.C. contact based on the output type of muting sensor. © Copyright Reserved Autonics Co., Ltd.

  • Page 71: Change Settings

    Change settings You can change settings via setting switch or atLightCurtain. Only SFLA (advanced type) support atLightCurtain to change settings. Setting method Function Item Setting range Factory default atLightCurtain Setting switch (pin no.) Override function Enable/Disable Disable ○(7) Override Input time limit (T1) 1-5sec 3sec ○ Timeout (T2) 0-60sec 60sec ※1 ※The override function can be activated with the muting setting switch. Override is only available when the muting  function is activated. (In case of advanced type, it can be activated separately.) ※If the function is activated by the setting switch, the setting range is the factory default. ※Override is applied to all beams regardless of the muting zone. ※1:  I f you set the Timeout (T2) to 0, it is set to 'unlimited' and it may cause continuous override condition unintentionally.  In this case, the operator should perform a sufficient risk assessment and take additional safety measures. © Copyright Reserved Autonics Co., Ltd.

  • Page 72: Blanking

    Changed item Detection capability in the fixed blanking zone (optical axis pitch) Number of Tolerance beams Ø14mm (9mm) Ø20mm (15mm) Ø30mm (25mm) Ø14mm Ø20mm Ø30mm Ø14mm Ø20mm Ø30mm Ø23mm Ø35mm Ø55mm Ø14mm Ø20mm Ø30mm Ø23mm Ø35mm Ø55mm … … … … … Ø14mm Ø20mm Ø30mm Ø23mm Ø35mm Ø55mm © Copyright Reserved Autonics Co., Ltd.
  • Page 73 Zone 1 Zone 2 Zone 1 Zone 2   • When setting the tolerance in fixed blanking zone i.  I f the tolerance is not set, when beams of fixed blanking zone are clear, it follows the error mode you set.  (number of fixed blanking beam: 3, tolerance: 0) Fixed object Fixed  object OSSD ON OSSD OFF (Fixed blanking) (Fixed blanking error) ii.  I f the tolerance is set, when beams of fixed blanking zone are clear, it follows the error mode you set. (number of fixed blanking beam: 4, tolerance: 2) Fixed object Fixed  object OSSD ON OSSD OFF (Fixed blanking) (Fixed blanking error) © Copyright Reserved Autonics Co., Ltd.
  • Page 74 Fixed object Fixed object Blanking zone Blanking zone v.  The tolerance can be set in each fixed blanking zone. The tolerance cannot be adjacent to each other. Tolerance Tolerance Tolerance Tolerance Fixed object Fixed object Fixed object Fixed object Blanking zone 1 Blanking zone 2 Blanking zone 1 Blanking zone 2 © Copyright Reserved Autonics Co., Ltd.

  • Page 75: Floating Blanking

    Ø130mm Ø59mm Ø95mm Ø155mm … … … … … … … 14-15 13-15 Ø149mm Ø245mm Ø405mm 12-15 11-15 10-15 N(1-15) (0-5) (N-N 14+(9×N) 20+(15×N) 30+(25×N) ※1:  A  condition of the minimum number of beams to keep the OSSD output in ON state, if the number of continuously  blocked beams in floating blanking zone is less than the minimum number of floating beams, causing a blanking error. Be sure to configure the floating blanking zone to meet the condition below. [min value of floating beams] = [floating beams] - [tolerance] ※2: The condition of number of beams that OSSD output is switched to OFF state when light curtain is blocked.  ※3: It is determined by physical optical axis pitch and changed detection capability after applying blanking function. ※If no zone is specified, floating blanking is unapplied, and the detection capability keeps the factory defaults. © Copyright Reserved Autonics Co., Ltd.

  • Page 76: Use The Floating Blanking With Fixed Blanking Zone

    Floating blanking zone Fixed blanking Fixed blanking Zone 1 Zone 2 ii.  When you set the tolerance in the fixed blanking zone, leave space with one or more beams between each zone. Floating blanking zone Floating blanking zone Fixed blanking Fixed blanking Fixed blanking Fixed blanking Zone 1 Zone 2 Zone 1 Zone 2 © Copyright Reserved Autonics Co., Ltd.

  • Page 77: Change Settings

    Floating blanking function Enable/Disable Disable ○ Floating blanking zone Range of beams None ※1 Floating Floating beams 1-15 blanking 1 zone Tolerance Error mode Warning/Lockout Warning ※2 ※1:  T he OSSD output is maintained ON state when beams of blanking zone are blocked.  If you use the blanking with the muting function, the muting zone and blanking zone can be overlapped. Set the blanking zone via manual or automatic setting in atLightCurtain.  atLightCurtain User Manual For more information, see " ."  atLightCurtain User Manual ."  ※2:The error mode can be set as warning or lockout, see " © Copyright Reserved Autonics Co., Ltd.

  • Page 78: Reduced Resolution

    (OSSD OFF) Ø14mm Ø23mm Ø14mm Ø32mm Ø41mm Ø20mm Ø35mm Ø20mm Ø50mm Ø65mm Ø30mm Ø55mm Ø30mm Ø80mm Ø105mm ※Even if the size of object smaller than ignored beams is removed, the condition of light curtain is not changed to warning  or locktout and the OSSD outputs maintain ON state. ※The OSSD output is switched based on the largest zone among the blocked zones, so that OSSD output maintains ON state when the beams are discretely blocked by the object smaller than the ignored beams. (1) Setting example   • When the number of ignored beams is two i.  The OSSD output remains ON state when the reduced resolution is activated and two beams are blocked. Function deactivated Function activated OSSD OFF OSSD ON © Copyright Reserved Autonics Co., Ltd.

  • Page 79: Change Settings

    (2) Setting example of series connection In case of the series connection, the number of ignored beams set by the master is applied to the slaves. The figure below is an example when the ignored beams are two. Function activated Function activated Slave Master OSSD ON OSSD OFF (Exceed ignored beams) 5.7.1 Change settings Only SFLA (advanced type) supports atLightCurtain to change settings. Setting item Function Setting range Factory default atLightCurtain Setting switch Reduced resolution function Enable/Disable Disable Reduced ○ resolution Ignored beams ※The reduced resolution cannot be set with the muting and blanking function, be sure to active the reduced resolution  only when these are deactivated. ※As the detection capability is changed, calculate the safety distance again to ensure the minimum safety distance.  © Copyright Reserved Autonics Co., Ltd.

  • Page 80: 6. Other Functions

    For example, if any light curtain is blocked, the OSSD outputs of all light curtains are switched to OFF state. If a product failure occurs, all light curtains enter the lockout condition. 4 SET (Slave 3) 3 SET 3 SET (Slave 2) (Slave 2) 2 SET 2 SET (Slave 1) (Slave 1) 1 SET 1 SET (Master) (Master) SFL Series SFLA Series (standard type) (advanced type) ※There is no mutual interference prevention in series connection. ※When the maximum number of connected light curtains or beams is exceeded, entering the lockout condition. ) can be changed depending on the installed SET.  ※In series connection, the response time (T ON,  For more information, see "2.2 Models" ※The status of the light curtain in series connection is displayed on the 7-segment LEDs of each set in the same way. However, in case of warning or error condition, all sets enter the lockout condition and it is displayed at the 7-segment  LEDs of light curtain where the error or warning has ocurred.  The information on error and warnings is saved for each set, you can check it via atLightCurtain. © Copyright Reserved Autonics Co., Ltd.
  • Page 81 ①: Light curtain with different detection capability or number of beams can be connected. ②: A combination of the SFL (standard type) and SFLA (advanced type) is unavailable. ③: A combination of emitter and receiver causes the lockout condition. Be sure to connect in the form of an emitter - emitter and a receiver - receiver. ④: Use same model per set. ① Different detention capability or number of beams ② Combination of SFL and SFLA SFL20-12 SFL20-12 (standard) (standard) SFLA20-12 SFLA20-12 SFLA14-199 SFLA14-199 (advanced) (advanced) SFLA14-199 SFLA14-199 ③ Combination of emitter and receiver ④ Combination of different models per set SFLA20-12 SFLA20-12 SFLA20-12 SFLA14-199 SFLA14-199 SFLA14-199 SFLA14-199 SFLA20-12 ※If connection is incorrect, interpreting as settings error and entering the lockout condition. In this case, the  communication error, end cap error, and series connection error may occur in multiple sets at the same time. Check the wiring connection, end cap, and lamp output. © Copyright Reserved Autonics Co., Ltd.
  • Page 82 -|Transparent setting guide|- 6. Other functions (2) Maximum allowable length for series connection Make sure that the total length of the light curtain, the power I/O cable, and the series connection cable should not exceed 35m. However, the total length of the connector cable and the power I/O cable is up to 20m. 3m (SFL-LC) Lamp output cable 1.02m (SFL20-68, L2) 2 SET 18.36m 3m (SFL-EC3T(R)) Series connection cable 1.04m (SFL30-42, L1) 1 SET 0.3m (SFL-BCT(R)) Power I/O cable 10m (CID8-10T(R)) Connector cable Connector cable + Power I/O cable + Series connection cable + Lamp output cable + length of the light curtain(L1+L2) = 18.36m © Copyright Reserved Autonics Co., Ltd.

  • Page 83: Change Sensing Distance

    (2) Setting example of sensing distance Long mode → Short mode Emitter 1 Receiver 1 interference  Emitter 2 Receiver 2 ↓ Mutual interference is reduced when setting the short mode. Emitter 1 Receiver 1 reduced interference Emitter 2 Receiver 2 6.2.1 Change settings You can change the mode via setting switch or atLightCurtain. Only SFLA (advanced type) support atLightCurtain to change settings. Setting method Function Setting range Factory default atLightCurtain Setting switch (pin no.) Sensing distance Long/Short Long ○ ○(2) ※In the series connection, all slaves operate based on the settings of master. © Copyright Reserved Autonics Co., Ltd.

  • Page 84: Set Npn Or Pnp

      • OFF voltage: 9-24VDCᜡ or open (2) When setting the PNP output   • ON voltage: 9-24VDCᜡ   • OFF voltage: 0-3VDCᜡ or open 6.3.1 Setting change You can change the mode via setting switch or atLightCurtain. Only SFLA (advanced type) support atLightCurtain to change settings. Setting method Function Setting range Factory default atLightCurtain Setting switch (pin no.) Output polarity NPN/PNP ○ ○(1) ※In series connection, all slaves operate based on the settings of master. ※For more information on external input and output based on the output polarity, see "2. Specifications" ※For more information on I/O circuit diagrams based on the output polarity, see "7. Wiring"  © Copyright Reserved Autonics Co., Ltd.

  • Page 85: External Test

    If the restarted interlock is activated, entering interlock condition. The status indicator turns on when the test signal is applied. The status indicator turns off when the test signal is released. , T : OSSD response time External test (TEST wiring ) External test indicator (green LED) OSSD max. 50ms max. 115ms ※1 ※1 ※1: It may differ depending on the series connection. ※The external test function is to test the emission function of the product, it cannot be used as the safety-related function. ※In the series connection, if the external test signal is applied, the emission function of all sets stops. 6.4.1 Wiring NPN output PNP output (Brown)+24VDC (Brown)+24VDC (Black)External test input Emitter Emitter (Black)External test input (Blue)0V (Blue)0V ※Install a swtich (S3) for external test and use the switch with N.O. contact. ※If no switch is installed, be sure to connect directly the external test input to +24VDC for NPN output  or 0V for PNP output.  © Copyright Reserved Autonics Co., Ltd.

  • Page 86: Auxiliary Output (Aux 1/2)

    The external test input is in the ON state. Interlock The interlock function is activated.   Reset-Hold The light curtain is in the reset-hold wait time. Light ON/OFF All beams are clear and stable. Sensitivity The incident light level is less than the sensitivity reduction level. Reduction ※1 ※1:  S ensitivity reduction occurs when the current incident light level lasts for 30 minutes, with less than 15%  to 35% of the maximum incident light level.  For more information on the incident light level, see "4.3  Alarm for incident light level" ※ T he OSSD output is switched to the OFF to prevent damage in the output circuit if the current over rated voltage flows in the auxiliary output. The state maintains until the auxiliary ouput is switched depending on the sensing or functional operation.  © Copyright Reserved Autonics Co., Ltd.

  • Page 87: Wiring

    Setting switch Output mode ※1 OSSD Auxiliary output 1 Output phase Reverse/Normal Reverse (AUX 1, receiver) Output pattern Light ON/Flashing Light ON ※2 ○ Output mode ※1 Error/Lockout Auxiliary output  2 Output phase Reverse/Normal Reverse (AUX 2, emitter) Output pattern Light ON/Flashing Light ON ※2 ※1: For more information on output mode, see "(2) Set auxiliary output mode". ※2: If the output pattern is set to flashing, it flashes every 0.5 sec. 1sec 0.5sec Auxiliary output [Flashes] ※When the muting is activated, the auxiliary output (AUX 2) of emitter cannot be used. © Copyright Reserved Autonics Co., Ltd.

  • Page 88: Lamp Output (Lamp 1/2)

    (3) How to handle a lamp output error You can set one of three error modes of lamp output via atLightCurtain. For more information on error and warnings, see "11. Troubleshooting" Error mode Description The OSSD output is switched to OFF state and the light curtains enter the lockout condition. The status Lockout indicator shows the state. After the lockout is reset, the OSSD output is switched to ON state.  The status indicator goes to the normal state.  The OSSD output depends on the status of light curtains. The status indicator shows a warning state. Warning After fixing the error, the status indicator goes to the normal state. None The OSSD output depends on the status of light curtain and operates normally. © Copyright Reserved Autonics Co., Ltd.

  • Page 89: Wiring

    Light ON/Flashing Light ON ※2 Error mode Warning/Lockout/None Lockout Lamp output 2 Enable/Disable Disable ○(7) Output mode ※1 Muting/Override Lamp output 2 Output phase Reverse/Normal Normal ○ (Lamp 2, emitter) Output pattern Light ON/Flashing Light ON ※2 Error mode Warning/Lockout/None Lockout ※The lamp out can be activated via the muting setting switch. ※1: For more information on the output mode, see "(2) Set lamp output mode" ※2: When output pattern is set to flashing, it flashes every 0.5 sec. 1sec 0.5sec Lamp output [Flashes] © Copyright Reserved Autonics Co., Ltd.

  • Page 90: Wiring

    Input 24VDC 24VDC (Blue)0V (Blue)0V 7.1.2 Output circuit diagram NPN output PNP output (Brown)+24VDC  (Brown)+24VDC Load Output 24VDC 24VDC Output Load (Blue)0V (Blue)0V ※If there is a potential malfunction due to noise, combine a protection circuit to the input wiring, or connect a device with  a protection circuit and apply the signal. ※When using PNP output, be sure to connect the load between the OSSD output wire and 0V. Do not short the OSSD  output wires to +24V.  Incorrect wiring or shut down of the power supply is dangerous because the OSSD output is always in ON state. ※When using NPN output, be sure to connect the load between the OSSD output wire and +24V. Do not short the OSSD  output wires to 0V. Incorrect wiring or shut down of the power supply is dangerous because the OSSD output is always in ON state. ※Do not connect, repair, inspect, or replace the unit while it is connected to the power source.  Failure to follow this instruction may cause malfunction or danger due to the safety-related function that does not  operate properly.  ※Use a separate power supply for the load and the product, and do not exceed the specified ratings.  Failure to follow this instruction may result in damage or malfunction of the product. © Copyright Reserved Autonics Co., Ltd.

  • Page 91: Example Of Wiring Diagram

    Input circuit (Orange)Reset hold input/Mute 1 input Input circuit 24VDC (Pink)AUX 2 output/Mute 2 input Load Input circuit max. 100mA (Blue)0V (Blue)0V (Red)RS485(A) (Yellow)RS485(B) (Yellow)RS485(B) (Red)RS485(A) (Brown)+24VDC (Brown)+24VDC max.  Load 300mA (Orange)EDM input Input circuit (Black)Lamp output 1 ※1 max. 100mA (Pink)AUX 1 output Load max. 300mA (Black)OSSD 1 output Load max. 300mA (White)OSSD 2 output Load (Blue)0V (Blue)0V © Copyright Reserved Autonics Co., Ltd.
  • Page 92 (Blue)0V (Red)RS485(A) (Yellow)RS485(B) (Yellow)RS485(B) (Red)RS485(A) (Brown)+24VDC (Brown)+24VDC Input circuit (Orange)EDM input (Pink)AUX 1 output max. 100mA Load (Black)OSSD 1 output max. 300mA Load (Black)Lamp output 1 ※1 (White)OSSD 2 output max.  max. 300mA Load Load 300mA (Blue)0V (Blue)0V ※1:  T his wiring is used to activate the lamp output and the external indicator displays a status depending on the selected output mode. ※ I f there is a potential malfunction due to noise, combine a protection circuit to the input wiring, or connect a device with a protection circuit and apply the signal. ※RS485(A) and RS485(B) are for the synchronous line. © Copyright Reserved Autonics Co., Ltd.

  • Page 93: Wiring Diagram For Interlock And Edm

    (Orange)Reset hold input/Mute 1 input  24VDC (Pink)AUX 2 output/Mute 2 input  Load Input circuit max. 100mA (Blue)0V (Blue)0V (Red)RS485(A) (Yellow)RS485(B) (Yellow)RS485(B) (Red)RS485(A) (Brown)+24VDC (Brown)+24VDC max.  Load ※3 ※3 300mA (Orange)EDM input Input circuit (Black)Lamp output 1 ※2 max. 100mA (Pink)AUX 1 output Load max. 300mA (Black)OSSD 1 output ※3 max. 300mA (White)OSSD 2 output ※3 (Blue)0V (Blue)0V © Copyright Reserved Autonics Co., Ltd.
  • Page 94 (Brown)+24VDC (Brown)+24VDC ※3 ※3 (Orange)EDM input Input circuit (Pink)AUX 1 output max. 100mA Load (Black)OSSD 1 output max. 300mA ※3 (Black)Lamp output 1 ※2 (White)OSSD 2 output max.  max. 300mA Load 300mA ※3 (Blue)0V (Blue)0V ※1: Reset switch to reset the interlock or lockout condition. ※2:  T his wiring is used to activate the lamp output and the external indicator displays a status depending on the selected output mode. ※3:  K 1 and K2 are external devices to use EDM function. Use external relay with force-guided contacts and magnet  contactor for correct use.  ※If there is a potential malfunction due to noise, combine a protection circuit to the input wiring, or connect a device with  a protection circuit and apply the signal. ※RS485(A) and RS485(B) are for the synchronous line. © Copyright Reserved Autonics Co., Ltd.

  • Page 95: Wiring Diagram For Reset-Hold

    ※2 (Orange)Reset hold input/Mute 1 input Input circuit 24VDC (Pink)AUX 2 output/Mute 2 input Load Input circuit max. 100mA (Blue)0V (Blue)0V (Red)RS485(A) (Yellow)RS485(B) (Yellow)RS485(B) (Red)RS485(A) (Brown)+24VDC (Brown)+24VDC max.  Load 300mA (Orange)EDM input Input circuit (Black)Lamp output 1 ※3 max. 100mA (Pink)AUX 1 output Load max. 300mA (Black)OSSD 1 output Load max. 300mA (White)OSSD 2 output Load (Blue)0V (Blue)0V © Copyright Reserved Autonics Co., Ltd.
  • Page 96 (Blue)0V (Red)RS485(A) (Yellow)RS485(B) (Yellow)RS485(B) (Red)RS485(A) (Brown)+24VDC (Brown)+24VDC Input circuit (Orange)EDM input (Pink)AUX 1 output max. 100mA Load (Black)OSSD 1 output max. 300mA Load (Black)Lamp output 1 ※3 (White)OSSD 2 output max.  max. 300mA Load Load 300mA (Blue)0V (Blue)0V ※1: Reset switch to reset the interlock or lockout condition. ※2: Reset hold switch for reset hold input. ※3:  T his wiring is used to activate the lamp output and the external indicator displays a status depending on the selected output mode. ※If there is a potential malfunction due to noise, combine a protection circuit to the input wiring, or connect a device with  a protection circuit and apply the signal. ※RS485(A) and RS485(B) are for the synchronous line. © Copyright Reserved Autonics Co., Ltd.

  • Page 97: Wiring Diagram For Muting

    Input circuit (Orange)Reset hold input/Mute 1 input Input circuit ※2 24VDC (Pink)AUX 2 output/Mute 2 input Input circuit ※2 (Blue)0V (Blue)0V (Red)RS485(A) (Yellow)RS485(B) (Yellow)RS485(B) (Red)RS485(A) (Brown)+24VDC (Brown)+24VDC max.  Load 300mA Input circuit (Orange)EDM input (Black)Lamp output 1 ※3 max. 100mA (Pink)AUX 1 output Load max. 300mA (Black)OSSD 1 output Load max. 300mA (White)OSSD 2 output Load (Blue)0V (Blue)0V © Copyright Reserved Autonics Co., Ltd.
  • Page 98 (Yellow)RS485(B) (Red)RS485(A) (Brown)+24VDC (Brown)+24VDC (Orange)EDM input Input circuit (Pink)AUX 1 output max. 100mA Load (Black)OSSD 1 output max. 300mA Load (Black)Lamp output 1 ※3 (White)OSSD 2 output max.  max. 300mA Load Load 300mA (Blue)0V (Blue)0V ※1: Reset switch for the override input. ※2:  U se the muting sensors have the same output type (NPN, PNP) and 3-wire transistor output or N.O. contact.  Use sensors that output is ON when detecting an object, and operate in Dark ON mode. ※3:  T his wiring is used to activate the lamp output and the external indicator displays a status depending on the selected output mode. ※If there is a potential malfunction due to noise, combine a protection circuit to the input wiring, or connect a device with  a protection circuit and apply the signal. ※RS485(A) and RS485(B) are for the synchronous line. © Copyright Reserved Autonics Co., Ltd.

  • Page 99: 8. Configuration Software, Atlightcurtain

    Administrator login mode allows only authorized person to modify settings so that you can protect and secure it. System requirements The system requirements for using atLightCurtain are as follows: Item Minimum specifications System IBM PC compatible computer with 1GHz or faster processor Operating system Microsoft Windows 7 or later Memory 2GB or more Hard disk 1GB free hard disk space 1024 X 760 or higher resolution display Other USB port USB to Serial connection You can use “USB to Serial” to communicate with your PC. Connect the light curtain and PC. Receiver (Master SET) SCM-SFL (USB 2.0) ※When connecting to a PC in series connection, use the PC conncection terminal at the master set of light curtain. ※When connecting to a PC, set the setting switch of emitter and receiver to the PC. ※When you change the detailed function of light curtain via atLightCurtain, be sure to conduct a sufficient risk assessment.  The OSSD output can be switched to ON or OFF state regardless of actual light incident level. ※In case of the SFLA (advanced type), set the position 8 of setting switches on the emitter and receiver to ON for PC setting.  The SFL (standard type) does not support the position 8 so that the settings of positions 1 to 7 are applied to the light  curtain. © Copyright Reserved Autonics Co., Ltd.

  • Page 100: 9� Installation

    -|Transparent setting guide|- 9. Installation 9. Installation Installation conditions Install the light curtain that complies with the following details.   • Part(s) of the human body passes through the detection zone to the hazards of the machine. If the human can access a hazardous part of the macine without passing the detection zone, install an additional guard.    • Install an additional guard if part(s) of the human body access to hazards of the machine without passing through the  detection zone.   • If an operator works in the hazardous part of the machine, be sure to install the light curtain to detect part(s) of the  human body. Correct installation Detection  Detection zone zone Detection zone Incorrect installation Detection zone Detection  zone Detection zone © Copyright Reserved Autonics Co., Ltd.

  • Page 101: Safety Distance

      • Safety distance: minimum distance from the detection zone to the hazards   • K: The human approach speed in the detection zone   • T: The total stopping time of entire system, T=t1+t2 (t1: the produect response time, t2: response time of the safety system)   • C: Additional distance calculated from the detection capability 9.2.1.2 Vertical access to the detection zone If the detection zone is vertical with an approaching part(s) of the human body or object, calculate the safety distance using the following formula. Safety distance(S) Additional safety measures Detection zone Approach speed(K) Additional safety measures ※Part(s) of the human body or object could pass above and below the detection zone. To prevent this case, install the light  curtain whose highest height of the detection zone is greater than 900 mm, and the lowest height of the detection zone is  less than 300 mm.  ※Even though all installation conditions are met, but it is expected to a potentially dangerous situation,  be sure to take additional safety measures, such as installing a guard. © Copyright Reserved Autonics Co., Ltd.
  • Page 102 1,600mm/s The total stopping time of entire T=t1+t2 system(T) (t1: the produect response time, t2: response time of the safety system) Additional distance(C) 850mm (Standard arm length) Detection capability How to calculate safety distance when; detection capability (d) is 50 mm, the product response time (t1) is 30 ms, the response time of the safety system (t2) is 60 ms. (The light curtains are installed vertically with the machine.) i.  Calcualte by formula 3) Approach speed(K) 1,600mm/s The total stopping time of entire 0.09sec system(T) Additional distance(C) 850mm ii.  S = K × T + C = 2,000mm/s × (0.03sec+0.06sec) + 850mm = 994mm iii.  Safety distance is 994mm. © Copyright Reserved Autonics Co., Ltd.
  • Page 103 The total stopping time of entire T=t1+t2 system(T) (t1: the product response time, t2: response time of the safety system) Additional distance(C) 1,200-(0.4×H) (C≥850mm) Installation height(H) Height from bottom to the detection zone ※If the installation height is 300mm or more, part(s) of the human body or object could pass below the detection zone. To  prevent this case, install a guard to take an additional safety measures. Maximum installation height is 1,000 mm. ※Calculate the minimum installation height using the following formula. H = 15×(d-50mm) (H≥0) How to calculate safety distance when; detection capability (d) is 14 mm, the product response time (t1) is 30 ms, the response time of the safety system (t2) is 60 ms. (The installation height (H) of light curtains is 300 mm.) i.  Calculate by the formula Approach speed(K) 1,600mm/s The total stopping time of entire 0.09sec system(T) Additional distance(C) 1080mm ii.  S = K × T + C = 1,600mm/s × (0.03sec+0.06sec) + 1,200mm-(0.4×300mm) = 1,224mm iii.  Safety distance is 1,224mm. © Copyright Reserved Autonics Co., Ltd.

  • Page 104: How To Install And Adjust Your Light Curtain

    Installation for mutual interference prevention When connecting two or more light curtains to extend the detection zone, it may result in mutual interference. Refer to the following chapters to prevent mutual interference. 9.4.1 When using a series connection You can connect light curtains up to 4 sets using the series connection cable. The extended light curtains work to prevent interference by controlling light emission. For more information, see "6.1 Series connection" <Emitter> <Receiver> © Copyright Reserved Autonics Co., Ltd.

  • Page 105: When Using One Set Of The Light Curtain

    (1) Install the light shield plate between the light curtains <Emitter> <Receiver> <Emitter> <Receiver> Light   Shield Plate (2) Reverse the direction of the emitter • When placing the light curtains in parallel <Emitter> <Receiver> <Receiver> <Emitter> • When placing the light curtain in vertical <Emitter> <Receiver> <Receiver> <Emitter> © Copyright Reserved Autonics Co., Ltd.
  • Page 106 (3) Install the light curtains with space between them for preventing mutual interference <Emitter> <Receiver> Length of detection (L) 5º Distance of  Distance of installation  installation  allowance (d) allowance (d) <Emitter> <Receiver> <Receiver> 5º <Emitter> Length of detection(L) Distance of installation allowance (d) 0.2-3m 0.131m Min. 3m L/2 × tan5° ≈ L × 0.0437m ※It may differ depending on the environmental conditon. ※Do not install the light curtain in a place that is exposed directly to fluorescent lamps operating with a quick start or high frequency. © Copyright Reserved Autonics Co., Ltd.

  • Page 107: About Installation Of A Reflective Surface

    About installation of a reflective surface If the reflectance of wall or floor is high (metal and mirror, etc.) around the installation environment, the light curtain may not operate properly by the reflected light. Before installation, be sure to check normal operation with the detection object and install the reflective surface at a certain distance. Reflective surface Reflective surface  Distance of installation allowance (d) Emitter Receiver Emitter Receiver         Length of detection(L) Reflective surface Reflective surface Length of detection(L) 5º 5º <Emitter> <Receiver> Distance of installation allowance (d) Reflective surface Length of detection(L) Distance of installation allowance (d) 0.2-3m 0.131m Min. 3m L/2 × tan5° ≈ L × 0.0437m © Copyright Reserved Autonics Co., Ltd.

  • Page 108: Mount Brackets

    -|Transparent setting guide|- 9. Installation Mount brackets 9.5.1 Top/Bottom adjustable bracket (BK-SFL-TBA) Insert the square nuts into the product guide rails and install the brackets using the enclosed bolts. Adjust the angle of rotation first, and tighten the anti-rotation bolts. Tighten the anti-rotation bolts and fixing bolts with a torque of 0.98 N m. Anti-rotation bolts Square nuts Fixing bolts 9.5.2 Top/Bottom bracket (BK-SFL-TBF) Insert the square nuts into the product guide rails and install the brackets using the enclosed bolts. Tighten the fixing bolts with a torque of 0.98 N m. Square nuts Fixing bolts © Copyright Reserved Autonics Co., Ltd.

  • Page 109: Side Adjustable Bracket (Bk-Sfl-Sa)

    -|Transparent setting guide|- 9. Installation 9.5.3 Side adjustable bracket (BK-SFL-SA) Insert the light curtain to the bracket and tighten the enclosed product fixing bolts to fix. Adjust the angle of rotation first, and tighten the anti-rotation bolts. Tighten the anti-rotation bolts and product fixing bolts with a torque of 0.98 N m. Anti-rotation bolts Product fixing bolts 9.5.4 Side bracket (BK-SFL-SF) Insert the light curtain to the bracket and tighten the enclosed product fixing bolts to fix. Tighten the product fixing bolts with a torque of 0.98 N m. Product fixing bolts © Copyright Reserved Autonics Co., Ltd.

  • Page 110: Cautions When Using The Brackets

    9. Installation 9.5.5 Cautions when using the brackets The type and number of brackets differ depending on the length of the light curtain. Refer to the table below to install the brackets. Length Max. 1m Min. 1m Brackets Top/Bottom adjustable bracket Unavailable Top/Bottom bracket Side adjustable bracket Side bracket <Max. 1 m> <Min. 1 m>   • If the length of the light curtain is less than 1 m, use two brackets.   • I f the length of the light curtain is more than 1 m, use the side adjustable brackets and the side brackets.  The top/bottom adjustable brackets and the top/bottom brackets cannot be used. © Copyright Reserved Autonics Co., Ltd.

  • Page 111: Mount Loto Device

    At least one optical axis should be covered. Check that the safety output is turned off when the light is blocked by the LOTO lock. In the case of a safety padlock or lockout hasp, use Ø 6 mm shackle, and the operator should manage the (un)locking devices such as keys. © Copyright Reserved Autonics Co., Ltd.

  • Page 112: 10. Check And Maintenance

    And there are no sources for damage around the wiring. In case of connecting more than two products, it is configured to use dedicated series connection cable and mutual interference prevention. In case of the series connection for more than two products, use dedicated series connection cable, and it is configured not to be extended or arbitrarily connected. The wiring is suitable for each application and is configured not to be connected upper side of the product (e.g., wiring for the series connection cable and lamp output cable) and the lower side of the product (e.g., the power I/O cable) in reverse. The wiring and end cap connected to the product are firmly secured to prevent separation during use. The product is connected to the safety-related part of the control system using two OSSD control outputs and configures the safety system. In case of the product is set to PNP output, two OSSD wires are not shorted to +24V. In case of the product is set to PNP output, the load connected to two OSSD wires is connected between the OSSD wire and 0V. 11 In case of the product is set to NPN output, two OSSD wires are not shorted to 0V. In case of the product is set to NPN output, the load connected to two OSSD wires is connected between the OSSD wire and +24V. In case of the auxiliary output (AUX 1/2, Lamp 1/2), it is configured to prevent the connection to the safety- related part of the control system. © Copyright Reserved Autonics Co., Ltd.

  • Page 113: Safety-Related System-Check When The Operation Stops

    In use of the EDM function, short the EDM input and then put the test piece in the detection zone (NPN output: 24VDC, PNP output: 0V). The light curtain will turn into lockout condition. At this time, the OSSD indicator lights red, and the two OSSD control outputs are turned OFF and maintain the status. In use of the start interlock function, the OSSD indicator remains red when the product is turned on with no test piece in the detection zone. The two OSSD control outputs are turned OFF and maintain the status. After that, the reset input is applied, and the OSSD indicator lights green, and the two OSSD control outputs are switched to ON and maintain the status. In use of the restart interlock function, the OSSD indicator remains red even though the test piece is inserted and removed while the OSSD is ON state, and the two OSSD control outputs maintain OFF state. After that, the reset input is applied, and the OSSD indicator lights green, and the two OSSD control outputs are switched to ON and maintain the status. In use of the muting function, the muting sensor operates in normal state. In use of the muting function, the muting starts when the specific conditions are met. At this time, when the test piece enters into the detection zone, the OSSD indicator maintains green, and the two OSSD control outputs remain ON state. In use of the muting and override function, the indicators (e.g., alarm lamp) installed where it can be seen from all sites are in normal operation. 12 In use of the fixed blanking function, there is a fixed object in the blanking zone. ※1:  W hen inspecting the product using the test piece, move it in the order below. The test piece should be vertical to the detection zone with a speed of less than 1.6 m/s. <Emitter> Start <Receiver> Test piece © Copyright Reserved Autonics Co., Ltd.

  • Page 114: Safety-Related System-Check In Operation

    The appearance of the wires connected to the product is not damaged, such as cracks, breakage of the outer shell. And there are no sources for damage around the wiring. 13 I/O wiring of the product is firmly secured to prevent separation from each device. 14 The beams are aligned correctly. © Copyright Reserved Autonics Co., Ltd.

  • Page 115: 11. Troubleshooting

    Incorrectseries E→2 1-2 invalidcommunicationconnection ConnectthesynchronizationlinesforRS485 connection betweentheemitterandreceiver. (A/B)betweentheemitterandreceiverand thelampoutputcablecorrectly. ThewireofOSSD1or2isbrokenor Checkwhetherthewiringconnectionof short-circuited. OSSD1or2outputiscorrect. Checkwhetheranexternalnoiseisflowing TheOSSD1or2outputisaffectedby throughthewiringoftheOSSD1or2 externalnoise. outputandremovethenoisesource. WiringErrorin OSSDOutputs ToomuchcurrentflowsintotheOSSD1 Checktheloadconnectedtothewiringof or2output. OSSD1or2outputmeetstheratedrange. E→3 CheckwhetherthewiresofOSSD1or2 TheoutputofOSSD1or2isinvalid. outputarecorrectlyconnectedorreplace thereceiver. FailureinOSSD TheinternalcircuitoftheOSSD1or2 Replacethereceiver InternalCircuit outputisbroken. © Copyright Reserved Autonics Co., Ltd.
  • Page 116 Checktheconnectionofexternaldevices(e.g. EDMError invalid. Relay). TheEDMinputisnotappliedwithinthe Checktheresponsetimeofexternaldevices timelimit. (e.g.Relay). Thebeamsofthefixedblanking Checkwhetherthereisadetectionobjectin zoneareclear.(exceptforthetolerance) thefixedblankingzone. Thenumberofblockedbeamsis BlankingError E→9 lessthanacertainlevel. Checkwhetherthereisadetectionobjectin (Thenumberofbeamsofthefloating thefloatingblankingzone. blanking-tolerance) Onthesettingswitchoftheconnected Setting Themutingandthereset-holdare emitterandreceiver,checkwhetherthe InformationError activatedatthesametime. mutingandthereset-holdareactivatedat thesametime. InternalSystem Anerroroccursintheinternalsystemof Replacetheemitterorthereceiver. Error lightcurtains. ※For more information on the error and warning code when using the atLightCurtain, see “atLightCurtain User Manual.” © Copyright Reserved Autonics Co., Ltd.

  • Page 117: Warning Code

    Too much current flows into the Lamp 2 Check whether the load that is connected to output. the lamp 2 output meets the rated range. Sensitivity  The sensitivity reduction is occurred. Check the alignment of the beams. Reduction A → 6 - Sensor connected to the MUTE 1 input is  Mute 1  Warning Check the status of muting sensor 1. in unstable state. Sensor connected to the MUTE 2 input is  A → 7 Mute 2  Warning Check the status of muting sensor 2. in unstable state. ※For more information on the error and warning code when using the atLightCurtain, see “atLightCurtain User Manual.” © Copyright Reserved Autonics Co., Ltd.

  • Page 118: 12� Appendix

    Preventing an automatic machine start when the electrical supply to the ESPE or AOPD, or the supply is Start interlock interrupted and restored. Preventing automatic restarting of a machine; Restart interlock • Actuation of the sensing device during a hazardous part of the machine operating cycle • A change in mode of operation of the machine or a change in the means of control of the machine Synchronous line RS485 allows synchronous communication between the emitter and receiver. © Copyright Reserved Autonics Co., Ltd.

  • Page 119: Kcs Model

    SFLA20-44-A SFLA30-33-A SFL14-87-A SFLA14-87-A SFL20-48-A SFLA20-48-A SFLA30-36-A SFL14-95-A SFLA14-95-A SFL20-52-A SFLA20-52-A SFLA30-39-A SFL14-103-A SFLA14-103-A SFL20-56-A SFLA20-56-A SFL30-42-A SFLA30-42-A SFL20-60-A SFLA20-60-A SFL30-45-A SFLA30-45-A SFL20-64-A SFLA20-64-A SFL30-48-A SFLA30-48-A SFL30-51-A SFLA30-51-A SFL30-54-A SFLA30-54-A SFL30-57-A SFLA30-57-A SFL30-60-A SFLA30-60-A © Copyright Reserved Autonics Co., Ltd.

  • Page 120: Manual Revision History

    Revision date Descriptions 2020-09-08 First edition 2020-12-16 Add a sold separately (LOTO device) 2021-01-07 Add a Error code description 2021-04-19 Change top/bottom bracket thickness 2021-06-21 Add a KCs model, protection rating, cable, LOTO device © Copyright Reserved Autonics Co., Ltd.
