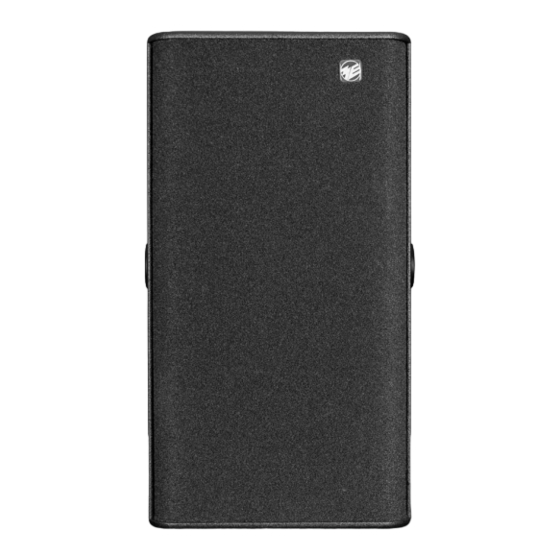

- Page 1 TS 36SP TS 36KSP Instructions for installation and use...
-
Page 2: Table Of Contents
Guarantee acknowledgements Controls and connections Installation and operation 7.1 Mounting and positioning 7.2 Starting up the speakers 7.3 Wiring 7.4 Cable connection Operation and configuration of the device 8.1 Desktop software ME Geithain DSP Control 8.2 Menu structure 8.3 Home screen 8.4 Preset menu 8.5 Channel menu 8.6 Entering names and passwords User rights Troubleshooting Notes musikelectronic geithain GmbH TS 36SP / TS 36KSP... -
Page 3: Introduction
INTRODUCTION Introduction Dear customer, Thank you for the trust you have put in us by buying these speakers. You decided upon a quality product that in regard to tonal and technical characteristics complies to the utmost expectations. The usual burn-in period is not required, because the speakers are artificially aged in-house. Please read the technical description and manual to take advantage of the capabilities of these speakers and ensure safe operation. musikelectronic geithain GmbH TS 36SP / TS 36KSP... -
Page 4: Disclaimer
Fulfillers and resellers are not agents of Musikelectronic Geithain GmbH and have absolutely no authority to bind Musikelectronic Geithain GmbH by any express or implied undertaking or representation. This manual is copyrighted. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or by any information storage or retrieval system without the prior written permission of Musikelectronic Geithain GmbH. All rights reserved Copyright © 2018 Musikelectronic Geithain GmbH musikelectronic geithain GmbH TS 36SP / TS 36KSP... -
Page 5: System Description
80 Hz. The resulting bass level enables the use as a full- range system in many situations. Optionally our TT-subwoofers can be employed to extend the bass transmission range more than one octave. The waveguide of the horn driver is available in two opening angles and is also mountable rotated through 90°. So the speaker becomes flexibly usable and is as well variable regarding the mounting position. A variety of available mountings provide easy assembly for almost every application. musikelectronic geithain GmbH TS 36SP / TS 36KSP... -
Page 6: Specifications
16 W Mains connectors 1× Powercon 1× Powercon loop-through output Amplifier type 2-channel PWM amplifier with temperature controlled Nominal output power 2× 300 W Maximum output power 2× 450 W Noise level ≤ 9 dB (A) / r = 1 m (3′3″) Inputs 1× XLR analogue Input level −6 dBu ... +6 dBu Outputs 1× XLR analogue Control inputs 1× RJ45 Ethernet 1× USB Electronic crossover frequency 1.9 kHz Directivity index see diagram Equalizer 10 free programmable parametric EQs Delay up to 800 ms Dimensions (h × w × d) 600 × 320 × 370 mm (23.7″ × 12.6″ × 14.6″) musikelectronic geithain GmbH TS 36SP / TS 36KSP... - Page 7 S PECIFICATIONS Weight 21 kg (46.3 lbs) Environmental specifications Operating temperature +15 °C … +35 °C (+59 °F ... +95 °F) Storage temperature −25 °C … +45 °C (−13 °F ... +113 °F) Relative humidity 45 % … 75 % Design of the cabinet lumber core plywood with scratch proof structure coating black RAL9005, other colours on request Additional accessories (optional) security lug stand, wall and ceiling mount elements musikelectronic geithain GmbH TS 36SP / TS 36KSP...
-
Page 8: Acoustical Diagramms
S PECIFICATIONS Acoustical diagramms [dB] [Hz] 0° (TS36SP) 0° (TS36KSP) 45°h 180°h (TS36KSP) FREE FIELD FREQUENCY RESPONSE [dB] [Hz] TS36SP TS36KSP DIRECTIVITY INDEX musikelectronic geithain GmbH TS 36SP / TS 36KSP... -
Page 9: Technical Drawings
S PECIFICATIONS Technical drawings 4.3.1 TS 36SP musikelectronic geithain GmbH TS 36SP / TS 36KSP... - Page 10 S PECIFICATIONS 4.3.2 TS 36KSP musikelectronic geithain GmbH TS 36SP / TS 36KSP...
-
Page 11: Basic Information
Disposal Products built by us belong to B2C-class of the WEEE guidelines and must not be disposed with domestic waste. 5.2.1 Germany It is not allowed to dispose of used electrical equipment as domestic waste. Non-reusable parts of the mounting accessories have to be disposed according to national environmental regulations. Ensure disposal of damaged mounting accessories before they could be reused. But do not dispose these products and accessories at official collecting points for recycling either! Disposal of Musikelectronic Geithain GmbH products labelled with a waste bin sign have thus to be disposed of by Musikelectronic Geithain GmbH alone. Please call Musikelectronic Geithain GmbH at the number stated below if you have a Musikelectronic Geithain GmbH product to be disposed. We will offer you a straightforward and professional disposal not affecting cost. If there is no waste bin sign on one of your Musikelectronic Geithain GmbH products, because they have been sold before March 2006 then by law the owner is in charge of the disposal. For these we will be happy to assist and offer you proper ways of disposal. Declaration: With the ElektroG (law relating to electrical and electronic equipment and appliances) we have complied with the EU-directive on waste electrical and electronic equipment (WEEE, 2002/96/ EC). musikelectronic geithain GmbH TS 36SP / TS 36KSP... - Page 12 Norway, Iceland and Liechtenstein (except Germany) mentioned in the WEE from 08/13/2005 onwards with a sign with a crossed out waste bin and a white bar below. This sign indicates that the disposal into the domestic waste is prohibited and that the product has been put into circulation at the 08/13/2005 earliest. Unfortunately the European directive WEEE has been complied with implementing different national provisions of law throughout all member countries, which makes it impossible for us to offer consistent solutions for the disposal throughout Europe. Responsible for complying with these provisions of law is the local distributor (importer) of each country. For proper disposition of used products in accordance with these local provisions in the mentioned countries of the European Union (except Germany) please ask your local dealer or the local authorities. 5.2.3 Other countries For proper disposition of used products in accordance with these local provisions in other countries please ask your local dealer or the local authorities. musikelectronic geithain GmbH TS 36SP / TS 36KSP...
-
Page 13: Safety Instructions
; Do not install the device in rooms with high humidity. ; The device shall not be exposed to dripping or splashing and no objects filled with liquids shall be placed on the device. ; Clean only with dry or slightly moistened cloth. ; Protect the power cord from being walked on, pinched or damaged in any other way. Pay particular attention to plugs and the point where they exit the device. ; Do not attempt to service this product yourself as opening or removing cover may expose you to dangerous voltage or other hazards. ; There is risk of electric shock when the device is open. ; Refer all servicing to qualified service personnel. musikelectronic geithain GmbH TS 36SP / TS 36KSP... - Page 14 Transport To ship this device, always use the original shipping carton and packaging materials. For best protection pack it the same way as the manufacturer. Environments Use this product only in E1, E2, E3 or E4 environments according to EN55103-2 “Electromagnetic compatibility – Product family standard for audio, video and audio-visual and entertainment lighting control apparatus for professional use – Part 2: Immunity”. Air vents and heat sink The air vents and the heat sink are provided to ensure reliable operation of the device and to protect it from overheating. The air vents and the heat sink must not be blocked or covered. This device should not be installed unless proper ventilation is provided or manufacturer’s instructions have been adhered to. Cleaning Unplug the device from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. musikelectronic geithain GmbH TS 36SP / TS 36KSP...
- Page 15 Reduce the level to minimum before you turn on the speaker to prevent sudden high levels of noise which may cause hearing or speaker damage. Power failure In case of power failure while the amplifier is powered up, it will automatically restart as soon as the mains supply is restored. All settings made before the power failure are restored. Speakon connectors and Speakon cords To prevent electric shock, do not operate the product with any of the conductor portion of the speaker wire exposed. Employ appropriate safety measures when connecting the power cord. When installing or connecting the product, disconnect it from mains supply. The product mustn‘t be connected to other alternating voltages and sockets than demanded on the back of the device. musikelectronic geithain GmbH TS 36SP / TS 36KSP...
-
Page 16: Delivery Contents
ILLEGAL AND DANGEROUS! Unboxing The speakers are shipped in proper condition. Unpack the speaker carefully and check for visible damages. In case of damages report them to your retailer. Keep the packaging, in case the speaker has to be transported in the future. To unpack the device please refer to the additional user manual for unboxing. Delivery contents ; Speaker TS 36SP or TS 36KSP ; Powercon cable ; Technical description and user manual Cleaning The speaker is made of real wood veneer and needs to be nurtured in the same way as furnishings. We advise quality wax polish to ensure durability of the veneer. Surfaces can also be cleaned with tidy, slightly damped, fuzz-free, smooth cloth. Environmental conditions Ensure the following environmental conditions in your listening room: ; Operating temperature +15 °C ... +35 °C (+59 °F ... +95 °F) ; Storage temperature range −25 °C ... +45 °C (−13 °F ... +113 °F) ; Relative humidity 45 % ... 75 % Guarantee acknowledgements Opening the device by unauthorized personnel leads to all claims under guarantee expire. In case of destruction by overload, misuse or outside influences there are no claims under guarantee. musikelectronic geithain GmbH TS 36SP / TS 36KSP... -
Page 17: Controls And Connections
CONTROLS AND CONNECTIONS Controls and connections musikelectronic geithain GmbH TS 36SP / TS 36KSP... - Page 18 BACK button (5) Controls the device and is used to navigate the menu and to set parameters (see chapter “8 Operation and configuration of the device”, page 20). USB port type B (6) Used to configure the device with the software ME Geithain DSP Control. Ethernet port 10/100 Mbit/s RJ45 (7) Configuration interface for remote access with ME Geithain DSP Control through a standard TCP/IP network. LINE In-/Output XLR3 F/M (8) Symmetrical in and / or output connectors, for input signals up to +6 dBu. Fuse carrier (9) Fine wire fuse with 6.3 A T, 6,3 × 32 mm, turn left to lock, turn right to release. On/Off switch (10) This switch disconnects mains and completely turns off the device. Mains supply with Powercon In/Out (11) Connection to mains and the possibility to power up another speaker with max. 15 A. musikelectronic geithain GmbH TS 36SP / TS 36KSP...
-
Page 19: Installation And Operation
Ensure that all connections are secured to prevent their detaching on their own and that only admissibly statically tested and sufficiently sized connecting devices, ropes and chains are used. 7.1.3 Mounting instructions for speakers Speakers are to be mounted in a way, so that they cannot fall and cause damages to environment or persons. Therefore stacked speakers are to be secured with safety straps. Connecting cables have to be installed so that nobody trips. Stability of stacked systems (including stands and distance rods) is ensured, when the following requirement is fulfilled: Stacked systems may not fall even if they are inclined more than 10° in any direction. To fulfil this requirement take measures to achieve compliance. One possibility is strapping the stacked speakers to a solid base or using safety straps. musikelectronic geithain GmbH TS 36SP / TS 36KSP... -
Page 20: Starting Up The Speakers
; visual inspection of all outside parts for obvious damage (e. g. scratches, damages of any kind) ; visual inspection of all mounting accessories for obvious damage (e. g. scratches, corrosion) ; inspection of front grille and foam for secure attachment ; regular lubrication of all sockets with WD-40 or similar products 7.2.2 Functional check ; When the system is ready for operation turn up the level on the mixing console. Then the levels of the top cabinets and bass systems should be balanced. ; Adjustment of the systems is also possible without the software ME Geithain DSP Control directly with the controls at the TS…SP speakers. ; Before switching off the system all speakers should be disconnected from mains. After that switch off the remaining equipment. musikelectronic geithain GmbH TS 36SP / TS 36KSP... -
Page 21: Wiring
Signal - Pin 3 Pin 3 Ring When using a signal source with unbalanced outputs (RCA) you need to balance the connecting cables. This avoids hum and other noise interferences. The table and the following figure show the wiring. Unbalanced RCA to balanced XLR Connections Loudspeaker (XLR-3M) Cable Source (RCA) musikelectronic geithain GmbH TS 36SP / TS 36KSP... -
Page 22: Operation And Configuration Of The Device
BACK NEXT Push ENCODER Navigation between the menus Home screen In the first row of the display the Home screen shows the name of the device. In delivery conditions the name complies with the type of the speaker. The second row shows the number of the current preset, then the name of the preset. A “*” at the end of the line indicates that the TS 36SP or TS 36KSP is currently occupied (loading presets, synchronising with the PC software, etc.). Meanwhile controlling the device is not possible. A “!” at the beginning of the first line indicates unsaved changes in the current configuration. musikelectronic geithain GmbH TS 36SP / TS 36KSP... -
Page 23: Preset Menu
In chapter “8.6 Entering names and passwords”, page 24, is a description of the procedure. The last menu item is the information panel. Turn the rotary encoder to browse through items showing the current hardware version, serial number of the DSP module, software version and the IP and MAC address of the device. musikelectronic geithain GmbH TS 36SP / TS 36KSP... -
Page 24: Channel Menu
Pressing down the rotary encoder browses through the parameters if more parameters are available to this sub-item. Press NEXT or BACK to confirm any changes. Pressing NEXT redirects to the Preset menu. When pressing BACK, the right arrow reappears to enable choosing between sub-items. All changes remain stored until a new preset is loaded, even when the device is powered off. The input channels are: ; In 1: analogue ; In 2: not used In 1 In 2 Push ENCODER BACK Turn ENCODER Gain Delay Lowpass Highpass PEQ1 PEQ10 Compr.: Limiter Link Signal processing chain in a channel musikelectronic geithain GmbH TS 36SP / TS 36KSP... - Page 25 ; Type: BUT 6, 12, 18, 24 dB; BES 6, 12, 18, 24 dB; LR 12, 24 dB ; Enabled: Off … On PEQ1 … 10: Parametric filters for adjustments to the room acoustics. ; Gain: −12 … 12 dB ; Freq: 20 Hz … 20.000 Hz ; Type: Bell, Notch, High Shelf, Low Shelf, Allpass, Band Pass, High Pass, Low Pass ; Enabled: Off … On ; Q: 0,1 … 25 musikelectronic geithain GmbH TS 36SP / TS 36KSP...
-
Page 26: Entering Names And Passwords
; Rel.: 10 … 100 dB/s Link: Use this option to group analogue and digital input signals so that the settings of the left channel are automatically copied to the right channel. ; Off … On Entering names and passwords To insert strings like names and passwords through the panel, choose a digit with the rotary encoder and confirm by pressing the rotary encoder down. The cursor will then jump right to the next position. Press BACK and the cursor jumps back to the position to the left. To confirm a name, press the NEXT button. To access a password protected function it is sufficient to enter the right password. musikelectronic geithain GmbH TS 36SP / TS 36KSP... -
Page 27: User Rights
The device could be started up in the LOCKED mode or USER mode. ADMINISTRATOR rights Firmware actualization Equalizing of the input channels USER rights LOCKED mode Adjust settings through the display Rename the device LOCKED rights Save presets Load presets Standard passwords ; ADMINISTRATOR: TsAmAD7 ; USER: tSAmPUr4 musikelectronic geithain GmbH TS 36SP / TS 36KSP... -
Page 28: Troubleshooting
T ROUBLESHOOTING Troubleshooting Error description Possible causes Corrective measures Screen dark Device in stand-by Press any key Device is switched off Ensure the device is switched No sound Speakers are not connected Examine the XLR connections correctly to the speakers In-/outputs are muted Deactivate muting at the de- vice or in the software No input signal available Apply an analogue input signal Network does not recognize Network cable defect Exchange the network cable the device No DHCP in the network Connect the PC directly to the amplifier with a network cable and check the network set- tings of the device musikelectronic geithain GmbH TS 36SP / TS 36KSP... -
Page 29: Notes
NOTES Notes musikelectronic geithain GmbH TS 36SP / TS 36KSP... - Page 30 NOTES musikelectronic geithain GmbH TS 36SP / TS 36KSP...
- Page 31 NOTES musikelectronic geithain GmbH TS 36SP / TS 36KSP...
- Page 32 BDA_TS 36SP_TS 36KSP_15.05.2018_ENV07 musikelectronic geithain gmbh STUDIO MONITORING - HIGHEND LOUDSPEAKER - SOUND REINFORCEMENT SYSTEMS SYSTEMS Nikolaistraße 7 04643 Geithain / Germany Phone: +49 (0) 34341 3110 Fax: +49 (0) 34341 31144 Email: info@me-geithain.de www.me-geithain.de...
