ES2020 Precise Glue Dispenser Manual

1. Package contains the following items：

ES2020 Precise Glue Dispenser

Power Cord

Air Pressure Connector

Barrel Adapter Set

Startup Kit

Foot Pedal or Finger Switch

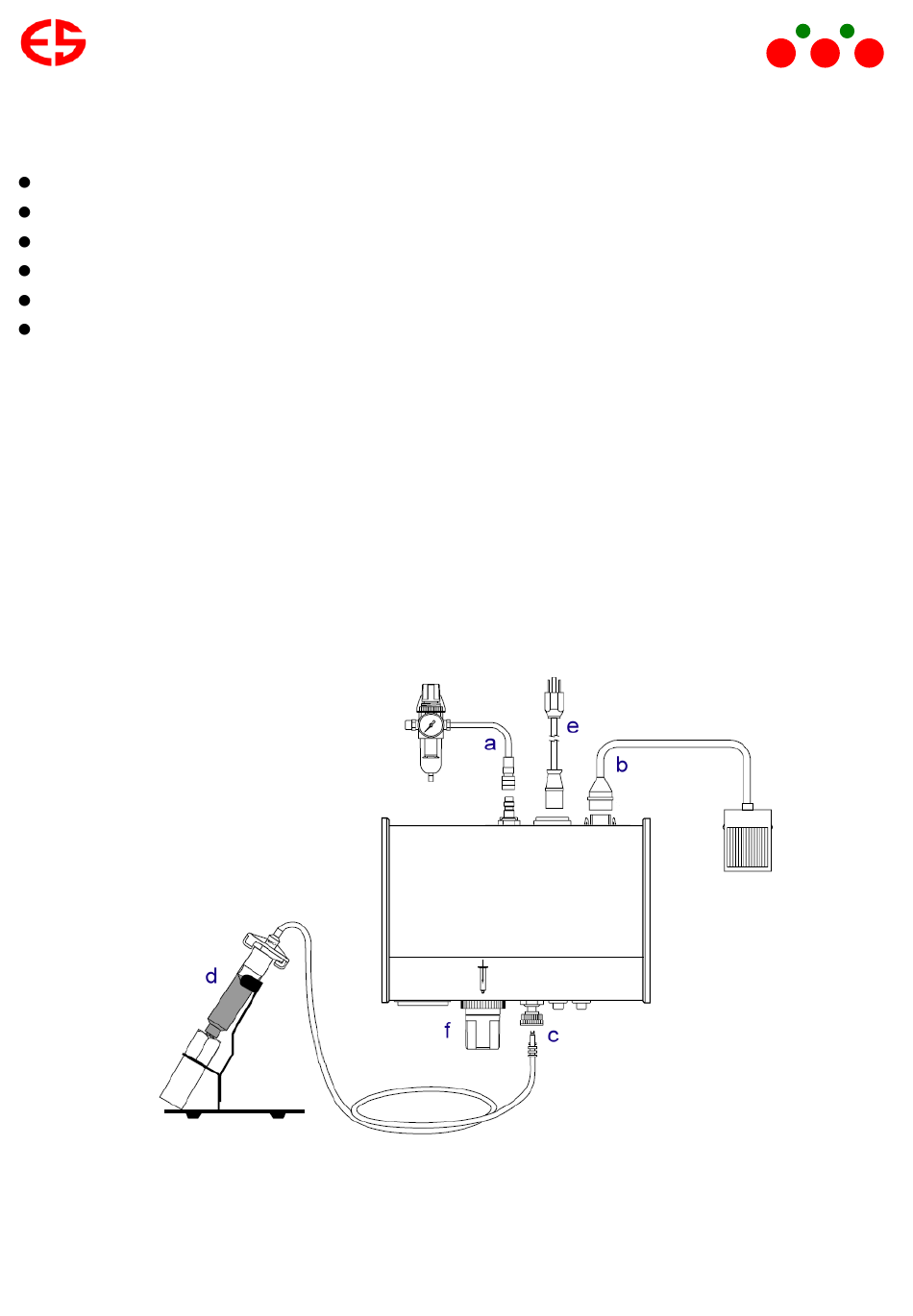

2. Hardware Setup：

Please connect the Air Pressure Connector on the back of the system to the nearby air compressor line.

Connect the Foot Pedal on the back of the system or Finger Switch on the front of the system.

Fill the dispensing barrel with adhesive up to 2/3 full and adapt with barrel adapter. Connect the adapter to the

front of the system.

If you are using Finger Switch, please stick the switch on the dispensing barrel.

Connect the Power Cord on the back of the system and switch the power on. Please make sure all the display

and light indicator are working properly. (110V-240V full voltage)

Install the dispensing barrel with appropriate needle and adjust with appropriate air pressure and vacuum.

(Please refer to Table 1)

INNOVATION TECHNOLOGY ADVANCES WORKFLOW

http://www.eversharp.com.tw

Table of Contents

Need help?

Do you have a question about the ES2020 and is the answer not in the manual?

Page 1 永匯豐科技有限公司 Ever Sharp Technology, Inc ES2020 Precise Glue Dispenser Manual 1. Package contains the following items： ES2020 Precise Glue Dispenser Power Cord Air Pressure Connector Barrel Adapter Set Startup Kit Foot Pedal or Finger Switch 2. Hardware Setup： Please connect the Air Pressure Connector on the back of the system to the nearby air compressor line.
Page 2 永匯豐科技有限公司 Ever Sharp Technology, Inc Watery Low viscosity Middle to High viscosity Barrel adapter assembly Table 1：Air pressure setting with appropriate needle Adhesive Air Pressure Setting Appropriate Needle Watery 0.1-1.0 kg/cm2 (7-15 psi) TD / TS / SS series metal needle Low viscosity 1.5-2.0 kg/cm2 (22-30 psi)
Page 3 永匯豐科技有限公司 Ever Sharp Technology, Inc 4. Operation： Please refer to table 1 for appropriate needle and pressure setting. If the adhesive is dripping from barrel, turn up the vacuum until it is not dripping. Use the foot pedal to activate the dispensing until the adhesive fill up the needle and flow out the barrel smoothly.
Page 4 永匯豐科技有限公司 Ever Sharp Technology, Inc 7. Troubleshooting： Problem Possible Cause Correction Indicator or • no power input • check power cord connection display does not • PCB main board damage • turn on power light • replace new PCB main board Cannot dispense •...
