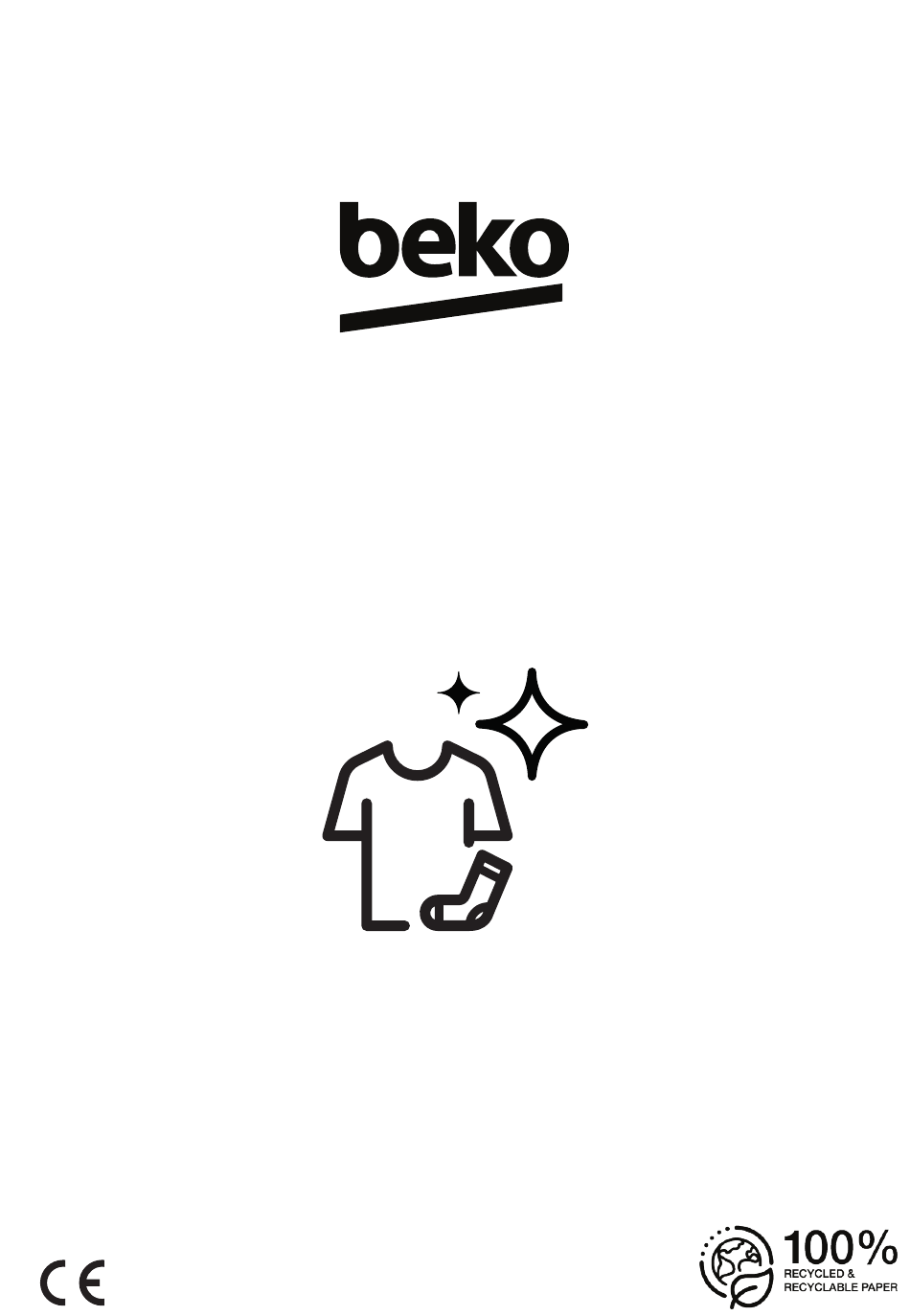

- Page 1 Washing Machine User Manual WTV8716XWWST Document Number : 2820530047_EN/ 04-03-22.(11:40)
-
Page 2: General Safety Instructions
General safety instructions This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 Life and property safety Never place the product on a carpet-covered floor. Otherwise, lack of airflow beneath the machine will cause electrical parts to overheat. - Page 3 1.2 Children's safety This product can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out.
-
Page 4: Hot Surface Safety
Never touch the power cable plug with wet hands! Never unplug by pulling on the cable. Always press on the plug with one hand and pull out the plug by grabbing with the other hand. Product should be unplugged during installation, maintenance, cleaning and repair procedures. -
Page 5: Important Instructions For Environment
Important instructions for environment 2.1 Compliance with WEEE Directive This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. -
Page 6: Technical Specifications
Technical specifications Supplier name or trademark Beko WTV8716XWWST Model name 7149345600 Rated capacity (kg) Maximum spin speed (rpm) 1400 Built-in Height (cm) Width (cm) Depth (cm) Single Water inlet / Double Water inlet • / - • Available Electrical input (V/Hz) -
Page 7: Appropriate Installation Location
4.1 Installation Your washing machine automatically detects the amount of laundry placed inside when selecting a program. While installing the product, before the first use, calibration should be done to ensure that the laundry amount is detected in the most accurate way. To do this, select the Drum Cleaning* program and cancel the spin function. -
Page 8: Connecting Water Supply
CAUTION: Remove the transportation safety bolts before operating the washing machine! Otherwise, the product will be damaged. Keep the transportation safety bolts in a safe place to reuse when the washing machine needs to be moved again in the future. Install the transport safety bolts in reverse order of the disassembly procedure. -
Page 9: Adjusting The Feet
4.1.6 Adjusting the feet CAUTION: In order to ensure that the product operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet. Otherwise, the product may move from its place and cause crushing and vibration problems. -
Page 10: Preparing Laundry For Washing
4.2 Preparation 4.2.1 Sorting the laundry • Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature. • Always observe the instructions given on the garment care labels. 4.2.2 Preparing laundry for washing • Laundry items with metal attachments such as, underwiring, belt buckles or metal buttons will damage the machine. -
Page 11: Using Detergent And Softener
4.2.6 Using detergent and softener When using detergent, softener, starch, fabric dye, bleach and descaling agents; read the manufacturer's instructions written on the package and follow the dosages specified. Use measuring cup if available. The detergent drawer is composed of three compartments: –... - Page 12 If the product is equipped with a liquid detergent part: • When you want to use liquid detergent, press on the point shown to rotate the apparatus. The part that falls off will function as a barrier for the liquid detergent. If required, clean the apparatus with water when it is in place or by removing it.
-
Page 13: Tips For Efficient Washing
4.2.7 Tips for efficient washing Clothes Light Colours and Black/Dark Delicates/ Colours Colours Woollens/Silks Whites (Recommended (Recommended (Recommended temperature (Recommended temperature temperature range temperature range range based on soiling level: range based on soiling level: based on soiling level: based on soiling level: 40-90°C) cold -40°C) cold -40°C) -
Page 14: Operating The Product
4.3 Operating the product Please read the “Safety Instructions” section first! 4.3.1 Control panel 1 - Programme Selection knob 7 - End Time Setting button 2 - Temperature level lights 8 - Auxiliary Function button 3 9 - Auxiliary Function button 2 3 - Spin level indicator lights 4 - Display 10 - Auxiliary Function button 1... -
Page 15: Programme And Consumption Table
4.3.3 Programme and consumption table Auxiliary functions Programme Temperature (°C) 2,40 • • • • • Cold - 90 1400 1,80 • • • • • Katoen Cold - 90 1400 0,97 • • • • • 1400 Cold - 90 40*** 0,720 40-60... -
Page 16: Programme Selection
Please read installation section of the manual before first use. The auxiliary functions in the table may vary according to the model of your machine. Water and power consumption may vary subject to the changes in water pressure, water hardness and temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in electric voltage. - Page 17 4.3.5 Programmes • Eco 40-60 The Eco 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle, and that this programme is used to assess the compliance with the EU ecodesign legislation.
- Page 18 • Curtain You can use this programme to wash your tulles and curtains. As their meshed texture causes excessive foaming, put little amount of detergent into the main wash compartment. Thanks to the special spin profile of the programme, tulles and curtains crease lesser. Do not load your curtains above the specified capacity in order not to damage them.
-
Page 19: Temperature Selection
Below you can find the soil groups that can be selected with the “Quick Wash” setting button: When “Quick Wash” is not When the “Quick Wash” button When the “Quick Wash” button selected is pressed once is pressed twice Sweat Blood Collar soil Chocolate... -
Page 20: Spin Speed Selection
Press the Temperature Adjustment button to change the temperature. Temperature decreases gradually. No change can be made in programmes where temperature adjustment is not allowed. You can also change the temperature after the washing starts. This change can be made if the washing steps allow it. -
Page 21: Auxiliary Function Selection
4.3.8 Auxiliary function selection Select the desired auxiliary functions before starting the programme. Whenever a programme is selected, icons of the auxiliary function symbol that is selected together with it illuminates. When an auxiliary function button that cannot be selected with the current programme is pressed, the washing machine will make a warning sound. -
Page 22: Functions/Programmes Selected By Pressing The Function Keys For 3 Seconds
• Customized Programme This auxiliary function can only be used for Cotton and Synthetics programmes together with the HomeWhiz application. When this auxiliary function is activated, you can add up to 4 auxiliary rinsing steps to the programme. You can select and use some auxiliary functions even though they are not found on your product. You can increase and decrease the time of the Cottons and Synthetics programmes within a safe range. - Page 23 • Bluetooth 3’’ You can use the bluetooth connection function to pair your machine with your smart device. This way, you can use your smart device to get information about your machine and control it. To activate bluetooth connection: Press and hold Remote Control function button for 3 seconds. Countdown “3-2-1” will be displayed, and then Bluetooth icon will appear on the display.
-
Page 24: Starting The Programme
4.3.10 Starting the programme 1 Press Start / Pause button to start the programme. 2 The Start / Pause button's light which was off before starts to illuminate steadily now, indicating that the programme has started. 3 Loading door is locked. The door lock symbol appears on the display after the loading door is locked. 4 Programme follow-up indicator lights on the display will show the current programme step. -
Page 25: Switching The Machine To Pause Mode
• Remove the loading door emergency handle behind the filter cover with a tool. • Open the loading door by pulling the loading door emergency handle downwards. • Try to pull the handle downwards again if the loading door is not opened. •... -
Page 26: Cancelling The Programme
Changing the auxiliary function, speed and temperature Depending on the step the programme has reached, you can cancel or activate the auxiliary functions. See “Auxiliary function selection” You can also change the speed and temperature settings. See "Speed selection" and "Temperature selection". The loading door will not open if the water temperature in the machine is high or the water level is above the loading door baseline. - Page 27 • To start the setup, make sure that your machine is turned off. Press and hold the Temperature button and the Remote Control Function button simultaneously for 3 seconds to switch your machine to HomeWhiz setup mode. When the appliance is in HomeWhiz setup mode, you will see an animation on the display and the •...
- Page 28 4.3.15.3 Remote Control function and its use After HomeWhiz setup, bluetooth will automatically turn on. To activate or deactivate the bluetooth connection, please see 4.3.8.2 Bluetooth 3’’’. If you turn off and on your machine while bluetooth is active, it will automatically reconnect. In cases such as paired device going off the range, bluetooth will automatically turn off.
-
Page 29: Maintenance And Cleaning
4.4 Maintenance and cleaning Please read the “Safety Instructions” section first! Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals. 4.4.1 Cleaning the detergent drawer Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent accumulation of powder detergent in time. -
Page 30: Draining Remaining Water And Cleaning The Pump Filter
4.4.5 Draining remaining water and cleaning the pump filter The filter system in your machine prevents solid items such as buttons, coins and fabric fibres clogging the pump impeller during discharge of washing water. Thus, the water will be discharged without any problem and the service life of the pump will extend. -
Page 31: Troubleshooting
Troubleshooting Please read the “Safety Instructions” section first! Problem Cause Solution Programmes do not start after the Start / Pause / Cancel button is not pressed. • Press Start / Pause / Cancel button. loading door is closed. It may be difficult to close the loading door in case of •... - Page 32 Problem Cause Solution Washing takes longer than Water pressure is low. • Product waits until taking in adequate amount specified in the user manual.(*) of water to prevent poor washing quality due to the decreased amount of water. Therefore, the washing time extends.
- Page 33 Problem Cause Solution Washing performance is poor: Insufficient amount of detergent is used. • Use the recommended amount of detergent Stains persist or the laundry is not appropriate for water hardness and the laundry. whitened. (**) Excessive laundry is loaded in. •...
- Page 34 Problem Cause Solution Detergent residue in the detergent Detergent was put in wet drawer. • Dry the detergent drawer before putting in drawer. (**) detergent. Detergent has gotten damp. • Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
- Page 35 Repair and repair attempts by end-users for parts not included in such list and/or not following the instructions in the user manuals for self-repair or which are available in support.beko.com, might give raise to safety issues not attributable to Beko, and will void the warranty of the product.
