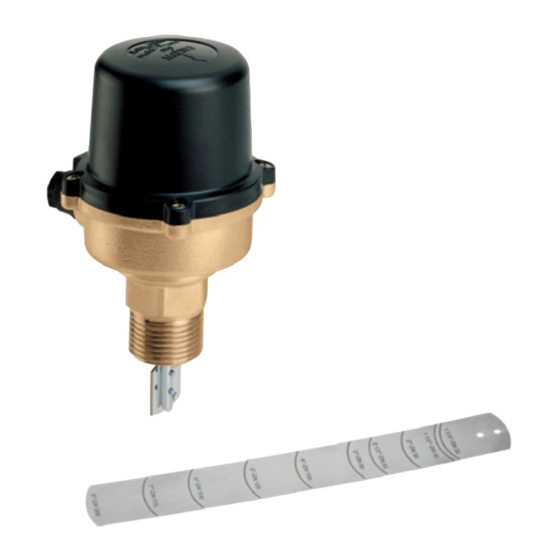

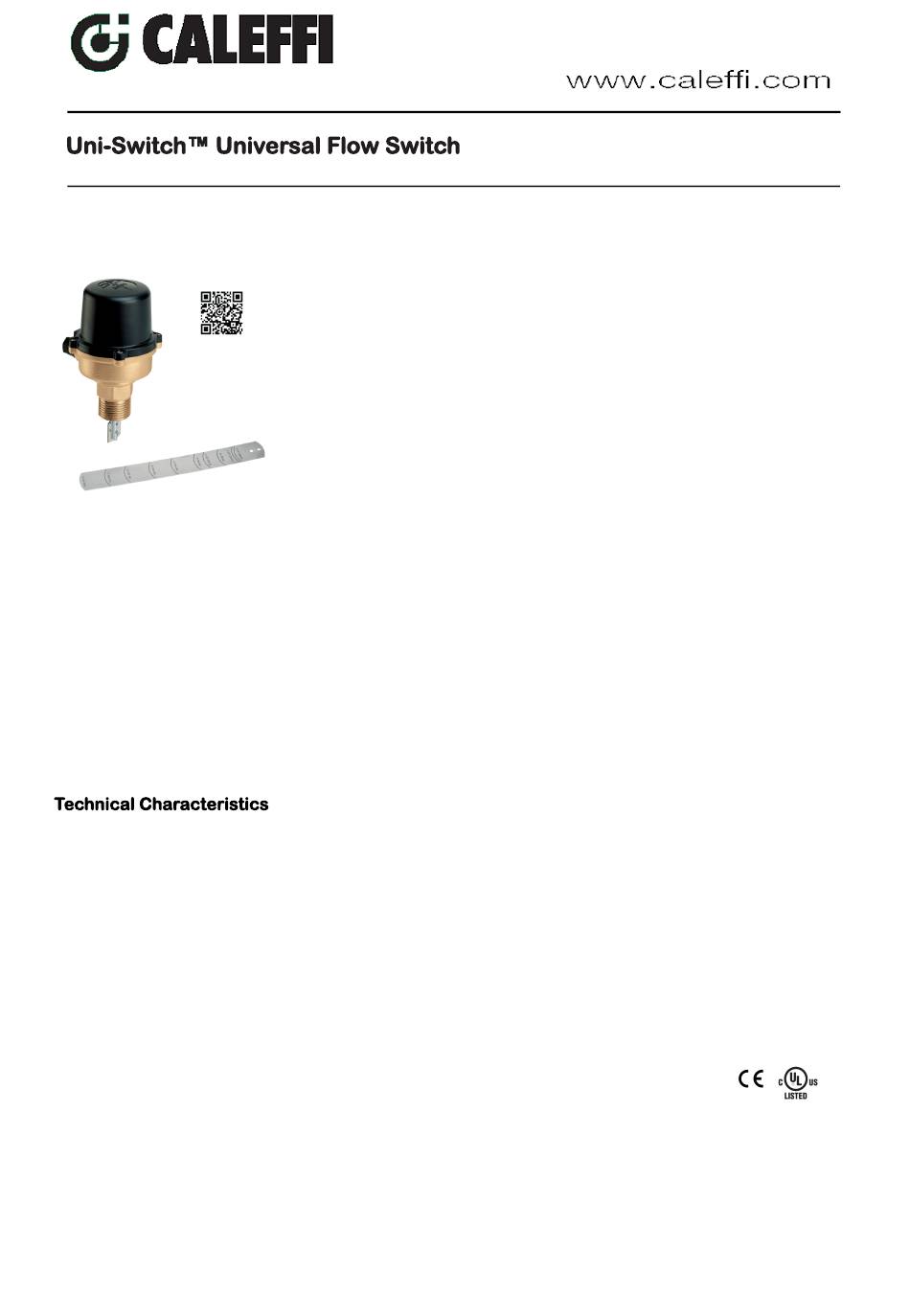

Uni-Switch™ Universal Flow Switch
© Copyright 2022 Caleffi

General Characteristics

A stainless steel bellows separates the electrical and hydronic sections, preventing the possibility of
contact of the fluid with the electrical components. Stainless steel is used in the construction of many key
parts, including the bellows, which protects the switch from corrosion.
With a protection classification of NEMA type 5 (IP54), the switch can be used in particularly humid and
dusty environments. The cover is made of a special non-combustible plastic material. The normally open
and normally closed contacts on the switch enable any electrical device to be switched on or off as
required at the operating flow rate. The operating point can be easily adjusted with the calibration screw

Technical Characteristics

Connection size:
Maximum operating pressure:
Maximum temperature of the fluid:
Minimum temperature of the fluid:
Maximum ambient temperature:
Suitable for pipes:

Electrical Data

Max. Voltage:
Max. Current:
Electrical connection:
Protection class:
Certification Mark:

Function

The Caleffi Series 626 water flow switch detects the presence or
absence of flow in piping of heating, air conditioning, cooling and water
treatment systems as well as in pumping and process systems. In
heating systems, the flow switch is normally used to shut off the burner
of the boiler whenever there is no circulation of the carrier fluid in the
boiler circuit. A lack of circulation can damage critical components and
impair the operation of temperature sensitive safety and protection
devices.
This item is designed for use in closed hydronic systems. Do not use in
plumbing applications. This item does not meet the low-lead plumbing
standards of U.S. and Canada.
1
68235.06
626 Series
.
1" NPT male
150 psig (10 bar)
°
°
250
F (120
C)
°
°
-20
F (-30
C)
°
°
130
F (55
C)
1" to 8" (25 to 200mm)
250 VAC
15A
½" NPT threaded
NEMA type 5 (IP54)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Uni-Switch 626 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CALEFFI Uni-Switch 626 Series

  • Page 1 68235.06 Uni-Switch™ Universal Flow Switch 626 Series © Copyright 2022 Caleffi Function The Caleffi Series 626 water flow switch detects the presence or absence of flow in piping of heating, air conditioning, cooling and water treatment systems as well as in pumping and process systems. In heating systems, the flow switch is normally used to shut off the burner...
  • Page 2 68235.06 SAFETY INSTRUCTION This safety alert symbol will be used in this manual to draw attention to safety related instructions. ATTENTION! BECOME ALERT! YOUR SAFETY IS When used, the safety alert symbol means INVOLVED! FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN A SAFETY HAZARD.
  • Page 3 68235.06 CONSIGNE DE SÉCURITÉ Ce symbole d'avertissement servira dans ce manuel à attirer l'attention sur la sécurité concernant instructions. Lorsqu'il est utilisé, ce symbole signifie. ATTENTION! DEVENEZ ALERTE ! VOTRE SÉCURITÉ EST EN JEU ! NE PAS SUIVRE CES INSTRUCTIONS PEUT PROVOQUER UN RISQUE DE SECURITE.
  • Page 4 68235.06 Installation: To install the flow switch correctly follow these instructions: - When selecting the blade, identify the diameter of the pipe to which the appliance will be fitted; - The appliance comes pre-fitted with the 1” blade; - For diameters of 1 1/4” (DN 32) and above, the pre-fitted blade should be removed and the long blade fitted, cutting it to the correct corresponding size for the desired diameter;...
  • Page 5 68235.06 Electrical Connections: Unscrew the four cover screws and lift off the outer cover CAUTION: Make sure the wires do not obstruct the function of the switch mechanism. AVERTISSEMENT: Assurez-vous que les fils ne sont pas entraver le fonctionnement de la changer le mécanisme.
  • Page 6 68235.06 Electrical Rating: Calibration: The minimum and maximum operating flow rates are given in the table below. Adjustments should be carried out as follows: turn the calibration screw (A) in a clockwise direction for the contacts to close at higher flow rate values or in a counterclockwise direction for lower flow rate values. When the adjustment has been made lock the screw (A) with the locking ring nut (B).
  • Page 7 68235.06 Operating flow rates: gpm (lpm)
  • Page 8 68235.06 NOTES 06-2022...
