Summary of Contents for ARTE ASSOS
-
Page 2: Table Of Contents
9.3. Cleaning the woodstove and the flue ..................................12 9.3.1. Chimney sweeping ....................................... 12 9.3.2. Annual maintenance ......................................12 9.3.3. How to clean the inside parts of ARTE® ASSOS woodstove..........................12 9.4. Internal parts removal ......................................13 9.5. Inactive fireplace for prolonged periods ................................13 10. -

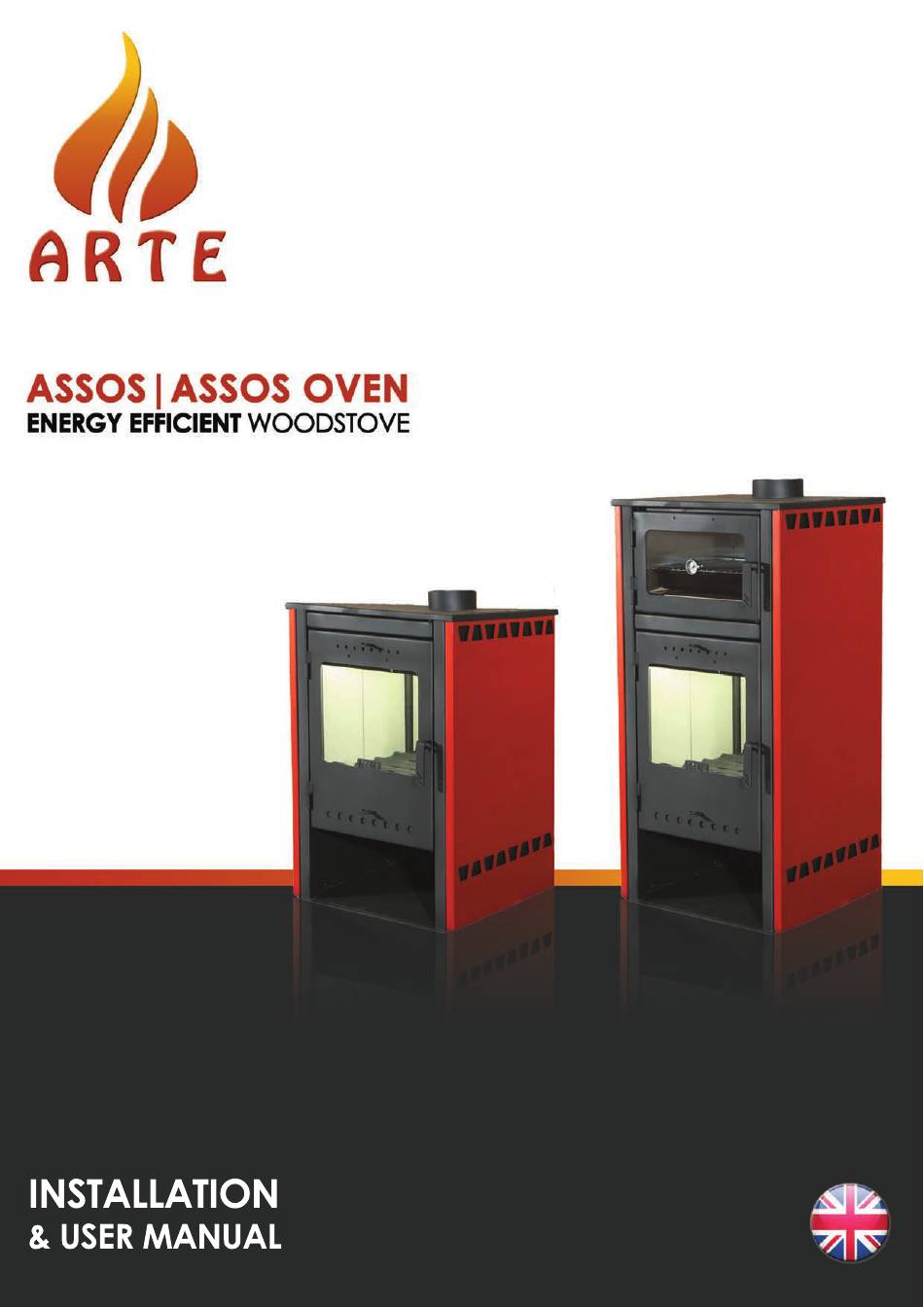

Page 3: Arte® Wood Stove - A Greek Quality Product
& | ASSOS & ASSOS OVEN ENERGY EFFICIENT WOODSTOVE NSTALLATION USER MANUAL 1. A ® W - A G OOD STOVE REEK UALITY RODUCT Thank you for buying an ARTE ® wood stove - we believe that you will have as much pleasure from our product as we have. -
Page 4: Wood Types And Calorific Value
INSTALLATION & USER MANUAL | ASSOS & ASSOS OVEN ENERGY EFFICIENT WOODSTOVE 2.4. Wood types and calorific value A wood’s efficiency does not depend only on its type, but also on its humidity, as well as the temperature of the combustion chamber. -
Page 5: Determining The Heat Output
& | ASSOS & ASSOS OVEN ENERGY EFFICIENT WOODSTOVE NSTALLATION USER MANUAL Beech Hard wood is ideal for firewood but requires a high temperature to ignite. It weights a lot; it is dense and burns with a calm and long fire for a longer time. -
Page 6: Endorsements & Certifications
Carefully remove the plastic membrane and the waterproof plastic film and also all the styrofoam on the outside and inside of the product. Remove the styrofoam that is on the upper part of the baffler in ASSOS and on the back in ASSOS OVEN and also in the combustion chamber and the ashtray, including any other components. (Pic. 4.1.2) Unscrew the 4 screws located on the bottom side of the product, in order to release the stove from the palette. -
Page 7: Fire Safety
5.3. Flue security instructions Prior to installing the woodstove ARTE® the chimney sweep or a qualified technician should check the condition and operation of your chimney in accordance with the standards EN13384-1 & EN13384-2. This way you ensure the best conditions for heating without issues. -
Page 8: Chimney Placement
INSTALLATION & USER MANUAL | ASSOS & ASSOS OVEN ENERGY EFFICIENT WOODSTOVE Inserting the pipe along the outer wall must be properly studied to avoid heat loss. This solution, however, is contraindicated, as positioning the flue inside the house warms more spaces as heat of the flue remains in the house. -
Page 9: Operating Instructions
In the guidelines below there are detailed instructions on the steps to follow so you do not encounter any issues during the operation of the woodstove. The qualified dealer in your area is at your disposal to answer any of your questions. The ARTE® ASSOS woodstove is equipped with the following control systems: 6.2. -
Page 10: Igniting The Stove
INSTALLATION & USER MANUAL | ASSOS & ASSOS OVEN ENERGY EFFICIENT WOODSTOVE 7. I GNITING THE STOVE 7.1. Traditional method of igniting Every time you ignite the stove, it initially needs a large amount of air. If the stove is cold, leave the door slightly open or secure the handle on the first latch, in order for air to circulate around it for the first minutes of ignition. -
Page 11: Tertiary Combustion
The stove surface is painted with heat-resistant paint. It is best kept clean by vacuuming with a soft brush attachment or by wiping with a lint- ® free cloth. Over a period of time, the painted surface may become slightly grey. A canister of touch-up ARTE spray paint should be available from your woodstove supplier. -
Page 12: Internal Maintenance
The gasket around the perimeter of the door may harden over a period of time. It should be replaced if it becomes difficult to close the door or if air starts to leak in around the perimeter of the doors, causing the fire to become a little less controllable. An ARTE ®... -
Page 13: Cleaning The Woodstove And The Flue
If you cannot inspect or clean the chimney by yourself, contact your local ARTE® dealer or a professional chimney sweep. If you experience a chimney fire, act promptly and:... -
Page 14: Internal Parts Removal
Make sure to remove it before the beginning of the operating season. We hope you enjoy many years of carefree warmth with this ARTE ® ASSOS woodstove. Some initial experimentation with loading and operating techniques will help you decide your normal routine. -
Page 15: Dimensions
& | ASSOS & ASSOS OVEN ENERGY EFFICIENT WOODSTOVE NSTALLATION USER MANUAL 11. D IMENSIONS All dimensions are in centimeters (cm) 14 | Page... - Page 16 INSTALLATION & USER MANUAL | ASSOS & ASSOS OVEN ENERGY EFFICIENT WOODSTOVE All dimensions are in centimeters (cm) 15 | Page...
-
Page 17: Technical Specifications
& | ASSOS & ASSOS OVEN ENERGY EFFICIENT WOODSTOVE NSTALLATION USER MANUAL 12. T ECHNICAL PECIFICATIONS TECHNICAL SPECIFICATIONS UNITS ASSOS ASSOS AIR Kcal/h 11619 12410 *Total heat output 13.51 14.43 Recommended hourly consumption of firewood Kg/h 4.33 4.52 72.3 74.03... -
Page 18: Warranty
Wearing parts like gaskets, vermiculite panels and glass Smoke and soot damage Natural discoloration or deviating colors on the outer cladding Cracks in the combustion chamber that have no effect on the safe functioning of the ARTE ® ASSOS woodstove... - Page 19 & | ASSOS & ASSOS OVEN ENERGY EFFICIENT WOODSTOVE NSTALLATION USER MANUAL OTES S/N: 18 | Page...
