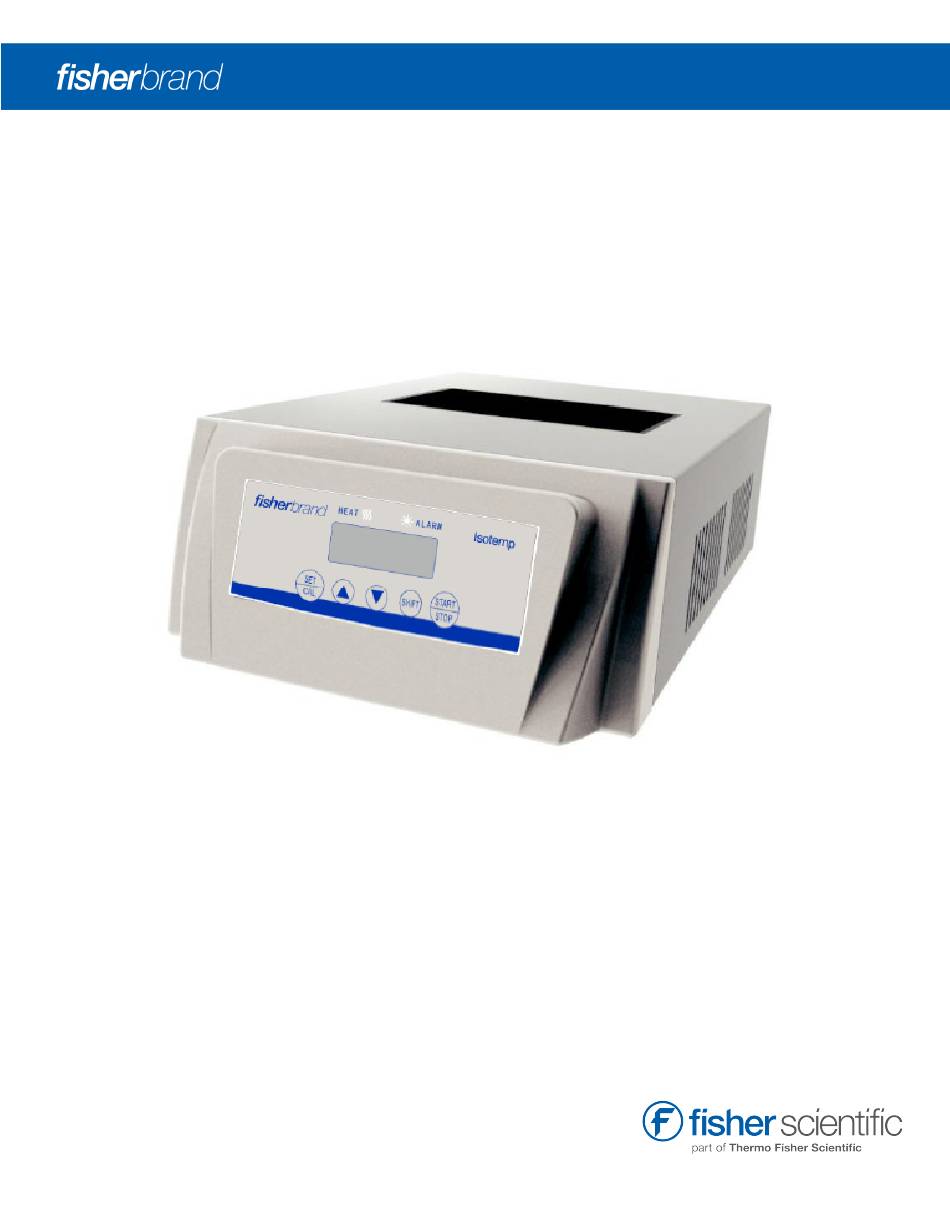

- Page 1 Digital Drybath Operational Manual 0000853 • Revision C • October 2021...
- Page 2 IMPORTANT! Before using this product, read this entire operation manual carefully. Users should follow all of the operational guidelines contained in this manual and take all necessary safety precautions while using this product. Failure to follow these guidelines could result in potentially irreparable bodily harm and/or property damage.
-
Page 3: Table Of Contents
Contents Models................. 1 Important Notes............2 General Practice............2 Safety............... 2 Regulatory Compliance ..........3 Introduction ..............5 Features............... 6 Normal Working Conditions........6 Transportation and Storage Conditions ....6 Basic Parameters ............. 6 Preparation Work............8 Structure Diagram ............ 8 Display Panel Diagram .......... - Page 4 Warranty ..............15 Frequently Asked Questions ........16...
-
Page 5: Models
Models This manual covers the models shown below. Table 1. Models NA Model EU Model Voltage Description 88860021 100-120 Vac FS Drybath Stdrd 1 blck 100-120 V 88860022 100-120 Vac FS Drybath Stdrd 2 blck 100-120 V 88860023 100-120 Vac... -
Page 6: Important Notes
Important Notes General Practice • Servicing and Replacement of Parts The operator should not take the instrument apart without permission. Only qualified CAUTION: Important information is contained in professionals are allowed to replace elements any item and should be carefully read. Failure to or adjust components inside the instrument. -
Page 7: Regulatory Compliance
The openings on this instrument are for ventilation CAUTION: In any of the following cases, circulation and in order to avoid over-heat of the immediately cut off the power supply, withdraw instrument body they should not be blocked or covered. the power plug from the power socket and When a single set of instrument is used, the interval contact the supplier for service:... - Page 8 Korean Registration End of Life Care Some considerations and suggestions are listed below for proper disposal of this product. While addressing these 사용자안내문 actions for safe recycling and disposal, please follow all 이기기는엄무용환경에서사용할 guidelines, Safety Data Sheets (SDS), or regulations 목적으로적함성평가를받은기기...
-
Page 9: Introduction
Introduction The product is a dry bath with advanced microcomputer control, which can be widely applied to sample reservation, enzyme reservation and reaction, DNA amplification, electrophoresis degeneration and serum coagulation, etc. The characteristics of the product are as follows: • The digital display for control of the temperature. -
Page 10: Features
Pollution Degree Overvoltage category II Indoor use Mains supply voltage ±10% fluctuations Basic Parameters Table 2. 100-120 V NA Catalog Number 88860021 88860022 88860023 Digital 1 block Digital 2 block Digital 4 block Model Name 100-120 V 100-120 V 100-120 V Temperature Range Ambient Temperature +5°C ~ 130°C (Ambient Temperature 25°C) - Page 11 Table 3. 200-240 V NA Catalog 88860024 88860025 88860026 Number EU Catalog 15387928 15397928 15317938 Number Digital 1 block Digital 2 block Digital 4 block Model Name 200-240 V 200-240 V 200-240 V Temperature Range Ambient Temperature +5°C ~ 13°C (Ambient Temperature 25°C) Temperature ±1.0°C@37°C Uniformity...
-
Page 12: Preparation Work
Preparation Work Instructions for Buttons This chapter introduces structure of the instrument, user interface and functions of all buttons and preparation before startup. Read the content in the chapter carefully before using the instrument for the first time. Setting or adjusting button: Press the button to display present setting temperature and press the button again to display present time. -
Page 13: Operation Guidance
Operation Guidance Setting Temperature and This chapter introduces the displaying window and the operation of buttons of the dry bath with constant Heating Time temperature. Note: The illumination pattern of the ‘Heat Light’ indicates the Set Temperature and Hold-Time Setpoint: Operation status. -
Page 14: Start And Stop Instrument
Instruction: There is limitation for temperature and time 7. The Heat-indicator may start 'blinking' as the setting. The setting temperature range is: 15 ~ 135°C; the temperature is stabilized to the calibrated temperature. time range is: 0 ~ 99 h 59 min and continuous mode "- -:- -". 8. -
Page 15: Maintenance Of The Instrument
Maintenance of the instrument The holes of the blocks should be regularly cleaned with the damp cloth to ensure the test tube be well contacted with the wall of the holes so as to have good heat conduction. If the surface of the instrument is polluted, it can be cleaned with a slightly damp soft cloth. -
Page 16: Failure Analysis And Troubleshooting
Failure Analysis and Troubleshooting This chaper introduces possible failures of this instrument, explanation and troubleshooting. CAUTION: The user is not allowed to open the housing of the instrument for inspection during the warranty period. If any failures that require opening the housing for inspection occur, the supplier or manufacturer should be contacted timely. -
Page 17: Accessories
Accessories Table 5. Modular Block Accessories Block Dimensions Catalog No. Heating Blocks No. of Holes W x D x H (mm/in) 124 x 76 x 39 / 88860101 For 6 mm test tubes 4.9 x 3.0 x 1.5 124 x 76 x 39 / 88860102 For 10 mm test tubes 4.9 x 3.0 x 1.5... - Page 18 Table 5. Modular Block Accessories Block Dimensions Catalog No. Heating Blocks No. of Holes W x D x H (mm/in) For mixed size test tubes 30 holes for 0.5 ml 124 x 76 x 39 / 88860115 30+20 test tubes 20 holes for 0.2 ml test tubes 4.9 x 3.0 x 1.5 124 x 76 x 113 / 88860116...
- Page 19 Warranty When used in laboratory conditions and according to these operation instructions and maintenance, this product is warranted for 24 months against defective materials or workmanship. The 24 month warranty period begins from the delivery date of this product. For product quality or performance issues, contact Fisher Scientific Customer Service.
- Page 20 Frequently Asked Questions Scenario 1 Does unit turn off once the program time is complete: Example- If unit is set for one program to run at 45°C for 2 hrs. Q-Would the unit turn off upon completion of this 2 hrs? A-The instrument doesn't turn off by itself, it just stops running.
- Page 21 WEEE Compliance Great Britain WEEE Compliance. This product is required to comply with the European Union’s Waste Electrical & Electronic Equipment (WEEE) Directive 2012/19/EU. It is marked with the following symbol. Fisher Scientific has contracted with one or more recycling/disposal companies in each EU Member State, and this product should be disposed of or recycled through them.
- Page 22 IF YOU NEED ASSISTANCE: cold storage accessories, including remote alarms, temperature recorders, and validation services. Visit fishersci.com or call: Fisher Scientific products are backed by a global technical support team ready to support your applications. We offer Countries Sales Service United States Canada North America...
- Page 23 Fisher Scientific Inc. 275 Aiken Road Asheville, NC 28804 United States Find out more at fishersci.com © 2021 Fisher Scientific Inc. All rights reserved. All trademarks are the property of Fisher Scientific and its subsidiaries unless otherwise specified. 0000853 1021...
