- Page 2 CONTENTS User Safety Introduction and MR706/8™ Accessories MR706/8™Diagram Operating Instructions Batteries Mounting the receiver Powering Up & Coarse and Fine Modes Receiver LED display Technical Specifications Care & Maintenance, Trouble Shooting Warranty Copyright © CMI LasersTM RedBack lasersTM and Level1LasersTM . All rights reserved CMI Industries Pty Ltd 2022 Copyright ©...

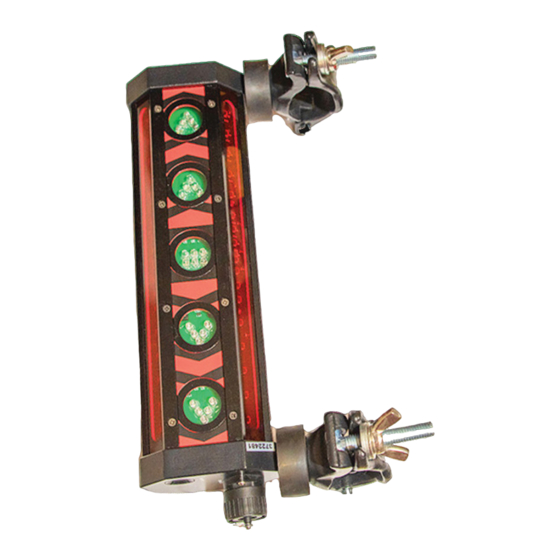

- Page 3 A machine mounted rotating laser receiver suitable for all red rotating lasers. The MR706 features a magnetic mount, allowing placement on suitable booms on earthmoving machinery. This version can also be perchased as the MR706D which also includes in-cab repeater unit and connection cables.
- Page 4 MR706/8 DIAGRAMS MR706/8 Receiver Unit MR708 Clamp 1. Magnetic Mount (MR706) 2. Cast Metal Housing 3. 4x Laser Sensor Pickups 4. Laser Height Display LED’S 5. Rubber Shock Absorbers 6. Charging/Connection Socket 7. Power Button www.redbacklasers.com.au...
- Page 5 In-Cab Repeater (MR706/8D models only) Cast Metal Construction Laser Position LED’s Cradle Adjustment Mounting Laser at level Cradle Green LED Reception Sensors 12/24V Cable Connection (4 pin to crocodile clips) Cable to Receiver (7 to 4 pin cable) www.redbacklasers.com.au...
- Page 6 OPERATING INSTRUCTIONS Battery Instructions The Ni-mh rechargeable battery for the MR706/8 range of lasers is built into the receiver unit and is sealed for life. The battery is replaceable at one of our service centers if required in the future.
- Page 7 The MR706/D comes with magnetic mounts and the MR708/D comes with clamp mounts. The magnets on the MR706/D can be placed onto any steel flat surface on your machine. The magnets are very strong and the magnet assembly includes anti slip rubber rings. Under normal operation the magnets should keep the receiver solid.
- Page 8 Fine and Coarse Mode The MR706/8D features a fine and coarse mode. This mode determines how accurate or fine the level Green LED band is. The receiver by default always powers up in coarse mode. If you wish to have a narrower band that shows as level then short press the power button whilst the receiver is powered on.
- Page 9 RECEIVER INSTRUCTIONS Receiver’s LED’s when picking up a laser If the receiver is powered up and no LED lights are showing on the receiver then the receiver is not picking up any rotating laser within its 250mm height reception window. If one of the receivers LED’s are flashing slowly and no rotating laser is striking the reception window then the position of the slowly flashing LED indicate the last known position/height of the laser.
- Page 10 MR706/8 TECHNICAL SPECIFICATIONS Technical Specifications Receiving Distance up to 200m radius Receiving Range 250mm (top to bottom) Receiver pick Up 360 Degrees (angle) Internal Battery 7.2V 3500mAH Ni-mh Battery Life Up To 40hrs (without 12/24V input) Input Voltage (from machine)
- Page 11 • Do not pressure wash - The receiver is highly watertight but excessive water pressure may cause water to ingress into the receiver. For service contact Redback Lasers. www.redbacklasers.com.au • Trouble Shooting - FAQ I see random Flashing of the LED lights! This is normally an indication that the battery is low on power and requires re-charging.
- Page 12 “Workmanship” refers to handling, assembly and manufacturing processes done by or for CMI Industries Pty Ltd in order to manufacture the products. “Warranty Period” For the MR706/8 Two Years. Warranty period is from original purchase date, no extension is made in the event of warranty replacement products supplied or time spent being repaired.
