Summary of Contents for Hawkeye Mfg E Series

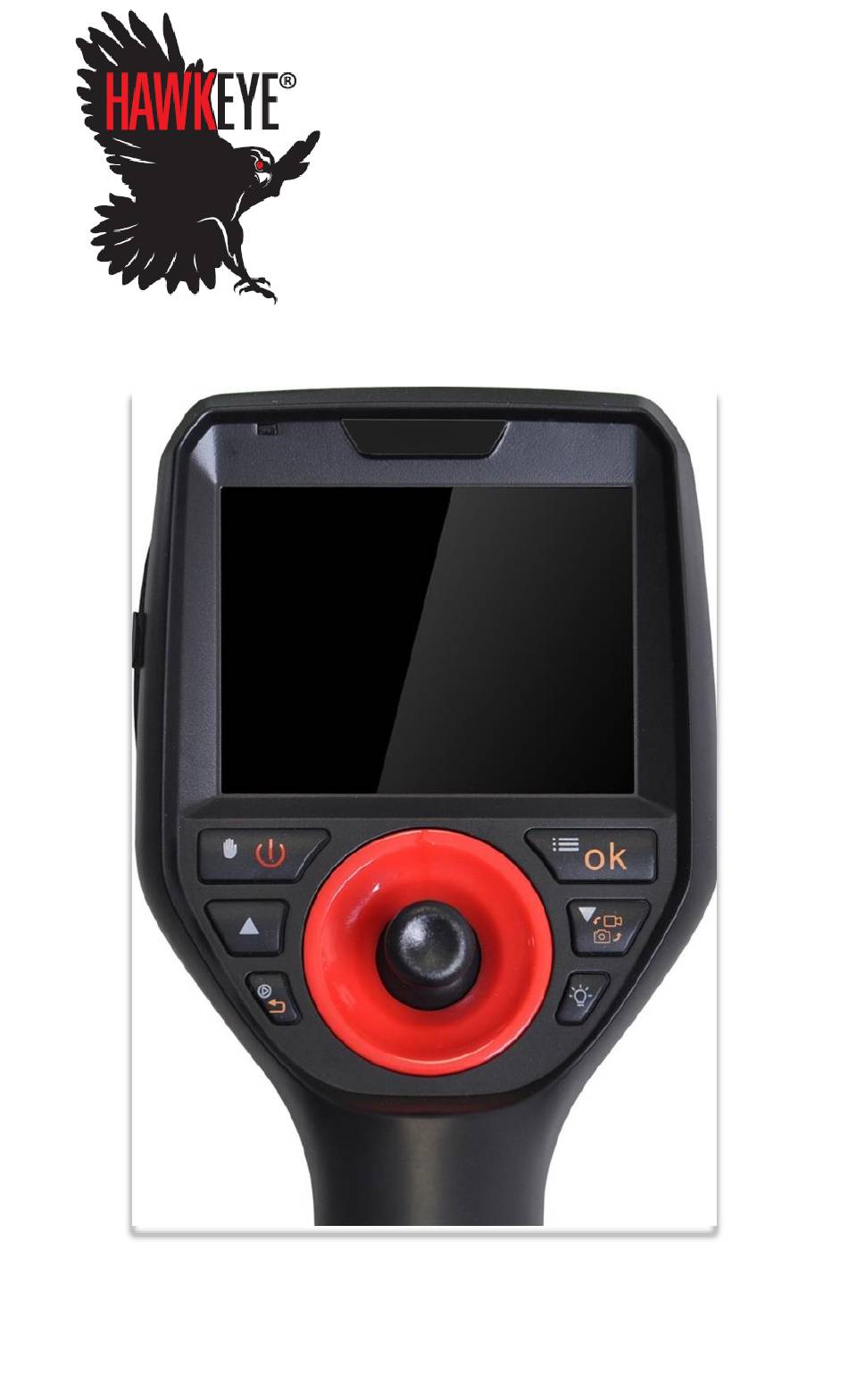

- Page 1 E-SERIES VIDEO BORESCOPE User’s Manual VES-020-XXXX-X VES-028-XXXX-X...
- Page 3 General Warnings: The following warning statements apply to use of the Hawkeye® E-Series Video Borescope in general. Warning statements that apply to specific procedures appear in the corresponding sections of the manual. DO NOT allow the conductive insertion tube, system, or its working tools to come in direct contact with any voltage or current source.
- Page 4 twist, or straighten the bending neck by hand; internal damage may result. At the first sign of damage, return the probe for repair. NEVER force the insertion tube to bend too sharply. Carefully guide the tip of the insertion tube to the location you want to view.
- Page 5 Operation Overview: Hawkeye® E-Series Videoscope is controlled via the keypad, joystick, and trigger. The graphical user interface is accessed using the keypad. These controls allow the user to: • Articulate the tip of the flexible insertion tube to change the direction of view. •...
-
Page 6: Interface Layout
Interface Layout: Mini HDMI Micro USB TF/microSD Menu/OK Power Down Arrow Up Arrow Photo/Video Return/Playback Brightness Joystick Trigger Playback System Button Name Live-View Mode Mode Menu Power On/Off Power Power On/Off Image Freeze/Unfreeze Up Arrow Image Rotation Menu Navigation Enter Playback Return/Playback Return Mode... - Page 7 Power On: Press and hold the button for 3 seconds. A blue light on the upper left corner will light, and the system will power on. Live-View is the default mode. In this mode, the user can observe the image captured by the camera on the display.
- Page 8 Playback/Delete: In Live-View press the button to enter Play-Back mode. Photos and videos are stored separately. Use the buttons to select photos or videos and confirm with the button. Files are listed on the left side of the screen. The highlighted file’s information will be displayed alongside a preview image.
- Page 9 Backlight Brightness: Screen brightness can be increased or decreased in 3 steps. Time and Date: Set Date & Time. Date is in Year/Month/Day format. Time is in 24-hour format. Display Language: English, Japanese, Korean, French, German, Portuguese, Spanish, Russian, Italian, Dutch, Polish, Simplified...
- Page 10 Ports: The Hawkeye® E-Series Video Borescope comes equipped with Mini HDMI, Micro USB, and TF/microSD ports. HDMI: The Hawkeye® E-Series Video Borescope can be connected to an external monitor or television equipped with an HDMI port using the supplied Mini HDMI cable. Micro USB: The Micro USB port is used as a charging port.
- Page 11 Stand Removal: To remove the magnetic table stand, remove 2 screws near the base of the insertion tube and 1 screw near the wrist strap with the supplied screwdriver. Lift the stand away from the videoscope. Battery Removal & Replacement: 1.
- Page 12 Insertion Tube Removal: 1. Loosen the retaining nut at the base of the insertion tube turning counterclockwise direction. 2. Use the loosened retaining nut to gently push and separate the insertion tube from the main unit. Remove the retaining nut from the insertion tube.
- Page 13 Insertion Tube Replacement: Place the insertion tube into the opening of the main unit, ensuring that the arrow on the red bezel is oriented in the up position. Replace the retaining nut and gently tighten by turning it in a clockwise direction Replacement insertion tubes compatible with your Hawkeye®...
- Page 14 Troubleshooting: 1. Unit will not turn on: → Battery missing or the battery has been depleted. ✓ Charge or replace the battery. (pg. 8, 9) 2. Auto Shutdown: → Battery has been depleted. ✓ Charge or replace the battery. (pg. 8, 9) 3.
- Page 15 Specifications: VES-020-XXXX-X VES-028-XXXX-X Diameter: 2.0mm (.078”) 2.8mm (.110”) Length: 1m/2m/3m/4.5 m 1m/2m Articulation: 150°±10° / 4.5m N/A 150°± 10° Field of View: 100° Diagonal ±10° Depth of Field: 3mm - 50mm Direction of View: 0° Sheath: Tungsten Wire Camera: 400x400px Display: 3.5”...
- Page 16 Chemical Compatibility: Chemical compatibility refers to the probe’s ability to contact various liquid substances for short periods and not be damaged. The Hawkeye® E- Series Videoscope insertion tube is resistant to chemicals typically used in manufacturing environments. Please contact Gradient Lens Corporation directly if you have specific requirements.
- Page 17 Sales & Technical Support: Gradient Lens Corporation 207 Tremont Street Rochester, NY 14608 Phone: 585-235-2620 Gradient Lens Corporation West 4647 Jackson Lane, Unit D Phelan, CA 92371 Phone: 760-868-5812 gradientlens.com info@gradientlens.com Toll Free: 800-536-0790 Service: To obtain service for a Hawkeye® E-Series Videoscope, please contact your reseller or Gradient Lens Corporation directly.
- Page 18 Warranty: Gradient Lens Corporation warrants that all Hawkeye® borescopes and accessories will be free of defects in materials and workmanship for a period of one year from the date of first retail purchase. Video and lighting products have manufacturer’s warranties for a period of one year.
- Page 20 Gradient Lens Corporation 207 Tremont Street Rochester, NY 14608 USA gradientlens.com info@gradientlens.com 585-235-2620 800-536-0790 v1.0...
