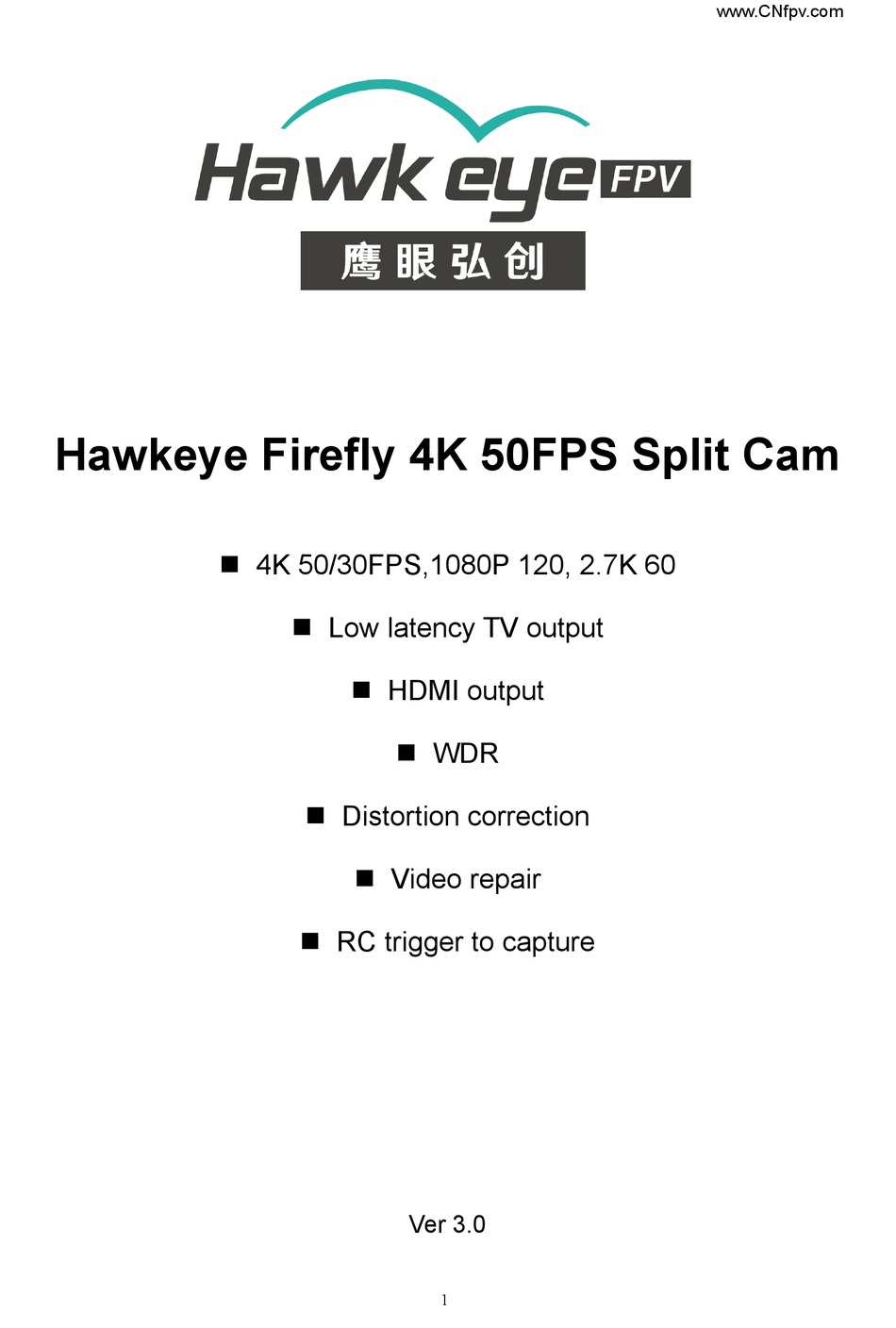

- Page 1 www.CNfpv.com Hawkeye Firefly 4K 50FPS Split Cam 4K 50/30FPS,1080P 120, 2.7K 60 Low latency TV output HDMI output WDR Distortion correction Video repair RC trigger to capture Ver 3.0...
-
Page 2: Table Of Contents
www.CNfpv.com Contents Safety Guidelines：......................3 Features ：...........................4 Buttons:..........................8 Video Settings:........................8 Photo Settings:........................9 System Settings:.........................10 Triggers:..........................11 Record videos:........................12 Transferring Files:......................12 Update Firmware:......................12... -
Page 3: Safety Guidelines
www.CNfpv.com Safety Guidelines： Please read the instruction manual carefully before using the camera for the first time. Please check the latest version manual on our website. 1.It’s a high-precision product, do not drop or crash it. 2.Do not expose the camera to strong magnetic objects, such as magnets or electrical motors. -
Page 4: Features
www.CNfpv.com Features ： SD card holder USB HDMI Trigger 1 Trigger 2 Battery voltage measure Video GND- Power+ Key port Red, Blue LED Power/OK , Mode button Power/video Cable Converting Mount SD Protection Cover Key board (22 to 28mm) - Page 5 www.CNfpv.com SD Protection Cover： LED indicator： 4K 50FPS Red + Blue 2.7K 60FPS 1080P 60FPS Blue 4K 30FPS Wires: Red: 7-24V DC input + Black: GND Yellow: Video Out White: Battery detect (MAX 24v) Blue: Video trigger Green: Photo trigger Note: Never connect video/trigger port to power+!!!
- Page 6 www.CNfpv.com...
- Page 7 www.CNfpv.com 5.8G Hawkeye 4K Split Red Cable: Power+ White Cable Hawkeye Remote control Board Black Cable: GND +12V Yellow Cable: Video White Cable: Battery Detect 12V Output Blue/Green Cable: Trigger POWER BOARD To 3 ways Note: Power output, 12V 1A at Battery in(2S-6S) PWM Receiver least!
-
Page 8: Buttons
www.CNfpv.com Performance and Specifications: Resolutions 4K 50FPS(4:3) 4K 30FPS/ 1080P 120/60FPS/ 2.7K 60/30FPS/ 720P 240/60FPS AV output PAL/NTSC PAL has lower latency! Micro SD card U1 Sandisk recommend SD card supported 8-128G Size 38 ×38 MM 30.5×30.5 M4 holes Weight File format *.MP4/H.265/H.264 Lens... -
Page 9: Photo Settings
www.CNfpv.com Exposure： +2.0、+5/3、+4/3、+1.0、+2/3、+1/3、0、-1/3、-2/3、-1.0、-4/3、-5/3、- 2.0.Note:Higher value for brighter image. If you want brighter image, set this value higher. If the image is over exposure, set the value smaller. Record Audio：Off、On. Date Stamp：off、On. Set the date time stamps on the video. EIS：Off、On. Gyro Image stabilization. When this function is turned ON, the TV output will be delayed. -
Page 10: System Settings
www.CNfpv.com Quick Review：Off、2、5 sec. Date Stamp：Off、Date、Date&time. Set the day time on the image Exposure： +2.0、 +5/3、 +4/3、 +1.0、 +2/3、 +1/3、 0、 -1/3、 -2/3、 -1.0、 -4/3、 -5/3、 -2.0. Metering:Average、Center-weighted、Spot. Long exposure：Off、 0.5、 1、 2、 5、 10、 30、 60sec.using a long-duration shutter speed to sharply capture the stationary elements of images while blurring, smearing, or obscuring the moving elements. -
Page 11: Triggers
www.CNfpv.com Logo watermark： Off、On. ISO:Auto、100、200、400、800、1600、3200. The term was carried over from film, when the ISO rating was known as the “film speed” and “ASA.” Having a standard of sensitivity is important, as it allows you to shoot the same ISO on different cameras and trust that the exposure value will be equal. -
Page 12: Record Videos
www.CNfpv.com Note: Don’t connect the trigger pins to any power. If you want to control it by a MCU, connect it to a 3.3V GPIO through a 1K resistance. Record videos : Please insert SD card, then press Power/OK button once to record. Please use U1 speed SD card at least(8-128G). - Page 13 www.CNfpv.com Scan to watch how to update: FCC STATEMENT： This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 14 www.CNfpv.com This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 15 www.CNfpv.com NOTE: Check on www.CNfpv.com for new firmware/Manual updates. For more information please check our Youtube/Facebook/Instagram channel: Hawkeye Firefly Official Youtube Facebook Instagram...
