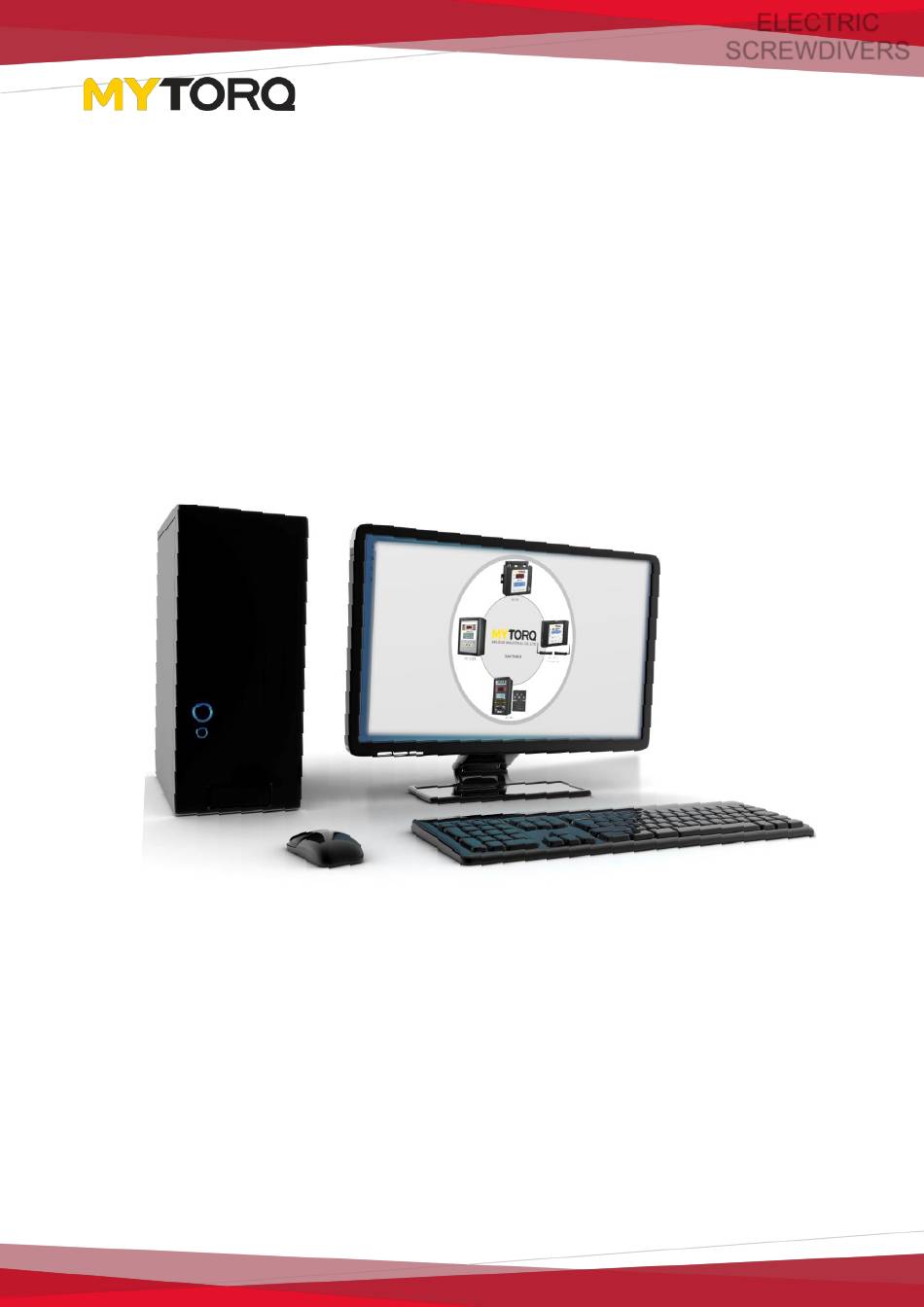

ELECTRIC SCREWDIVERS Table of Contents ① User Guide ........................... 3 ② System Requirements ........................ 4 ③ Hardware ............................5 ④ System Connection ........................6 ⑤ System Screen Introduction ...................... 9 ➢ Unlock Settings ........................9 ➢ Password change setting method ................... 10 ➢...

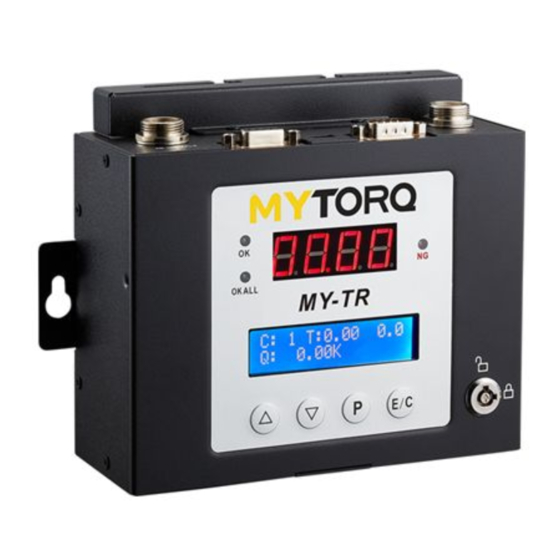

① User Guide This manual describes how to quickly operate the “Data Acquisition System” and get started with the MY-TR controller. Diversified operation interface, user-friendly design also system can have functions such as report operation, data analysis, trend graph, parameter setting, etc.
ELECTRIC SCREWDIVERS ② System Requirements ⚫ Windows 10, Windows 8, Windows 7, Windows XP or Windows Vista ⚫ Hardware memory at least 768MB/2GBHz processor ⚫ At least 2GB hard disk ⚫ Recommended at least 16-bit color and 1024x768 screen resolution ⚫...
ELECTRIC SCREWDIVERS ③ Hardware 1. The following must be prepared before operating this system: ⚫ MY-TR Controller ⚫ Executable file for the operating Data_Acquisition_System.exe. ⚫ One RS-232 serial port. ⚫ One 1D(Linear) barcode scanner (*not necessary). 2. Device connection as in the following diagram:...
ELECTRIC SCREWDIVERS ④ System Connection Step 1: Before log in, it is required to set the date format in the computer system as “YYYY/MM/DD”. Step 2: Download the compressed software NOTE: For the version: 1.0.0.6 and later on, there must have 2 additional dll files in the folder(shown as below picture) after you decompressed the software.
Page 7
ELECTRIC SCREWDIVERS Step 4: Move the mouse cursor to and display the four controllers. Step 5: Controller selection (MY-TR) Page 7 of 46...
Page 8
ELECTRIC SCREWDIVERS Step 6: Go to Comm page. port to pull down (Connect according to the port of the computer display device) And press and leave controller product testing setup page (communication settings are default, there is no need to modify). Page 8 of 46...
ELECTRIC SCREWDIVERS ⑤ System Screen Introduction ➢ Unlock Settings The page displayed is Instant data display after entering the screen. At this time, no operation can be performed due to locked setting. You must enter the password first if need to unlock for operation. Step 1: After clicking the button of "Edit Settings", the unlock window will pop Step 2: Enter the default password "admin123"...
ELECTRIC SCREWDIVERS ➢ Password change setting method Click "Edit Settings" button → "Edit Password" to enter the old password and the new password, and then click OK button to complete the setting. NOTE: New password setting: Six to eight characters in length, including English uppercase and lowercase, numbers.
ELECTRIC SCREWDIVERS Product setup page: divide the setup page into partitions and introduce them in order. NOTE: The pages of the system can be operated by sliding left and right , so the software can be operated on the touch screen. Page 11 of 46...
Page 12
ELECTRIC SCREWDIVERS Controller device setup Introduce the functions for the two zones from left to right in order: ⚫ Control Program Configuration (Auto Learning):Press and check the check box , then the user could Load or Write the parameters. ➢ When the check box is unchecked , all input fields are shown as gray color which mean the user can't input any...
Page 13
ELECTRIC SCREWDIVERS When the check box is checked ➢ , all input fields are shown as white color which mean the user can input the parameters. ⚫ Program: Display the program group currently used (Program). ⚫ Tool ID: Display the current used tool's id. ⚫...
Page 14
ELECTRIC SCREWDIVERS ⚫ DISABLE: Press to immediately stop screwdriver operation. ⚫ ENABLE: Press to immediately allow the screwdriver to run. ⚫ RESET: Press to restart the controller and restore factory parameters. ⚫ EDIT: Press to enter screwdriver condition parameters. ⚫ COPY: Press to copy the TQC condition parameter to Program.
Page 15
ELECTRIC SCREWDIVERS ⚫ LOAD: To load the parameter settings from the MY-TR controller. Press and check and select program . Press to finish this process. Page 15 of 46...
Page 16
ELECTRIC SCREWDIVERS ⚫ SAVE: Save the parameters to MY-TR controller. Press and check then input required parameters. Press to finish this process. Page 16 of 46...
Page 17
ELECTRIC SCREWDIVERS ⚫ SELECT: Press and check then input required parameters . Press switch to required program. ⚫ QUIT: Press to end after pressing Page 17 of 46...
Page 18
ELECTRIC SCREWDIVERS ⚫ Edit Settings:After entering the system, you must click and enter the password to unlock the screen and switch to other pages. (Please refer to "Password Change Setting Method") ⚫ Lock Settings:Click to automatically jump to the "Instant data display"...
Page 19
ELECTRIC SCREWDIVERS Received Data Display: All fastened data can be displayed instantly. ⚫ Received Time: The time to fasten the data. ⚫ Device ID: Device ID (1~255). ⚫ Program Unit: This fastened program group (Program). ⚫ Device Count: The total number of times the device is fastened. ⚫...
Page 20
ELECTRIC SCREWDIVERS ⚫ Shutoff Time: How long driver ran before clutch tripped. (Sec) ⚫ Shutoff Torque: the torque for the fastening. ⚫ Shutoff Thread: Number of rotations at output shaft. ⚫ Shutoff Status: shut off status (OK, NG, OK ALL, REV). ⚫...
Page 21
ELECTRIC SCREWDIVERS Data Analysis: the number of times, the number of shut off, OK and OKALL interval time can be set. The data which meet the conditions will be shown. NOTE: Data Analysis will be activated when the TQC Range is enable. ⚫...
Page 22
ELECTRIC SCREWDIVERS TQC Range: Analyze the average error value. Program parameter setup (refer to manual for condition parameters) Page 22 of 46...
Page 23
ELECTRIC SCREWDIVERS ⚫ Program Load/Write: ➢ For the “Load” field, please refer to “ROAD” ➢ For the “Write” field, please refer to “SAVE” Page 23 of 46...
Page 24
ELECTRIC SCREWDIVERS ⚫ Max Count: The field indicate program “required total screw numbers” ⚫ Program parameter setup (refer to Manual for Condition Parameters) Page 24 of 46...
Page 25
ELECTRIC SCREWDIVERS Data collection: When the fasten tool is started, the data will be displayed in the Log Bar field at the bottom of the page. (Fasten data sheet, TQC Trend Setting) ⚫ Fasten data sheet (If you need to hide or display the received data, please refer to “Item selection”).
Page 26
ELECTRIC SCREWDIVERS NOTE: Touch the red box area and swipe to the next page to display a trend graph. Main menu: click to hide or display English title. Page 26 of 46...
Page 27
ELECTRIC SCREWDIVERS Go to previous page by pressing button, next page by pressing button. NOTE: Full description will be displayed when the mouse moves to the setting parameter (please refer to manual for details). Example: When the mouse moves to “SP”, “SP: [Slow Start Speed Level]” is displayed. Page 27 of 46...
ELECTRIC SCREWDIVERS Controller and Job setup page Page 28 of 46...
Page 29
ELECTRIC SCREWDIVERS Controller Configuration: After pressing , you can modify the controller status set by the device (RED rectangle area). After the setup is completed, press the button and press to complete the query. NOTE: To query the Controller Configuration , press →...
Page 30
ELECTRIC SCREWDIVERS Tool Configuration ⚫ Tool Sn: Tool's serial number. ⚫ Gear ratio: Based on driver model. ⚫ Cal. Time: Date stamp when driver was las calibrated. ⚫ Torque Filter function: set 0 to disable the filter function, 1-250 to set the numbers of filter time, set &...
Page 31
ELECTRIC SCREWDIVERS ⚫ Load All Sequences List: Press to finish loading. → → ⚫ Setting All Sequences List: Press → setting Program Unit → to finish → setting. Page 31 of 46...
ELECTRIC SCREWDIVERS 3. Barcode Manager Set / Read Barcode data to / from MY-TR NOTE: Refer to the “BARCODE LEARNING” in MY-TR User Manual. Page 32 of 46...
Page 33
ELECTRIC SCREWDIVERS Turn ON / OFF DAS's Barcode function Only when the specific barcode data hasn’t been stored in MY-TR will be applied to DAS’s barcode function. The procedure to set DAS’s barcode data. Step 1: Turn ON DAS’s barcode function.
ELECTRIC SCREWDIVERS 4. Report and trend graph setup page Received Data List There are two types of display data . If you need to clear it, press the button to clear all the data immediately. Historical Data File List ➢ Excel export: When swiping the Controller Bar to page 4, press to export the Excel report to the specified location.
Page 35
ELECTRIC SCREWDIVERS Data Log ➢ Data Log: When is checked, there are two ways to automatically export Excel reports (instant archive, automatic archive). ⚫ When is selected, any data fastened will be automatically exported to the bottom of . When the system passes the integral time point, the form will be cleared to ensure sufficient memory space.
Page 36
ELECTRIC SCREWDIVERS ➢ Record selection: Checked items will affect the data recorded in the form. When REV selection is cancelled, the inverted data will no longer be received. ➢ Item selection: The selected items will affect the data recorded in the form. When the item is checked, the display data will be displayed;...
ELECTRIC SCREWDIVERS 5. Instant data display ➢ Shutoff Status: Display current complete status of fasten process. ➢ Program of Unit: Indicate the current Program of the Unit. ➢ Torque: Display fastening torque. ➢ Thread: Display the number of turning screwdriver. ➢...
ELECTRIC SCREWDIVERS ⑥ Remote Screen The screen image by remote monitoring. NOTE: Please contact with local distributors for the detail information. Page 38 of 46...
ELECTRIC SCREWDIVERS ⑦ System Function Setup Switch to Settings page to operate system functions. Page 39 of 46...
Page 40
ELECTRIC SCREWDIVERS 1. Language: three language options are available. 2. Style: system operating style can be changed. 3. Initialwindow: To set the initial windows setting. 4. Background color: system background color can be selected. 5. Auto connection: When switching , the serial port (COM) will automatically connect to the device the next time you start the software.
ELECTRIC SCREWDIVERS ⑨ Example Description NOTE: 1 Unit (Unit No.1 ~ No. 8) = Program 1 Program (Program No.1 ~ No. 99) : 99 programs could be set 3. Tool: always Tool1 When screws are fastened on 3 sides of a product, the condition is as follows: Unit Program Tool1...
Page 43
ELECTRIC SCREWDIVERS Step 1: Set the Unit 1 ~ Unit 3 condition (refer to “SAVE” for setting up the parameter condition) 1. Set to Unit 1 when the first side is fastened Program5 condition = maximum count as 4, maximum fastening torque (HQ) 15 kgf.cm, minimum fastening torque (LQ) 1 kgf.cm, and tool 1.
Page 44
ELECTRIC SCREWDIVERS 5、 8、 ⚫ Set condition parameter steps (Program Program Program settings are the same): Page 44 of 46...
Page 45
ELECTRIC SCREWDIVERS Step 2: Press to modify the program Unit. Press to then to store the parameters. Page 45 of 46...
ELECTRIC SCREWDIVERS ⑩ Statement Reminder again, please follow the relevant regulations and the international practice of the Internet. Never do anything illegal or harm to the company in any illegal way. You may not use this service to engage in violations of other's rights or illegal activities: Please acknowledge you have ownership for all your photos and texts.
