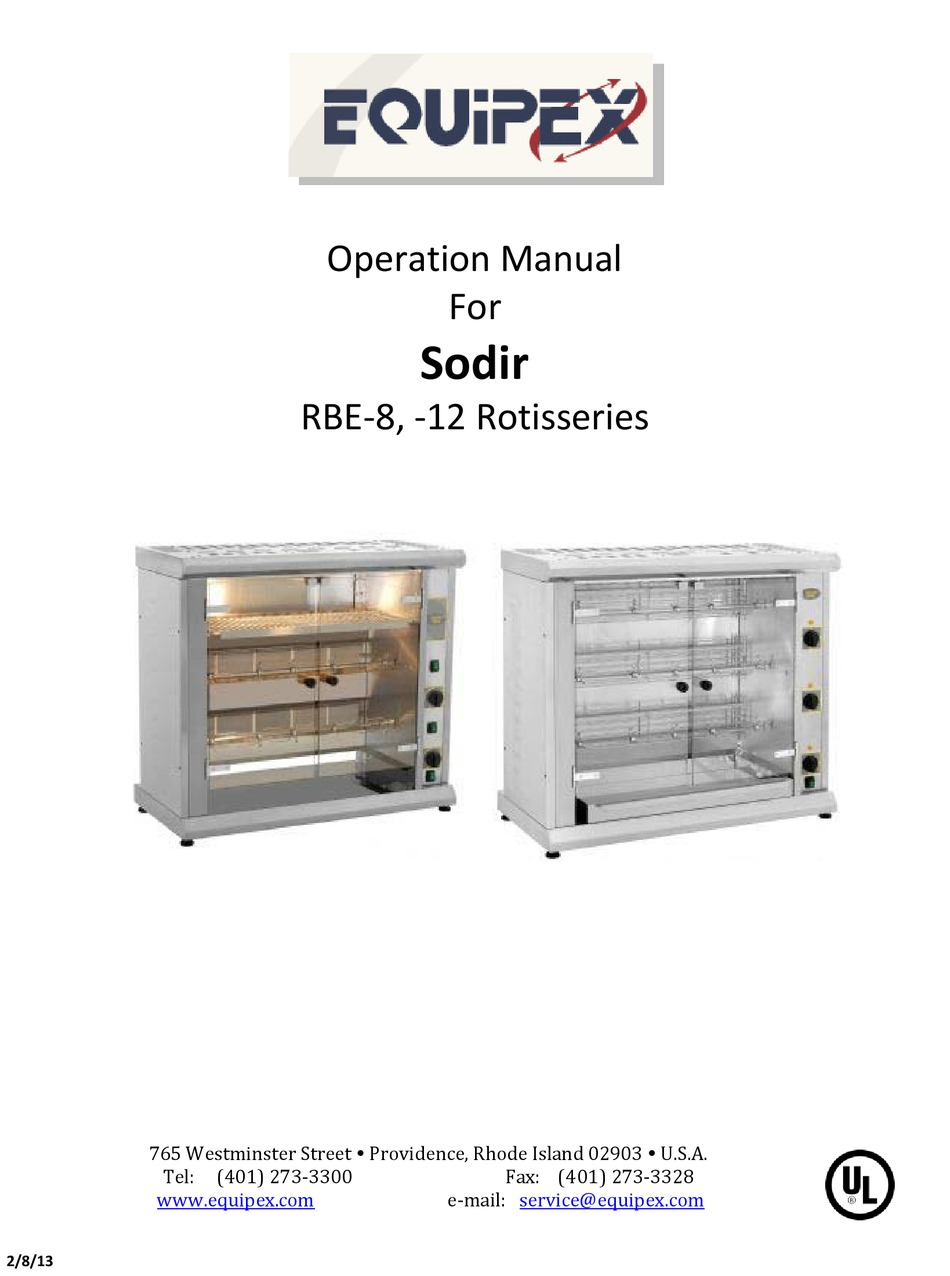

- Page 1 Operation Manual Sodir RBE-8, -12 Rotisseries 765 Westminster Street Providence, Rhode Island 02903 U.S.A. Tel: (401) 273-3300 Fax: (401) 273-3328 www.equipex.com e-mail: service@equipex.com 2/8/13...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all the instructions before use. 2. Do not touch hot surfaces; use handles or knobs. 3. To avoid electric shock, do not immerse the power cord, or any part of the unit, in any liquid. 4. -
Page 3: Installation
INTRODUCTION The SODIR models RBE-8 and RBE-12 rotisseries are designed to offer quality food cooking and roasting. They are constructed of food service quality stainless steel for commercial applications, and tinted tempered (safety) glass. The rotisseries are front- loading units that feature infrared quartz elements, attractive roast / hold / display cabinets and see through doors allowing customer and operator observation of the roasting process. -
Page 4: Operation
ASSEMBLY The SODIR Rotisserie comes from the factory completely assembled, except for the 4” legs, which must be installed prior to operation. It may be shipped with plastic exterior and interior protective film, all of which must be removed before operation. DO NOT operate the roaster prior to removing the protective film completely. -
Page 5: Maintenance
If you have trouble locating a service agency in your area, please consult our website at http://www.equipex.com/, or call us at 1-800-649-7885 and ask for customer service. - Page 6 Spare Parts RBE-8...
- Page 7 Spare Parts RBE-8 DWG # Part Number Description 64038 Roof A18011 Halogen socket A18003 Halogen lamp 64003 Top rear A16012 Two position terminal block 64075SE Right upright 64083 Right side casing A08003 Orange pilot light A01001 Mode Switch A03050 Motor A14078 Knob A07034...
- Page 10 Spare Parts RBE-12...
- Page 11 Spare Parts RBE-12 Code Spare part 64038 Roof A18011 Halogen socket A18003 Halogen lamp 64092 Rear A16012 Two Position Terminal Block 64075 Right upright A03050 Motor 64083 Right side casing A01001 Mode Switch A08003 Orange pilot light A14078 Knob A07034 Switch OEM0052 Cord...
-
Page 14: Limited Warranty
This warranty applies only to equipment under normal use and service in the U.S.A. and Canada. It does not apply to any item which has been repaired or altered in any way so as, in the judgment of EQUIPEX, to affect its reliability.
