DESCRIPTION:
The TM-3POS-115 control card will operate 115VAC
electric actuators to three positions using only two
control inputs without the need for switches or special
cams. The three positions are set by simply rotating
actuator to desired position and pressing corresponding
button to program location into memory.

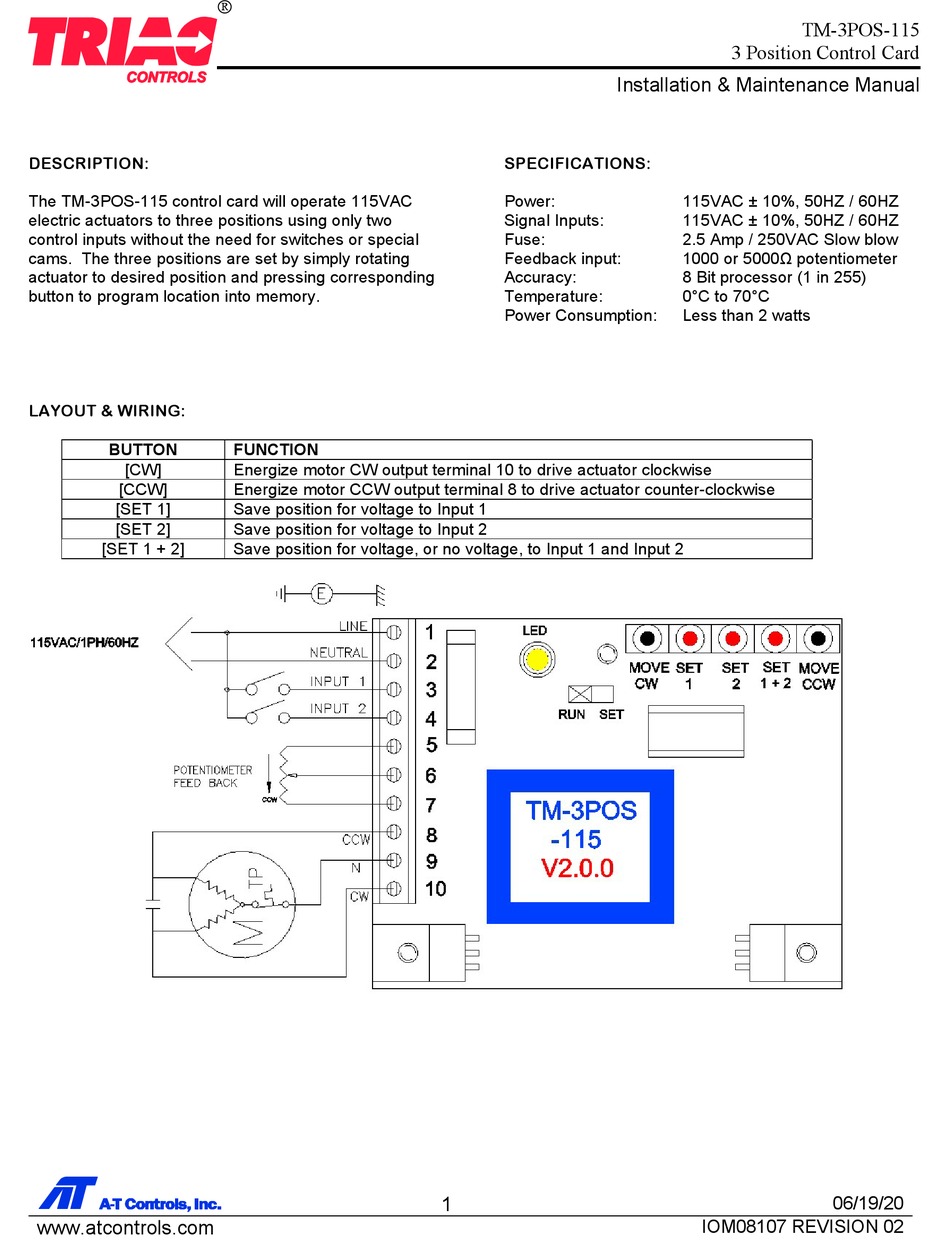

LAYOUT & WIRING:
BUTTON
[CW]
[CCW]
[SET 1]
[SET 2]
[SET 1 + 2]
www.atcontrols.com
FUNCTION
Energize motor CW output terminal 10 to drive actuator clockwise
Energize motor CCW output terminal 8 to drive actuator counter-clockwise
Save position for voltage to Input 1
Save position for voltage to Input 2
Save position for voltage, or no voltage, to Input 1 and Input 2
Installation & Maintenance Manual
SPECIFICATIONS:
Power:
Signal Inputs:
Fuse:
Feedback input:
Accuracy:
Temperature:
Power Consumption:
1
TM-3POS-115
3 Position Control Card
115VAC ± 10%, 50HZ / 60HZ
115VAC ± 10%, 50HZ / 60HZ
2.5 Amp / 250VAC Slow blow
1000 or 5000Ω potentiometer
8 Bit processor (1 in 255)
0°C to 70°C
Less than 2 watts
06/19/20
IOM08107 REVISION 02
