Summary of Contents for Aqua-Sigma UB-6500U

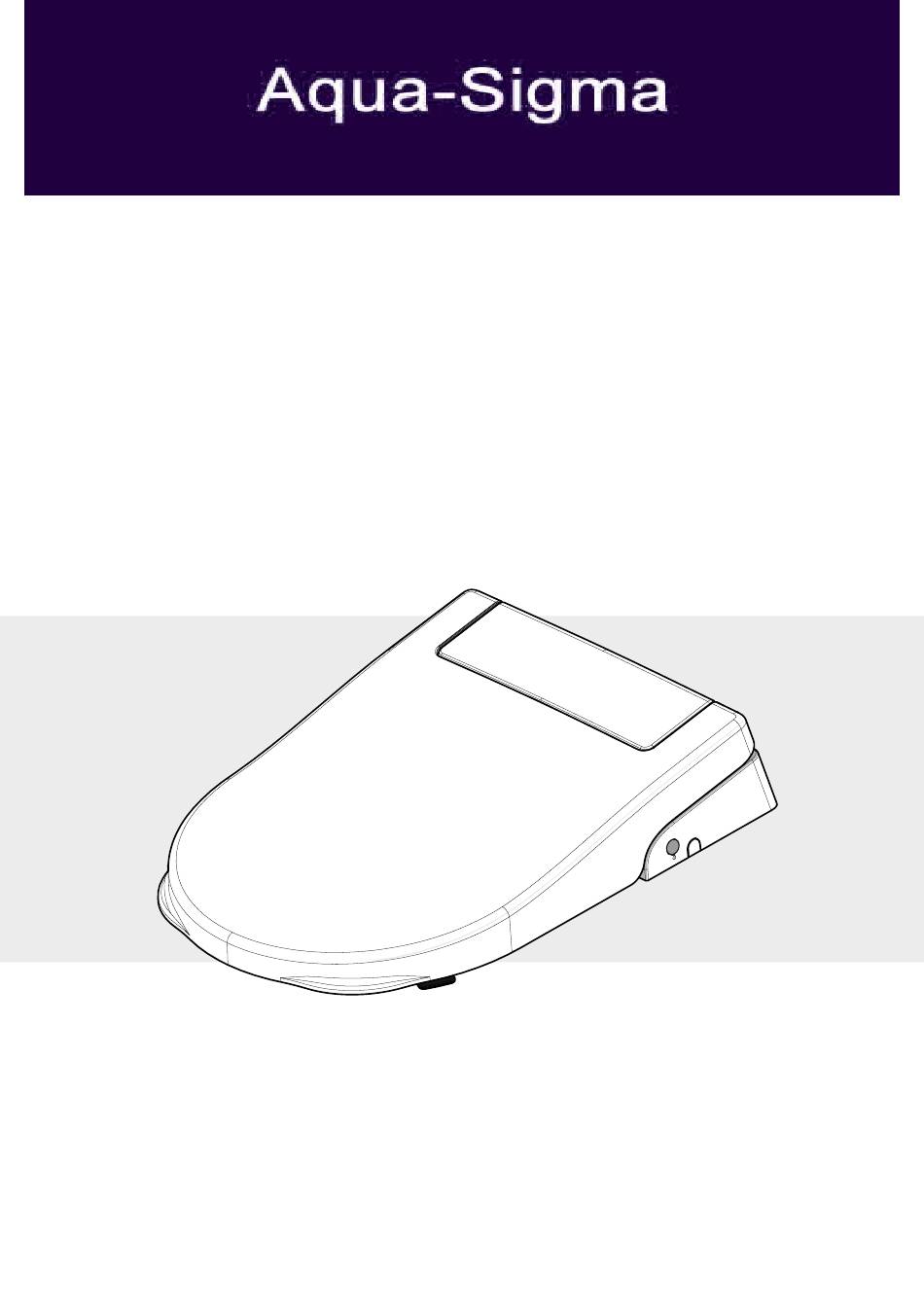

- Page 1 Installation uide UB-6500U: Bidet Seat Please read all instructions before installation and leave this document with the end user for future reference as it contains important warranty information...
-
Page 2: Table Of Contents
Table of Contents ..................................3 Contents ..........................4 Important safety Information ............................5 Important Information ............................6 Technical Specification .............................7 Technical Dimensions ..................................8 overview ................................9-10 Installation ......................... 11-12 Installation - Remote Control ................................ 13 Maintenance ................................... 14 notes ................................15 Warranty ................................16 Contact Us... -
Page 3: Contents
Contents Bidet Fitting Template Fixing Plate Expansion Fittings, Adjustment Braided Water Hose Tee Junction & Filter Plates & Seat Hinge Covers Remote Control Remote Control Holder Remote Holder Fixings, (Batteries not supplied) & Cord Cover & Double Sided Tape... -
Page 4: Important Safety Information
Important safety Information To ReDUCe THe RIsK of fIRe, eleCTRIC sHoCK oR InJURy: Installation of this appliance must be carried out in accordance with these instructions by a competent and experienced installer. The supplier shall not be liable for any loss arising from the failure to comply with the following instructions. -
Page 5: Important Information
Important Information CAUTION Do not tilt or turn the bidet upside down if there is any water in the tank. see page 13. only connect to mains cold water supply. after the installation, make sure to check all water supply connections for leaks. Rubber washers should be in place for the water connection hoses and Tee junction. -
Page 6: Technical Specification
Technical Specification Rear Wash female Wash oscillating spray pulsating spray Wash oscillating and pulsating spray adjustable Water Temperature 6 levels (Default 4th) Temperature modes Constant temperature (Default) and Gradual cooling adjustable flow Rate 5 steps (Default 3rd) adjustable spray position 5 steps (Default 3rd) air Drying Warm... -
Page 7: Technical Dimensions
Technical Dimensions Special Order Bidet Seat Standard Bidet Seat... -
Page 8: Overview
overview Lid lifting tab Seat lifting tab Seat side transfer adjustable pegs Seat Power switch (rear face) Seated detector Air dry Female wash Rear wash Program port Power light/ Night detector LED Fault Indication Air dry Rear wash Unlatch Button/ Night light Thermostat reset Button Female wash... -
Page 9: Installation
Installation Caution: ensure that the power supply is turned off at the mains supply and the water is turned off at the isolation valve. - Page 10 Installation Refer to the User Instructions for functions and operations.
-
Page 11: Installation - Remote Control
Installation - Remote Control Using Wall Fixings 20cm Recommended Installation area for the remote control holder. 20cm... - Page 12 Installation - Remote Control Using Double-sided Tape 20cm Recommended Installation area for 20cm the remote control holder.
-
Page 13: Maintenance
Maintenance Draining the water tank Isolate the power and water supply before attempting to uninstall the bidet. Do not tilt or rotate the bidet until the water has finished draining from the tank. Do not turn the appliance over to drain the tank. -
Page 14: Notes
Certification CE, EN 1717 back flow prevention. Please Note. To achieve compliance an ‘Approved’ double check valve or some other no less effective back-flow prevention device providing backflow prevention protection to at least fluid category two must be fitted at the point of connection between the water supply and the water inlet to this appliance.
