Summary of Contents for Aqua-Sigma UB-6500U

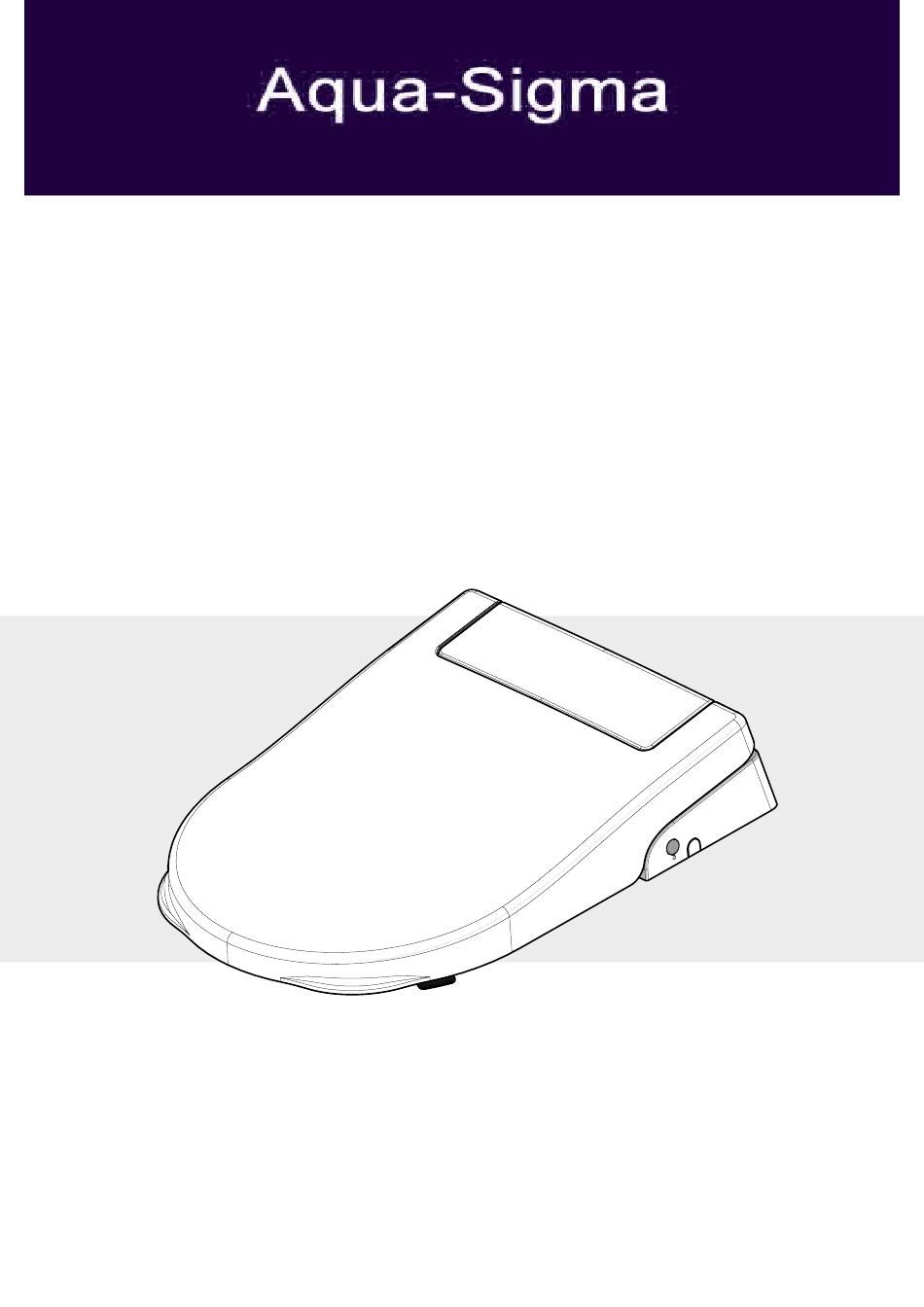

- Page 1 User Guide UB-6500U: Bidet Seat Please read all instructions before installation and leave this document with the end user for future reference as it contains important warranty information...
-
Page 2: Table Of Contents
Table of Contents Note well: Prior to using or maintaining this unit please ensue you read and understand this user guide, if you have any concerns please contact us This product MUST be installed in compliance with all applicable local electrical regulations and water bye laws. -
Page 3: Overview
overview Lid lifting tab Seat lid Seat lifting tab Seat side transfer adjustable pegs Seat Power switch (rear face) Occupancy detector Air dry Female wash Rear wash Program port Power light/ Night detector LED Fault Indication Air dry Rear wash Unlatch Button/ Night light Thermostat reset Button... -
Page 4: Bidet Remote Control
bidet Remote Control level led decrease increase Temperature flow Rate female wash Position Rear wash air dry stop... -
Page 5: Functions & Operation
functions & operation Rear Wash / Female Wash Press either the REAR WASH or FEMALE WASH button to start a wash cycle. The wash cycle can be stopped at any time by pressing the STOP button on the remote control or any button on the side of the bidet. otherwise the wash cycle will stop automatically after 2 minutes constant temperature mode or 1 minute gradual cooling mode in standard mode or if the unit is in low pressure mode the wash cycle... - Page 6 functions & operation Water Pressure Mode on the remote, simultaneously press and hold the REAR WASH and FLOW RATE buttons until the flow rate LED flashes. on the remote, press the INCREASE or DECREASE buttons to Remote Control LEDS select mode. Press the DECREASE button for ‘Low Pressure Mode’.
- Page 7 functions & operation Water Temperature Mode Remote Control LEDS Constant To set the temperature mode, first press and hold the Gradual STOP button on the remote control. while still pressing the STOP button, press and release the TEMPERATURE button to alternate between Constant and Gradual settings.
-
Page 8: Maintenance
Maintenance C C l l e e a a n n i i n n g g a a g g e e n n t t s s a a n n ● Care and cleaning recommendations soft cloths ,lin always isolate the power supply before cleaning. - Page 9 Maintenance Nozzle cleaning Nozzle cleaning The nozzle will be cleaned before washing and after washing . ● ensure that the nozzle is clear and free of blockages before or after washing. ● In non-working state To clean the nozzle in a non-working state. on the remote control, while pressing the ‘STOP’...
- Page 10 Maintenance Removing the seat lid - Removal of the seat is the same as the seat lid.
- Page 11 Maintenance Replacing the seat lid - Replacement of the seat is the same as the seat lid.
- Page 12 Maintenance Replacing the batteries The remote control requires 2 batteries (type1.5v lR03/aaa). When the level light flashes continuously, please replace the batteries in time. 1. Use new batteries only. 2. batteries are to be inserted with the correct polarity. 3. The exhausted batteries are to be removed and safely disposed of. 4.
-
Page 13: Troubleshooting
Troubleshooting Problem Potential Suggested Cause Action 1. Bidet switched off at rear. Switch On (unless advised not to) 2. Water supply isolated. Turn On (unless advised not to) No wash function 3. Seated detector not activated. Adjust sitting position After a prolonged period without use, when the user sits down, the bidet will 4. - Page 14 Troubleshooting LED Fault Indication Power light/led fault indication fault indication fault LED : 1 flash 1. heating element switch faulty no beep LED : 2 flash 2. outlet water temperature above 45°C. Continuous beep Continuous beeping until temperature drops to 45°C. LED : 3 flash 3.
-
Page 15: Technical Specification
Technical Specification Rear wash female wash oscillating spray Pulsating spray oscillating and Pulsating spray wash adjustable water Temperature 6 levels (default 4th) Temperature modes Constant temperature (default) and gradual cooling adjustable flow Rate 5 steps (default 3rd) adjustable spray Position 5 steps (default 3rd) air drying adjustable dryer Temperature... -
Page 16: Contact Us
Certification CE, EN 1717 back flow prevention. Please Note. To achieve compliance an ‘Approved’ double check valve or some other no less effective back-flow prevention device providing backflow prevention protection to at least fluid category two must be fitted at the point of connection between the water supply and the water inlet to this appliance.
