Summary of Contents for Nielsen CT0567

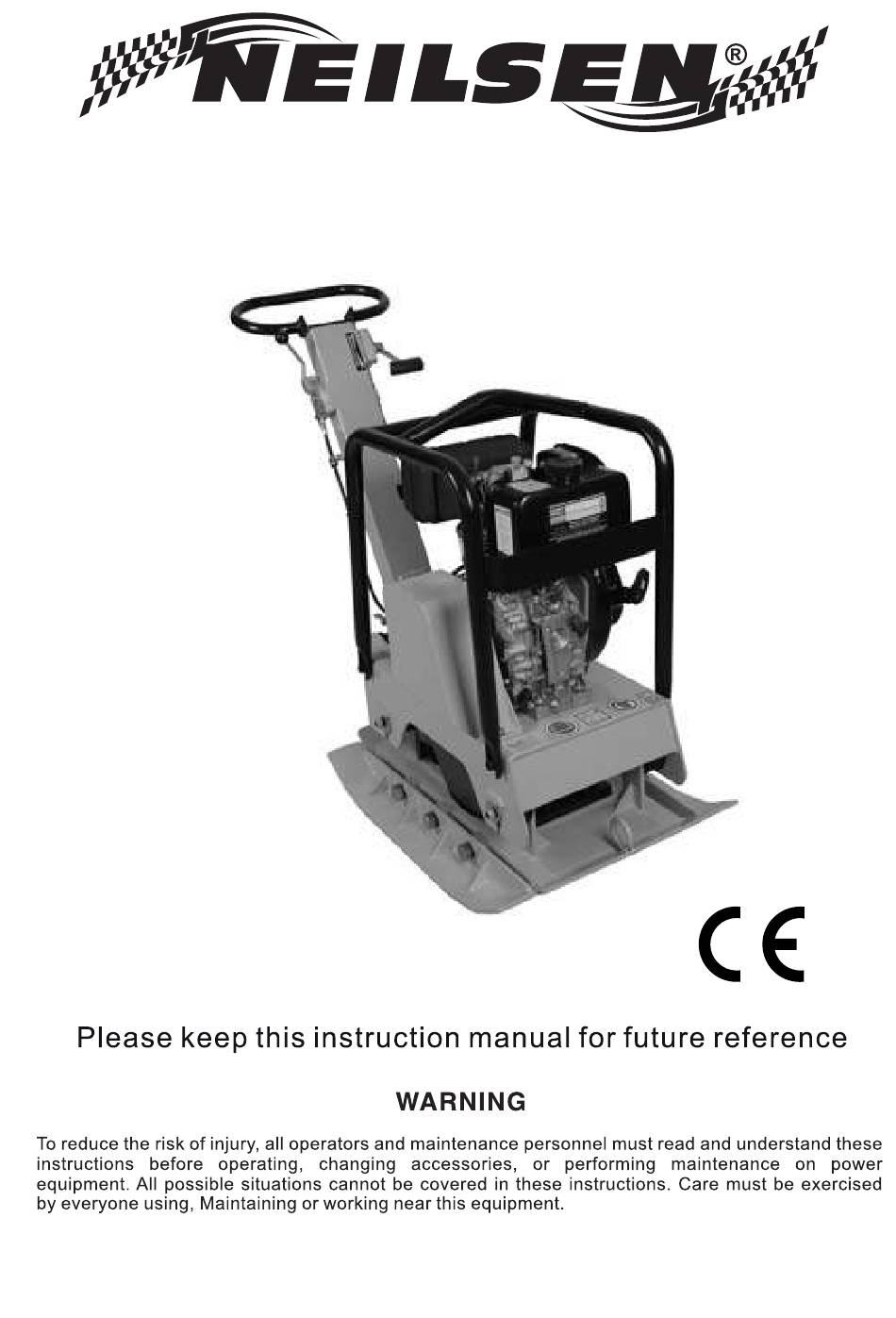

- Page 1 6.0HP DIESEL PLATE COMPACTOR CT0567 ORIGINAL MANUAL Cannon Tools Limited Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
- Page 2 In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity. Product description: 6.0HP DIESEL PLATE COMPACTOR Model: CT0567 Applicable EC Directives: EC Machinery Directive 2006/42/EC Harmonized standards EN 500-1, EN 500-4, EN ISO 12100 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
-
Page 3: Table Of Contents
CONTENTS APPLICATIONS Introduction ……………………………………………….…1 Trench compaction Earthworks Applications ……………………………..……….………….1 Road maintenance Landscaping Functions and controls……………………..………………1 Brickpaving Driveway topping Accessories………………………………………………….1 Hazards and risks………………………………………...1-3 FUNCTIONS AND CONTROLS Operation ………………………………………………..3-4 Care and preventive maintenance…………………….. 5-6 Specification ……………………………………….…..…7-8 The motor is controlled by an ON/OFF switch or Transportation…………………………………………….…8 push button is mounted on the motor below the Trouble shooting………………………….…………..……..9... - Page 4 ! MECHANICAL HAZARDS DO NOT operate the machine unless all protective guards are in place. KEEP handles and feet clear of rotating and moving parts as they will cause injury if contacted. ENSURE that the motor operation switch is in the OFF position and the spark plug ignition lead is disconnected before removing the guards or making adjustments.
-
Page 5: Operation
PROTECTIVE CLOTHING ALWAYS wear approved hearing protection when working in a confined work space. Protective goggles and a dust mask should be worn when working in a dusty environment. Protective clothing and footwear may also be desirable when working with hot mix bitumen. ! ADDITIONAL HAZARDS Slip/Trip/Fall is a major cause of serious injury or death. - Page 6 Turn the engine ON/OFF switch clockwise to the “1” position. Set the throttle to the idle position by moving the throttle lever fully to the right. Do not start the engine on full throttle, as the compactor will vibrate as soon as the engine starts.
-
Page 7: Care And Preventive Maintenance
CARE AND PREVENTIVE MAINTENANCE Check the oil level in the motor crankcase daily. Inspect the rubber anti vibration mounts for wear or deterioration. If the optional water tank is fitted inspect the water hose and its connections to ensure that they do not leak. Clean the underside of the plate regularly to prevent a build up of material. - Page 8 Changing Vibrator Oil When changing the vibrator oil, remove the drain plug located at the bottom-right of the vibrator, and simply tip the compactor to drain the oil. Note that the oil will drain more easily while it is hot. For CT0565 replace the oil with 500 ML of 10W-30 motor oil;...
-
Page 10: Transportation
Hand-Arm-Vibration (as per ISO8662, Part 1, m/s ): 4-9 Working Size (L X W X H): CT0567 series: 86 x 57 x 93 CM TRANSPORTATION Always shut off engine when transporting machine. Make sure lifting device has enough capacity to hold machine (see identification plate on machine for weight). -
Page 11: Trouble Shooting
TROUBLE SHOOTING SYMPTOM POSSIBLE CAUSES SOLUTION Engine speed too low? Set engine speed to correct RPM. Clutch slips? Check or replace clutch. Travel speed too low, and vibration is V-belt slips? Adjust or replace V-belt. weak. Excessive oil in vibration? Drain excess oil and fill to proper level. -
Page 12: Warranty
WARRANTY These products are covered by warranty for a period of six (6) months from the date of purchase against defects in material or workmanship provided that: · The product concerned has been operated and maintained in accordance with the operating instructions. ·...
