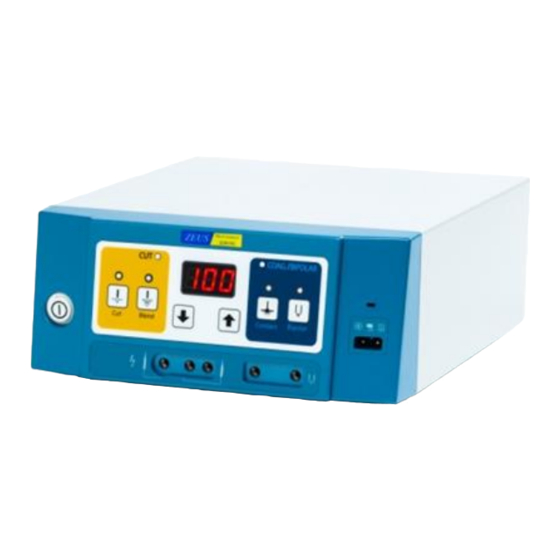

ZERONE Electrosurgical Unit
ZEUS-100/80
OPERATION MANUAL
ZERONE CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZEUS-100/80 and is the answer not in the manual?

Questions and answers

Related Manuals for ZERONE ZEUS-100/80

Summary of Contents for ZERONE ZEUS-100/80

  • Page 1 ZERONE Electrosurgical Unit ZEUS-100/80 OPERATION MANUAL ZERONE CO., LTD.
  • Page 2 ZEUS-100/80 ZO-OM-008 ZEUS-100 /80 Operation manual ZERONE CO., LTD...

  • Page 3: Table Of Contents

    ZEUS-100/80 ZO-OM-008 - Contents - 1. INTRODUCTION ......................2 1.1 P ........................2 RIOR OTICE 2. INSTALLATION NOTICE ....................7 2.1 B ......................7 EFORE PPLICATION 3. APPLICATION NOTICE ....................9 4. FOLLOW-UP WAYS FOR STORAGE AND MAINTENANCE ........12 5.

  • Page 4: Introduction

    ● - Contact us on the following telephone numbers and address in order to receive our service and products. For Supplying ZERONE Co., Ltd. - Sales Dept. Products and (Shinil IT UTO Bldg., Dangjeong-dong) Ordering Supplies #810, LS-Ro 13, Gunpo-si, Gyeonggi-do, Korea...
  • Page 5 ZEUS-100/80 ZO-OM-008 Warranty Period ● - This product was made under the strict quality control system and inspections. - The warranty period is one year. - Compensation standard for repairs and replacement complies for “Guidelines for Consumer Protection” quoted by the Korean Economic Planning Board.
  • Page 6 ZEUS-100/80 ZO-OM-008 Warning, Caution, Notice ● This manual adopts several terms to draw your attention to what must be informed of or aware of. Please read carefully and be fully aware of them before you start operating the equipment. Warning Serious physical injury.
  • Page 7 ZEUS-100/80 ZO-OM-008 Signs ● Symbol Description Type BF Applied Part RF Isolated : Earth referenced patient circuit for high frequency Refer to the manual Non-ionizing Radiation This equipment intentionally supplies non-ionizing RF energy for physiological effect. High Voltage Warning Caution...
  • Page 8 ZEUS-100/80 ZO-OM-008 Cautions ● - Do not use/store this equipment under the following environments. Wet hands or humid Direct rays. areas. Out of these temperature and humidity ranges: Near to electronic T:10℃ ~ 40℃, heaters. H: 20%~ 95%. Areas with high humidity Excessive shock or or ill ventilation.

  • Page 9: Installation Notice

    Unused accessories (active electrode) must not be placed on the patient body. ⑥ ZERONE Co., Ltd. Supplied accessories have appropriate for rating for ZEUS-100/80. CE marked or UL approved components with more than Monopolar: 1800Vpp, Bipolar: 500Vpp rated voltage rating can be used as accessories.
  • Page 10 Warning Check the followings before using this product. It is recommended that Patient Return Plate be applied to REM system of ZERONE Co., Ltd. Monitors the size of contact area between a patient and the pad. If the size is inappropriate, it automatically blocks the high-frequency current to minimize the danger of burning incidents.

  • Page 11: Application Notice

    ZEUS-100/80 ZO-OM-008 ② Use the power code provided by the equipment supplier or a other test-completed product that has equal quality. ③ Don't use a extended code that has no ground connection. ④ Connection for potential equalization : Connection pins for potential equalization cable between RF equipment and potential equalization bar in or room.
  • Page 12 ZEUS-100/80 ZO-OM-008 ② A patient must be isolated from grounded metal materials. Be careful to see if they are contacted to the patient. The isolation status must be maintained even if a patient who is going through an operation is moved into other positions.
  • Page 13 ZEUS-100/80 ZO-OM-008 ⑪ Most sweated parts of human body (armpit, knee, skin-to-skin parts) can be burned when Patient Return Plate or other materials contacts with those parts, therefore, some dried and absorbable towels should be used to dry them. ⑫ Lower output or performance of electrical surgical device despite correct surgical setting may be caused due to incorrectly applied patient plate or bad connection.

  • Page 14: Follow-Up Ways For Storage And Maintenance

    ZEUS-100/80 ZO-OM-008 ② Make a short cut of the current path between Active Electrode and Dispersive. 4. Follow-Up Ways for Storage and Maintenance - When removing a series of codes, don’t unplug them at a time. - Don’t screw, bind or stack the cables.

  • Page 15: Configuration

    ZEUS-100/80 ZO-OM-008 5. Configuration 5.1 Feature ① A DISPLAY window allows you to easily check output values, indicated as digits. ② This provides necessary functions like Pure Cut, Blend, Contact Coagulation, Bipoar Coagulation, under operation by one equipment ③ Holding the button for each mode for more than 3 seconds, the output ratio on Display will be changed to 1W to be facilitated to shift from the low to high output.

  • Page 16: Indication For Use

    ZEUS-100/80 ZO-OM-008 5.3 Indication for use Electrosurgical unit is a device to perform a medical operation like cut and coagulation in the biological tissue using high-frequency current Operator Profile ● Considerations Requirement description A physician or medical personnel under the...

  • Page 17: Configuration And Accessories

    ZEUS-100/80 ZO-OM-008 5.4 Configuration and Accessories Configuration ● ① Electrosurgical Unit ② single Foot Switch ③ Disposable Twin Button Handle ④ Power Cord ⑤ Knife Electrode 2.4 * 70mm ⑥ Needle Electrode 2.4 * 70mm ⑦ Needle Electrode (Angled) 2.4 * 70mm ⑧...

  • Page 18: Name And Function Of Each Part

    ZEUS-100/80 ZO-OM-008 5.5 Name and Function of Each Part Front Side ● ③ Coagulation Mode ① Power Switch ② Cutting Mode ④ Connection to Patient Plate ⑤ Connection for Bipolar Forceps ⑦ Connection2 for Cutting, ⑥ Connection1 for Cutting, Coagulating Electrode...
  • Page 19 ZEUS-100/80 ZO-OM-008 ① Power ON / OFF Switch ② Cutting Mode ⓒCutting Output Confirmation Lamp ⓑ Coagulation Blend Cutting ⓓ Cutting Output Set-Up Indicator ⓐ Pure Cutting ⓕ Cutting Output Decrease ⓔ Cutting Output Increase ⓐ Pure Cutting Select this button for the cutting with the lowest level of arrest of bleeding.
  • Page 20 ZEUS-100/80 ZO-OM-008 ③ Coagulation Mode ⓐ Coagulation Output Set-Up Indicator ⓑ Coagulation Output Confirmation Lamp ⓒ Bipolar Coagulation ⓓ Contact Coagulation ⓔ Coagulation Output Increase ⓕ Coagulation Output Decrease ⓐ Coagulation Output Set-Up Indicator Coagulation and bipolar coagulation output is displayed in W.
  • Page 21 ZEUS-100/80 ZO-OM-008 ④ Connection for Patient Plate-Applied part Use Patient Return Electrode when using Monopolar. ⑤ Connection for Bipolar Forceps-Applied part Connection Terminal for Bipolar Forceps ⑥ Connection 1 for Cutting and Coagulation-Applied part Connection Terminal for Twin Button Handle ⑦...
  • Page 22 ZEUS-100/80 ZO-OM-008 Accessories ● ① Foot Switch Use cut and coagulation functions by connecting to 3 pin Connector in the back of equipment. 3pin plug, Cable 4m ② Disposable Twin Button Handle Connect it to the terminal of Connection 1 for Cutting and Coagulation Electrode.

  • Page 23: Using Method And Procedure

    ZEUS-100/80 ZO-OM-008 5.6 Using Method and Procedure Monopolar ● ① After confirming power and voltage (AC120V/AC230V), connect a ground power cable to the power connection part on the back side of Electrosurgical Unit. If there is no ground at Main Power, link an earth ground to the ground connection on the back side of the product.

  • Page 24: Accessory Diagram

    ZEUS-100/80 ZO-OM-008 Bioplar ● ① Select the Bipolar mode and set the output(W) using UP and DOWN button. ② Connect Bipolar Cable to Bipolar Forceps connection. ③ Connect Foot Switch to Monopolar Foot Switch connector in the back of equipment.
  • Page 25 ZEUS-100/80 ZO-OM-008 Diagram of Foot Switches ● (Foot Switch) Diagram of Bipolar Forceps and Cable ● (Bipolar Forceps) REV : 08 ZERONE...

  • Page 26: Periodic Inspection

    ZEUS-100/80 ZO-OM-008 6. Periodic Inspection Every six months, visually inspect the ZEUS-100/80 Electrosurgical Generator for signs of wear or damage. In particular, look for any of the following problems: ✓ Damage to the power cord ✓ Damage to the power cable receptacle ✓...

  • Page 27: Output

    ZEUS-100/80 ZO-OM-008 7.2 Output ZEUS-100 ● Tolerance : ±20% Mode output power Carrier Crest Duty Freq. Factors Rate Pure Cut 100W at 300ohm 1.6MHz 100% Blend 100W at 300ohm 1.6MHz Contact coagulation 60W at 300ohm 1.6MHz Bipolar coagulation 80W at 100ohm 1.6MHz...

  • Page 28: Standard Output Table By Surgery Part

    ZEUS-100/80 ZO-OM-008 8. Standard Output Table by Surgery Part Coagulation Coagulation Part Cut Mode Bi-coag. POWER(W) Mode POWER(W) Pure or 10~100 Skin Incision Blend 8~80 Muscle Pure or Above 15 Dessection Blend Above 15 Tumor Blend 15~70 Excision Stomach, Intestine...

  • Page 29: Troubles And What To Do With Them

    ZEUS-100/80 ZO-OM-008 9. Troubles and What to do with them There are no lights on the Display Number window. ● 1. Check if the power cord is connected to the power cord input plug on the back side of the surgery unit.

  • Page 30: Load Regulation

    ZEUS-100/80 ZO-OM-008 10. Load Regulation 10.1 Pure Cutting 10.2 Blend 10.3 Contact Coagulation REV : 08 ZERONE...

  • Page 31: Bipolar Coagulation

    ZEUS-100/80 ZO-OM-008 10.4 Bipolar Coagulation 11. Voltage Output Graphic 11.1 Pure Cutting (Load 300Ω) Max Peak Output Voltage : 270Vp 11.2 Blend (Load 300Ω) Max Peak Output Voltage : 375Vp REV : 08 ZERONE...

  • Page 32: Contact Coagulation

    ZEUS-100/80 ZO-OM-008 11.3 Contact Coagulation (Load 300Ω) Max Peak Output Voltage : 320Vp 11.4 Bipolar Coagulation (Load 100Ω) Max Peak Output Voltage : 135Vp REV : 08 ZERONE...

  • Page 33: Appendix

    Table 201 Guidance and manufacturer’s declaration – electromagnetic emissions ZEUS-100/80 model is intended for use in the electromagnetic environment specified below. The customer or user of the ZEUS-100/80 model should ensure that it is used in such an environment. Emissions test...
  • Page 34 Guidance and manufacturer’s declaration – electromagnetic immunity ZEUS-100/80 model is intended for use in the electromagnetic environment specified below. The customer or user of the ZEUS-100/80 model should ensure that it is used in such an environment. Emissions test EN/IEC 60601 test...
  • Page 35 ZEUS-100/80 model is intended for use in the electromagnetic environment specified below. The customer or user of the ZEUS-100/80 model should ensure that it is used in such an environment. Emissions test...
  • Page 36 ZEUS-100/80 ZO-OM-008 Table Test specifications for Enclosure port immunty to RF wireless communications equipment Maximu Test Immunity Band Distance frequency Service Modulation Test level (MHz) Power (MHz) (V/m) 380-390 TETRA 400 Pulse modulation 18Hz 430-470 GMRS 460, FM ±5 kHz deviation...
  • Page 37 Name of manufacture #810, LS-Ro 13, Gunpo-si, Gyeonggi-do, Korea Phone : +82-31-427-2772 : +82-31-427-2332 ※ Thanks for purchasing of ZEUS-100/80 from ZERONE Co., Ltd. ※ This product is made under thorough quality control and passed strict inspections. REV : 08 ZERONE...
  • Page 38 ZEUS-100/80 ZO-OM-008 Document History REV.No Edited Date Corrections 2008.06.08 Initial issued 2009.06.12 Add 100 MODEL 2012.04.25 Change address and add section 11 2013.10.10 Applied to 60601-1 3rd Edition. 2016.06.16 Add Caution 2016.10.12 Change of address (European agent) 2016.11.10 Add Caution 2017.06.08...
