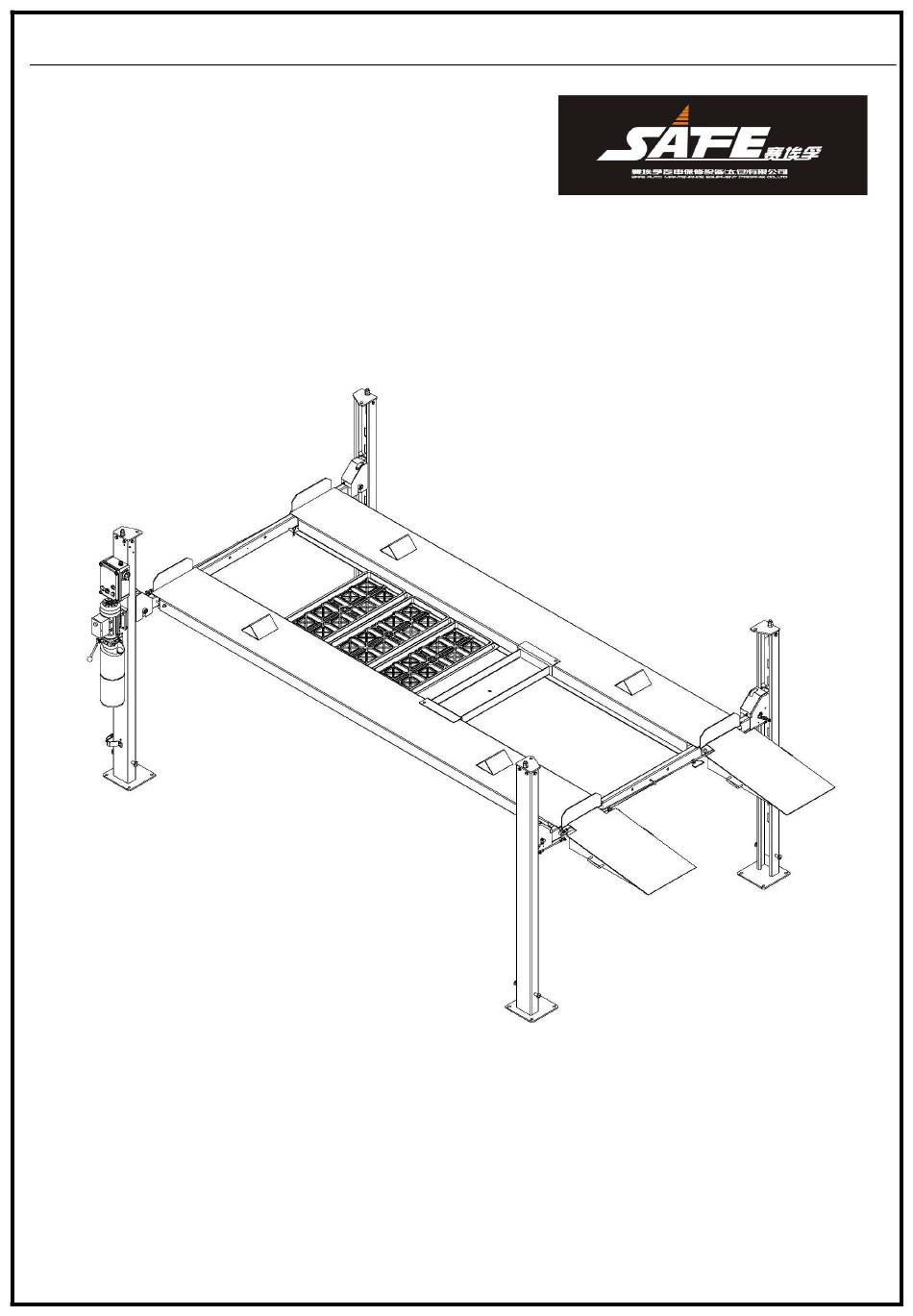

Car lift installation, operation and maintenance manual
Type：4SF-4000C
●Four post car parking life
●Manual lock release
●Lifting capacity：4000Kg
INSTALLATION,OPERATION AND MAINTENANCE MANUAL
The instructions is part of the product. Please keep them where you can easily find them as reference.
Read the instructions carefully before starting installation, operation and maintenance.
The manufacturer and its distributor are not liable for any accidents caused by customer's arbitrary modification of
the part or operation.
1
Type：4SF-4000C
Advertisement
Table of Contents
Related Manuals for Safe 4SF-4000C
Summary of Contents for Safe 4SF-4000C
- Page 1 Car lift installation, operation and maintenance manual Type：4SF-4000C Type：4SF-4000C ●Four post car parking life ●Manual lock release ●Lifting capacity：4000Kg INSTALLATION,OPERATION AND MAINTENANCE MANUAL The instructions is part of the product. Please keep them where you can easily find them as reference.
- Page 2 Car lift installation, operation and maintenance manual Type：4SF-4000C INDEX 1.SAFETY INSTRUCTIONS..............................1.1 Statement 1.2 Qualified operator and instructions for use 1.3 Notes 1.4 Warning Signs 1.5 Noise standard 2.INTRODUCTION..............................2.1 Product description 2.2Technical parameter 2.3Main structure of the machine 3.INSTALLATION..............................
-
Page 3: Safety Instructions
Car lift installation, operation and maintenance manual Type：4SF-4000C SAFETY INSTRUCTIONS 1.1 Statement ● We will give the user one-year warranty of quality for the machine. If something wrong with the machine within the term of service, we will repair or replace the product according to the user ’ s demand. The manufacturer will not take any responsibility for improper installation and operation, overload running, wrong concrete ground (that can not meet the requirements in the manual), normal mechanical abrasion and insufficient maintenance. -
Page 4: Warning Signs
Car lift installation, operation and maintenance manual Type：4SF-4000C A.Cut-off power B.Emptying hydraulic fluid C.The moving parts are lubricated with hydraulic oil. Attention： The parking car lift belongs to high-risk products, installation or improper operation, or modify the mechanical components, are likely to cause injury or death of the operator, read the instructions carefully and strictly in accordance with the requirements of work, and do not randomly discharge liquid, protect the surrounding environment。... -
Page 5: Product Description
Car lift installation, operation and maintenance manual Type：4SF-4000C INTRODUCTION 2.1 Product description： A：Four parking lift is composed of a main side column, beam, bridge, bridge, safety mechanism, hydraulic cylinder, power unit, control box (optional) and other major components. B：The power unit is switched on, the gear pump operation, promote the hydraulic oil cylinder piston rod, wire rope driven mobile cylinder movement process, because the steel wire rope traction between bridge decks and beams, so as to realize the lift up and down movement, and then achieve the purpose of lifting. -
Page 6: Installation
Open the package and check for missing parts in accordance with attachment 1 (complete machine packing list). Once found, contact the distributor or the manufacturer immediately. If leakage is found, installation is still performed,SAFE and distribute shall not be held responsible... -
Page 7: Precautions During Installation
Car lift installation, operation and maintenance manual Type：4SF-4000C Packing dimension drawing 3.2 Precautions during installation ▲ During installation, please observe that the two upright columns are parallel and vertical to the ground, and shall not be tilted. ▲ hydraulic hose and steel cable connection, the joint must be connected in place, so as to avoid oil leakage and steel cable loose. - Page 8 Car lift installation, operation and maintenance manual Type：4SF-4000C Main bridge plate 1 pieces <4>:Remove the packing bags, take A:2 approach spans, B:3 tubing, C:1 tool plates, D:1 power units, E:1 parts cases, and put them in the free space. Approach spans 2 pieces...
- Page 9 Car lift installation, operation and maintenance manual Type：4SF-4000C Main column 1 pieces (with motor board) Secondary column 2 pieces Secondary column A 1 pieces <6>:Take out: A: beam 2, B: insurance mechanism is connected with the 1 sets of C components before and after blocking 4, D: 4 E: dashboard...
- Page 10 Car lift installation, operation and maintenance manual Type：4SF-4000C places. Step 4：Install column and beam： <1>:Remove main and auxiliary column roof and insurance bar as follows： 1.Column safety strip，2.M20 custom nut，3.Column roof，4.M20 flat pad，5.M20 nut，6.M12 nut，7.M12 spring washer，8.M12 flat pad， 9.M12*30 six point screw，10.column <2>: Mark the standing points of the four posts with tape measure and chalk, make sure the two diagonals are the same length.
- Page 11 Car lift installation, operation and maintenance manual Type：4SF-4000C <3>Position the column with the retaining tire support and place the column upright on the ground, as shown below. Tyre retaining bracket Second column Tyre retaining bracket Main column Second column Tyre retaining bracket...
- Page 12 Car lift installation, operation and maintenance manual Type：4SF-4000C <5>:Install the roof of the column, as shown in the following figure： 1.Column ，2. M12*30 six angle screw, 3. M12 flat pad, 4. M12 cushion, 5. M12 nut, 6. top plate <6>:Erect the upright post, as shown in the following figure.
- Page 13 Car lift installation, operation and maintenance manual Type：4SF-4000C Second column Second column beam Second column Second column beam Step 5:install the control box, as shown in the following picture. (optional) Step 6 ：Install the upper limit switch, as shown in the following figure. (optional)
- Page 14 Car lift installation, operation and maintenance manual Type：4SF-4000C Step 7：Install the two drop switch, as shown in the following figure. (optional) Step 8：Install the insurance bar as shown in the following picture. M20 Nut M20 Flat pad Connect to control box...
- Page 15 Car lift installation, operation and maintenance manual Type：4SF-4000C six screw angle Step 10：Install the steel cable Note: in the installation of steel cable, first of all, "wire rope off device", "beam shell" removed, or else the wire rope can not be installed, as shown below: Note: when the steel cable is installed, the "wire rope removing device"...
- Page 16 Car lift installation, operation and maintenance manual Type：4SF-4000C 1.M20 nut, 2.M20 flat pad, 3. main, diagonal column roof, 4. pairs, diagonal column roof, 5. main safety plate, 6. main, diagonal column, rope breakage insurance， 7. second, diagonal column, rope break insurance, 8. rope pulley, 9.M8 flat pad, 10.M8 elastic pad, 11.M8 lock nut, 12.M24*2 lock nut, 13. Steel cable holder, block 14.
- Page 17 Car lift installation, operation and maintenance manual Type：4SF-4000C 1. main insurance, 2. main insurance connection rod, 3. Vientiane earring, 4.M8 lock nut, 5. long pull rod, 6. short pull rod, 7. main safety handle, 8.M12 nut, 9. connecting rod, screw rod 10.M8 nut,.11.M8 flat pad, 12.M8*40 six angle screw, 13. long rod fixing ring, 14. main and secondary safety handle connecting rod, 15.
- Page 18 Car lift installation, operation and maintenance manual Type：4SF-4000C Main column Limit switch fixing plate Beam assembly Limit switch Two time baffle M8 flat pad M8 cushion M8*16 six angle screw Step 14： Installing the before and after dashboard and approach: as shown below：...
- Page 19 Car lift installation, operation and maintenance manual Type：4SF-4000C Step 16：Connect the power supply, test run； 1.Connect the power source according to the power instructions on the machine nameplate. 2.Check the mechanical latch state insurance. 3.No vehicles shall be placed during the trial run.
- Page 20 Car lift installation, operation and maintenance manual Type：4SF-4000C Insurance is highly inconsistent The height of the machine is inconsistent IAdjust the line nut IAdjust the steel cable nut Step18 ：Method for fixing four column parking garage Installation of expansion bolts in accordance with the foundation diagram, before installation, you need to determine the relative position of the four pillars, the error must not exceed 5mm, and draw the outline of the motherboard with chalk, the specific steps are as follows：...
- Page 21 Attention： 1.The above steps are all the installation steps of the four column parking， 2.SAFE is committed to continuously improve product quality, update technical specifications, subject to change without notice. 3.4 Check the items after installation The upright post is perpendicular to the ground...
-
Page 22: Operation
Otherwise, the manufacturer will not bear any responsibility for the consequence resulted from the operation above mentioned. 4.1.4 The staff or operators shall be in a safe position when the machine lift or lower. 4.1.5 When lifting arms are in high position, The power must be switched off to avoid misoperation by non operating personnel. - Page 23 3.Press the up button to raise the lift to the height you need. Release the lift button and the lift stops immediately. 4.When rises to the required height, check the car is safe, then press down power unit on the unloading valve handle, let the safety lock in place, turn off the power, can work under the carriage.
-
Page 24: Troubleshooting
Car lift installation, operation and maintenance manual Type：4SF-4000C Control box Optional Power unit Down handle release lever Main column Two drops optional TROUBLE SHOOTING Caution：If you are unable to resolve the problem, please contact the manufacturer for assistance. We will be the first to help you solve the problem, provide relevant failure messages and picture of failure, so that manufacturers can troubleshoot you at the fastest speed. -
Page 25: Maintenance
Car lift installation, operation and maintenance manual Type：4SF-4000C Cushion valve is loose or blocked Tighten or clean the cushion valve Cylinder seal is bad Replace seals Check the oil hose for leaks Change the oil hose One way valve is not sealed properly... -
Page 26: Weekly Maintenance
Car lift installation, operation and maintenance manual Type：4SF-4000C ▲ Check hydraulic connections, and hoses for leakage. ▲Check chain connections, cable connections, wiring and switch for damage. ▲ Check the tightness of the expansion bolt.（Inspection items used when fixing methods） 6.2 Weekly maintenance ▲Check the flexibility of the action components. - Page 27 Car lift installation, operation and maintenance manual Type：4SF-4000C XH-6440T-3000-16 Before and after blocking Self-control XH-6440T-3000-15-00 Dashboard bezel welding XH-6435-3000-26 Tyre retaining bracket welding Insurance institution 1 set Parts box Insurance institutions Figure No. Name Source Remark Galvanized XH-6440T-4000-01 Main handle weld...
- Page 28 Car lift installation, operation and maintenance manual Type：4SF-4000C Outsourcing XH-6440T-3000-21 Spring card Galvanized Outsourcing XH-6440T-7000-04 Main oil pipe 1800 Outsourcing XH-6435-6000-02 Three way ball valve joint When the pump Outsourcing station is not available, the M14 combination washer parts box must be...
- Page 29 Car lift installation, operation and maintenance manual Type：4SF-4000C Enclosure 3：Foundation installation drawing The foundation diagram of the lifting machine in fixed use is as follows Enclosure 4：Hydraulic principle diagram...
- Page 30 1. cylinder, 2. throttle valve, 3. check valve, 4. relief valve, 5. manual unloading valve, 6. motor, 7. gear pump, 8. flow control valve, 9. filter screen Enclosure 5：Schematic diagram of electrical equipment Circuit diagram A (without two drops) Circuit diagram B (with two drops) Enclosure 6：4SF-4000C four post garage car lift explosion diagram...
