ES9000-48"
BARRIER OPTICAL TURNSTILE
INSTALLATION AND OPERATION
INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSI ES9000-48 and is the answer not in the manual?

Questions and answers

Related Manuals for Detex DSI ES9000-48

Summary of Contents for Detex DSI ES9000-48

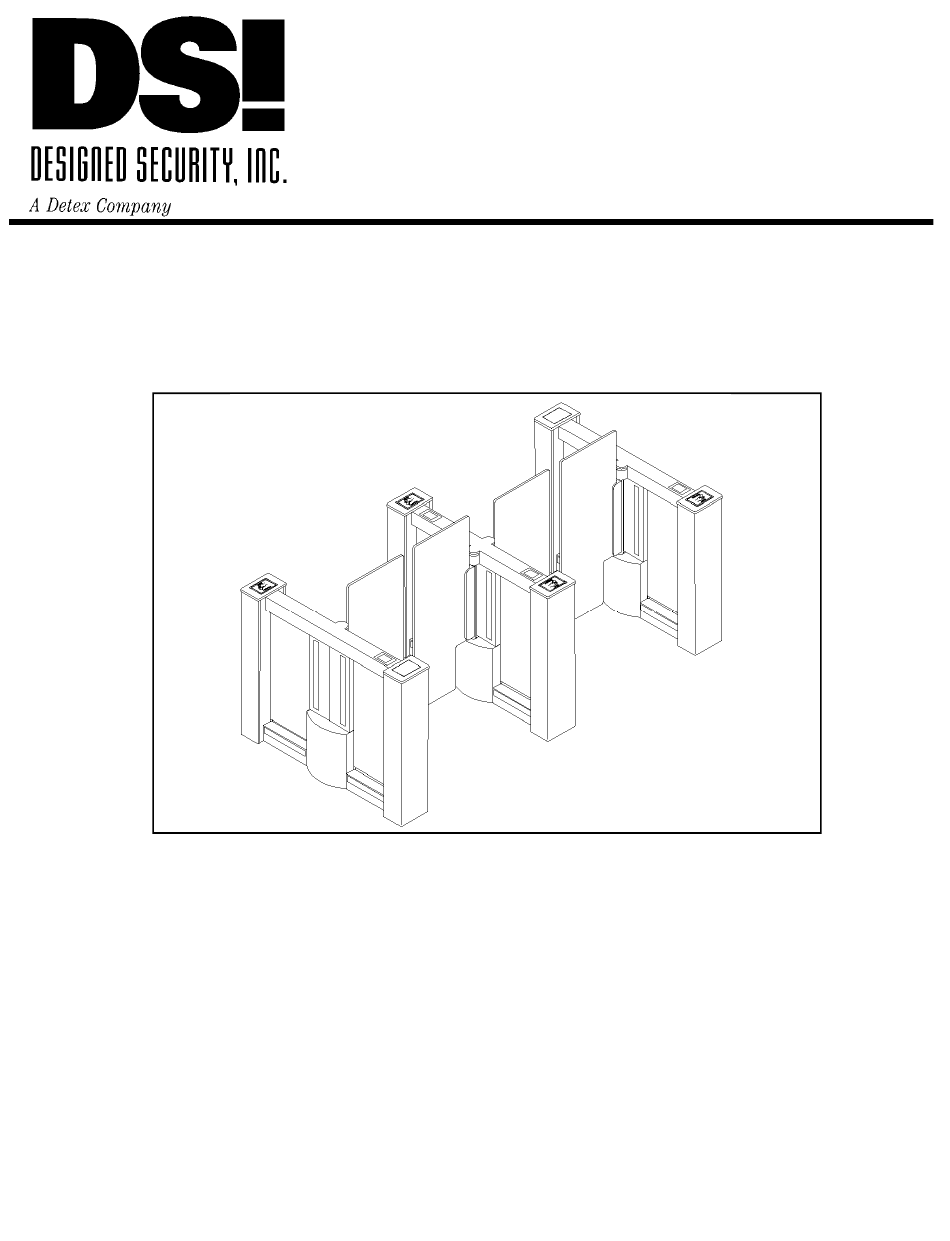

  • Page 1 ES9000-48” BARRIER OPTICAL TURNSTILE INSTALLATION AND OPERATION INSTRUCTIONS...
  • Page 3 DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com INTRODUCTION Welcome to the DSI family! The DSI ES9000 Barrier Optical Turnstile, although “high-tech”, is really a very straight-forward installation when a little time is taken to prepare before you begin. You may choose to take the time now to read and understand the installation and operation instructions in order to gain an understanding of what the system does and what is required from you to install your system.
  • Page 4 DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com CUSTOM NOTES INS9000 220523...

  • Page 5: Site Preparation

    DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com SITE PREPARATION Precise placement and alignment of pedestals is critical for both functional and aesthetic performance. Ensure pedestals are properly spaced and aligned square, level, and plumb. Refer to the following diagram for expressions used in this section REMOTE ELECTRONICS ENTRY VESTIBULE...
  • Page 6 DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com LAYOUT AND MOUNTING PEDESTAL LAYOUT  Using a chalk line, or equivalent method, lay out the pedestal arrangement. Pedestal positions should be parallel and square with each other.
  • Page 7 DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com CONDUIT OR OTHER CABLEWAY PLACEMENT The pedestals will be oriented so the Primary Electronics is located on the Secure side. The Conduit should be located below this end of the pedestal. There are two wiring groups: A.
  • Page 8 DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com BASE PLATE TEMPLATE INS9000 220523...

  • Page 9: Installation

    DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com INSTALLATION If site preparation is complete, you are ready to mount the End Cover pedestals. The pedestal cladding is assembled with fasteners hidden by acrylic covers. These covers are held Card Reader Acrylic with magnetic strips and can be removed with a suction Top Cover...
  • Page 10 DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com PUBLIC SIDE ANCHOR TO FLOOR With pedestal mounting holes and conduit access exposed, place pedestal on mounting point. Orient Barrier Panels pedestal such that Primary Electronics are located toward the Secure Side.

  • Page 11: Cover Installation

    DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com COVER INSTALLATION When all covers are removed, some must be installed in a specific order. The following order accounts for that sequence. All fasteners should easily install using hand tools—PLEASE DO NOT USE POWER TOOLS. LOWER SENSOR COVER In the rare case the Lower Sensor Cover is removed, it can be reinstalled at any time.

  • Page 13: Cable Routing

    DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com WIRING CABLE ROUTING Route Input and Output cables from Access Control System (ACS) to each Primary Electronics,  located on Secure Side. Route power cable from each 24VDC @ 4A power supply to each Primary Electronics. Power Cable ...
  • Page 14 DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com PRIMARY ELECTRONICS DETAIL Inputs from Access Control System Motor Driver Entry Valid Dry contact closure indicating valid Card Read Entry card read (Momentary Closure of .3 to .5 second recommended) Exit Valid Dry contact closure indicating valid...

  • Page 15: Setup And Operation

    DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com SETUP & OPERATION Setup of the pedestal is accomplished via the LCD display located on the Public side. Use a suction cup to remove acrylic cover, then touch powered LCD.

  • Page 16: Component Location

    DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com COMPONENT LOCATION PLASTIC BUMPER ENCODER PLASTIC BUMPER B SENSOR A SENSOR BARRIER PANEL ELECTRONICS PACKAGE LOCK (OPTIONAL) COUPLER D SENSORS C SENSORS GEARMOTOR MOUNTING MOUNTING POINTS &...

  • Page 17: Component Description

    DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com COMPONENT DESCRIPTION Electronics Package The Primary Electronics are found in the end of the left pedestal of each lane when viewed from the Secure side. The Remote Electronics are found in the left pedestal when viewed from the Public side.

  • Page 18: Final Testing Procedure

    DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com FINAL TESTING PROCEDURE With all wiring and setup completed, turn on power switch. Barriers will slowly move toward the Public side until they both come in contact with the Plastic Bumper on the Top Cover. They will then swing 180°...
  • Page 19 DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com GUIDELINES FOR EVERYDAY USE (PROVIDE COPIES TO ALL TURNSTILE USERS) Optical Turnstiles are provided for greater security in your workplace. They help ensure that only authorized individuals will be allowed into the secure areas of your facility. You may find daily use of Optical Turnstiles becomes routine as you follow these basic guidelines: USER VALIDATION “ID”...

  • Page 20: Training Users

    DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com GUARD/OPERATOR - OPTICAL TURNSTILE GUIDELINES (LEAVE COPY AT GUARD OR OPERATOR DESK FOR REFERENCE) Making an optical turnstile installation work well depends upon a number of factors being present. Users must be provided adequate instruction.
  • Page 21 DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com APPENDIX INS9000 220523...

  • Page 23: Specifications

    DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com SPECIFICATIONS Power: 24-26 VDC @ 4 Amps per walkway Wiring: Power- Less than 50 feet; -14 Gauge 50 to 100 feet; -12 Gauge (See Power Wire Gauge calculator on page 24 for detail) Signal- 50 to 200 feet;...
  • Page 24 DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com POWER WIRE GAUGE CALCULATOR WORKSPACE EXAMPLE STEP BY STEP COLUMN Specify total Current load, in Amps, of all devices sharing this trunk. 4 Amps ...

  • Page 25: Care And Cleaning

    DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com CARE AND CLEANING Congratulations on your purchase of a DSI Optical Turnstile system. This guide provides information for cleaning and maintaining the finishes, materials and optical paths of DSI’s standard finishes on our turnstile line.

  • Page 26: Troubleshooting Tips

    DESIGNED SECURITY INC. 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com TROUBLESHOOTING TIPS The following are a few of the most common questions the Customer Support group answers. Symptom: Gates do not move on start-up, Solution: Blocked sensor.
  • Page 27 (3) years from date of purchase, repair or replace any part which, upon our examination, proves to be defective under normal use. DSI/DETEX SHALL NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL OR CONSEQUENTIAL LOSS OR DAMAGE ARISING OUT OF THE FAILURE OF THIS DEVICE.
