This document provides a brief introduction and instructions to install and run the Platform
Manager™ Development Kit on Windows 7/Vista/XP. Please refer to the complete
documentation at www.latticesemi.com/ptmdevkit for more information.
Check Kit Contents
The Platform Manager Development Kit contains the following items:
• Platform Manager Evaluation Board pre-loaded with Platform Manager Demo
• USB connector cable
• 5V DC wall adapter power supply
• QuickSTART Guide
Static electricity can shorten the lifespan of electronic components. Please handle the
kit components carefully.

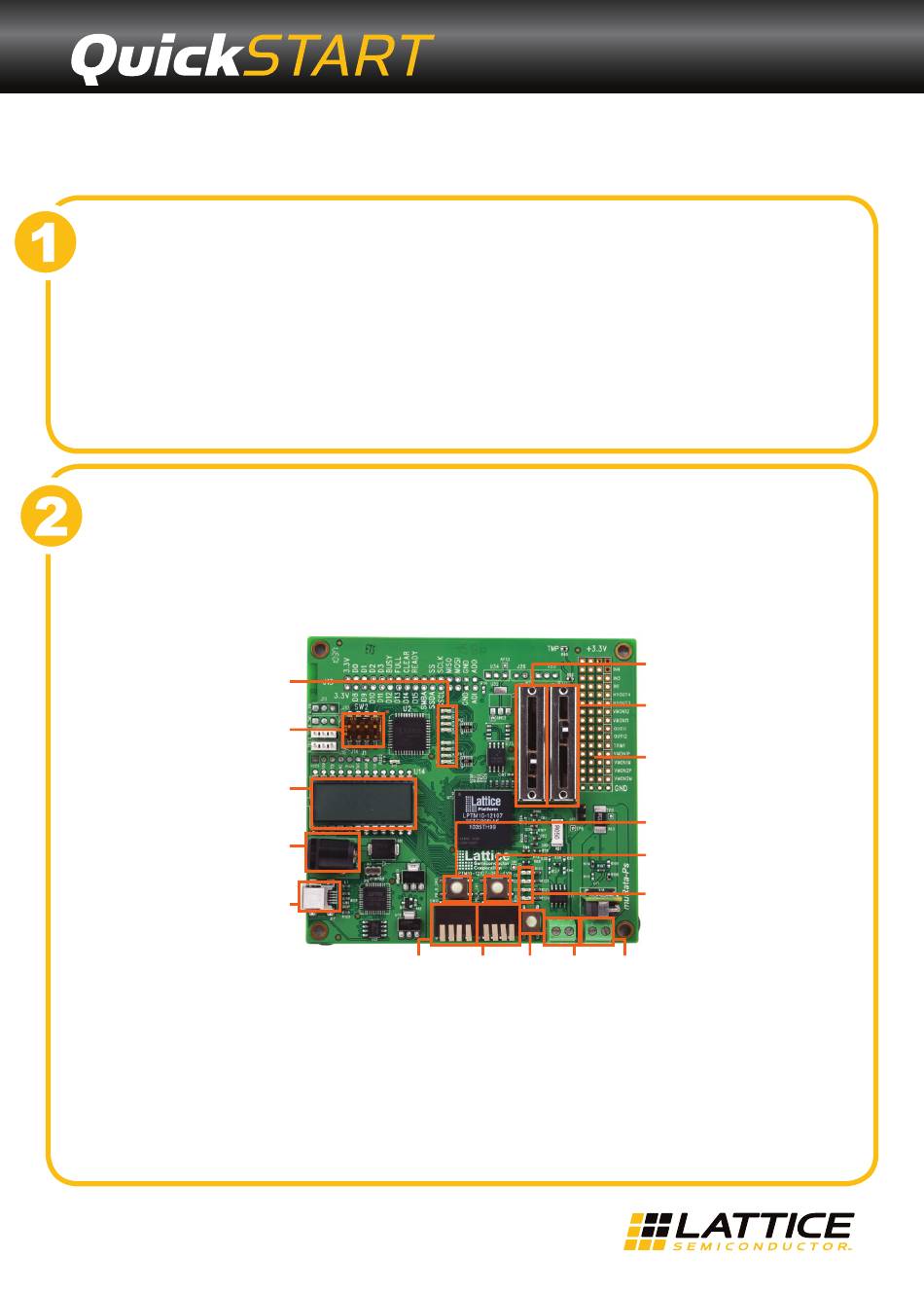

Power the Platform Manager Evaluation Board
Power the board by connecting the 5V wall adapter plug to the evaluation board.
Running the pre-loaded demos does not require connecting the provided USB cable
to a PC. The cable is required to modify the pre-loaded demo or to load additional IP
cores and reference designs.
D3-D6
D13, 15, 19-20
DIP SW2
JTAG Config.
Display
5V Wall
Adapter
Connect
The latest USB drivers can be downloaded in a ZIP file from www.latticesemi.com/
ptmdevkit. Complete documentation, including the Platform Manager Development Kit
User's Guide is available from the same location.
In the following steps, the evaluation board will be powered and made ready to run the
preloaded demonstrations.
LEDs
LCD
Plug
JTAG
USB
SW10
1-4
Platform Manager
Development Kit
SW9
Push-
J8
J7
1-4
button
LDO
DC-DC
S1
2.5V
1.2V
Slide Pot
R19
Slide Pot
R20
Prototyping
Area
Push-button
PB_B_SW2
Push-button
PB_A_SW1
LEDs
D21-D24
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lattice LPTM10-12107-DEV-EVN
Summary of Contents for Lattice LPTM10-12107-DEV-EVN
- Page 1 Platform Manager Development Kit This document provides a brief introduction and instructions to install and run the Platform Manager™ Development Kit on Windows 7/Vista/XP. Please refer to the complete documentation at www.latticesemi.com/ptmdevkit for more information. Check Kit Contents The Platform Manager Development Kit contains the following items: • Platform Manager Evaluation Board pre-loaded with Platform Manager Demo • USB connector cable • 5V DC wall adapter power supply...
- Page 2 Platform Manager Development Kit Run the Platform Manager Demo Initial board setup: • Set all DIP switches in SW9 and SW10 to the up/off position. • Set all DIP switches in SW2 to the on position. • Set slide potentiometers (pots) R19 and R20 to the down position, toward the center of the board.
- Page 3 Platform Manager Development Kit • Move Slide Pots R19-R20 to the top (board edge) of their travel. - LEDs D21-D24 will cycle on and off as shown in the table below. Step Back to Step 1 - LEDs D3-D6, D13, D15 and D19-D20 will blink on and off in a binary sequence, with D13 the MSB and D3 the LSB. The LCD will display “FF” in the right-most two digits. - The voltage across the two pins of J8 will measure 2.5V +/- 1%. - The voltage across the two pins of J7 will measure 1.2V +/- 1%.
- Page 4 • Gerber PCB layout artwork Technical Support 1-800-LATTICE (528-8423) +1-503-268-8001 techsupport@latticesemi.com Copyright © 2013 Lattice Semiconductor Corporation. Lattice Semiconductor, L (stylized) Lattice Semiconductor Corp., and Lattice (design), Platform Manager and PAC-Designer are either registered trademarks or trademarks of Lattice Semiconductor Corporation in the United States and/or other countries. Other product names used in this publication are for identification purposes only and may be trademarks of their respective companies. QS009A April 2013...
