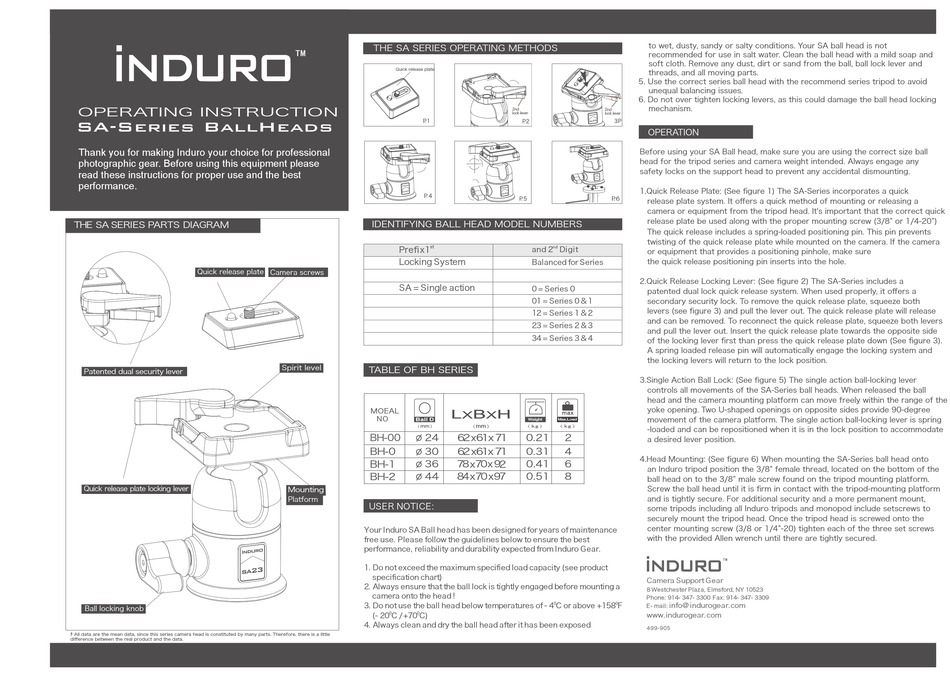

OPERATING INSTRUCTION
SA-Series BallHeads
Thank you for making Induro your choice for professional
photographic gear. Before using this equipment please
read these instructions for proper use and the best
performance.
THE SA SERIES PARTS DIAGRAM

Quick release plate
Patented dual security lever
Quick release plate locking lever


Ball locking knob
チ All data are the mean data, since this series camera head is constituted by many parts. Therefore, there is a little
difference between the real product and the data.
THE SA SERIES OPERATING METHODS
Quick release plate
P . 1
P . 4
IDENTIFYING BALL HEAD MODEL NUMBERS
Prefix1
st
Locking System
Camera screws
SA = Single action
 Spirit level
TABLE OF BH SERIES
MOEAL
NO
B -00
H
24
B -0
H
30
B -1
H
36
B -2
H
44
  Mounting


Platform
USER NOTICE:
Your Induro SA Ball head has been designed for years of maintenance
free use. Please follow the guidelines below to ensure the best
performance, reliability and durability expected from Induro Gear.
1. Do not exceed the maximum specified load capacity (see product
    specification chart)
2. Always ensure that the ball lock is tightly engaged before mounting a
    camera onto the head !
3. Do not use the ball head below temperatures of - 4 C or above +158 F
    (- 20 C / +70 C)
0
0
4. Always clean and dry the ball head after it has been exposed
2nd
2nd
lock lever
lock lever
P . 2
3 . P
P . 5
P . 6
and 2  Digit
nd
Balanced for Series
0 = Series 0
01 = Series 0 & 1
12 = Series 1 & 2
23 = Series 2 & 3
34 = Series 3 & 4
62x61x 71
0.21
2
62x61x 71
0.31
4
78x70x 92
0.41
6
84x70x97
0.51
8
0
0
    to wet, dusty, sandy or salty conditions. Your SA ball head is not
    recommended for use in salt water. Clean the ball head with a mild soap and
    soft cloth. Remove any dust, dirt or sand from the ball, ball lock lever and
    threads, and all moving parts.
5. Use the correct series ball head with the recommend series tripod to avoid
    unequal balancing issues.
6. Do not over tighten locking levers, as this could damage the ball head locking
    mechanism.
OPERATION
Before using your SA Ball head, make sure you are using the correct size ball
head for the tripod series and camera weight intended. Always engage any
safety locks on the support head to prevent any accidental dismounting.
1.Quick Release Plate: (See figure 1) The SA-Series incorporates a quick
   release plate system. It offers a quick method of mounting or releasing a
   camera or equipment from the tripod head. It's important that the correct quick
   release plate be used along with the proper mounting screw (3/8" or 1/4-20")
   The quick release includes a spring-loaded positioning pin. This pin prevents
   twisting of the quick release plate while mounted on the camera. If the camera
   or equipment that provides a positioning pinhole, make sure
   the quick release positioning pin inserts into the hole.
2.Quick Release Locking Lever: (See figure 2) The SA-Series includes a
   patented dual lock quick release system. When used properly, it offers a
   secondary security lock. To remove the quick release plate, squeeze both
   levers (see figure 3) and pull the lever out. The quick release plate will release
   and can be removed. To reconnect the quick release plate, squeeze both levers
   and pull the lever out. Insert the quick release plate towards the opposite side
   of the locking lever first than press the quick release plate down (See figure 3).
   A spring loaded release pin will automatically engage the locking system and
   the locking levers will return to the lock position.
3.Single Action Ball Lock: (See figure 5) The single action ball-locking lever
   controls all movements of the SA-Series ball heads. When released the ball
   head and the camera mounting platform can move freely within the range of the
   yoke opening. Two U-shaped openings on opposite sides provide 90-degree
   movement of the camera platform. The single action ball-locking lever is spring
   -loaded and can be repositioned when it is in the lock position to accommodate
   a desired lever position.
4.Head Mounting: (See figure 6) When mounting the SA-Series ball head onto
   an Induro tripod position the 3/8" female thread, located on the bottom of the
   ball head on to the 3/8" male screw found on the tripod mounting platform.
   Screw the ball head until it is firm in contact with the tripod-mounting platform
   and is tightly secure. For additional security and a more permanent mount,
   some tripods including all Induro tripods and monopod include setscrews to
   securely mount the tripod head. Once the tripod head is screwed onto the
   center mounting screw (3/8 or 1/4"-20) tighten each of the three set screws
   with the provided Allen wrench until there are tightly secured.
Camera Support Gear
8 Westchester Plaza, Elmsford, NY 10523
Phone: 914- 347- 3300  Fax: 914- 347- 3309

info@ indurogear.com
E- mail:
www.indurogear.com
499-905
