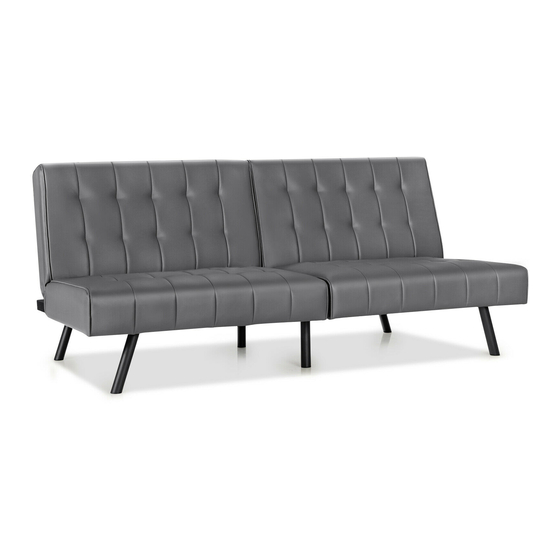

Costway HW68469 User Manual

Sofa bed
Hide thumbs

Advertisement

Quick Links

Download this manual
USER'S MANUAL
Sofa Bed
HW68469
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Follow Costway
Please give us a chance to make it right and do better！
Contact our friendly customer service department for help first.
Replacements for missing or damaged parts will be shipped ASAP!

Advertisement

loading
Need help?

Need help?

Do you have a question about the HW68469 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Costway HW68469

Summary of Contents for Costway HW68469

  • Page 1 USER’S MANUAL Sofa Bed HW68469 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Follow Costway Please give us a chance to make it right and do better！ Contact our friendly customer service department for help first.

  • Page 2: Before You Start

    Contact Us! Do NOT return this item. Contact our friendly customer service department for help first. E-mail US: cs.us@costway.com UK: cs.uk@costway.com Before You Start Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware.

  • Page 3: Assembly Instruction

    ASSEMBLY INSTRUCTION WARNING: ·This sofa bed has been designed for seating and as an alternate sleep product for two(2)average adults.To prevent injury and damage to this unit,PROHIBIT jumping on the seat and back. ·This product is designed for home use and not intended for commercial use.
  • Page 4 Body： QTY 2 Parts List LEG-1 LEG-2 QTY:2 QTY:4...
  • Page 5 Hardware List BOLT 1 BOLT 2 M10 x 25mm M10 x 35mm QTY:8 QTY:4 HEX KEY QTY:1...
  • Page 6 As shown below,unfold the cushion(A),and then go to the next step.
  • Page 7 Open the flaps,find legs(B)and (C),and use bolts(D)(E) and hex key(F)to insert them inside the cushion(A),as shown below.
  • Page 8 Fix leg(B) with bolt (E) by hex key(F),fix leg(C)with bolt(D) by hex key(F),shown as below.
  • Page 9 Completed! Turn the cushion all over & set it on its legs.
  • Page 10 Convert to sofa:In bed(flat) position,simply lift backrest upward with each click sound until you reach the sofa position. Bed position Sofa position...
  • Page 11 Convert to bed:From sofa or split position,lift backrest all the way up until the last click is heard ,then unlock the mechanism and carefully return to the flat position. Split back position Bed position...
  • Page 12 Welcome to visit our website and purchase our quality products! With your inspiring rating, COSTWAY will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! US office: Fontana, California UK office: Ipswich Reward Points Exclusive Customer Service...
