- Page 1 Z506-B Product Manual Realtimes Beijing Technology Co., LTD. Fax：+86 010-84284669 / 84280996 Email: info@realtimes.cn Web Page: http://www.realtimesai.com Address: 11th Floor, Block B, 20th Heping Xiyuan, Pingxi Street, Chaoyang District, Beijing 100013,P.R.China...
- Page 2 Revision History Applicable Revision Date Reason for change Modified by hardware version V1.0 2020.2 Initial release V1.0 V1.1 2020.9 Add line package configuration V1.0 RT0086 V1.2 2022.1.10 Add a description of the software version V1.0 RT0086 Z506-B Reference Manual V1.2...
-
Page 3: Table Of Contents
................................13 ETPACK 3.1 Jetpack Component summary ........................13 3.2 How to install Jetpack ..........................13 3.3 Sample application ............................15 3.4 Developer tools ............................15 3.5 Documentation .............................16 TERMS OF WARRANTY ..........................17 COPYRIGHT NOTICE ............................18 Z506-B Reference Manual V1.2... - Page 4 (including Z506-B). Anti-static safety protection measures include, but are not limited to the following: a) The smart box should be placed in an anti-static bag during transportation and storage, and then the board should not be taken out during installation and deployment.
- Page 5 Due to the wide range of embedded system knowledge and various types of involvement, we can not guarantee that all kinds of questions can be answered one by one. The following content is not available for technical support, only suggestions can be provided. 1) Knowledge beyond the course published by our company; Z506-B Reference Manual V1.2...
- Page 6 Updates of subsequent documents, BSP, driver files and other official account will be updated in time. We will pay close attention to our developments in order to ensure that your information is up to date. We will push through WeChat public. Z506-B Reference Manual V1.2...
-
Page 7: Product Presentation

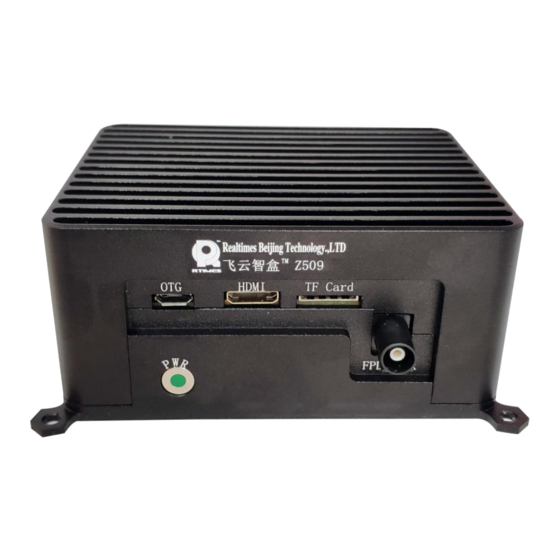

Product presentation 1 Product introduction Z506-B to one based on NVIDIA Jetson ™ NANO series ™ module design of your new feiyun box, built-in integration 128 nuclear Maxwel ™ architecture of GPU NANO module, Ubuntu 18.04 operating system, with 0.5 TFLOPS the AI processing capacity of floating point arithmetic, using super strong light... -
Page 8: Ordering Information
Capture Mini HDMI (single-channel HDMI Video Pro Capture Mini HDMI (optional ) Input) Order online: https://shop340963258.taobao.com https://mall.jd.com/index-824786.html 1.3 Cable Kits and Accessories Component Number Functional Description microHDMI to HDMI cable Convert Micro HDMI to standard HDMI interface Z506-B Reference Manual V1.2... -
Page 9: Product Specifications
Realtimes Beijing Technology Co.,LTD www.realtimesai.com Product specifications 1 External interface function and location Z506-B FRONT Z506-B BACK Z506-B Reference Manual V1.2... -
Page 10: Connectors Description
TF CARD Type Micro SD（TF） 2.5 Power input port Function Power input port Power Input marking 2Pin interface Type Input voltage: +5V Pin define 2.6 OTG-USB2.0 connector Function USB2.0 connectors marking USB-OTG Type UBS3.0 Micro Type-B Z506-B Reference Manual V1.2... -
Page 11: Function Connector
UART3_TXD UART3_RTS UART2_RXD UART2_CTS UART3_RXD UART3_CTS Multi-function interface Function Button marking Type Pin define Signal Signal DEV_3V3 BUTTON_PWR_O DEV_3V3 FORCE_RECOV 2.8 WiFi antenna connector WiFi antenna interface Function AT1 AT2 marking ipex to sma female Type Z506-B Reference Manual V1.2... -
Page 12: Product Size Diagram
Realtimes Beijing Technology Co.,LTD www.realtimesai.com 3 Product size diagram 4 Hardware update history Z506-B hardware update history edition Updata description V1.0 Initial release Z506-B Reference Manual V1.2... -
Page 13: Software Version Supporting Instructions
(BSP) and sample file system. Z506-B Smart Box is working on a system burned with the official original version of NVIDIA Linux For Tegra (L4T). HDMI, Gigabit Ethernet, USB2.0, serial port, GPIO, SD card, I2C bus can all be supported. But Mini-PCIe, M.2, USB3.0, fan interface, etc. -
Page 14: Jetpack
You must have a Linux host with internet access to run SDK Manager and refresh the developer kit. The supported host operating systems are: Ubuntu Linux x64 Version 18.04 or 16.04 Download and install NVIDIA SDK Manager. Installation package： sdkmanager sdkmanager-[version].[build#].deb The current version is： sdkmanager_1.2.0 Z506-B Reference Manual V1.2... - Page 15 Use SDK Manager to select and install the required components NVIDIA SDK Manager supports installing software to Jetson core (Flying Cloud Smart Box). For complete instructions, please refer to Chapter 5 of "Nano System Programming Manual". Z506-B Reference Manual V1.2...
-
Page 16: Sample Application
API debugging through user interface and command line tools. •NSight Graphics for graphics application debugging and evaluation: a consolegrade tool for debugging and optimizing OpenGL and OpenGL ES programs. Run on the Linux host. Support all Jetson products. Z506-B Reference Manual V1.2... -
Page 17: Documentation
Documentation • CUDA Toolkit • NVIDIA Container Runtime • OpenCV Documentation • Jetson Linux Multimedia API Reference • Nsight Systems • nvprof • Visual Profiler • Nsight Graphics • Nsight Compute CLI • VPI–Vision Programming Interface Z506-B Reference Manual V1.2... -
Page 18: Terms Of Warranty
Other failures which are clearly due to misuse(such as overvoltage,polarity reversal, the pin bent or broken,the wrong connection,drop damage,transportation damage,damage due to over operating temperature and so on). e) The logo and part number on the product have been deleted or removed. The product is out of warranty. Z506-B Reference Manual V1.2... -
Page 19: Copyright Notice
Without the written permission of the company, no unit or individual may copy, extract, backup, modify, disseminate, translate into other languages, or use all or part of it for commercial purposes in any way or form. Z506-B Reference Manual V1.2...
