- Page 1 Document Issue date Made by Approved by RPL-X-P04-MA-IOM 25.01.2022 Even Høifødt Bente Ottestad RPL-X-Series Regulator Pressure Liquid Installation, operation, and maintenance manual Regulators in this series are also commonly known as XHPR- regulators (engraved on housing)
-
Page 2: Table Of Contents
First issue 25th of February 2015 20.05.2017 Updated, new product designation 19.01.2019 Updated service instruction OBS-P12-220110 Implemented RPL-X21 and Rep Kits OBS-P12-220125 Referred to the engraved product name XHPR on front of this document to ensure customers this is the same product TABLE OF CONTENTS Introduction .............................. -
Page 3: Introduction

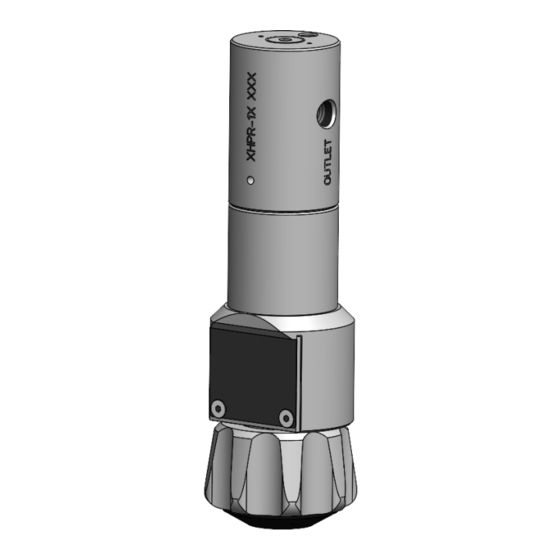

Figure 3: RPL-X21 RPL-X-Series OBS Technology’s RPL-X (XHPR) series are high performance pressure regulators for controlling pressure up to 863 bar with AISI 316 and 1035 bar with duplex housing. Depending on internal springs and pressure sensors the regulators reduce the inlet pressure down to meet required output pressure like 345, 690 and 900 bar. -
Page 4: Rpl-X14
Installation, operation, and maintenance manual Document: RPL-X-P04-MA-IOM RPL-X-P04-MA-IOM Version: Issue date: 25.01.2022 Extreme pressure drops across regulators must be controlled to avoid critical flow conditions. Operator should be fully conversant with this document before attempting to operate regulator. The valve has an internal bleed valve which offloads pressure if downstream pressure increases due to thermal expansion or similar. -
Page 5: Rpl-X21
Installation, operation, and maintenance manual Document: RPL-X-P04-MA-IOM RPL-X-P04-MA-IOM Version: Issue date: 25.01.2022 1.1.3 RPL-X21 The RPL-X21 is a high flow regulator developed for fluid operations. The regulator is designed for 863 to 345 barg (12.500 to 5000 psi) inlet pressure, and a range from 50 to 690 barg (725 to 10.000 psi) regulated output pressure. Extreme pressure drops across regulators must be controlled to avoid critical flow conditions. -
Page 6: Rpl-X-Fixed
XHPR has been removed. No adjustment during operation is possible. The pressure output is pre-set and fixed by OBS, but the pressure regulation functioning is identical. The spring has been selected for the required pressure range and compressed according to the outlet pressure into the spring housing. The rest of the RPL-X14-F is identical with the original RPL-X (XHPR) regulator and work according to the same principles. -
Page 7: Installation
Installation, operation, and maintenance manual Document: RPL-X-P04-MA-IOM RPL-X-P04-MA-IOM Version: Issue date: 25.01.2022 NSTALLATION The function of the RPL-X-series is virtually unaffected by its orientation. The RPL-X-M-versions (Manually operated) is typically mounted with clamps around the body. Some of the RPL-X-series regulators are available with actuator. -
Page 8: Start-Up
TART IMPORTANT NOTICE: The RPL-X series are manufactured to high precision and with tight tolerances and relies on metal-to- metal sealing in the valve to maintain proper operation. Hence, the cleanliness of connected tubing, fittings, and other auxiliary equipment as well as the hydraulic fluid is of utmost importance to the function and reliability of the regulator. -
Page 9: Operation
If significant force must be exerted to rotate the adjustment wheel, there may be an internal damaged. Normally you should be able to rotate the wheel with one hand. Contact OBS support if necessary, mail contact: post@obstechnology.no 9 av 15... -
Page 10: Trouble Shooting
Installation, operation, and maintenance manual Document: RPL-X-P04-MA-IOM RPL-X-P04-MA-IOM Version: Issue date: 25.01.2022 ROUBLE SHOOTING Symptom / problem Probable cause. Action Regulator show Pressure sensor damaged. Replace Pressure sensor. unstable regulating characteristic Leaking to return line Dump valve damaged. Replace pressure sensor complete with integrated Dump valve. -
Page 11: Service Rpl-X-Series
If there are any concerns or no qualified personnel at site, we recommend that each RPL-X unit in operational use should be sent to OBS for maintenance at least every third year. OBS have qualified offshore personnel and are able to perform service on site if necessary. -
Page 12: Procedure For Change Of Inlet Valve
Installation, operation, and maintenance manual Document: RPL-X-P04-MA-IOM RPL-X-P04-MA-IOM Version: Issue date: 25.01.2022 7.1 P ROCEDURE FOR CHANGE OF NLET ALVE • 1 refers to Spare Part 01-00432 Valve Seat with Guide, 2 refers to Spare Part 01-00438 Valve Seat with Guide and Filter. -
Page 13: Spare Part List
Document: RPL-X-P04-MA-IOM RPL-X-P04-MA-IOM Version: Issue date: 25.01.2022 7.3 S PARE PART LIST 7.3.1 RPL-X14 / RPL-X21 / RPL-X-Fixed OBS Product Code regulator RPL-X14-F-S-P690 RPL-X14-M-S-P370 RPL-X14-M-SP690 RPL-X14-M-D-P900 RPL-X21-F-S-P690 RPL-X21-M-S-P370 RPL-X21-M-S-P690 Q PN: 70-00001 Service/overhaul of RPL-X14 or RPL-X21 regulator Overhaul incl. replacement of inlet valve, dump valve and soft sealings, calibration and test. - Page 14 Installation, operation, and maintenance manual Document: RPL-X-P04-MA-IOM RPL-X-P04-MA-IOM Version: Issue date: 25.01.2022 Q. PN:24-00021 XHPR-14 SSK-1 SOFT SEAL KIT FOR 370/690 BARG (SAME AS FOR XHPR-08) 1 29C00675 O-ring HNBR 90 Shore A, black 5 29C01082 O-ring HNBR 90 Shore A, black 1 29C01400 O-ring HNBR 90 Shore A, black...
-
Page 15: Rpl-X08
Installation, operation, and maintenance manual Document: RPL-X-P04-MA-IOM RPL-X-P04-MA-IOM Version: Issue date: 25.01.2022 7.3.2 RPL-X08 OBS Product Code regulator RPL-X08-M-S-P370 RPL-X08-M-S-P690 RPL-X08-M-D-P900 PN:60-00017 XHPR-08 RK-1 INLET COMPLETE REP KIT (SAME AS FOR XHPR-14) 1 01-00432 Valve Seat w/guide Sub-assembly 1 10-01706 Valve Body Titanium Gr.5...
