LUXOR LINKING OWNERS MANUAL
PROGRAMMING WIRELESS LINKING MODULE
Note: Before programming determine which module will be installed on the primary controller (LUX
models) and which will be installed on the Luxor Satellite controllers (LSAT models). Primary Luxors are
controllers with a facepack installed.
PRIMARY LUXOR

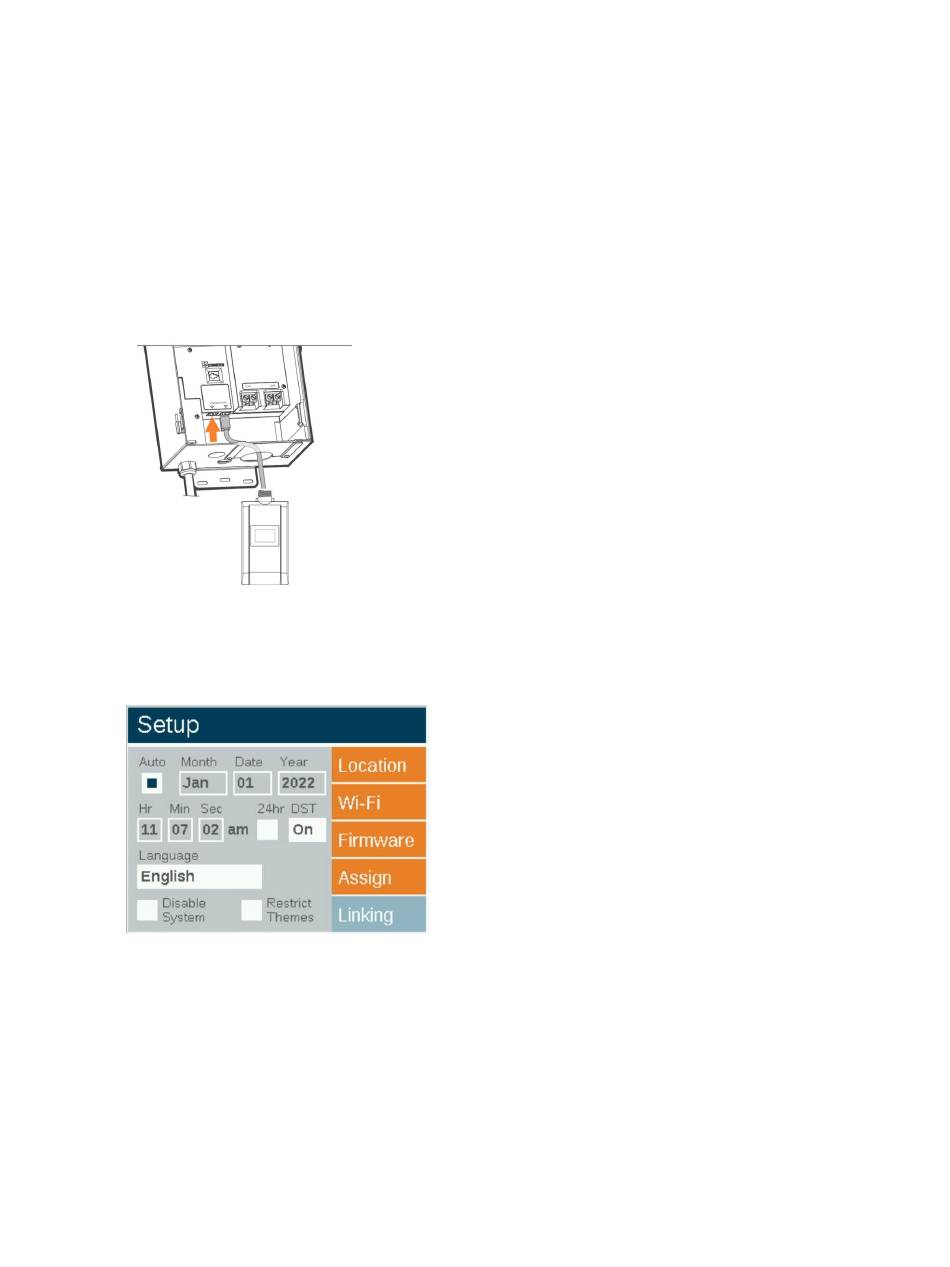

1. Insert wireless linking module (LINK-MOD) into the primary Luxor controller linking port.
2. From Home screen, select Setup
3. Within Setup screen, select Linking

Advertisement

loading
Need help?

Need help?

Do you have a question about the LUXOR LINKING and is the answer not in the manual?

Questions and answers

Related Manuals for FXLuminaire LUXOR LINKING

Summary of Contents for FXLuminaire LUXOR LINKING

  • Page 1 LUXOR LINKING OWNERS MANUAL PROGRAMMING WIRELESS LINKING MODULE Note: Before programming determine which module will be installed on the primary controller (LUX models) and which will be installed on the Luxor Satellite controllers (LSAT models). Primary Luxors are controllers with a facepack installed.
  • Page 2 LUXOR LINKING OWNERS MANUAL 4. Scroll to Chassis Number field, select 0 (Primary). 5. Scroll to Network ID field, select desired Network ID (1-255). This Network ID will need to be assigned to all wireless linking modules installed on the site.
  • Page 3 LUXOR LINKING OWNERS MANUAL 7. Scroll to Program and press scroll wheel. “Assignment Succeeded” will appear at the bottom of the screen 8. Remove module from Linking Port...
  • Page 4 LUXOR LINKING OWNERS MANUAL SATELLITE LUXOR 1. Insert wireless linking module (LINK-MOD) into the primary Luxor controller linking port. 2. From Home screen, select Setup 3. Within Setup screen, select Linking 4. Scroll to Chassis Number field, select desired Chassis Number (1-10).
  • Page 5 LUXOR LINKING OWNERS MANUAL 5. Scroll to Network ID field, select desired Network ID (1-255). This Network ID will need to be assigned to all wireless linking modules installed on the site. 6. Scroll to Wireless Channel field, select desired Wireless Channel. This Wireless Chassis ID will need to be assigned to all wireless linking modules installed on the site.
  • Page 6 LUXOR LINKING OWNERS MANUAL INSTALLING WIRELESS LINKING MODULES PRIMARY LUXOR 1. Using Wireless Linking Module assigned to Chassis Number (0 Primary), insert wireless linking cable through the 7/8” hole on bottom of Luxor cabinet 2. Plug wireless module into one of the Linking Ports 3.

  • Page 7: Troubleshooting

    LUXOR LINKING OWNERS MANUAL Troubleshooting Read feature The “read” feature allows users to read wireless module settings by displaying Chassis Number, Network ID, and Wireless Channel on the Luxor facepack 1. Insert desired wireless linking module (LINK-MOD) into the primary Luxor controller linking port.

  • Page 8: Module Details

    LUXOR LINKING OWNERS MANUAL MODULE DETAILS ICON LEGEND...
  • Page 9 LUXOR LINKING OWNERS MANUAL...
  • Page 10 LUXOR LINKING OWNERS MANUAL...
  • Page 11 LUXOR LINKING OWNERS MANUAL...
