INSTALLATION GUIDE: WIRELESS LUXOR

PROGRAMMING THE WIRELESS LINKING MODULE

Before programming, determine which Wireless Linking Module (LINK-MOD) will be installed on the primary Luxor Controller
(LUX models) and which will be installed on the Luxor Satellite Controllers (LSAT models). Primary Luxor Controllers are those with
facepacks installed. Each LINK-MOD must be programmed at the primary controller prior to installation.

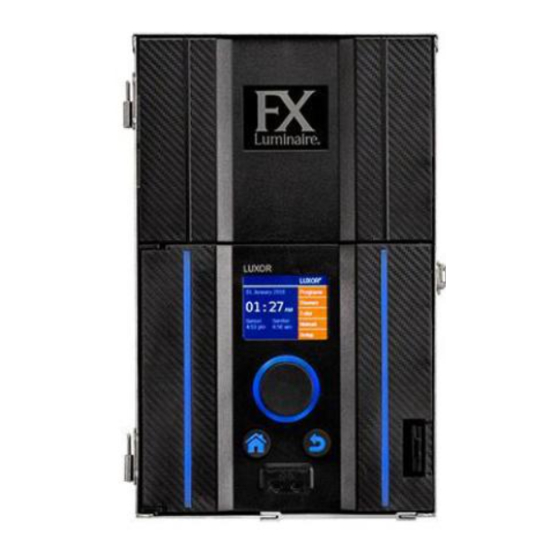

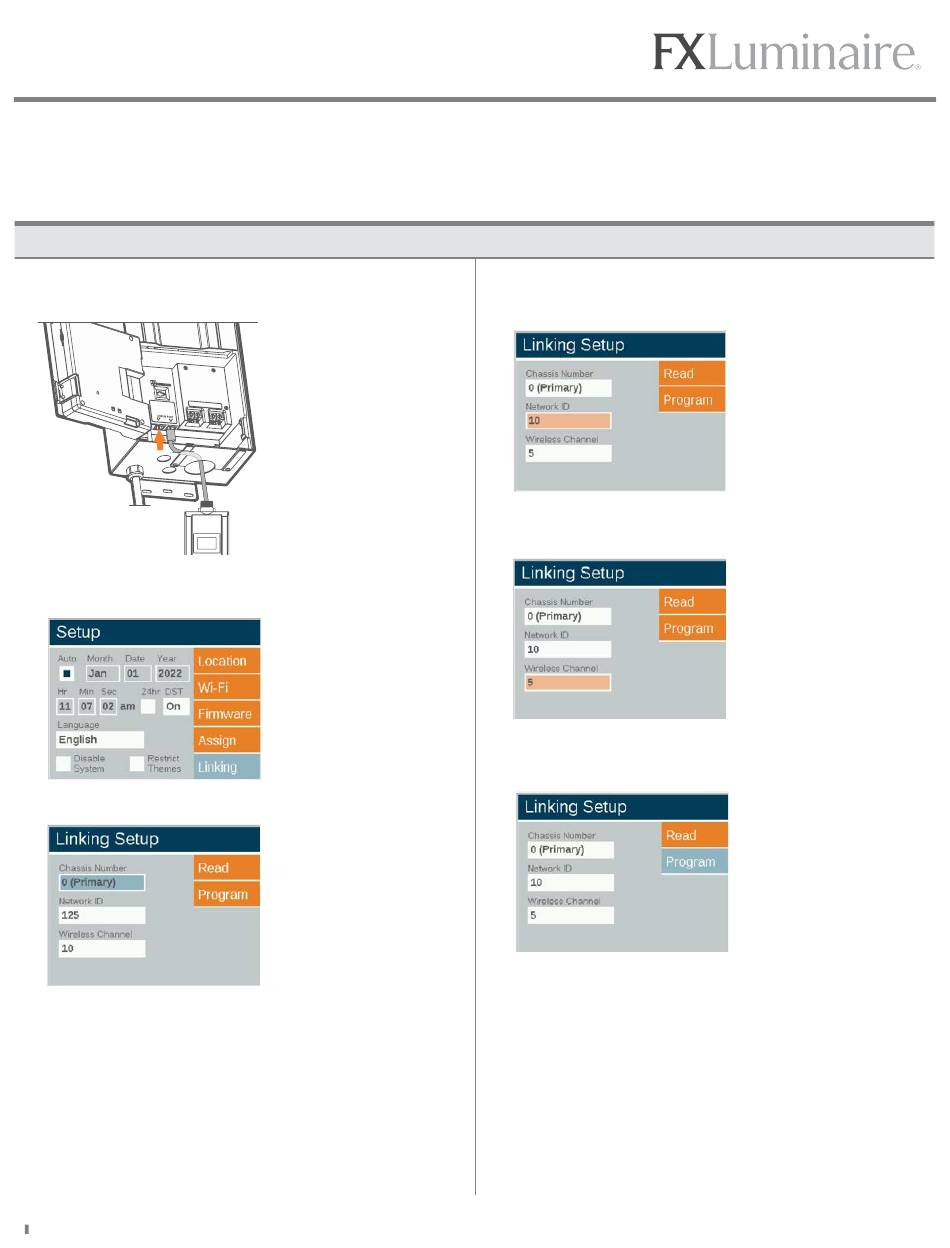

PROGRAMMING THE MODULE FOR A PRIMARY LUXOR CONTROLLER

1. Insert the Wireless Linking Module (LINK-MOD) into either of the
Primary Luxor Controller linking ports.
2. From the Home screen, use the scroll wheel to select Setup.
3. Within the Setup screen, use the scroll wheel to select Linking.
4. Scroll to the Chassis Number field and select 0 (Primary).
Learn more about FX Luminaire products. Visit fxl.com or call Technical Service at 1-760-591-7383.
® LINKING
THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. U
DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AU
NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©C
5. Scroll to the Network ID field and select the desired Network ID
(0–255). The Network ID will need to be configured the same on
all Wireless Linking Modules installed on-site.
6. Scroll to the Wireless Channel field and select the desired
Wireless Channel (1–10). The channel will need to be configured
the same on all Wireless Linking Modules installed on-site.
7. Scroll to Program and press the scroll wheel. "Assignment
Succeeded" will appear at the bottom of the screen. If the
assignment fails, repeat the process.
8. Remove the module from the linking port.
