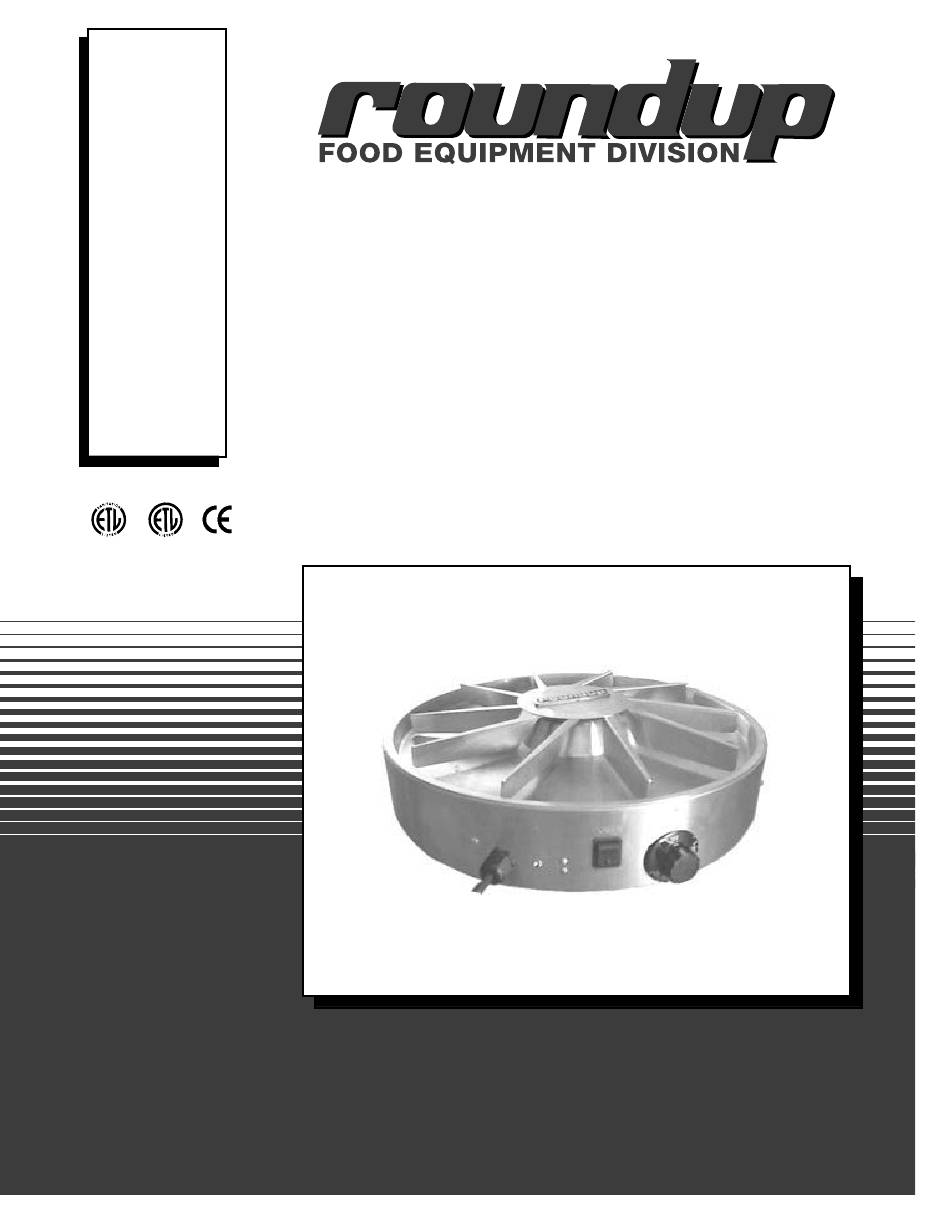

- Page 1 MANUFACTURING NUMBERS: 9500410 9500412 CORN CAROUSEL Model CC-19 Series 9500400 ® P/N 1010730 10/99 Owner s Manual ’...
-
Page 2: Table Of Contents
Warranty Information General Please read the full text of the Limited Warranty in this The Roundup Corn Carousel displays and slowly manual. rotates hot cooked corn on the cob while maintaining temperature and basting the corn in melted butter or If the unit arrives damaged, contact the carrier immedi- margarine. -
Page 3: Service/Technical Assistance
Refer to the service agency directory included with your unit. If you experience any problems with the installation or Authorized Service Agency operation of your unit, contact your local Roundup Authorized Service Agency. Name: Fill in the information below and have it handy when Phone No.:... - Page 4 • This equipment should be serviced by qualified other applicable codes. personnel only. Contact the nearest Roundup authorized service facility for adjustment or repair. • WARNING ELECTRICAL SHOCK HAZARD. FAILURE TO FOLLOW THESE INSTRUCTIONS •...
-
Page 5: Specifications
A.J. Antunes & Co. CORN CAROUSEL SPECIFICATIONS Electrical Ratings WARNING ELECTRICAL SHOCK HAZARD. FAILURE TO Voltage Watts Amps Hertz FOLLOW THE INSTRUCTIONS IN THIS MANUAL 1000 COULD RESULT IN SERIOUS INJURY OR DEATH. 220/240 1200 • Electrical ground is required on this appliance. Electrical Plug Configurations •... -
Page 6: Installation
A.J. Antunes & Co. CORN CAROUSEL INSTALLATION Unpacking 1. Remove unit and all packing materials from ship- Driver ping carton. Assembly 2. Open the large box. Remove all packing materi- als and protective coverings from the unit and parts. 3. Wash driver assy. in soap and water. Wipe all surfaces of the unit with a hot damp cloth. -
Page 7: Operation
A hi-limit thermostat will turn off electrical power to the If hi-limit thermostat requires continuous resetting, heater and control circuits if the unit overheats. To contact your Roundup Authorized Service Agency reset this thermostat, allow sufficient time (10-15 min- for service. - Page 8 A.J. Antunes & Co. CORN CAROUSEL 3. Disconnect power cord wires from terminal block. 8. Re-install insulation, base plate and legs. 4. Remove strain relief nut (15) from outside of unit . 9. Re-install driver assy. 5. Squeeze strain relief and pull cord out. 10.
-
Page 9: Troubleshooting
A.J. Antunes & Co. CORN CAROUSEL TROUBLESHOOTING WARNING To avoid possible personal injury and/or damage to the unit, service and repair of electrical equipment should be performed by qualified service personnel. The unit should be unplugged when servicing. Problem Possible Cause Corrective Action Unit will not heat up. -
Page 10: Wiring Diagram
A.J. Antunes & Co. CORN CAROUSEL WIRING DIAGRAMS Pictorial Wiring Diagram P/N 1010730 10/99... -
Page 11: Replacement Parts
A.J. Antunes & Co. CORN CAROUSEL REPLACEMENT PARTS (continued) P/N 1010730 10/99... - Page 12 A.J. Antunes & Co. CORN CAROUSEL Item Part Description Qty. Item Part Description Qty. 0010241 Driver Assy. 4010137 Rocker Switch, Power On/Off 040P109 Grommet 220/240V 310P109* Screw, #10-32 x 3/8" 4010151 Rocker Switch, Power On/Off 0021203 Grill Cone Weldment 120V 0503532 Retainer, Thermostat 2100110...
- Page 13 A.J. Antunes & Co. CORN CAROUSEL NOTES P/N 1010730 10/99...
-
Page 14: Warranty
2.Roundup reserves the right to make changes in design or add any improvements on any product. The right is always reserved to modify equipment because of factors beyond our control and government regulations. Changes to update equip- ment do not constitute a warranty charge.
