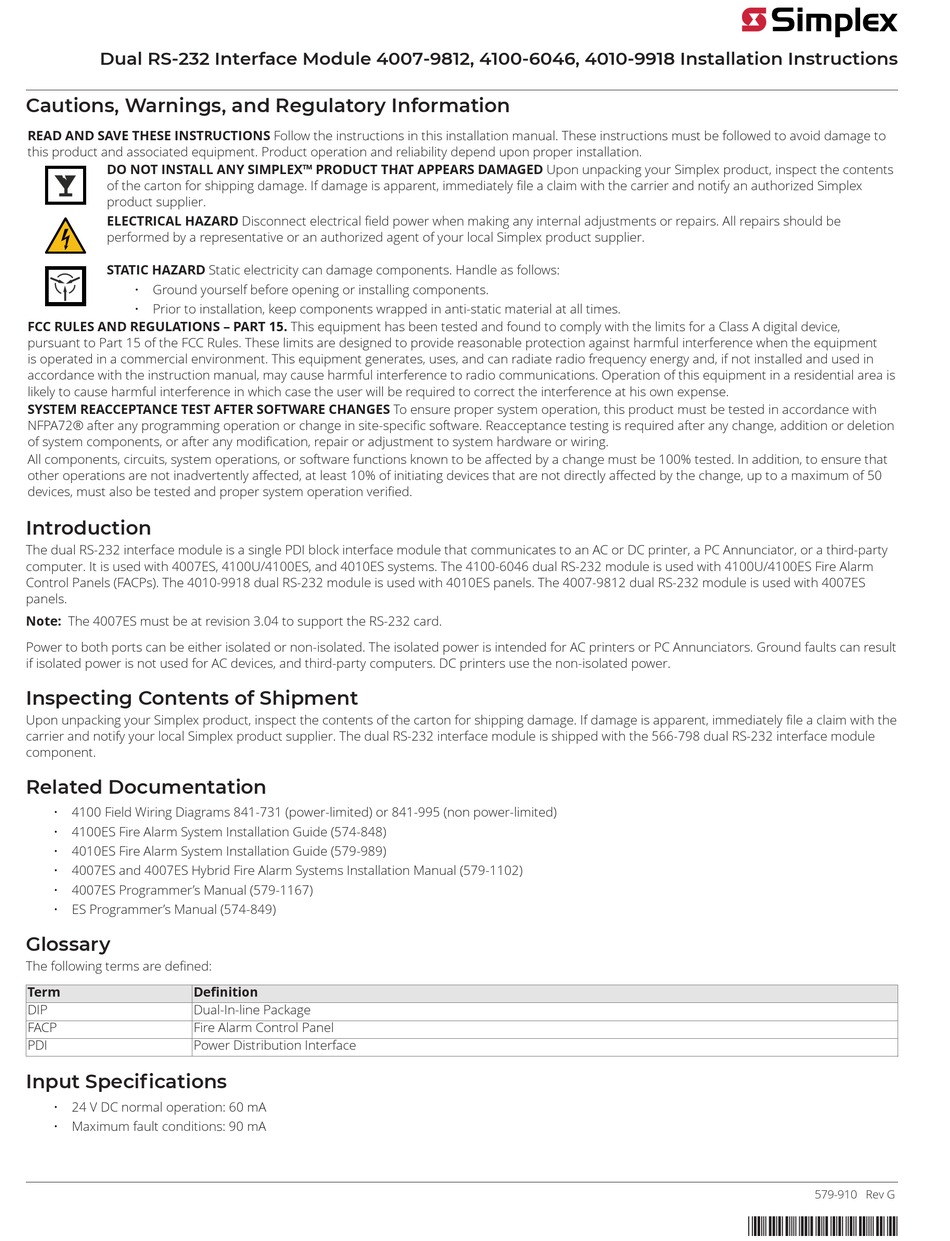

Dual RS-232 Interface Module 4007-9812, 4100-6046, 4010-9918 Installation Instructions
Cautions, Warnings, and Regulatory Information
READ AND SAVE THESE INSTRUCTIONS Follow the instructions in this installation manual. These instructions must be followed to avoid damage to
this product and associated equipment. Product operation and reliability depend upon proper installation.
DO NOT INSTALL ANY SIMPLEX™ PRODUCT THAT APPEARS DAMAGED Upon unpacking your Simplex product, inspect the contents
of the carton for shipping damage. If damage is apparent, immediately file a claim with the carrier and notify an authorized Simplex
product supplier.
ELECTRICAL HAZARD Disconnect electrical field power when making any internal adjustments or repairs. All repairs should be
performed by a representative or an authorized agent of your local Simplex product supplier.
STATIC HAZARD Static electricity can damage components. Handle as follows:
• Ground yourself before opening or installing components.
• Prior to installation, keep components wrapped in anti-static material at all times.
FCC RULES AND REGULATIONS – PART 15. This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
SYSTEM REACCEPTANCE TEST AFTER SOFTWARE CHANGES To ensure proper system operation, this product must be tested in accordance with
NFPA72® after any programming operation or change in site-specific software. Reacceptance testing is required after any change, addition or deletion
of system components, or after any modification, repair or adjustment to system hardware or wiring.
All components, circuits, system operations, or software functions known to be affected by a change must be 100% tested. In addition, to ensure that
other operations are not inadvertently affected, at least 10% of initiating devices that are not directly affected by the change, up to a maximum of 50
devices, must also be tested and proper system operation verified.
Introduction
The dual RS-232 interface module is a single PDI block interface module that communicates to an AC or DC printer, a PC Annunciator, or a third-party
computer. It is used with 4007ES, 4100U/4100ES, and 4010ES systems. The 4100-6046 dual RS-232 module is used with 4100U/4100ES Fire Alarm
Control Panels (FACPs). The 4010-9918 dual RS-232 module is used with 4010ES panels. The 4007-9812 dual RS-232 module is used with 4007ES
panels.
Note: The 4007ES must be at revision 3.04 to support the RS-232 card.
Power to both ports can be either isolated or non-isolated. The isolated power is intended for AC printers or PC Annunciators. Ground faults can result
if isolated power is not used for AC devices, and third-party computers. DC printers use the non-isolated power.
Inspecting Contents of Shipment
Upon unpacking your Simplex product, inspect the contents of the carton for shipping damage. If damage is apparent, immediately file a claim with the
carrier and notify your local Simplex product supplier. The dual RS-232 interface module is shipped with the 566-798 dual RS-232 interface module
component.
Related Documentation
• 4100 Field Wiring Diagrams 841-731 (power-limited) or 841-995 (non power-limited)
• 4100ES Fire Alarm System Installation Guide (574-848)
• 4010ES Fire Alarm System Installation Guide (579-989)
• 4007ES and 4007ES Hybrid Fire Alarm Systems Installation Manual (579-1102)
• 4007ES Programmer's Manual (579-1167)
• ES Programmer's Manual (574-849)
Glossary
The following terms are defined:
Term Definition
DIP Dual-In-line Package
FACP Fire Alarm Control Panel
PDI Power Distribution Interface
Input Specifications
• 24 V DC normal operation: 60 mA
• Maximum fault conditions: 90 mA
579-910 Rev G
*0579910G*
