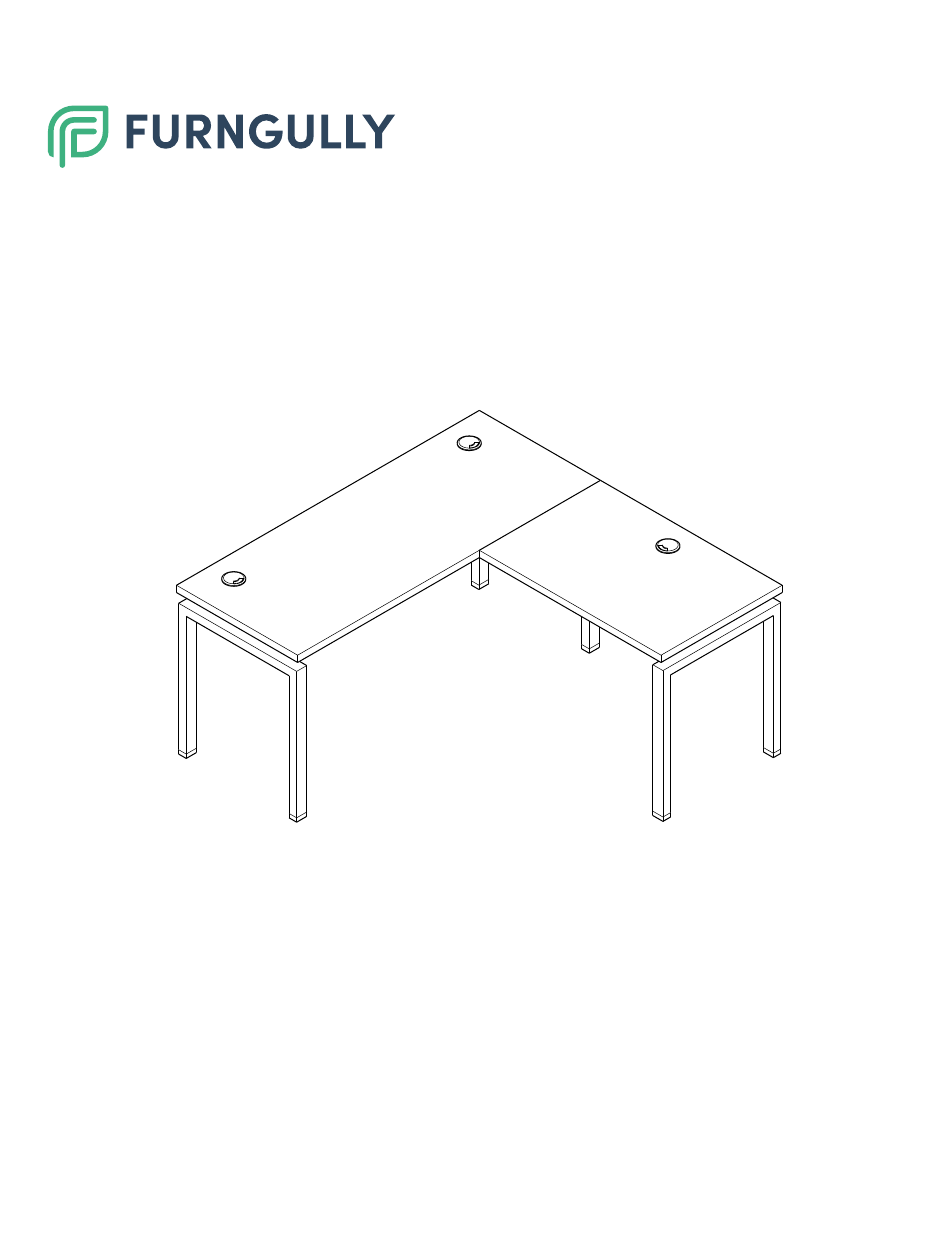

- Page 1 BL–5 GROVE L-SHAPE WORKSTATION Includes Add-ons A1 | A4 | A5 | A6 | A7 | A8 | A9 *General Guide | See Master Plan...
- Page 3 EDITION CODE – GROVE L-Shape ................1 BL–5-1 – GROVE L-Shape with 72" Surfaces........5 BL–5-2 – GROVE L-Shape with Steel Storage ........9 BL–5-1 Add-Ons – GROVE Cable Tray (Surface Mounted) ........12 – Modesty Panel ................. 15 – Lamintate Inset End Panels ............17 –...
-
Page 4: Parts List
GROVE L-SHAPE BL–5-1 PARTS LIST PRODUCT CODE BL30/BL24 BL24 BLPB# Main Surface Return Surface BASB72 (*will be added if surface is 72" of larger) BFB1... - Page 5 1 | JOIN END LEGS WITH BEAM Insert the beam tabs into the leg brackets. Guide the beam tabs into the bracket holes,there should be no gap between the beam and legs. Using a rubber mallet, hammer the beam to lock in place. 2 | BOLT DOWN BEAM-TO-LEG LOCK PLATE Note: The beam lock plates will not fit if there is a gap between the beam and the leg.
- Page 6 3 | MEASURE AND ADJUST BEAM WIDTH Measure from end leg to end leg until you find the approximate width of the work surface. Insert the screws through the overlapping beam slots and into the black plastic piece. Slightly tighten the screw, DO NOT fully tighten.
- Page 7 5 | SECURE HARDWARE AND ASSEMBLE RETURN Using 2 wood screws, secure the flat plates to the edge of the main surface with half of the plate extended over the edge of the surface. Using 4 wood screws, secure the support bar to the underside of the surface centered between the flat plates.
- Page 8 GROVE L-SHAPE BL–5-2 PARTS LIST PRODUCT CODE BL30/BL24 BL24 BLPB2 BB3 & BBC1 - Beam to Beam Connector Bracket BASB72 (*will be added if surface is 72" of larger) BFB1 Main Surface Return Surface REFER TO PAGES 1&2 TO COMPLETE STEPS 1-3 OF GROVE FRAME ASSEMBLY...
- Page 9 1 | JOIN THIRD END LEGS WITH BEAM Guide the beam tabs into the bracket holes, there should be no gap between the beam and legs. Using a rubber mallet, hammer the beam to lock in place. 2 | ATTACH BB3 BEAM TO CONNECTOR BRACKET Slide connector bracket over the side of the Grove beam of the fully assembled workstation.
- Page 10 3 | MEASURE WIDTH AND LOCK INTO POSITION Measure from end leg to end leg until you fine the approximate width of the worksurface. To find the optimal placement for locking, insert the screw through the overlapping beam slots and into the black plastic piece.
- Page 11 5 | SECURE SECOND SURFACE Position the surface on the desk frame. Align the outer sides of the surface flush and parallel with the outer sides of the end legs. Adjust beam positions if sides are not flush. Fasten the surface to the desk frame with wood screws through the leg brackets into the underside of the surface.
- Page 12 GROVE L-SHAPE BL–5-3 PARTS LIST PRODUCT CODE BL30/BL24 BLPB2 BASB72 (*will be added if surface is 72" of larger) BFB1 Main Surface Return Surface Steel Lateral Storage REFER TO PAGES 1&2 TO COMPLETE STEPS 1-3 OF GROVE FRAME ASSEMBLY...
- Page 13 1 | PLACE STORAGE PIECE AND DESK IN POSITION 2 | SECURE FLAT BRACKETS Secure the flat plates to the underside of the main surface using 2 woodscrews, half of the bracket should extent over the edge. Align the return surface and secure the flat plates using wood screws.
- Page 14 3 | SECURE ANTI-SAG BARS AND FINAL SCREWS Secure the support bar to the edge of the main surface. Insert wood screws through the support bar and into the underside of the surface. Tighten the screw on the main profile beam.
- Page 15 CABLE TRAY BL–5 | A1 PARTS LIST PRODUCT CODE BCTSM (set of 2) BTEC or BNTEC (set of 2) *if applicable GROVE POWER IF WORKSTATIONS HAVE POWER, REFER TO BL-8 GUIDE...
- Page 16 1 | ATTACH TRAY HANGERS AND END CAPS* Align slots on the cable tray and secure with two bolts from the bottom. These hangers will mount to a the workstation. Insert Beam Grommet Covers. *NOTE: End Caps (BTEC) are optional, follow the same install process with or without end caps.
- Page 17 3 | SURFACE MOUNT CABLE TRAY Align cable tray flush to the edge of the surface (on 24" or 30" surfaces). Insert wood screws through the hangers and into the underside of the surface. Tighten beam lock. NOTE: Position may be affected if modesty panel is being installed. Align Flush GROVE POWER IF WORKSTATIONS HAVE POWER, REFER TO...
- Page 18 MODESTY PANEL BL–5 | A4 PARTS LIST PRODUCT CODE Bracket (one set) BMP##/GLMP## * Process is the same for steel and laminate...
- Page 19 1 | SECURE BRACKET TO MODESTY PANEL Using 4 machine screws, secure brackets to the back of the steel modesty panel. Using 4 wood screws, secure brackets to the back of the laminate modesty panel. NOTE: Holes are not pre-drilled on laminate panels. 2 | ATTACH MODESTY PANEL TO WORKSTATION Center the panel in reference to the width of the surface and screw modestly panel directly to the bottom of your surface with wood...
-
Page 20: End Panels
END PANELS BL–5 | A5 PARTS LIST PRODUCT CODE LEPBL1 GBEP## * Quantities are for one panel... - Page 21 1 | SECURE BRACKET TO END LEGS Attach two brackets to each Grove end leg using the self-tapping screws. 1. Inset – The back of the bracket will align flush with edge of the leg. ” 2. Flush – The back of the bracket will be from the edge back edge of the leg.
- Page 22 END PANELS BL–5 | A6 & A7 PARTS LIST PRODUCT CODE LEPBL1 GBEPLH## or GBEPSS## * Quantities are for one panel...
- Page 23 1 | SECURE BRACKET FOR OUTER PANELS TO END LEGS Attach 4 brackets to each Grove end leg using the self-tapping screws. The front of the bracket will align flush with outside edge of the leg. Align Flush 2 | ATTACH END PANEL Slide end panels into place and adjust until flush with bracket.
- Page 24 END PANELS BL–5 | A8 PARTS LIST PRODUCT CODE BEP##...
- Page 25 1 | SECURE PANELS TO END LEGS Slide the end panel into place and adjust until either flush with outside of leg or slightly recessed. Align Flush Slightly Recessed 2 | ATTACH END PANEL Use 4-6 self-tapping screws to secure panel to each leg.
- Page 26 TRANSACTION COUNTER BL–5 | A9 PARTS LIST PRODUCT CODE KIT-GTC1259 Includes: 1 Frosted lass Transaction Counter, 1 Threaded Rod, 3 Stainless Steel Tubes, 3 C-Cover, 3 C-Bases...
- Page 27 1 | THREAD ROD INTO GLASS Place glass facing upward and thread the rod into the pre-installed glass fittings. NOTE: Repeat for all three rods. 2 | SLIDE STAINLESS STEEL TUBE OVER ROD Lower the tube over the threaded rod and position the to rest flush over the glass fitting.
- Page 28 3 | SLIDE BASE COVER OVER TUBE Lower the base cover over the tube and let it rest on top of the glass fitting. NOTE: Repeat for all three base covers. 4 | SLIDE BASE INTO TUBE AND TIGHTEN Place the base fitting into the end of the tube, make sure it is flush. Thread the nut onto the exposed threaded rod and tighten.
- Page 29 5 | MARK PLACEMENT OF COUNTER Align counter to center of surface and mark approximate area for mounts using 3 strips of tape. Use a measuring tape to mark 5" from the surface edge on each piece of tape.
- Page 30 6 | PLACE STAND ON TAPE MARKS AND ALIGN Align the front edges of the stand bases with the marks on the tape. Insert 1 wood screw through the center stand and remove tape. Reposition the two outer stands to their aligned marks (if needed).
