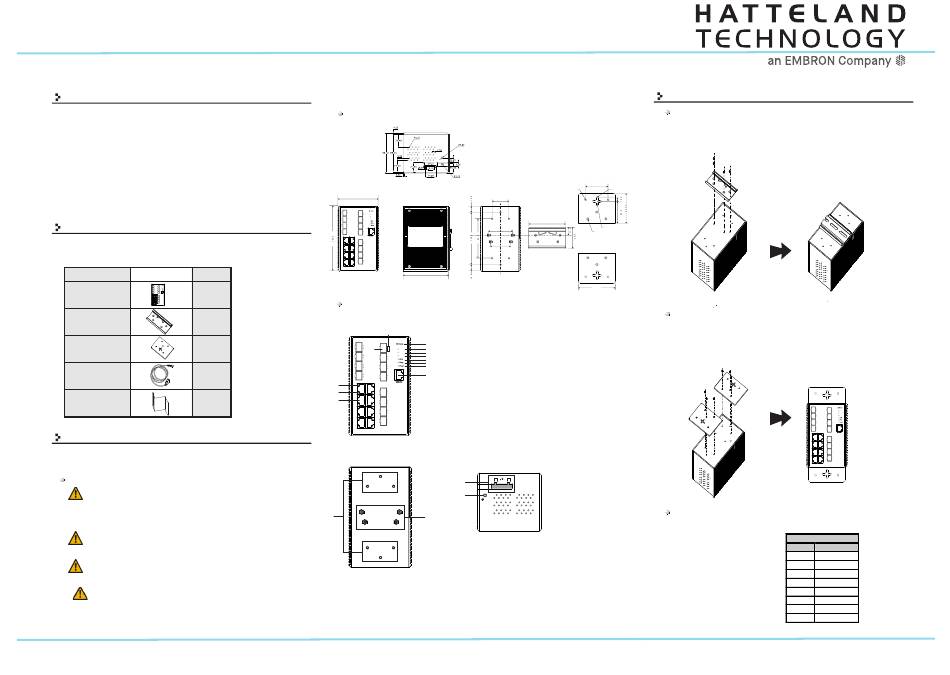

EMBRON HATTELAND HN G9812 Quick Install Manual

HN G9812
20-Port managed Gigabit
Q I G
uick nstall

Introduction

T h i s s w i t c h i s m a n a g e d r e d u n d a n t r i n g E t h e r n e t s w i t c h w i t h
8x10/100/1000Base-T(X) ports and 12x100/1000Base-X SFP ports. With
completely support of Ethernet Redundancy protocol, World's fastest
Ethernet Redundant Ring (recovery time < 30ms) and MSTP (RSTP/STP
compatible) can protect your mission-critical applications from network
interruptions or temporary malfunctions with its fast recovery technology.
And support wide operating temperature from -40 C to 75 C. The switch
can also be managed centralized and convenient by Open-Vision, Except
the Web-based interface, Telnet and console (CLI) configuration.
Therefore, the switch is one of the most reliable choice for highly-managed
and Fiber Ethernet application.

Package Contents

The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative for
assistance.
Contents Pictures
G12 G20 PWR
PWR2 PWR1
G11 G19
HN G9812
G10 G18
G9 G17
100/1000X
100/1000X
G8 G7
G16
G6 G5
G15
G4 G3 G14
G2 G1 G13
10/100/1000T
DIN-rail Kit
Wall-mount Kit
Console Cable
QIG

Preparation

Before you begin installing the switch, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Installation of the equipment in a rack should be such
that the amount of air flow required for safe operation of the equipment is
not compromised.
Mechanical Loading: Mounting of the equipment in the rack should be
such that a hazardous condition is not achieved due to uneven mechanical
loading.
Circuit Overloading: Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits
might have on overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing
this concern.
Rev. 1 - 14 Feb 2020
uide

Dimension

o o
96.4
G12
G20 PWR
PWR1
G11 PWR2
G19
G10 G18
G9 G17
100/1000X
100/1000X
G8 G7
G16
G6 G5
G15
G4 G3 G14
G13
G2 G1
10/100/1000T
Number
X 1

Panel Layouts

Front View
X 1
X 2
G12
11
G11
G10
X 1
G9
100/1000X
8 100/1000X
G8 G7
9
10
G6 G5
X 1
G4 G3
G2 G1
10/100/1000T
Rear View
1 1
1. Wall-mount screw holes
2. Din-rail screw holes
Hatteland Technology AS | www.hattelandtechnology.com | Enterprise no: NO974533146
Unit =mm (Tolerance ±0.5mm)
40.0
88.0
58.0
48.0
108.5
12
13 1. Power LED
G20 1
PWR
2. PWR1 LED
PWR1 2
3
PWR2
3. PWR2 LED
G19
4
5
4. R.M. status LED
6
G18
5. Ring status LED
7
G17 6. Faulty relay indicator
7. Console port
8. Link/action LED for Gigabit Ethernet ports
G16
9. Speed LED for Gigabit Ethernet ports
G15
10. Gigabit Ethernet ports
11. SFP port
G14
12. Link/Act LED for SFP port
G13
13. Reset button
Top Panel
PWR-2 Fault PWR-1
1 1A@24V
V2- V2+ V1- V1+ DC 48V
2
2
1. Terminal blocks: PWR1, PWR2
(12-48V DC), Relay
2. Ground wire.

Installation

DIN-rail Installation

Step 1: Slant the switch and screw the Din-rail kit onto the back of the switch, right in
the middle of the back panel.
Step 2: Slide the switch onto a DIN-rail from the Din-rail kit and make sure the switch
clicks into the rail firmly.
49.67
Ø4.00 Ø5.00
Ø8.00
Ø4.00
87.9

Wall-mounting

Step 1: Screw the two pieces of wall-mount kits onto both ends of the rear panel of the
switch. A total of six screws are required, as shown below.
Step 2: Use the switch, with wall mount plates attached, as a guide to mark the
correct locations of the four screws.
Step 3: Insert a screw head through the large parts of the keyhole-shaped apertures,
and then slide the switch downwards. Tighten the screws for added stability.

Network Connection

The IGS-9812GP has standard
Ethernet ports. According to the
link type, the switch uses CAT 3, 4,
5,5e UTP cables to connect to any
o t h e r n e t w o r k d e v i c e s ( P C s ,
s e r v e r s , s w i t c h e s , r o u t e r s , o r
hubs). Please refer to the following
table for cable specifications.
G12
G20 PWR
PWR1
G11 PWR2
G19
G10
G18
G9
G17
100/1000X
100/1000X
G8 G7
G16
G6 G5
G15
G4 G3 G14
G13
G2 G1
10/100/1000T
Cable Types and Specifications:
10/100 Base-T(X) RJ-45 Port
Pin Number Assignments
1 TD+
2 TD-
3 RD+
4 Not used
5 Not used
6 RD-
7 Not used
8 Not used
INB101592-1
