Installation Procedures
IND100148-7 - Rev 08 - 21 Feb 2020 - Created by: 363
Mounting Bracket, Table / Desktop / Ceiling - 12",15",17",19"
Typenumber
Illustration
HD TMB-SX1-A1
HD TMB-SX1-B1
Installation
IND100078-34
Fits unit model
HD 12T21 MMD-xxx-Fxxx
HD 12T21 STD-xxx-Fxxx
HD 12T21 MMC-xxx-xxxx
HD 15T21 MMD-xxx-Fxxx
HD 15T21 STD-xxx-Fxxx
HD 15T21 MMC-xxx-xxxx
HD 17T21 MMD-xxx-Fxxx
HD 17T21 STD-xxx-Fxxx
HD 17T21 MxC-xxx-xxxx
HD 19T21 MMD-xxx-Fxxx
HD 19T21 STD-xxx-Fxxx
HD 19T21 MxC-xxx-xxxx
Hatteland Technology AS | www.hattelandtechnology.com | Enterprise no: NO974533146

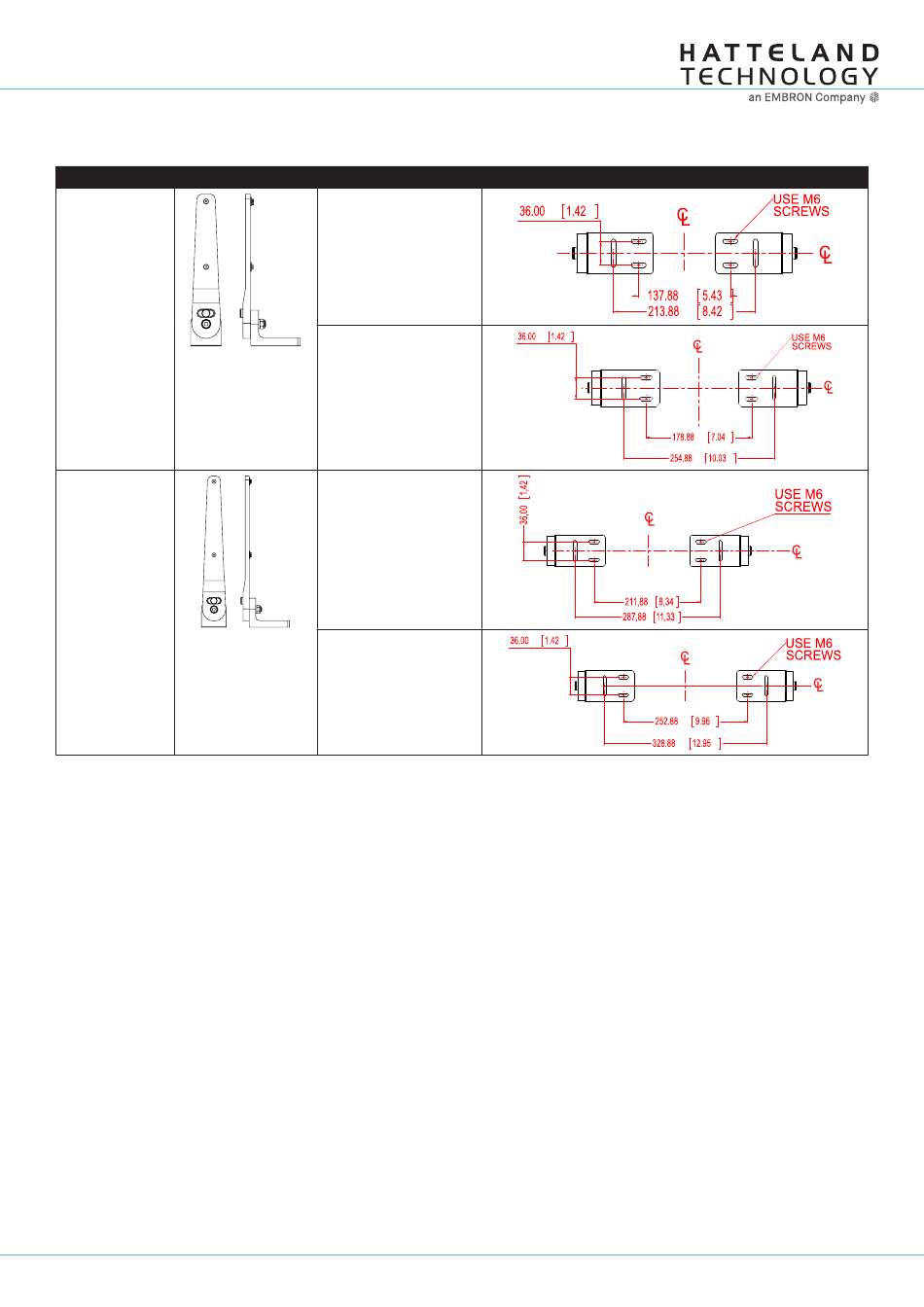

"Footprint" indicates holes to drill at installation location.
28
Page 1 of 5
Advertisement
Summary of Contents for EMBRON HATTELAND TECHNOLOGY HD TMB-SX1-A1
- Page 1 Installation Procedures IND100148-7 - Rev 08 - 21 Feb 2020 - Created by: 363 Mounting Bracket, Table / Desktop / Ceiling - 12”,15”,17”,19” Typenumber Illustration Fits unit model “Footprint” indicates holes to drill at installation location. HD TMB-SX1-A1 HD 12T21 MMD-xxx-Fxxx HD 12T21 STD-xxx-Fxxx HD 12T21 MMC-xxx-xxxx HD 15T21 MMD-xxx-Fxxx...
-
Page 2: Important To Know About Left And Right Brackets
Installation Procedures IND100148-7 - Rev 08 - 21 Feb 2020 - Created by: 363 Important to know about LEFT and RIGHT brackets Throughout the following installation procedure, it is important to understand the difference between LEFT and RIGHT brackets. The Display and Panel Computer chassis are not 100% square boxed, but are slightly designed with a minor narrow angled chassis towards the rear (FIG1) to allow easier “drop-in”... -
Page 3: Installation Procedure - Tmb Versions
Installation Procedures IND100148-7 - Rev 08 - 21 Feb 2020 - Created by: 363 Installation Procedure - TMB Versions Procedure suitable for: Display (MMD/STD) and Panel Computer (MMC) Series X Generation (G1) product ranges. 19 inch model used as example in this procedure. You need: - M4 Unbrako®... - Page 4 Installation Procedures IND100148-7 - Rev 08 - 21 Feb 2020 - Created by: 363 ▼ 4: Inspect the inner side of both brackets and especially the ▼ 5: Notice the indication of LEFT and RIGHT. The orientation of the Key Hole Plug (4 pcs). They should be shaped mounting bracket (2 pcs) is marked with respective as an standing “egg”...
- Page 5 Installation Procedures IND100148-7 - Rev 08 - 21 Feb 2020 - Created by: 363 ▼ 8: You may now mount the unit onto your desired location. It is advised that you unlock the Lock Pin (as shown in step 5), tilt the unit 90 degrees backwards (FIG1) and properly fasten the bracket base into location (FIG2).
