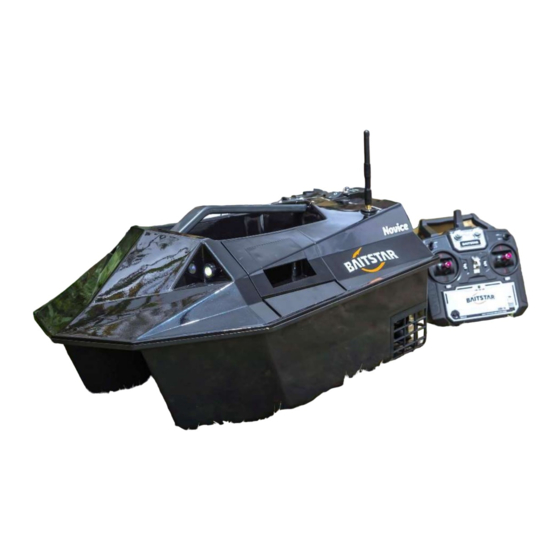

BaitStar Novice baitboat
Product Operation Instruction

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Novice baitboat and is the answer not in the manual?

Questions and answers

Related Manuals for Baitstar Novice baitboat

Summary of Contents for Baitstar Novice baitboat

  • Page 1 BaitStar Novice baitboat Product Operation Instruction...
  • Page 2 9. NEVER store your boat with empty batteries for a long time! 10. Download the manual from our website (www.baitstar.nl) or request it via whatsapp. 11. Do not hesitate to contact us with questions and / or comments and for tips / tricks via WhatsApp or Telephone (+31 6 51979997) 12.

  • Page 3: User Instruction

    User Instruction: Dear users: Thank you for your purchase of our products. Before you use this product, please make sure to read this instruction carefully and operate and maintain the bait boat according to the instruction. If you have any question on the instruction, please contact our after-sale service personnel by telephone or whatsapp.

  • Page 4: Product Introduction

    Reserved fish finder and GPS navigation installation port Charging voltage of AC220 for boat charger II. Packing list 1. BaitStar intelligent remote control bait boat 1 set 2. Anti-interference 2.4G or 5.8G wireless remote controller 1 set 3. Lithium battery pack for boat (lead acid battery pack) 1 pair 4.

  • Page 5: Precautions For Use

    6. Boat bag 1 piece 7. Hanging rope of remote controller: 1 piece 8. Remote controller battery: 1 set 9. External charging bypass flow line: 1 piece 10. Small accessory bag: 1 piece 11. Product instruction: 1 piece 12. Foam pack: 1 set 13.
  • Page 6 4. Do not make the motor idle. If the motor shaft gets away from the water level, it cannot be cooled by water. The heat due to friction with the water seal will make it quickly age and degrade the waterproof performance. 5.
  • Page 7 if they are not used for a long time, they shall be charged fully for storage. If they are not used for a long time, the batteries shall be taken out and be placed in a dry and ventilated place. And the batteries shall be charged again every 2- 3 months.
  • Page 8 This product has been granted with the state utility model and appearance patent, and its brand trademark has been registered. Do not infringe our trademark. Once any infringement is discovered, we will investigate related legal responsibilities.

  • Page 9: Operation Guidance

    IV. Operation guidance 1. Boat installation and operation instruction The boat functions are described as follows: White front light Dismountable middle hopper Boat handle division plate Bait hopper Battery compartment cover Charging port Reserved antenna port of fish finder Boat antenna Power alarm indicator Power outlet of tail compartment...
  • Page 10 the rockers of the remote controllers to the origin and turn on the remote controller switch. The power indicator of the remote controller will be on. （5） Close the left and right bottom compartment plate of the middle compartment and feed the bait. When the middle compartment door is remotely opened, the warning indicator will flicker.
  • Page 11 （1） Control opening of the bait hopper and hook device by using the left rocker of the remote controller. Dial left to open the left bait hopper of the middle compartment, dial right to open the right bait hopper of the middle compartment, dial up to open the right tail hopper, and dial down to open the hook device.
  • Page 12 3. Introduction to the GPS automatic driving function 3-1 Operation notices of GPS automatic driving function （1）About 5-10 min after startup, the satellite signals will be stable. When 10 satellites are available, the automatic driving function can be enabled. When more than 15 satellites are available and the boat is located in an open area without any obstacle, the positioning precision can reach about 1m.
  • Page 13 origin. The right rocker shall be located on the middle position in automatic return. Otherwise, it will interfere with normal return. Four lamps will continuously flicker in automatic return. （5）When the power of the remote controller is consumed up or the remote control function fails, please turn off the power of the remote controller.
  • Page 14 and the boat will switch to the manual operation mode. （9）To ensure that the boat keeps within the valid coverage during sailing the longest distance of the GPS automatic driving is 300m. The automatic return is not restricted in case of an emergency. （10）If the automatic driving cannot keep the correct direction in the stormy weather, please switch to the manual navigation mode.
  • Page 15 3-2 Operation introduction to GPS automatic driving 3-2-1 Operation instruction for remote controller of GPS automatic driving is as follows Right motor speed adjustment Left motor speed adjustment Bait thrower switch (low Lamp switch speed/high speed) Front Turn left Turn right Tail compartment Left Turn...
  • Page 16 Startup homepage: The startup homepage includes the satellite quantity, （1） power of remote controller and boat power percentage. The sailing direction will be displayed in real time at the left up corner and the signal strength of the remote control will be displayed at the right up corner. Electronic compass correction for startup: To ensure correct orientation （2）...

  • Page 17: Warranty Notes

    （5） View the real-time distance of the boat from the origin. This function is operated as follows: Homepage (up key) → Display of information such as distance from the origin 3. Battery charging （1）Charge the boat battery pack by using the charger The original 12.6V/5A charger shall be used to charge the boat battery pack.

  • Page 18: Common Questions And Troubleshooting

    5. We will provide free after-sale service during the warranty period. The following cases are beyond the scope of free warranty. （1） The specified valid warranty period is expired. （2） No sales voucher and warranty voucher is available except that this product is proved to be within the valid warranty period.
  • Page 19 place or the antenna is damaged. Troubleshooting method: Check the power of the remote controller, replace the batteries, hold the antenna of the remote controller high to the sky, move the remote controller to the boat, and check and replace the antenna. 4.
  • Page 20 preferences. 1. GPS automatic driving function 2. Raymarine DragonFly 5Pro 3. Color screen fish finder (TF500/SonarTab) 4. Bait thrower (throw baits by areas and adjust the throwing range) Bait thrower GPS automatic driving Fish finder Fish finder TF300 TF500/630/640 For installation of above configurations, please contact with the customer service personnel.
  • Page 21 Address: Tel: 1. Product information Name: BaitStar bait boat Model: Novice Configuration: lithium batteries ( ) GPS automatic driving ( )+ SonarTab ( )+ TF500( ) + Raymarine DragonFly ( ) Single tail hanging ( )+ double tail hanging+ bait thrower ( )

  • Page 22: Contact Information

    IX. Contact information Company name: BaitStar baitboats Service hotline: +31 (0) 6 51979997 Whatsapp: +31 (0) 6 51979997 Company website: http://www.baitstar-baitboats.com...
