Baitstar Xpert Operation Instruction Manual

Bait boat
Hide thumbs

Advertisement

Quick Links

Download this manual
BaitStar Xpert
GPS Operation Instruction

Advertisement

loading
Need help?

Need help?

Do you have a question about the Xpert and is the answer not in the manual?

Questions and answers

Related Manuals for Baitstar Xpert

Summary of Contents for Baitstar Xpert

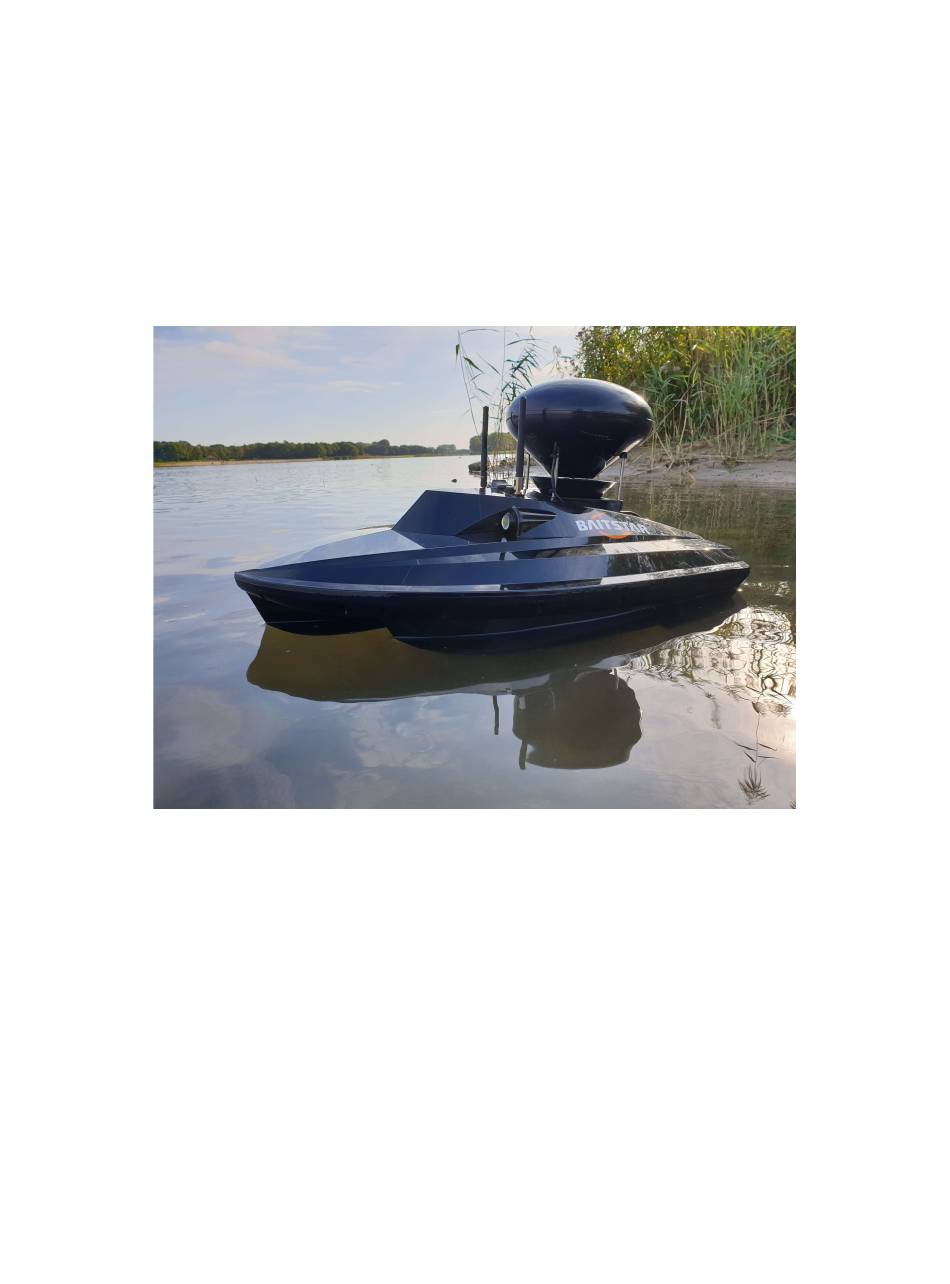

  • Page 1 BaitStar Xpert GPS Operation Instruction...
  • Page 2 !Gouden voerboot regels! 1. Een voerboot is een hyper modern apparaat voorzien van zeer geavanceerde, gevoelige electronica en onderdelen dus behandel hem ten allen tijden met de grootst mogelijke zorg en voorzichtigheid! 2. Vaar nooit achteruit met je boot wanneer er een rig in ligt, hierdoor heb je kans dat de lijn achter de boot in de propeller komt met alle gevolgen van dien.

  • Page 3: User Instruction

    User Instruction: I. Product introduction 1. Product introduction Parameters of the BaitStar Xpert Intelligent Bait Boat: Product model: BaitStar Xpert Dimension: 65cm (L) * 37cm (W) * 25cm (D) Net weight: 4.5kg Boat parameters Maximal loading: 3kg Bait hopper dimension: 24cm (L) * 15cm (W) * 13cm (D) Boat material: high-quality ABS engineering plastics 5.8GHz anti-interference remote controller...
  • Page 4 1. Introduction to the GPS automatic driving function 1-1 Operation notices of GPS automatic driving function （1）About 5-10 min after startup, the satellite signals will be stable. When 10 satellites are available, the automatic driving function can be enabled. When more than 15 satellites are available and the boat is located in an open area without any obstacle, the positioning precision can reach about 1m.
  • Page 5 （ 4 ） When the boat cannot receive the signals from the remote controller or the boat power reduces to the minimum warning value, the boat will automatically enable the returning function and return to the origin. The right stick shall be located on the middle position in automatic return.
  • Page 6 （8） Before the GPS automatic driving function is enabled, please make the right stick located on the middle position. Manual operation is always dominant in automatic driving. When you operate the right stick or press “Exit” key during this period, the automatic driving program will terminate and the boat will switch to the manual operation mode.
  • Page 7 3-2 Operation introduction to GPS automatic driving 3-2-1 Operation instruction for remote controller of GPS automatic driving is as follows Right motor speed adjustment Left motor speed adjustment Bait thrower switch (low Lamp switch speed/high speed) Front Turn left Tail right hopper Turn right Left Turn...
  • Page 8 3-2-2 Operation menu of GPS function is as follows Startup homepage: The startup homepage includes the satellite quantity, （1） power of remote controller and boat power percentage. The sailing direction will be displayed in real time at the left up corner and the signal strength of the remote control will be displayed at the right up corner.
  • Page 9 （3） Set the origin: After the boat arrives at the fishing field, first set the origin as follows: Homepage (down key) → origin homepage (hold Ok key) → prompt to select “OK” →Save successfully (set the origin successfully) Position point saving function and manual and automatic function: （4）...
  • Page 10 2. Battery charging （1）Charge the boat battery pack by using the charger The original 12.6V/5A charger shall be used to charge the boat battery pack. Keep the boat power off in charging. The charger indicator is red in charging. After the battery pack is fully charged, the charger indicator becomes green.

  • Page 11: Common Questions And Troubleshooting

    3. Common questions and troubleshooting 1. The boat does not work after the power is turned on. Reasons: (1) The battery power line is not connected or the battery power is too low; (2) Check the main control board Troubleshooting method: Check power line connection of the left and right batteries, charge the batteries, and contact with after- sale personnel for replacement of the main control board.
  • Page 12 Troubleshooting method: Check the line, replace the electromagnet and main control board, and adjust the tail hopper load or reduce the pull of the fish line. 5. The boat is out of control in the water and the lamps and other functions work normally.
