FLIP FORWARD BACK CANE KIT INSTALLATION INSTRUCTIONS
KITASMB1673—Flip Forward Back Cane Assembly, TRU-Balance Tilt w/ Locking Hardware
Kit Contents:
REF#
QTY
PART #
A1
2
DWR1360B094
A2
2
SCRHHCS1241
A3
1
FRMASMB12385 BACK CANE,ASSY,FLIP FORWARD,SYNERGY SEAT/TILT,LEFT,TEXTURED,D-1360-104
A4
1
FRMASMB12386 BACK CANE,ASSY,FLIP FORWARD,SYNERGY SEAT/TILT,RIGHT,TEXTURED,D-1360-106
A5
2
SCRHHCS1585
A6
2
NUTNYLK1026
If you require any assistance with these instructions,
please call Pride Technical Service at 1-877-800-1248.
Canada providers, phone 1-888-570-1113.
Tools needed:
• Standard hex key set
Installation Instructions:
1. Remove the seatback and the accompanying
securement hardware (hex head screws, button head
screws, nuts, back cane brackets, coped washers, and
T-nuts). Discard the nuts, back cane brackets, and the
hex head screws. Retain all other hardware and
the seatback for future use. See figure 2.
A5
A3
A2
A1

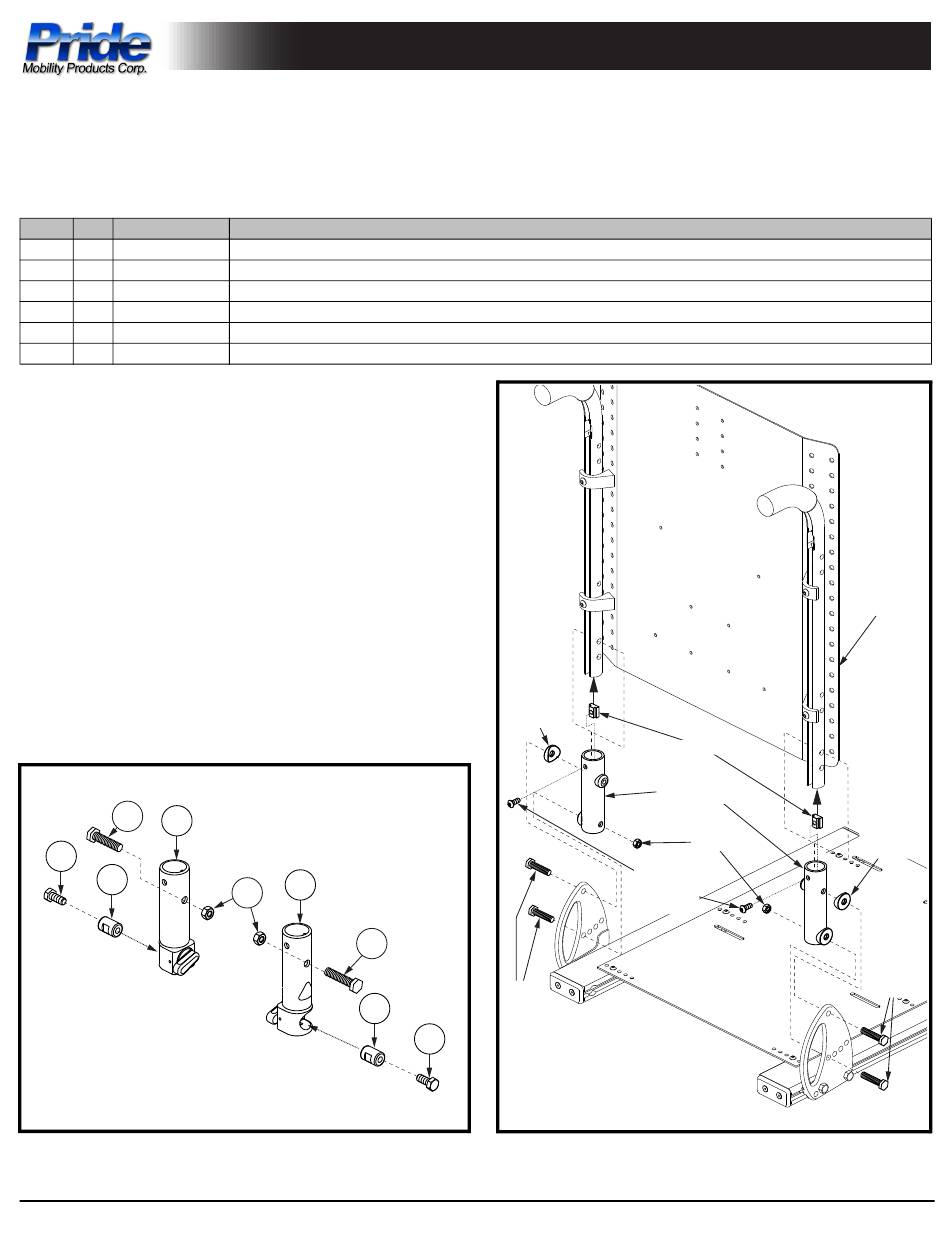

Figure 1. Flip Forward Back Cane Kit Breakdown
www.prideservice.com
T
ECHNICAL
LOCKING BARREL,BLACK,STEEL,0.625"OD X 0.90"L,5/16-18 THREAD,B-1360-094
SCREW,HHCS,BLACK ZINC,5/16-18 X 0.75",GRADE 8,W/NYLON PATCH,A-1360-014
SCREW,HHCS,BLACK ZINC,5/16-18 X 2.00",GRADE 8,SAE J429,W/NYLON PATCH,B-1005-214
NUT,NYLOCK,BLACK ZINC,5/16-18
A4
A6
A5
A1
I
NSTRUCTIONS
DESCRIPTION
COPED
WASHER
HEX
HEAD
SCREWS
A2
Figure 2. Seatback Removal
www.pridemobility.com
1 of 3
T-NUTS
BACK CANE
BRACKETS
NUTS
BUTTON
HEAD
SCREWS
INFINFB2295/Rev. A/May 2009
SEATBACK
COPED
WASHER
HEX
HEAD
SCREWS
Advertisement
Table of Contents
Related Manuals for Pride Mobility KITASMB1673
Summary of Contents for Pride Mobility KITASMB1673
- Page 1 ECHNICAL NSTRUCTIONS FLIP FORWARD BACK CANE KIT INSTALLATION INSTRUCTIONS KITASMB1673—Flip Forward Back Cane Assembly, TRU-Balance Tilt w/ Locking Hardware Kit Contents: REF# PART # DESCRIPTION DWR1360B094 LOCKING BARREL,BLACK,STEEL,0.625"OD X 0.90"L,5/16-18 THREAD,B-1360-094 SCRHHCS1241 SCREW,HHCS,BLACK ZINC,5/16-18 X 0.75",GRADE 8,W/NYLON PATCH,A-1360-014 FRMASMB12385 BACK CANE,ASSY,FLIP FORWARD,SYNERGY SEAT/TILT,LEFT,TEXTURED,D-1360-104...
- Page 2 ECHNICAL NSTRUCTIONS 2. Attach the locking barrels (A1) to the seat hinges using the supplied hardware (A2). See figure 3. 3. Attach the back cane assemblies (A3 and A4) to the locking barrels (A1) and the seatback using the supplied hardware (A5 and A6) and the retained coped washers, button head screws, and T-nuts.
- Page 3 ECHNICAL NSTRUCTIONS NOTE: To lower the seatback, turn the adjustment knobs counterclockwise (unlocked position), then gently push the seatback down. To raise the seatback, gently pull the seatback upwards and then turn the adjustment knobs clockwise (locked position). See figures 5 and 6. Figure 5.
