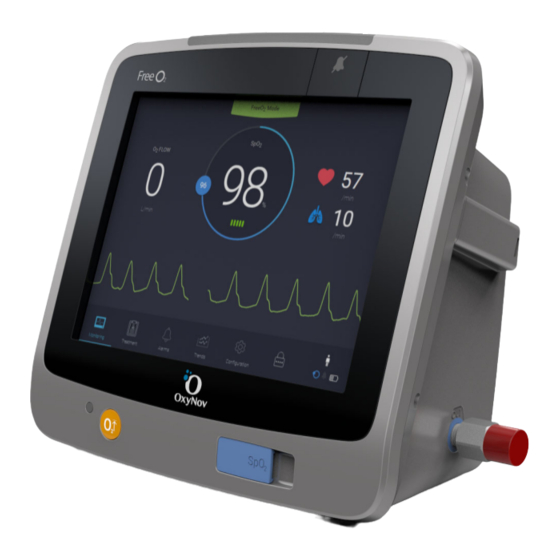

OxyNov FreeO2 Quick Start Manual

Quickstart Guide
1
2
3
4
5
DEVICE START-UP
Connect the FreeO on the power ouitlet
2
Connect the oxygen hose before starting
the FreeO
2
Press the switch in order to start
the FreeO
2
Connect the SpO sensor
2
Connect the patient interface
A B
D E
SETTINGS
Select New patient
A
1
To start a new treatment which will record their data
Be careful not to push «Continue» when dealing with a new patient.
B
C
Select the type of patient
2
Pediatric: maximum O
D
Adult: maximum O
3
E
Confirm your choice
4
Select the FreeO
5
Adjust the SpO
to the prescription
Possibility of limiting the
6
maximum O
C
Possibility to adjust the alarms.
By default, the O
7
triggers at 80% of initiated
maximum O
2
flow rate limited at 10L/min
2
flow rate limited at 20L/min
2
mode
2
target according
2
flow rate
2
flow rate alarm
2
flow rate
