- Page 1 HDMI SWITCH WITH AUDIO EXTRACTOR USER MANUAL V1.1 VHW201KC VHW401KC VHW801KC ...
- Page 2 Overview The VHW201KC/VHW401KC/VHW801KC is a high-performance HDMI switch equipment. It provides high-performance video up to Ultra HD/4K@60Hz resolution and extract HDMI IN audio into the 3.5mm phone jack(Analog R/L) and optical(digital). Features Support resolution up to 4Kx2K@60Hz (4:4:4). Support HDR.

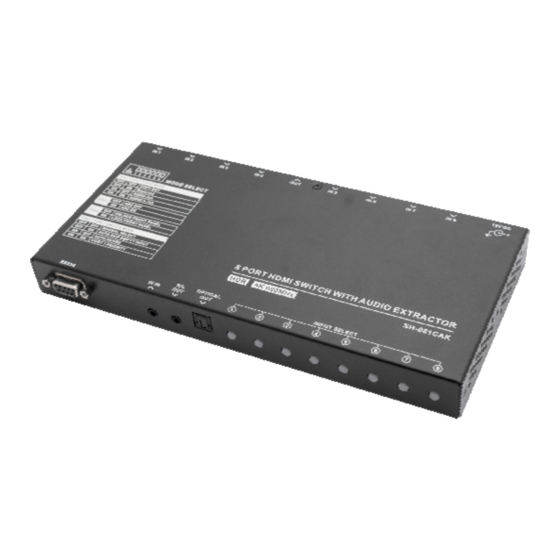

- Page 3 FRONT VIEW 1. RS-232 Port 2. IR IN 3. Analog audio (3.5mm Phone jack) OUT 4. Digital (Optical) OUT 5. Select Key + Display LED Green LED : HDIM IN Online Red LED : Select port REAR VIEW 1. DC 12V IN 2.
- Page 4 SIDE VIEW PIN1 PIN2 EDID MODE Description COPY OUT Video & Audio setting from HDMI out Reserved Video same as HDMI out, Audio set to PCM 2CH; AUDIO 2ch Suggestion from Analog audio out used Video same as HDMI out, Audio set to compressed AUDIO 5.1ch 5.1ch;...
- Page 5 Remote control KEY1~KEY8 : Specify the Channel for HDMI signal Input. KEY← → : Switch to the next or previous HDMI signal. POWER KEY : OFF HDMI OUT. Trademarks All the companies, brand names, and product names referred to this manual are the trademarks or registered trademarks belonging to their respective companies.
