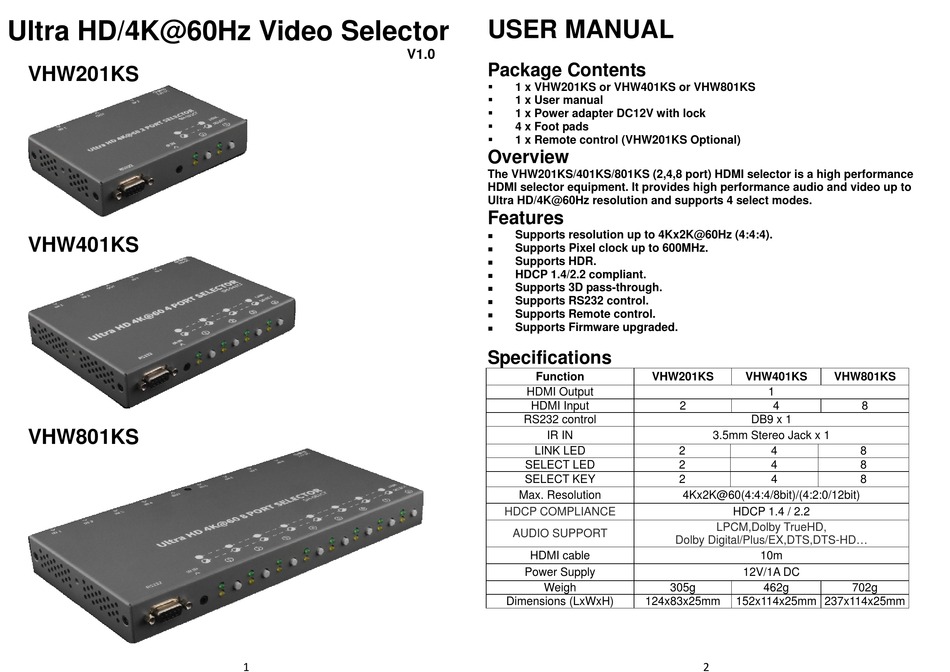

Sunbox VHW201KS User Manual

Ultra HD/4K@60Hz Video Selector
VHW201KS
VHW401KS
VHW801KS
V1.0
1
USER MANUAL

Package Contents


1 x VHW201KS or VHW401KS or VHW801KS

1 x User manual

1 x Power adapter DC12V with lock

4 x Foot pads

1 x Remote control (VHW201KS Optional)

Overview

The VHW201KS/401KS/801KS (2,4,8 port) HDMI selector is a high performance
HDMI selector equipment. It provides high performance audio and video up to
Ultra HD/4K@60Hz resolution and supports 4 select modes.

Features

Supports resolution up to 4Kx2K@60Hz (4:4:4).

Supports Pixel clock up to 600MHz.

Supports HDR.

HDCP 1.4/2.2 compliant.

Supports 3D pass-through.

Supports RS232 control.

Supports Remote control.

Supports Firmware upgraded.


Specifications

Function VHW201KS
HDMI Output
HDMI Input
RS232 control
IR IN
LINK LED
SELECT LED
SELECT KEY
Max. Resolution
HDCP COMPLIANCE
AUDIO SUPPORT
HDMI cable
Power Supply
Weigh
Dimensions (LxWxH) 124x83x25mm
VHW401KS VHW801KS
1
2 4
DB9 x 1
3.5mm Stereo Jack x 1
2 4
2 4
2 4
4Kx2K@60(4:4:4/8bit)/(4:2:0/12bit)
HDCP 1.4 / 2.2
LPCM,Dolby TrueHD,
Dolby Digital/Plus/EX,DTS,DTS-HD...
10m
12V/1A DC
305g 462g
152x114x25mm 237x114x25mm
2
8
8
8
8
702g
