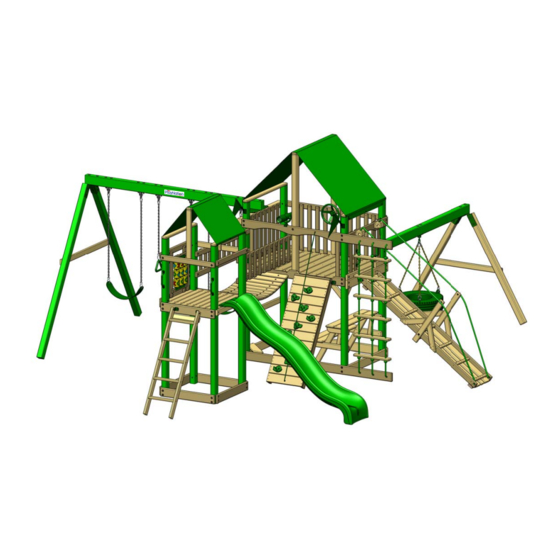

Cimmaron - Tarp Roof
Timber Shield Post Option
BOXES: CB, W-1, TSB, 120
*52-2032-T*
52-2032-T
Model: 1500DT
(BOXES: 1501, 1502, 1509N,
1509T, 1510, 1511, 1517, 1523,
Tire Swing Box & Slide Box
Copyright © 2016 PlayNation Play Systems, Inc.
All Rights Reserved
190 Etowah Industrial Court
Canton, GA 30114
www.playnation.com
Amber Post Option
BOXES: 1519, 1520-2bx,
1522, 1524
