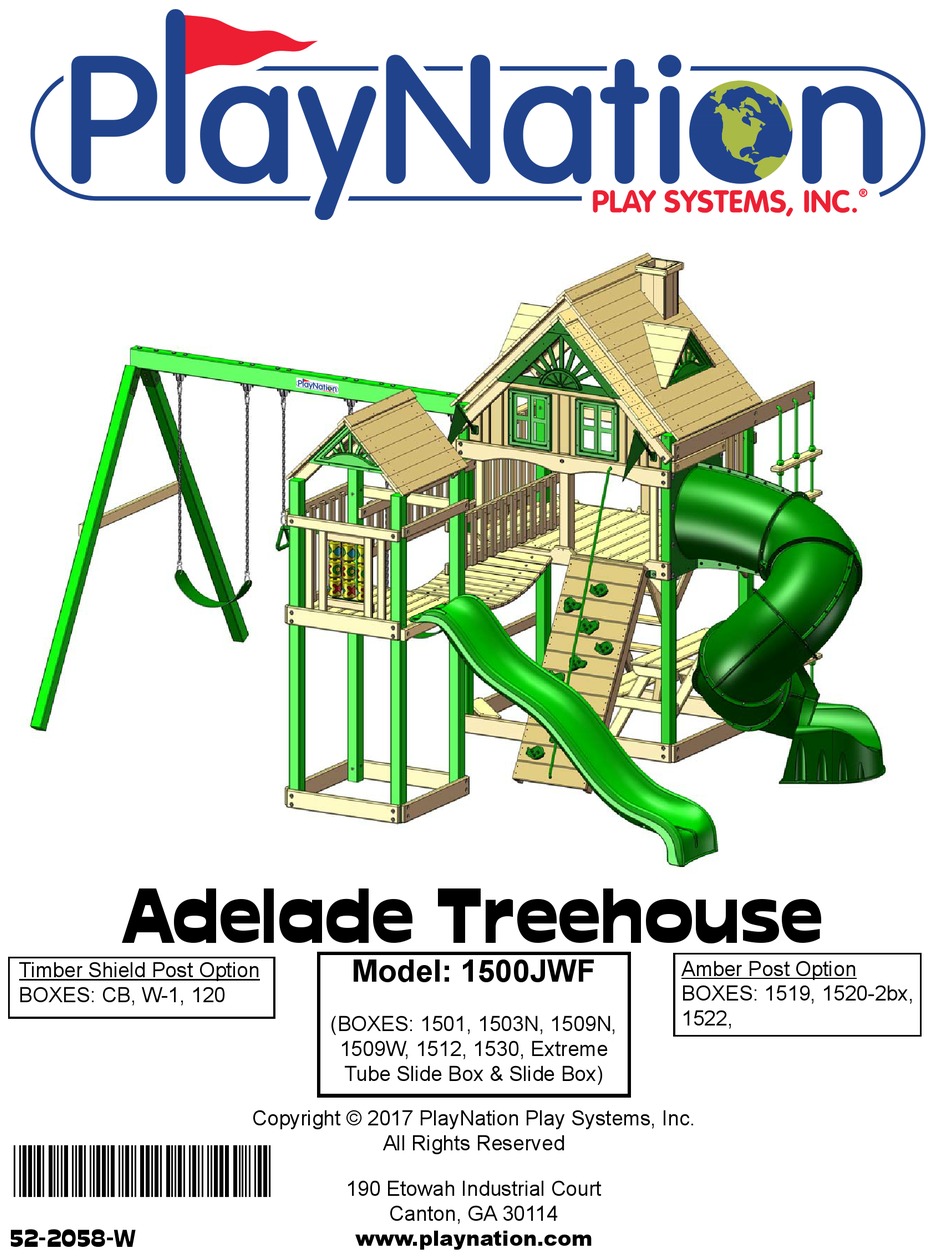

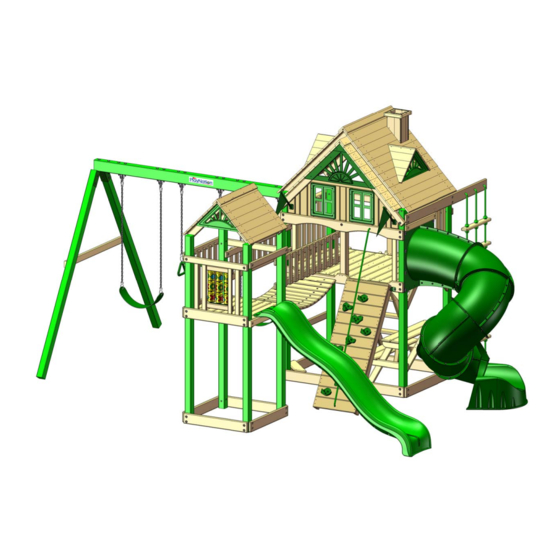

Adelade Treehouse
Timber Shield Post Option
BOXES: CB, W-1, 120
*52-2058-W*
52-2058-W
Model: 1500JWF
(BOXES: 1501, 1503N, 1509N,
1509W, 1512, 1530, Extreme
Tube Slide Box & Slide Box)
Copyright © 2017 PlayNation Play Systems, Inc.
All Rights Reserved
190 Etowah Industrial Court
Canton, GA 30114
www.playnation.com
Amber Post Option
BOXES: 1519, 1520-2bx,
1522,

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Adelade Treehouse 1500JWF and is the answer not in the manual?

Questions and answers

Related Manuals for PlayNation Play Systems Adelade Treehouse 1500JWF

Summary of Contents for PlayNation Play Systems Adelade Treehouse 1500JWF

  • Page 1 BOXES: 1519, 1520-2bx, BOXES: CB, W-1, 120 1522, (BOXES: 1501, 1503N, 1509N, 1509W, 1512, 1530, Extreme Tube Slide Box & Slide Box) Copyright © 2017 PlayNation Play Systems, Inc. All Rights Reserved *52-2058-W* 190 Etowah Industrial Court Canton, GA 30114 www.playnation.com...
  • Page 2 ***IMPORTANT NOTICE FOR TREEHOUSE KIT PLAYSETS*** Read all instructions thoroughly before beginning construction, this is very important. The “Treehouse Add On Kit” (1525) box will require you to deviate slightly from the standard kit instructions. Typical deviations include: 1) The Telescope that is usually on the front of the set on the Front face board (arched board) must be moved to another location on the set.
  • Page 3 Please inspect and inventory all parts immediately upon accepting delivery. Use the inventory pages in the manual to make sure you have received all necessary parts. The quickest method to get any parts that are missing or damaged is use our “Quick Response Center”...
  • Page 4 2017 MANUFACTURER'S LIMITED LIFETIME WARRANTY PlayNation Play Systems, Inc. warrants its Lifetime™ series of swing sets to be free from defects in workmanship and materials, under normal use and conditions, for the lifetime of the product for above ground structural wood components and for two years for all other components (e.g., swings, hardware, plastics, tarps, rope ladder, etc.) except PlayNation's Super Scoop Slides™...
  • Page 5 PlayNation's discretion, may be accomplished by submitting photographs or by delivery of the defective part to PlayNation. PlayNation Play Systems, Inc. • 190 Etowah Industrial Ct. • Canton, GA 30114 • 770-704-9300 Monday to Friday 9AM-5PM EST. Any warranty claim must include proof of purchase, including the date of purchase.
  • Page 6 IMPORTANT SAFETY GUIDELINES This product is recommended for use by children ages 3-11. This product is intended for residential use only and not intended for use in any public setting. A safety surface such as mulch or recycled tire should be used under the play set to prevent injury from falls. Also a 6 foot safety zone should be used around the entire play set.
  • Page 7 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 8 product registration - adeLade treeHouse - PlayNation manufactures the ™ 3 Easy Ways To REgisTER finest quality products that are designed for outstanding Complete the online registration form at: option 1 strength and durability. We back http://www.playnation.com/register our products with an unparalleled warranty.
  • Page 9 IMPORTANT – PLEASE READ Congratulations! You have just purchase one of the finest residential wooden swing sets available today. As with any wooden product that spends its entire life outside, in varying elements, it is important to know what to expect with your new swing set so that your family can enjoy it for many years.
  • Page 10 WARNING: Children must NOT use this play set until it has been completely assembled and inspected by an adult to ensure it has been properly installed. PlayNation Play Systems, Inc. 190 Etowah Industrial Court Canton, GA. 30114...
  • Page 11 Model 1500JW shown. See cover of manual for the image of your model when it is completed. Timber Shield Post Option Amber Post Option Models: 1500JW BOXES: CB, W-1, 120 BOXES: 1519, 1520 - 2bx, 1522 1500JWF (BOXES: 1501, 1503N, 1509N, 1509W, 1512, 1525*, 1530, Ex- treme Tube Slide Box &...
  • Page 12 TABLE OF CONTENTS Safety Guidelines………………………………………..……......Pages 3-6 Leveling Fort, General Information and Definitions…………………....Pages 6-8 How to Install T-nuts, Board Identification, Predrill Lag Screw Directions and Swing Beam Loading..................Pages 9-13 Site Plan, Required Tool List and Kit Contents..........Pages 14-15 Hardware, Lumber and Accessory Checklists……………………………..Pages 16-37 Adding T-Nuts to Corner Posts...…………………………………..………...…...
  • Page 13 Safety and Maintenance Tips for Your New Play Set: NOTE: Your children’s safety is our #1 concern. Observing the following statements and warnings reduces the likelihood of serious or fatal injury. Please review these safety rules regularly with your children. •...
  • Page 14 Safety and Maintenance Tips for Your New Play Set: (continued) Playgrounds should be inspected on a regular basis. If any of the following conditions are noted, they should be removed, corrected, or repaired immediately to prevent injuries. • Hardware that is loose, worn or that has protrusions or projections. •...
  • Page 15 Play Set Surfacing Recommendations: Below are some of the recommendations that the U.S. Consumer Product Safety Commission (CPSC) offers from its Handbook for Public Playground Safety. The guide can be downloaded in full at https://www.cpsc.gov/s3fs-public/325.pdf 1. Protective Surfacing - Since almost 60% of all injuries are caused by falls to the ground, protective surfacing under and around all playground equipment is the most critical safety factor on playgrounds.
  • Page 16 2. Fall Zones - A fall zone, covered with a protective surfacing material, is essential under and around equipment where a child might fall. This area should be free of other equipment and obstacles onto which a child might fall. Stationary climbing equipment and slides should have a fall zone extending a Minimum of 6’...
  • Page 17 General Info to Review Before Installation • Depending on your experience, assembly of the playset can take as little as 6 hours up to 24 hours, depending on size, after inventory of parts; therefore, we recommend you set aside a full two days for assembly. •...
  • Page 18 This page is a list of definitions and explanations used throughout our instructions to aid you in the assembly of your play set. Offset Holes- Throughout the installation procedures we will refer to parts with offset holes. This refers to the orientation of the holes on the board. An offset hole is one that is closer to one side than it is the other or in other words, it is not centered on the board.
  • Page 19 Common Installation Practice Installing T-nuts When installing T-nuts into the wood, use a smooth faced hammer to set the face of the T-nut flush into the wood. Corner Post T-nut Insert the barrel of the T-nut into the predrilled hole. Using a smooth faced hammer, drive the T-nut until the face of the T-nut is flush to the wood.
  • Page 20 HOW A T-NUT WORKS THE FIRST STEP IN OUR ASSEMBLY INSTRUCTIONS IS TO INSERT T-NUTS INTO THE CORNER POSTS. A T-NUT IS A FASTENER WHICH IS THREADED ON THE INSIDE AND IT FUNCTIONS JUST LIKE A STANDARD HEX NUT. YOU INSERT THE T-NUTS INTO THE PREDRILLED HOLES IN THE CORNER POSTS.
  • Page 21 BOARD IDENTIFICATION 1. On the end of each board there should be a small white tag that is stapled or stuck into place. Remove the staples and/or tag after the board is installed. 2. This white identifcation tag displays the thickness, width, length and an abbreviated description of the part.
  • Page 22 PRE-DRILL LAG SCREW DIRECTIONS Pre-drilling holes for lag screws will make it easier to drive the screws in by hand. "Jobber" length drill bits are available in sizes that are longer than standard drill bits and those are ideal for the job. When using the drill bit you will have to "spot" drill the post and then remove the board you are attaching to finish drilling the hole.
  • Page 23 SWING BEAM LOADING Weight Limits for Accessories: The weight limit for a Swing Belt is 225 lbs. (Although 150lbs is the maximum recommended swinging weight capacity for the swing position.) The weight limit for a Trapeze Bar is 125 lbs. Maximum Allowable swinging weight for a three position swing: 1) The maximum allowable swinging weight at each Swing Belt position is 150 lbs.
  • Page 24 Please familiarize yourself with the manual, parts/components and general construction process of your new playset before getting started. 1500 Series SITE PLAN: Catalina / Adelade with Extreme Tube HEIGHT: 11'-1-7/8" 15'-11" Ladder 1'-6 " 5'-10" 2'-8" 4'-4" 3'-11 2 " Trapeze Arm Swing Belts (2) 15'-2"...
  • Page 25 REQUIRED TOOL LIST: ___ Standard or Cordless Drill w/ Phillips Bit (#2 square bit provided) ___ Drill Bits 1/8”, 3/8”, 7/64”, 9/64”, 11/64”. ___ ½” Wrench and Socket ___ ½” Deep Well Socket ___ 9/16” Deep Well Socket ___ 9/16” Wrench and Socket ___ Level ___ Tape Measure ___ Extension Cord (if using standard drill)
  • Page 26 1501 HARDWARE PAGE: 1 OF 2 REV A: 9/10/2014 JH #8 X 1" WOOD SCREW QTY: 2 #14 X 1-1/4" #8 X 1-3/4" PAN HEAD SCREW WOOD SCREW QTY: 4 QTY: 4 #8 X 2" WOOD SCREW QTY: 189 #8 X 2-1/2" WOOD SCREW QTY: 52 #8 X 3"...
  • Page 27 5/16" X 3-1/2" 3/8 X 3-1/2" HEX LAG HEX LAG SCREW SCREW QTY: 12 QTY: 12 1501 HARDWARE PAGE: 2 OF 2 REV A: 9/10/2014 JH #2 SQUARE DRIVE BIT QTY: 1 3/8 x 7" 3/8 x 6-1/2" 3/8 x 3-1/2" 3/8 x 9"...
  • Page 28 1503N HARDWARE PAGE: 1 OF 1 REV C: 8/10/2015 JH #8 X 1-1/4" WOOD SCREW QTY: 6 #8 X 1-1/2" WOOD SCREW QTY: 104 #8 X 2" WOOD SCREW QTY: 30 #8 X 2-1/2" WOOD SCREW QTY: 8 3/8" X 1-1/8" BLACK PLASTIC PLUG QTY: 4...
  • Page 29 11-0071 1509N HARDWARE PAGE: 1 OF 1 REV A: 9/19/2014 JH #8 X 2" WOOD SCREW QTY: 94 #8 X 2-1/2" #14 x 1-1/4" WOOD SCREW PAN HEAD SCREW QTY: 18 QTY: 6 #8 X 3" WOOD SCREW QTY: 5 3/8"...
  • Page 30 1509W HARDWARE #8 X 1-1/4" WOOD SCREW PAGE 1 OF 1 QTY: 8 9/11/2014 JH #8 X 1-1/2" WOOD SCREW QTY: 60 #8 X 2" WOOD SCREW QTY: 8 5/16" x 3-1/2" HEX LAG SCREW QTY: 4 5/16" WASHER QTY: 4 USE THE RULER TO THE RIGHT TO MEASURE YOUR BOLTS AND SCREWS.
  • Page 31 1512 HARDWARE PAGE: 1 OF 1 REV A 1/16/2014 J.H. #8 X 2" WOOD SCREW QTY: 35 #8 X 2-1/2" WOOD SCREW QTY: 6 #8 X 3" WOOD SCREW QTY: 3 5/16" TEE NUT QTY: 10 5/16 X 4-1/2" 5/16" X 3-1/2" HEX BOLT LAG SCREW QTY: 10...
  • Page 32 PICTURE DESCRIPTION QTY. 2 X 4 X 13" ANGLE SUPPORT 2-4-1300-AS 2 X 4 X 18" ANGLE SUPPORT 2-4-1800-AS 2 X 4 X 14-3/4" PICNIC TABLE TOP SUPPORT 2-4-1475-PTTS 2 X 4 X 17" LADDER STEP 2-4-1700-LS 2 X 4 X 21-1/2" END PANEL BOARD 2-4-2150-EPB...
  • Page 33 PICTURE DESCRIPTION QTY. 2 X 4 X 32-1/2" PICNIC TABLE 2-4-3250-PTL 2 X 4 X 47 " END PANEL/ SAFETY BOARD (2 HOLES OFFSET) 2-4-4750-SBEP 2 X 4 X 51-1/8" ROOF SUPPORT LEFT (1 HOLE OFFSET) 2-4-5113-RSL 2-4-5113-RSR RIGHT 2 X 4 X 58" SWING BEAM CROSS MEMBER (2 HOLES ON...
  • Page 34 PICTURE DESCRIPTION QTY. 2 X 4 X 70" DECK SUPPORT (2 HOLES ON CENTER) 2-4-7000-DS 2 X 4 X 70" REAR TOP PANEL BOARD (2 HOLES OFFSET/ 1 CENTERED) 2-4-7000-RTPB 2 X 6 X 21 " END PANEL BOARD (4 HOLES OFFSET) 2-6-2150-EPB 2 X 6 X 47...
  • Page 35 PICTURE DESCRIPTION QTY. 2 X 6 X 70" REAR FACE BOARD (4 HOLES OFFSET) 2-6-7000-RFB 2 X 6 X 79-1/2" ROPE LADDER SUPPORT (4 HOLES OFFSET, 3 HOLES ON CENTER) 2-6-7950-RLS 2 X 6 X 79-1/2" ROPE LADDER RUNNER(4 HOLES OFFSET, 3 HOLES ON CENTER) 2-6-7950-RLR...
  • Page 36 PICTURE DESCRIPTION QTY. X 33" PANEL SLAT 125-3-3300-PS X 4 X 14 " DECK SPACER 125-4-1450-DS X 4 X 22 " DECK SPACER 125-4-2250-DS X 4 X 40 " DECK SPACER 125-4-4038-DS X 3 X 18 " LADDER BACK 125-3-1875-LB X 3 X 23 "...
  • Page 37 PICTURE DESCRIPTION QTY. X 6 X 22" SANDBOX SEAT 125-6-2200-SS X 6 X 23 " BOTTOM ROCK WALL BOARD 125-6-2387-BRW X 6 X 23 " ROCK WALL BOARD 125-6-2387-RWB X 6 X 43" PICNIC TABLE TOP AND SEATS 125-6-4300-PTTS X 6 X 47 "...
  • Page 38 PICTURE DESCRIPTION QTY. 1 X 4 X 47 " GROOVE-ONLY ROOF STARTER 1-4-4750-RS 1 X 5 X 47 " TONGUE-AND- GROOVE ROOF BOARD 1-5-4750-RB 4 X 4 X 40" END WALL SLIDE MOUNT POST 4-4-4000-EWSMP 2 X 4 X 29-1/4" SLIDE HEADER BOARD 2-4-2925-SHB...
  • Page 39 PICTURE DESCRIPTION QTY. 2 X 4 X 29" BRIDGE DECK 2-4-2900-BD 2 X 4 X 36-3/4" SAFETY BOARD WITH CHAIN HOLES 2-4-3675-SBH 2 X 4 X 36-3/4" RAILING/DECK SUPPORT 2-4-3675-SB 2 X 4 X 66" BRIDGE RAIL 2-4-6600-R 2 X 6 X 36-3/4" BOTTOM PANEL BOARD 2-6-3675-BPB...
  • Page 40 PICTURE DESCRIPTION QTY. 5/4 X 3 X 28-1/2" PANEL SLAT 125-3-2850-PS 5/4 X 4 X 29-3/8" DECK SPACER 125-4-2937-DS 5/4 X 4 X 36-1/2" DECK BOARD 125-4-3650-DB 4 X 4 X 96" PLASTIC COATED CORNER POST...
  • Page 41 PICTURE DESCRIPTION QTY. 1509W 1 X 3 X 36-3/4" ROOF PEAK BOARD 2 1-3-3675-RPB2 1 X 4 X 36-3/4" ROOF PEAK BOARD 1 1-4-3675-RPB1 1 X 5 X 36-3/4" ROOF BOARD 1-5-3675-RB 1 X 4 X 36-3/4" ROOF FINISHER 1-4-3675-RF 1 X 4 X 36-3/4"...
  • Page 42 PICTURE DESCRIPTION QTY. WIKI WAVE SLIDE 03-0013 ROPE LADDER ROPES SWING W/CHAINS 04-0002 TRAPEZE W/CHAINS 04-0006...
  • Page 43 PICTURE DESCRIPTION QTY. SWING PLATE 11-5002 CLIMBING ROCKS (07-0008 ROCKS IS A PACK OF 5) A-FRAME SWING BRACKET 11-5010 HARDWARE BOXES HARDWARE BOXES: 1501, 1503N, 1509N, 1509W,1512 INSTRUCTIONS...
  • Page 44 PICTURE DESCRIPTION QTY. IRON DUCTILE SWING HANGERS 11-4012 TELESCOPE 07-0001 ROCK WALL ROPE...
  • Page 45 PICTURE DESCRIPTION QTY. GREEN BRACKET 11-5013 SPRING CLIP 11-4003 SAFETY HANDLES (PAIR) 07-0005...
  • Page 46 PICTURE DESCRIPTION QTY. UNASSEMBLED CHIMNEY (1530 BOX) UNASSEMBLED DORMER (1530 BOX) PLASTIC DORMER SUNBURST 07-0031 CLATTER- BRIDGE CHAIN 96" FLAG KIT 09-1014...
  • Page 47 PICTURE DESCRIPTION QTY. PLASTIC SUNBURST 07-0028-G MANUFACTURER (NOT SHOWN) LOGO PLATE GROUND STAKE (PAIR) 07-0016-P TIC TAC TOE (UNASSEMBLED) 07-0010 CLATTER BRIDGE (NOT SHOWN) MESH PANELS 06-2004 STEERING WHEEL 07-0004 EXTREME TUBE SLIDE 03-0014...
  • Page 48 STEP 1: ATTACHING T-NUTS TO THE CORNER POSTS 1: THIS STEP IS CRITICAL TO BUILDING THE FORT PROPERLY. IF ANY MISTAKES ARE MADE HERE, YOU WILL NEED TO DIS-ASSEMBLE AND THEN RE-ASSEMBLE TO MAKE YOUR CORRECTIONS. 2: MAKE SURE HOLES ARE FREE OF ANY OBSTRUCTIONS. USE A BOLT TO CLEAN OUT ANY DEBRIS. 3: LAY OUT EACH OF THE 4 X 4 X 96"...
  • Page 49 STEP 2: ASSEMBLING THE RIGHT SIDE FRAME 1: LAY THE 2 X 6 X 79-1/2" ROPE LADDER RUNNER ON TOP OF THE RIGHT SIDE CORNER POSTS AT THE BOTTOM OF THE CORNER POSTS. THE HOLES IN THE ROPE LADDER RUNNER MUST BE OFFSET DOWN. 2: USE 5/16 X 4-1/2"...
  • Page 50 STEP 3: ASSEMBLING THE LEFT SIDE FRAME 1: LAY THE 2 X 6 X 47-1/2" SANDBOX BOARD ON TOP OF THE LEFT SIDE CORNER POSTS AT THE BOTTOM OF THE CORNER POSTS. THE HOLES IN THE SANDBOX BOARD MUST BE OFFSET DOWN. 2: USE 5/16 X 4-1/2"...
  • Page 51 STEP 3A: DRILL HOLES FOR BRIDGE CHAINS 1: LOCATE ONE 2 X 4 X 70" DECK SUPPORT AND ONE 2 X 6 X 70" FRONT FACE BOARD. 2: MEASURE AS SHOWN BELOW AND MAKE MARKS ON EACH BOARD. 3: PLACE A SCRAP PIECE OF WOOD UNDER THE BOARD BEFORE YOU DRILL THE 1" HOLES WITH A SPADE BIT.
  • Page 52 STEP 4: DECK SUPPORTS YOU WILL NEED AN EXTRA PERSON FOR THIS STEP. 1: WITH HELP, STAND UP THE LEFT AND RIGHT SIDE ASSEMBLIES. 2: FASTEN THE 2 X 4 X 70" DECK SUPPORTS TO THE HOLES AT 54-3/4" WITH 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS FROM THE INSIDE OF THE FORT.
  • Page 53 STEP 5: FRONT FRAME ASSEMBLY 1: PLACE THE 2 X 6 X 70" SANDBOX BOARD ON THE FRONT OF THE CORNER POSTS AT THE BOTTOM. THE HOLES IN THE SANDBOX BOARD MUST BE OFFSET UP. 2: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE TOP HOLES OF THE SANDBOX BOARD TO THE T-NUTS INSTALLED ON THE CORNER POSTS.
  • Page 54 STEP 6: REAR FRAME ASSEMBLY 1: PLACE THE 2 X 6 X 70" SANDBOX BOARD ON THE REAR CORNER POSTS. THE HOLES IN THE SANDBOX BOARD MUST BE OFFSET UP. 2: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE TOP HOLES OF THE SANDBOX BOARD TO THE T-NUTS INSTALLED ON THE CORNER POSTS.
  • Page 55 STEP 6A: LEVELING THE PLAY SET AND LAGS 1: INSTALL LAG SCREWS ONLY IN THE THREE 2 X 6 BOARDS AT DECK HEIGHT AND THE ROPE LADDER SUPPORT AT THIS TIME. SQUARE EACH OF THESE FOUR BOARDS TO THE POSTS AND THEN INSTALL THE LAG SCREWS. THIS IS TO MAKE THE STRUCTURE RIDGID FOR THE LEVELING AND SQUARING PROCESS.
  • Page 56 STEP 6B: ANGLE SUPPORTS 1: ONE 2 X 4 X 18" ANGLE SUPPORT IS MOUNTED UNDER THE DECK ON THE LEFT REAR OF THE PLAY SET TO THE 2 X 6 BOTTOM PANEL BOARD. THE TOP OF THE ANGLE SUPPORT SHOULD BE FLUSH OR LOWER THAN THE TOP OF THE DECK SUPPORT.
  • Page 57 STEP 6C: ANGLE SUPPORTS 1: ONE 2 X 4 X 18" ANGLE SUPPORT IS MOUNTED UNDER THE DECK ON THE LEFT FRONT OF THE PLAY SET TO THE DECK SUPPORT. THE TOP OF THE ANGLE SUPPORT SHOULD BE FLUSH OR LOWER THAN THE TOP OF THE DECK SUPPORT. 2: AT THE TOP USE 2-1/2"...
  • Page 58 STEP 7: BOTTOM PANEL BOARD 1: PLACE THE 2 X 4 X 47-1/2" PANEL BOARD ON TOP OF THE 2 X 6 PANEL BOARD WITH OFFSET HOLES UP AND FASTEN TO THE CORNER POSTS WITH 5/16 X 3-1/2" LAG SCREWS WITH 5/16" WASHERS. 5/16"...
  • Page 59 STEP 8: DECK SPACER AND DECK BOARD 1: PLACE THE 5/4 X 4 X 40-3/8" DECK SPACER BETWEEN THE CORNER POSTS ON THE LEFT SIDE OF THE FORT. FASTEN THE DECK SPACER TO THE DECK SUPPORTS WITH FOUR 2" WOOD SCREWS. 2: PLACE THE 5/4 X 6 X 47-3/8"...
  • Page 60 STEP 9: END WALL SLIDE MOUNT POST 1: FIND THE 4 X 4 X 40" END WALL SLIDE MOUNT POST. 2: MEASURE 26" INCHES FROM THE FRONT OF THE FRONT RIGHT CORNER POST AND MARK THE MEASUREMENT ON THE INSIDE OF THE 2 X 6 X 79-1/2" ROPE LADDER SUPPORT. MEASURE DOWN 2" FROM THE TOP OF THE ROPE LADDER SUPPORT AND MARK THE MEASUREMENT ON THE INSIDE.
  • Page 61 STEP 10: DECK SUPPORTS 1: PLACE TWO 2 X 4 X 70" DECK SUPPORTS UNDER THE DECK BOARD/DECK SPACER AND BESIDE THE POST. HAVE AN ASSISTANT HOLD UP THE END OF THE DECK SUPPORT ON THE LEFT END. THE LEFT END SHOULD BE FLUSH AGAINST THE 2 X 6 BOTTOM PANEL BOARD.
  • Page 62 STEP 10A: DECK BOARDS THE FOLLOWING STEP IS RECOMMENDED TO PREVENT POSSIBLE SPLITS IN THE WOOD 1: PRE-DRILL THE ENDS OF THE DECK BOARDS TO PREVENT INSTALLATION DAMAGE. PRE-DRILL BOTH ENDS WITH A 1/8" DRILL BIT AT THE DIMENSIONS SHOWN BELOW. THE HOLES AT 22-1/8" & 17-3/8" ONLY NEED TO BE DRILLED ONCE.
  • Page 63 STEP 11: ROCK WALL 1: FIND TWO 2 X 4 X 66" ROCK WALL SIDES. 2: POSITION THE ROCK WALL SIDES SO THAT THE HOLES IN THE BOARDS ARE BOTH FACING THE SAME WAY. 3: INSERT T-NUTS INTO THE INSIDE OF THE ROCK WALL SIDES AND SET WITH A HAMMER. T-NUT 2 X 4 X 66"...
  • Page 64 STEP 12: ROCK WALL 1: FIND ELEVEN 5/4 X 6 X 23-7/8" ROCK WALL BOARDS, AND ONE 5/4 X 6 X 23-7/8" BOTTOM ROCK WALL BOARD(1 HOLE). 2: STARTING FROM THE TOP, PLACE ONE ROCK WALL BOARD ON TOP OF THE ROCK WALL SIDES, FLUSH TO THE TOP OF THE ROCK WALL SIDES, AND ATTACH WITH TWO 2"...
  • Page 65 STEP 13: ROCK WALL 1: FASTEN THE 90 GREEN BRACKET TO THE ROCK WALL SIDES WITH 5/16 X 1-1/2" HEX BOLTS AND 5/16" WASHERS. 2: DO NOT FULLY TIGHTEN THE HEX BOLTS INTO THE T-NUTS AT THIS TIME. GREEN BRACKET 5/16"...
  • Page 66 STEP 14: ROCK WALL 1: FIND TEN ROCKS AND THIRTY 1-1/4" PAN HEAD SCREWS AND WASHERS. 2: MOUNT THE ROCKS IN A STAGGERED MANNER ON THE ROCK WALL BOARDS. THREE PAN HEAD SCREWS WITH WASHERS WILL SECURE EACH ROCK TO THE WALL. NOTE: THE IMAGE SHOWN BELOW IS A GENERIC ARRANGEMENT OF ROCKS ON THE ROCK WALL.
  • Page 67 STEP 15: ATTACHING THE ROCK WALL 1: PLACE THE ROCK WALL INTO POSITION ON THE FORT AS SHOWN BELOW. THE BOTTOM OF THE 90 BRACKETS SHOULD BE 3/4" FROM THE BOTTOM OF THE FRONT FACE BOARD. USING THE 90 BRACKETS AS A TEMPLATE; DRILL A 3/8”...
  • Page 68 STEP 16: LADDER 2 X 4 X 66" 1: FIND TWO 2 X 4 X 66" LADDER SIDES. LADDER SIDE 2: POSITION THE LADDER SIDES SO THAT THE T-NUT SLOTS IN THE BOARDS ARE FACING EACH OTHER AND ARE PARALLEL. 3: INSERT T-NUTS INTO THE OUTSIDE OF THE LADDER SIDES AND SET WITH A HAMMER.
  • Page 69 STEP 17: LADDER TO FORT 1: CENTER THE LADDER IN THE OPENING OF THE REAR FACE BOARD ON THE REAR OF THE FORT AS SHOWN BELOW. THE BOTTOM OF THE 90 BRACKETS SHOULD BE 3/4" ABOVE THE BOTTOM OF THE REAR FACE BOARD. USING THE LADDER BRACKETS AS A TEMPLATE, DRILL A 3/8”...
  • Page 70 STEP 18: CENTER POST FRONT/REAR 1: HAMMER A T-NUT INTO THE HOLE OF 2 X 4 X 28-9/16" CENTER POST. 2: PLACE THE CENTER POST INSIDE THE RAILINGS AT THE REAR OF THE PLAYSET. LINE UP THE HOLE IN THE CENTER POST WITH THE HOLES IN THE RAILING.
  • Page 71 STEP 19: PANEL SLATS 1: FIND FIFTEEN 5/4 X 2-5/8 X 28-1/4" PANEL SLATS. 2: PRE-DRILL THE SLATS 1" FROM EACH END ON CENTER WITH A 1/8" DRILL BIT. 3: INSTALL THE PANEL SLATS AT EQUAL LENGTHS. SEE DETAIL BELOW FOR MEASUREMENTS. 4: ATTACH THE PANEL SLATS TO THE FORT WITH 2"...
  • Page 72 STEP 20: SWING BEAM PLATE 1: PLACE THE SWING BEAM PLATE ON TOP OF THE SWING BEAM SUPPORT, LINING UP THE PILOT HOLES. 2: FASTEN THE SWING BEAM PLATE TO THE SWING BEAM SUPPORT USING 3-1/2" CARRIAGE BOLTS ON TOP, AND 3/8" LOCK NUTS WITH 3/8"...
  • Page 73 STEP 21: IRON DUCTILE SWING HANGERS 1: LINE UP THE HOLES OF THE IRON DUCTILE SWING HANGERS WITH THE HOLES IN THE SWINGBEAM. IF YOUR BEAM IS BOWED SLIGHTLY PLACE THE BOW SIDE UP; THE SWING HANGERS WILL BE ON THE BOTTOM. 2: FASTEN THE SWING HANGER TO THE SWING BEAM USING 7"...
  • Page 74 STEP 22: ATTACH SWING LEGS TO BRACKET 1: PLACE THE 4 X 4 X 108" SWING LEGS FLUSH TO THE TOP OF THE SWING LEG BRACKET. 2: FASTEN THE SWING LEGS TO THE SWING LEG BRACKET WITH 3/8 X 3-1/2" LAG SCREWS AND 3/8" WASHERS. SWING LEGS FLUSH TO TOP OF SWING LEG BRACKET...
  • Page 75 STEP 23: REST SWING BEAM ON FORT *TWO PEOPLE ARE REQUIRED FOR THIS STEP 1: LAY THE SWING BEAM ACROSS THE TOP OF THE FORT RAILINGS.THE END OF THE SWING BEAM WITH TWO EMPTY HOLES SHOULD OVERHANG THE SIDE OF THE FORT WITH THE TRIANGULAR SWING BEAM PLATE. 2: SIT THE SWING BEAM LEGS UPRIGHT UNDER THE TWO EMPTY HOLES IN THE END OF THE SWING BEAM.
  • Page 76 STEP 24: MOUNT SWING BEAM TO SWING BEAM LEGS 1: FASTEN THE SWING BEAM TO THE SWING BEAM BRACKET USING 7" CARRIAGE BOLTS WITH TORQUE WASHERS ON TOP OF THE SWING BEAM, AND 3/8" LOCK NUTS WITH 3/8" WASHERS FROM UNDERNEATH. 2: USE A 3/8 X 3-1/2"...
  • Page 77 STEP 25: MOUNT SWING BEAM ON FORT *AN EXTRA PERSON IS REQUIRED FOR THIS STEP 1: HAVE ONE PERSON WALK THE SWING BEAM OUT TO THE END OF THE FORT FROM INSIDE THE FORT WHILE THE OTHER PERSON CARRIES IT BY THE LEGS. 2: LINE UP THE PILOT HOLE ON THE END OF THE SWING BEAM WITH THE MIDDLE HOLE ON THE SWING BEAM PLATE.
  • Page 78 STEP 26: LEVEL SWING BEAM 1: PLACE A LEVEL ON TOP OF THE SWING BEAM AND ADJUST THE BEAM LEGS IN OR OUT AS NEEDED TO MAKE THE SWING BEAM LEVEL. IMPORTANT NOTE: THE LEGS ARE DESIGNED TO ACCOMODATE SWING BEAMS ON UNEVEN GROUND (DOWN SLOPE).
  • Page 79 STEP 27: SWING LEG CROSS-MEMBER 1: POSITION THE 2 X 4 X 58" SWING LEG CROSS-MEMBER AGAINST THE SWING BEAM LEGS. 2: LEVEL CROSS-MEMBER AND MARK THE LOCATION OF THE SECURING HOLES INSIDE THE CROSS-MEMBER HOLES. 3: USE 3/8 X 3-1/2" LAG SCREWS WITH 3/8" WASHERS TO SECURE THE CROSS-MEMBER TO THE SWING BEAM LEGS. 3/8 X 3-1/2"...
  • Page 80 STEP 28: ROOF SUPPORT ASSEMBLIES 1: LOCATE TWO 2 X 4 X 51-1/8" ROOF SUPPORT (LEFT), TWO 2 X 4 X 51-1/8" ROOF SUPPORT (RIGHT) AND TWO 5/4 X 6 X 10" ROOF PEAK SUPPORT PIECES. 2: FIND A FLAT SURFACE TO WORK ON. LAY THE ROOF SUPPORTS DOWN ON THE FLAT SURFACE WITH THE COUNTERSUNK HOLES FACING UP.
  • Page 81 STEP 28A: INSTALLING ROOF SUPPORT ASSEMBLIES 1: PLACE THE ROOF SUPPORT ASSEMBLIES ON TOP OF THE DECK OF THE PLAY SET. CLIMB ONTO THE DECK TO INSTALL THE ROOF SUPPORT ASSEMBLIES. 2: ATTACH THE ROOF SUPPORT ASSEMBLIES TO THE CORNER POSTS WITH 5/16" X 4-1/2" HEX BOLTS AND 5/16"...
  • Page 82 STEP 29: ROOF STARTERS 1: PLACE THE 1 X 4 X 47-1/2" GROOVE-ONLY ROOF STARTER BOARDS AT THE PEAK OF THE ROOF. THE HOLES IN THE ROOF STARTERS SHOULD BE APPROXIMATELY CENTERED (SEE BELOW) ON THE ROOF SUPPORTS, AND THE FLAT ENDS OF THE ROOF STARTERS SHOULD BE PLACED AS CLOSE TO EACH OTHER AS POSSIBLE WITHOUT THE BOARDS OVERLAPPING.
  • Page 83 STEP 30: ROOF PEAK 1: PLACE THE 47-1/2" ROOF PEAK ON TOP OF THE ROOF STARTER BOARDS. 2: FASTEN THE ROOF PEAK TO THE ROOF STARTER BOARDS WITH #8 X 1-1/4" WOOD SCREWS. #8 X 1-1/4" WOOD SCREW 47-1/2" ROOF PEAK...
  • Page 84 STEP 31: ROOF NOTE: THE SMALL PICTURE BELOW IS A GENERIC VIEW OF A PLAY SET IN OUR 1500 MODEL LINE. TYPICALLY THE ROCK WALL AND/OR SLIDE IS LOCATED ON THE FRONT OF THE 1500 SERIES PLAY SETS. THE BIG PICTURE BELOW SHOWS THE RIGHT SIDE ROOF WITH THE DORMER AND CHIMNEY.
  • Page 85 STEP 32: HANGING THE SWINGS 1: START BY ATTACHING ONE SPRING CLIP TO EACH IRON DUCTILE ON THE SWING BEAM. 2: ATTACH ONE CHAIN PER ACCESSORY TO EACH SPRING CLIP. 3: ADJUST HEIGHT AS NEEDED SPRING CLIP SWING CHAIN...
  • Page 86 STEP 33: SAFETY BOARD 1: MEASURE 24" FROM THE BOTTOM OF THE CORNER POSTS ON THE LEFT SIDE OF THE FORT. MARK THESE POSITIONS ON THE OUTSIDE OF THE CORNER POSTS. ATTACH THE 2 X 4 X 47-1/2" SAFETY BOARD WITH OFFSET HOLES ON THE CORNER POSTS WITH 5/16 X 3-1/2"...
  • Page 87 STEP 34: PICNIC TABLE 1: LOCATE TWO 2 X 4 X 14-3/4" PT TOP SUPPORTS, TWO 2 X 4 X 27-1/2" PT SEAT SUPPORTS, TWO 2 X 4 X 32-1/2" PT LEGS AND TWO 5/4 X 3 X 13-1/4" PICNIC TABLE SLATS. 2: FOR THE LEFT SIDE ASSEMBLY, PLACE A 2 X 4 X 14-3/4"...
  • Page 88 STEP 35: PICNIC TABLE 1: MEASURE 26-3/8” FROM THE BOTTOM OF THE CORNER POSTS ON THE RIGHT SIDE OF THE PLAYSET. MAKE MARKS ON THE INSIDE OF THE CORNER POSTS WITH A PEN OR PENCIL AT 26-3/8" 2: PLACE THE TOP OF THE RIGHT SIDE ASSEMBLY FLUSH TO THE MARK ON THE RIGHT FRONT CORNER POST. ATTACH THE RIGHT SIDE ASSEMBLY TO THE INSIDE OF THE CORNER POST WITH #8 X 3"...
  • Page 89 STEP 36: PICNIC TABLE 1: LOCATE FOUR 5/4 X 6 X 43" PT TOP AND SEAT BOARDS. 2: CENTER THE HOLES IN THE BOARDS OVER THE TOP OR SEAT SUPPORTS. 3: FASTEN THE PT TOP AND SEAT BOARDS TO THE TOP OR SEAT SUPPORTS WITH #8 X 2-1/2" WOOD SCREWS. 5/4 X 6 X 43"...
  • Page 90 STEP 37: ROPE LADDER 1: FIND THREE ROPE LADDER ROPES. MAKE A KNOT IN THE END OF EACH ROPE AND THREAD THE FREE END THROUGH THE BACK SIDE OF THE ROPE LADDER SUPPORT. PULL EACH ROPE TAUGHT. 2: MEASURE DOWN FROM THE BOTTOM OF THE ROPE LADDER SUPPORT 14" AND TIE A KNOT. THE BOTTOM OF THE KNOT SHOULD BE 14 INCHES BELOW THE ROPE LADDER SUPPORT.
  • Page 91 STEP 38: EXTREME TUBE SLIDE 1: ASSEMBLE THE EXTREME TUBE SLIDE (SEE INSTRUCTIONS ENCLOSED IN THE EXTREME TUBE SLIDE BOX.) 2: USE STEP 42A TO ATTACH THE SLIDE TO THE PLAY SET. PLACE A PLASTIC "T-SHAPED" PLUG IN THE HOLE IN THE CORNER POST HERE BEFORE MOUNTING THE SLIDE TO THE PLAY SET IN THE NEXT STEP.
  • Page 92 STEP 38A: ATTACHING THE SLIDE TO THE FORT 1: ATTACH SLIDE ENTRY ASSEMBLY TO THE CORNER POST AND CENTER POST OF THE FORT WITH 3/8 X 3-1/2" LAG SCREWS WITH 3/8" FENDER WASHERS. 2: DO NOT ATTACH THE BOTTOM RIGHT HOLE OF THE SLIDE ENTRY PLATE AT THIS TIME. 3/8"...
  • Page 93 STEP 38B: SLIDE PANEL 1: FIND THE 2 X 4 X 21-1/2" END PANEL BOARD, AND THE 2 X 6 X 21-1/2" END PANEL BOARD. 2: PLACE THE 2 X 6 X 21-1/2" BOTTOM PANEL BOARD AGAINST THE CORNER POST WITH OFFSET HOLES DOWN, AND MOUNT THE BOTTOM RIGHT HOLE WITH A 5/16 X 4-1/2"...
  • Page 94 STEP 38C: ATTACHING SIDE HEADER BOARD 1: PLACE THE 2 X 4 X 29-1/4" SLIDE HEADER BOARD BETWEEN THE SLIDE AND THE ROPE LADDER SUPPORT. ATTACH SLIDE HEADER BOARD TO POSTS WITH 5/16 X 3-1/2" LAG SCREWS AND 5/16" WASHERS. 2 X 6 X 79-1/2"...
  • Page 95 STEP 39: ANGLE SUPPORTS ON TUBE SLIDE SIDE 1: TWO 2 X 4 X 18" ANGLE SUPPORTS ARE MOUNTED UNDER THE DECK ON THE RIGHT SIDE (TUBE SLIDE SIDE). 2: FOR THE ANGLE SUPPORT AT THE RIGHT REAR USE TWO 2-1/2" WOOD SCREWS THROUGH THE TOP OF THE BRACE INTO THE 2 X 6 X 21-1/2"...
  • Page 96 STEP 40: INSTALLING THE ROCK WALL ROPE 1: TIE A KNOT AT ONE END OF THE 10' ROPE AND THREAD IT THROUGH THE BACK SIDE OF THE HOLE IN THE FRONT TOP PANEL BOARD. 2: THE UNTIED END WILL GO THROUGH THE HOLE OF THE BOTTOM ROCK WALL BOARD. TIE A SECURE KNOT AT THE END MAKING SURE THAT THE ROPE IS TIGHT AND WILL NOT WRAP AROUND YOUR HAND.
  • Page 97 STEP 41: SAFETY HANDLES 1: LOCATE THE SAFETY HANDLE BAG. 2: ADJUST THE SAFETY HANDLES UP OR DOWN TO SUIT THE NEEDS OF YOUR CHILD. 3: ATTACH EACH SAFETY HANDLE TO THE CENTER POST OR CORNER POST WITH TWO PAN HEAD SCREWS AND TWO WASHERS PROVIDED WITH THE SAFETY HANDLES.
  • Page 98 STEP 42: TELESCOPE 1: WITH THE 1-1/4" WOOD SCREWS PROVIDED IN THE TELESCOPE BAG, FASTEN ONE OF THE SQUARE TELESCOPE BRACKETS TO THE FRONT TOP PANEL BOARD ON THE SLIDE SIDE OF THE CENTER POST. 2: PLACE THE TELESCOPE STAND AND TELESCOPE INTO THE SLOT OF THE TELESCOPE BRACKET.
  • Page 99 STEP 43: FLAG KIT 1: PLACE A FLAG ON THE CORNER POSTS AT THE FRONT OF THE FORT. 2: ATTACH THE BASE OF THE FLAG WITH THE 1/2" PHILLIPS HEAD SCREWS PROVIDED. **DO NOT OVER-TIGHTEN** FLAG 1/2" PHILLIPS HEAD SCREW...
  • Page 100 STEP 44: SANDBOX SEATS AND NAME PLATE 1: PLACE THE 5/4 X 6 X 22" SANDBOX SEATS ONTO THE TOP OF THE SANDBOX BOARDS AS SHOWN BELOW. 2: ATTACH THE SANDBOX SEATS TO THE SANDBOX BOARDS WITH #8 X 2" WOOD SCREWS. 3: LOCATE THE NAME PLATE FOR YOUR PLAY SET.
  • Page 101 STEP 45: PLASTIC SUNBURST 1: LOCATE TWO PLASTIC SUNBURST PIECES. 2: PLACE THE SUNBURST UNDER THE ROOF OVERHANG. FIT IT AGAINST THE BOTTOM SIDE OF THE ROOF BOARDS AND AGAINST THE ROOF SUPPORTS. 3: ATTACH THE PLASTIC SUNBURST WITH SIX #8 X 2" WOOD SCREWS ALONG THE SIDES. ATTACH THE TRIANGLE PORTION OF THE SUNBURST PIECE WITH #8 X 2-1/2"...
  • Page 102 STEP 46: GROUND STAKES 1: HAMMER A GROUND STAKE INTO THE EARTH NEXT TO EACH SWING LEG AT AN ANGLE. DO NOT HOLD THE UPPER PORTION OF THE STAKE AFTER THE FIRST COUPLE OF HITS OR IT MAY VIBRATE HARSHLY AGAINST YOUR HAND. IF THE TOP PART OF THE STAKE TWISTS WHEN IT ENCOUNTERS A ROCK OR ROOT YOU MAY HAVE TO BEND THE TOP PORTION OF THE STAKE AGAINST THE SWING LEG.
  • Page 103 STEP 47: STEERING WHEEL 1: GO TO THE REAR CENTER POST ON THE DECK. 2: DRILL A 3/16" PILOT HOLE 1" BELOW THE CENTER OF THE T-NUT. DRILL THE HOLE 2" DEEP. 3: PLACE THE STEERING WHEEL INSERT INSIDE THE STEERING WHEEL. 4: USE THE 2-1/2"...
  • Page 104 PART 2 CLATTER BRIDGE ASSEMBLY...
  • Page 105 STEP 1: ATTACHING T-NUTS TO THE CORNER POSTS 1: THIS STEP IS CRITICAL TO BUILDING THE FORT PROPERLY. IF ANY MISTAKES ARE MADE HERE, YOU WILL NEED TO DIS-ASSEMBLE AND THEN RE-ASSEMBLE TO MAKE YOUR CORRECTIONS. 2: MAKE SURE HOLES ARE FREE OF ANY OBSTRUCTIONS. USE A BOLT TO CLEAN OUT ANY DEBRIS. 3: LAY OUT EACH OF THE 4 X 4 X 96"...
  • Page 106 STEP 2: ASSEMBLING THE RIGHT SIDE FRAME 1: LAY THE 2 X 6 X 36-3/4" SANDBOX BOARD ON TOP OF THE RIGHT SIDE CORNER POSTS AT THE BOTTOM OF THE CORNER POSTS. THE COUNTERSUNK HOLES IN THE SANDBOX BOARD MUST BE OFFSET UP. 2: USE 5/16 X 4-1/2"...
  • Page 107 STEP 3: ASSEMBLING THE LEFT SIDE FRAME 1: LAY THE 2 X 6 X 36-3/4" SANDBOX BOARD ON TOP OF THE LEFT SIDE CORNER POSTS AT THE BOTTOM OF THE CORNER POSTS. THE COUNTERSUNK HOLES IN THE SANDBOX BOARD MUST BE OFFSET UP. 2: USE 5/16 X 4-1/2"...
  • Page 108 STEP 4: DECK SUPPORTS YOU WILL NEED AN EXTRA PERSON FOR THIS STEP. 1: WITH HELP, STAND UP THE LEFT AND RIGHT SIDE ASSEMBLIES. 2: FASTEN THE 2 X 4 X 36-3/4" DECK SUPPORTS TO THE HOLES AT 54-1/2" WITH 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS FROM THE INSIDE OF THE CORNER POST.
  • Page 109 STEP 5: FRONT FRAME ASSEMBLY 1: PLACE THE 2 X 6 X 36-3/4" SANDBOX BOARD ON THE FRONT OF THE CORNER POSTS. THE HOLES IN THE SANDBOX BOARD SHOULD BE OFFSET DOWN. 2: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE TOP HOLES OF THE SANDBOX BOARD TO THE T-NUTS INSTALLED ON THE CORNER POSTS.
  • Page 110 STEP 6: REAR FRAME ASSEMBLY 1: PLACE THE 2 X 6 X 36-3/4" SANDBOX BOARD ON THE REAR OF THE CORNER POSTS. THE HOLES IN THE SANDBOX BOARD SHOULD BE OFFSET DOWN. 2: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE TOP HOLES OF THE SANDBOX BOARD TO THE T-NUTS INSTALLED ON THE CORNER POSTS.
  • Page 111 STEP 7: LAG SCREWS 1: PLACE THE FRAME IN ITS FINAL POSITION AND FOLLOW THE PROCEDURES AT THE FRONT OF THE MANUAL TO LEVEL AND SQUARE THE STRUCTURE. TO SQUARE AND LEVEL THE DECK OF THE TOWER TO THE DECK OF THE FORT PLACE A DECK BOARD ACROSS THE 2 X 4'S.
  • Page 112 STEP 8: DECK BOARDS THE FOLLOWING STEP IS RECOMMENDED TO PREVENT POSSIBLE SPLITS IN THE WOOD 1: IF YOUR DECK SPACERS AND DECKBOARDS ARE NOT ALREADY PRE-DRILLED THEN PRE-DRILL THEM TO PREVENT INSTALLATION DAMAGE. PRE-DRILL BOTH ENDS WITH A 1/8" DRILL BIT USING THE DIMENSIONS SHOWN BELOW. 8 "...
  • Page 113 STEP 9: FRONT FACE BOARD 1: PLACE THE 5/4 X 4 X 36-11/16" DECK BOARDS ON TOP OF THE DECK SUPPORTS. DO NOT FASTEN THE DECK BOARDS AT THIS TIME. 2: PLACE THE 2 X 6 X 36-3/4" BOTTOM PANEL BOARD AGAINST THE FRONT CORNER POSTS. THE TOP OF THE BOTTOM PANEL BOARD SHOULD BE 1/4"...
  • Page 114 STEP 10: REAR BOTTOM PANEL BOARD 1: LOOSEN UP THE FASTENERS IN THE 2 X 6 ON THE LEFT SIDE OF THE TOWER. 2: PLACE THE 2 X 4 X 36-3/4" BOTTOM PANEL BOARD (WITH HOLES) AGAINST THE REAR CORNER POSTS, AND LEVEL THE TOP OF THE BOARD WITH THE TOP OF THE DECK BOARDS.
  • Page 115 STEP 11: DECK 1: INSTALL THE 5/4 X 6 X 36-1/2" DECK BOARDS. LEAVE A UNIFORM (APPROXIMATELY 1/4") SPACE BETWEEN THE DECK BOARDS. ATTACH THE DECK BOARDS TO THE DECK SUPPORTS WITH 2" WOOD SCREWS. 2" WOOD SCREWS 5/4 X 6 X 36-1/2" DECK BOARD FRONT OF TOWER...
  • Page 116 STEP 12: PANEL SLATS 1: FIND NINE 5/4 X 3 X 28-1/2" PANEL SLATS. 2: IF THE SLATS ARE NOT ALREADY PRE-DRILLED THEN PRE-DRILL THE PANEL SLATS 1" FROM EACH END ON CENTER WITH A 1/8" DRILL BIT. (SEE TOP LEFT PICTURE BELOW) 3: ON THE LEFT SIDE OF THE TOWER INSTALL THE FIRST PANEL SLAT 2-5/8"...
  • Page 117 STEP 13: TIC TAC TOE ASSEMBLY 1: LOCATE THE TIC TAC TOE BOX. 2: FOLLOW THE INSTRUCTIONS IN THE BOX TO ASSEMBLE THE TIC TAC TOE OMITTING STEPS 6 AND 7. 3: LOCATE TWO 5/4 X 3 X 17-1/2" TIC TAC TOE MOUNTS. 4: USE THE SCREWS INCLUDED WITH THE TIC TAC TOE TO ATTACH THE GREEN BRACKETS TO THE TIC TAC TOE MOUNTS.
  • Page 118 STEP 14: TIC-TAC-TOE PANEL 1: PLACE THE TIC TAC TOE AGAINST THE PANEL SLATS AT THE FRONT OF THE PLAY SET ON THE INSIDE. THE TIC TAC TOE SHOULD BE APPROXIMATELY 3" OFF THE DECK. 2: ATTACH THE TIC TAC TOE MOUNTS TO THE PANEL SLATS WITH #8 X 1-3/4" WOOD SCREWS. PANEL SLATS AT FRONT OF TOWER #8 X 1-3/4"...
  • Page 119 STEP 15: BRIDGE RAILS 1: PLACE THE TOP SURFACE OF THE UPPER TWO 2 X 4 X 66" BRIDGE RAILS 5-1/2" BENEATH THE TOP SURFACE OF THE TOP PANEL BOARD. THE COUNTERSUNK HOLE IN THE END OF THE BRIDGE RAIL SHOULD FACE THE INSIDE.
  • Page 120 STEP 16: MOUNTING BRIDGE RAILS TO FORT 1: PLACE THE BRIDGE RAILS AGAINST THE GREEN CORNER POST AND CENTER POST ON THE PLAY SET. 2: LEVEL EACH TOP BRIDGE RAIL AND ATTACH THEM TO THE CORNER POSTS WITH 5/16" X 3-1/2"...
  • Page 121 STEP 17: BRIDGE RAIL SLATS 1. IF THE BRIDGE RAIL SLATS ARE NOT ALREADY PRE-DRILLED THEN PRE-DRILL THEM ON EACH END WITH A 1/8" DRILL BIT. (SEE TOP IMAGE BELOW) 2. PLACE THE BRIDGE RAIL SLATS 3" FROM THE FACE OF THE CORNER POSTS, AND ATTACH WITH 2" WOOD SCREWS. THE SLATS WILL MOUNT ON THE OUTSIDE OF THE BRIDGE RAILS.
  • Page 122 STEP 18: BRIDGE DECK AND CHAIN ASSEMBLY 1: FIND FIFTEEN 2 X 4 X 29" BRIDGE DECK BOARDS AND INSERT T-NUTS INTO THE PRE-DRILLED HOLES. USE A HAMMER TO SEAT THE T-NUTS INTO THE BOARDS. T-NUT 2 X 4 X 29" BRIDGE DECK BOARD T-NUT...
  • Page 123 STEP 19: BRIDGE DECK AND CHAIN ASSEMBLY 1: LOCATE TWO 96" CHAIN SECTIONS THAT SHIPPED WITH THE CLATTER BRIDGE. 2: PLACE THE CHAINS OVER THE HOLES IN THE BRIDGE DECK BOARDS AS SHOWN BELOW. 3: LINE UP THE 18TH LINK IN THE CHAINS WITH THE FIRST BRIDGE DECK BOARD HOLES. 96"...
  • Page 124 STEP 20: BRIDGE DECK AND CHAIN ASSEMBLY 1: PLACE A 5/16" WASHER BETWEEN THE 18TH CHAIN LINK AND THE BRIDGE DECK BOARD. 2: PLACE A 5/16" X 1-3/4" HEX BOLT WITH 5/16" WASHER THROUGH THE 18TH CHAIN LINK, THEN THROUGH THE 5/16"...
  • Page 125 STEP 21: BRIDGE DECK/CHAIN INSTALLATION 1: LAY THE BRIDGE DECK/CHAINS ASSEMBLY BETWEEN THE PLAY SET AND THE TOWER WITH THE CHAINS FACING THE GROUND. THREAD THE CHAIN ENDS IN THE BRIDGE DECK ASSEMBLY THROUGH THE HOLES IN THE BOTTOM PANEL BOARD AND DECK SUPPORT BOARD ON THE TOWER. 2: THERE SHOULD BE AT LEAST A 1"...
  • Page 126 STEP 22: ROOF SUPPORT ASSEMBLIES 1: LOCATE FOUR 2 X 4 X 51-1/8" ROOF SUPPORT (LEFT), FOUR 2 X 4 X 51-1/8" ROOF SUPPORT (RIGHT) AND FOUR 5/4 X 6 X 10" ROOF PEAK SUPPORT PIECES. 2: FIND A FLAT SURFACE TO WORK ON. LAY THE ROOF SUPPORTS DOWN ON THE FLAT SURFACE WITH THE COUNTERSUNK HOLES FACING UP.
  • Page 127 STEP 23: DRILLING CORNER POST HOLES 1: CHECK THE DIMENSION OF THE ROOF SUPPORT ASSEMBLIES AS SHOWN BELOW BEFORE DRILLING HOLES. 2: MEASURE AS SHOWN BELOW AND MAKE MARKS ON THE CORNER POSTS ON THE INSIDE. 3: DRILL A 9/64" HOLE BY 2-1/2" DEEP AT EACH MARK. 4: REPEAT SUBSTEPS 2-3 ON THE INSIDE OF THE OTHER POSTS AS POINTED OUT BELOW.
  • Page 128 STEP 24: INSTALL ROOF SUPPORT ASSEMBLIES 1: PLACE TWO ROOF SUPPORT ASSEMBLIES ON THE CLATTER BRIDGE TOWER DECK. 2: THE (TRIANGLE) ROOF PEAK SUPPORT SHOULD FACE THE OUTSIDE. 3: ATTACH EACH ROOF SUPPORT ASSEMBLY TOTHE HOLES DRILLED ON THE INSIDE OF THE CORNER POSTS WITH TWO 5/16"...
  • Page 129 STEP 25: ROOF STARTERS 1: PLACE THE 1 X 4 X 36-3/4" GROOVE ONLY ROOF STARTERS AT THE PEAK OF THE ROOF. REFER TO THE DIAGRAM BELOW AND MAKE THE OVERHANG THE SAME ON EACH SIDE OF THE STARTER. 2: PLACE THE STARTERS AS CLOSE TO EACH OTHER AS POSSIBLE WITHOUT THEM OVERLAPPING. 3: FASTEN THE ROOF STARTER BOARDS TO THE ROOF SUPPORTS WITH 1-1/2"...
  • Page 130 STEP 26: ROOF PEAK 1: FASTEN ROOF PEAK BOARD 1 TO ROOF PEAK BOARD 2 WITH FOUR #8 X 1-1/2" WOOD SCREWS TO MAKE A ROOF PEAK ASSEMBLY 2: PLACE THE ROOF PEAK ASSEMBLY ON TOP OF THE ROOF STARTERS. FASTEN THE ROOF PEAK ASSEMBLY TO THE ROOF STARTERS WITH EIGHT #8 X 1-1/4"...
  • Page 131 STEP 27: ROOF BOARDS AND ROOF FINISHERS 1: LOCATE TEN 1 X 5 X 36-3/4" ROOF BOARDS. SLIDE THE TONGUE OF THE ROOF BOARD INTO THE GROOVE OF THE ROOF STARTER. SECURE THE ROOF BOARD TO THE ROOF SUPPORTS WITH FOUR #8 X 1-1/2"...
  • Page 132 STEP 28: MOUNTING THE SLIDE 1: PLACE THE SLIDE IN THE OPENING AT THE FRONT RIGHT OF THE CLATTER BRIDGE. LAY THE SLIDE ON THE DECK WITH THE LIP EXTENDING ONTO THE DECK SPACER. 2: PREDRILL 1/8" HOLES INTO THE DECK SPACER AT THE SCREW LOCATIONS. 3: ATTACH THE SLIDE TO THE DECK SPACER WITH 1-1/4"...
  • Page 133 STEP 29: PANEL SLAT 1: PLACE THE 5/4 X 3 X 28-1/4" PANEL SLAT FLUSH TO THE SIDE OF THE BRIDGE RAILS AS SHOWN BELOW. 2: ATTACH THE PANEL SLAT TO THE ROPE LADDER SUPPORT AND FRONT FACE BOARD ON THE INSIDE WITH #8 X 2"...
  • Page 134 STEP 30: PLASTIC PLUGS 1: LOCATE FOUR PLASTIC PLUGS. 2: APPLY A DAB OF CLEAR SILICONE ONTO EACH PLUG AND TAP THEM INTO THE FRONT AND BACK SIDE OF THE HOLES SHOWN BELOW. PLASTIC PLUG (4) APPLY CLEAR SILICONE ONTO PLUGS AND TAP THEM INTO EACH END OF THESE HOLES.
  • Page 135 STEP 31: PLASTIC SUNBURST 1: LOCATE TWO OF THE PLASTIC DORMER SUNBURST PIECES AS SHOWN. 2: PLACE THE PIECES AGAINST THE UNDERSIDE OF THE CLATTER BRIDGE ROOF OVERHANG. 3: PREDRILL 7/64" PILOT HOLES BY 1/2" DEEP INTO THE ROOF SIDES AT EACH HOLE LOCATION 4: INSTALL A #8 X 1/2"...
  • Page 136 Leftover Parts List 1500JW/JWR/JT Play Sets Our 1500 series play sets are modular and include parts to construct many different models. Some of these parts included with your play set will not be used because they are for a different model. The list below includes parts for your play set that will be leftover when construction is completed.
  • Page 137 APPENDIX...
  • Page 138 Chimney and Dormers Hardware Kit 8/10/2015 JH #8 X 2-1/2" WOOD SCREW QTY: 2 #8 X 2" WOOD SCREW QTY: 4 #8 X 1-1/2" WOOD SCREW QTY: 14 #8 X 1-1/4 WOOD SCREW QTY: 6 #2 SQUARE DRIVE BIT QTY: 1 USE THE RULER TO THE RIGHT TO MEASURE YOUR BOLTS AND SCREWS.
  • Page 139 PICTURE DESCRIPTION QTY. CHIMNEY LEFT SIDE ASSEMBLY CHIMNEY RIGHT SIDE ASSEMBLY CHIMNEY FRONT ASSEMBLY...
  • Page 140 PICTURE DESCRIPTION QTY. CHIMNEY REAR ASSEMBLY 5/4X3X6-3/4" CHIMNEY MOUNTING BLOCK DORMER LEFT SIDE ASSEMBLY...
  • Page 141 PICTURE DESCRIPTION QTY. PLASTIC DORMER SUNBURST (07-0031) DORMER RIGHT SIDE ASSEMBLY...
  • Page 142 STEP 1: DORMER 1: OVERLAP THE LEFT DORMER SIDE ONTO THE PEAK SUPPORT OF THE RIGHT DORMER SIDE. 2: MAKE SURE THE FRONT ROOF EDGES ARE FLUSH TO ONE ANOTHER 3: FASTEN THE LEFT DORMER SIDE TO THE PEAK SUPPORT WITH #8 X 1-1/2" WOOD SCREWS. REPEAT SUBSTEPS 1-3 TO CONSTRUCT ANOTHER ROOF ASSEMBLY.
  • Page 143 STEP 2: DORMER 1: PLACE THE PLASTIC DORMER SUNBURST AGAINST THE FRONT FACE SUPPORT ON THE LEFT AND RIGHT ROOF SIDES. 2: PREDRILL 7/64" PILOT HOLES BY 1/2" DEEP INTO THE ROOF SIDES AT EACH HOLE LOCATION. 3: INSTALL #8 X 1/2" PAN HEAD SCREWS TO FASTEN THE SUNBURST TO THE ROOF SIDES. REPEAT SUBSTEPS 1 THROUGH 3 TO CONSTRUCT THE SECOND DORMER.
  • Page 144 STEP 3: DORMER 1: PLACE THE DORMER ASSEMBLY ON THE ROOF AS SHOWN. 2: FOR 1500 SERIES UNITS LINE UP THE BOTTOM EDGE OF THE PLASTIC SUNBURST WITH THE LOWER EDGE OF THE 8TH ROOF BOARD. 3: CENTER THE DORMER FROM SIDE TO SIDE ON TOP OF THE ROOF. 4: ATTACH THE DORMER TO THE ROOF WITH ONE #8 X 2-1/2"...
  • Page 145 STEP 4: CHIMNEY 1: FIND THE FRONT AND LEFT SIDE OF THE CHIMNEY. 2: ATTACH THE FRONT AND LEFT SIDES OF THE CHIMNEY WITH A 2" WOOD SCREW. USE A 2" WOOD SCREW IN THIS LOCATION CHIMNEY FRONT CHIMNEY LEFT SIDE 1: FIND THE REAR AND RIGHT SIDE OF THE CHIMNEY.
  • Page 146 STEP 5: CHIMNEY 1: ATTACH THE CHIMNEY SIDES FROM THE PREVIOUS SIDES TO FORM THE CHIMNEY WITH 2" AND 1-1/4" WOOD SCREWS. USE A 2" WOOD SCREW IN THIS LOCATION (EACH SIDE) USE 1-1/4" WOOD SCREWS IN THIS LOCATION (EACH SIDE)
  • Page 147 STEP 6: CHIMNEY 1: FASTEN THE 5/4 X 3 X 6-3/4" CHIMNEY MOUNTING BLOCK TO THE ROOF WITH #8 X 1-1/2" WOOD SCREWS. YOU CAN PLACE THE BLOCK AT ANY DESIRED PLACE ON THE ROOF. USE THE DIAGRAM BELOW AS A GUIDE FOR A SUGGESTED PLACE TO MOUNT THE CHIMNEY. 2: AFTER INSTALLING THE CHIMNEY MOUNTING BLOCK PLACE THE CHIMNEY ASSEMBLY ON THE ROOF SO THAT THE INSIDE OF THE BACK WALL RESTS AGAINST THE BLOCK.
  • Page 148 (06-2004) Clatter Bridge Mesh Panels Tools Required: Kit Contents: #2 Phillips Bit or screwdriver 2 - Green Mesh Panels 66" x 24" 1/8" drill bit 44 - Phillips Pan Head Screws Pencil 5.5mm x 25.4mm long Drill 44 - Washers 16mm O.D. X 7.1mm I.D. Note: Your mesh panels will be completely green.
  • Page 149 5) It will be very helpful to have an assistant at this stage. We recommend predrilling holes for the screws on the bottom of the deckboards fastened to the chains. Align the edge of the mesh border with the end of the bridge deck boards.
  • Page 150 Treehouse Add On Kit Note: Plastic Sunburst and Flags shown come with your playset. These items are not included with the 1525 kit. Model: 1525 (BOXES: 1525 wood box, 1525 Hardware box & 2 Windows REV: 11.12.2015...
  • Page 151 ***IMPORTANT NOTICE FOR TREEHOUSE KIT PLAYSETS*** Read all instructions thoroughly before beginning construction, this is very important. The “Treehouse Add On Kit” (1525) box will require you to deviate slightly from the standard kit instructions. Typical deviations include: 1) The Telescope that is usually on the front of the set on the Front face board (arched board) must be moved to another location on the set.

  • Page 152: Table Of Contents

    TABLE OF CONTENTS General Information………………………………………..……......Page 4 Definitions……..………………………………………..........Page 5 Board Identification....................Page 6 Pre-Drill Lag Screw Directions……………………………………....……..Page 7 Tool List and Kit Contents ……………………..…………………………..……..Page 8 Hardware, Wood and Accessories………..……………….…………...…..Pages 9-12 Assembling The Roof Panels……………………………...…..……..…….....…. Step 1 Roof Peak Support.……………………..……............Step 2 Mounting Roof Sections to Play Set…….……………………..……......…...
  • Page 153 General Info to Review Before Installation • Depending on your experience, assembly of the playset can take as little as 6 hours up to 24 hours, depending on size, after inventory of parts; therefore, we recommend you set aside a full two days for assembly. •...
  • Page 154 This page is a list of definitions and explanations used throughout our instructions to aid you in the assembly of your play set. Offset Holes- Throughout the installation procedures we will refer to parts with offset holes. This refers to the orientation of the holes on the board. An offset hole is one that is closer to one side than it is the other or in other words, it is not centered on the board.

  • Page 155: Board Identification

    BOARD IDENTIFICATION 1. On the end of each board there should be a small white tag that is stapled or stuck into place. Remove the staples and/or tag after the board is installed. 2. This white identifcation tag displays the thickness, width, length and an abbreviated description of the part.

  • Page 156: Pre-Drill Lag Screw Directions

    PRE-DRILL LAG SCREW DIRECTIONS Pre-drilling holes for lag screws will make it easier to drive the screws in by hand. "Jobber" length drill bits are available in sizes that are longer than standard drill bits and those are ideal for the job. When using the drill bit you will have to "spot" drill the post and then remove the board you are attaching to finish drilling the hole.
  • Page 157 REQUIRED TOOL LIST: ___ Standard or Cordless Drill w/ Phillips Bit (#2 square bit provided) ___ Drill Bits 1/8”, 3/8”, 9/64” ___ ½” Wrench and Socket ___ ½” Deep Well Socket ___ Level ___ Tape Measure ___ Extension Cord (if using standard drill) ___ Hammer ___ Pencil KIT CONTENTS...
  • Page 158 1525 HARDWARE #8 X 1-1/4" PAGE 1 OF 1 WOOD SCREW QTY: 32 11/18/2014 S.O. #8 X 1-1/2" WOOD SCREW QTY: 92 #8 X 2" WOOD SCREW QTY: 18 #8 X 2-1/2" WOOD SCREW QTY: 8 #8 X 3" WOOD SCREW QTY: 2 5/16"...
  • Page 159 PICTURE DESCRIPTION QTY. 1 X 2 X 9.88" WALL PANEL BOARD 1-2-0988-WPB 1 X 4 X 10.00" WALL PANEL BOARD 1-4-1000-WPB 1 X 3 X 11.50" WINDOW TOP/BOTTOM 1-3-1150-WTB 1 X 4 X 20.25" WALL PANEL BOARD 1-4-2025-WPB 1 X 4 X 20.50" WALL PANEL BOARD 1-4-2050-WPB...
  • Page 160 PICTURE DESCRIPTION QTY. 1 X 4 X 18.25" WALL PANEL BOARD 1-4-1825-WPB 1 X 5 X 6.88" ROOF PEAK 1-5-0688-RP 2 X 3 X 35.70" SUN SUPPORT 2-3-3570-SS 2 X 4 X 51.13" ROOF SUPPORT LEFT 2-4-5113-RSL 2 X 4 X 51.13" ROOF SUPPORT RIGHT 2-4-5113-RSR...
  • Page 161 PICTURE DESCRIPTION QTY. 4 X 10 X 43.50" ROOF PANEL LEFT ASSEMBLY 4-10-4350-RPLA 4 X 10 X 43.50" ROOF PANEL RIGHT ASSEMBLY 4-10-4350-RPRA WINDOW PANEL 07-0013 HARDWARE 1525 HARDWARE BOX...

  • Page 162: Assembling The Roof Panels

    STEP 1: ASSEMBLING THE ROOF PANELS 1: FIND THE 2 X 4 X 51.13" ROOF SUPPORT LEFT AND THE 4 X 10 X 43.50" ROOF PANEL LEFT ASSEMBLY. MOUNT THE ROOF PANEL LEFT ON TOP OF THE ROOF SUPPORT LEFT. 4 X 10 X 43.50"...

  • Page 163: Roof Peak Support

    STEP 2: ROOF PEAK SUPPORT 1:FIND ONE 5/4 X 6 X 10" ROOF PEAK SUPPORT FROM THE 1503 BOX. LAY THE ROOF SECTION LEFT AND THE ROOF SECTION RIGHT ON A FLAT SURFACE. ALIGN THE ANGLED ENDS FLUSH WITH ONE ANOTHER. 2: PLACE THE ROOF PEAK SUPPORT ON TOP OF THE ROOF SUPPORTS, MAKE SURE THE ROOF PEAK SUPPORT TOP EDGES ARE FLUSH AGAINST THE BOTTOM FACE OF THE ROOF SECTION BOTTOM BATTEN.

  • Page 164: Mounting Roof Sections To Play Set

    STEP 3: MOUNTING ROOF SECTIONS TO PLAY SET 1: MOUNT THE ROOF SECTION ASSEMBLY TO THE FRONT OF THE PLAY SET. SLIDE THE ROOF SECTION UNTIL IT IS FLUSH UP AGAINST THE BOTTOM OF THE PLAY SET ROOF SUPPORTS, MAKE SURE THERE ARE NO GAPS IN BETWEEN.

  • Page 165: Roof Peak

    STEP 4: ROOF PEAK 1: MOUNT THE 1 X 5 X 6.88" ROOF PEAK ON TOP OF THE ROOF SECTION ASSEMBLY, FLUSH WITH THE PLAY SET ROOF SUPPORTS. FASTEN USING TWO #8 X 1-1/4" WOOD SCREWS. #8 X 1-1/4" WOOD SCREW PLAY SET ROOF SUPPORT 1 X 5 X 6.88"...

  • Page 166: Sun Support

    STEP 5: SUN SUPPORT 1: PLACE THE 2 X 3 X 35.70" SUN SUPPORT IN BETWEEN THE ROOF SUPPORTS. FASTEN USING #8 X 2-1/2" WOOD SCREWS THROUGH THE PRE-DRILLED HOLES ON EACH END, MAKE SURE THERE ARE NO GAPS IN BETWEEN THE SUN SUPPORT AND THE ROOF SUPPORT. #8 X 2-1/2"...

  • Page 167: Plastic Sunburst

    STEP 6: PLASTIC SUNBURST 1: MOUNT THE PLASTIC SUNBURST TO THE ROOF SUPPORTS ON THE ROOF SECTION ASSEMBLY, THE PLASTIC SUNBURST MUST BE UP AGAINST THE OVERHANGING ROOF BOARDS. FASTEN THE PLASTIC SUNBURST TO THE ROOF SUPPORTS USING TWO #8 X 2-1/2" WOOD SCREWS ON THE TOP AND SIX #8 X 2" WOOD SCREWS ON THE REMAINING HOLES.

  • Page 168: Wall Panel Boards

    STEP 7: WALL PANEL BOARDS 1: MOUNT THE 1 X 4 X 20.25" WALL PANEL BOARD ABOVE THE PLAY SET CENTER POST. THE END WITH TWO PRE-DRILLED HOLES SHOULD BE OFFSET TO THE TOP. MAKE SURE IT IS STRAIGHT VERTICALLY AND FASTEN IT TO THE SUN SUPPORT USING TWO #8 X 1-1/2"...

  • Page 169: Plastic Windows

    STEP 8: PLASTIC WINDOWS 1: PLACE EACH PLASTIC WINDOW INTO THE FRONT OPENINGS, WITH THE 1" WIDE SECTION OF THE WINDOW FRAME AT THE TOP. ATTACH EACH WINDOW WITH FOUR #8 X 1-1/4" WOOD SCREWS. 2: PLACE THE CROWN OVER THE SUN PIECE ON THE FRONT OF THE PLAY SET ABOVE THE PLASTIC WINDOWS.

  • Page 170: Wall Panel Boards

    STEP 9: WALL PANEL BOARDS 1:MOUNT THE 1 X 4 X 18.25" WALL PANEL BOARD NEXT TO THE PREVIOUSLY INSTALLED PANEL BOARD, LEAVING A 1/4" GAP BETWEEN THEM. FASTEN IT USING FOUR #8 X 1-1/2" WOOD SCREWS. 2: MOUNT THE 1 X 3 X 14.06" WALL PANEL BOARD NEXT 1 X 4 X 10.00"...

  • Page 171: Flag Kit

    STEP 10: FLAG KIT 1: PLACE A FLAG CENTERED ON THE WALL PANEL BOARD NEXT TO THE CORNER POST AT THE FRONT OF THE FORT. 2: ATTACH THE BASE OF THE FLAG WITH THE 1/2" PHILLIPS HEAD SCREWS PROVIDED. **DO NOT OVER TIGHTEN** FLAG CORNER POST 1/2"...
  • Page 172 Telescope (07-0001) Mounting to 2 x 4 board 1: Place one of the "L" shaped Telescope Brackets against the 2 x 4 so that the bracket section with the cutout faces up. Fasten the Telescope Bracket to the 2 x 4 with the 1-1/4" phillips countersunk head screws provided.
  • Page 173 Telescope (07-0001) Mounting to 4 x 4 board 1: Center the Telescope Stand on top of the 4 x 4 board. 2: Place the notched area of one of the half-circle shaped Telescope Brackets over the top of the Telescope Stand. Attach the half-circle shaped Telescope Bracket to the top of the 4 x 4 board with the1-1/4”...

This manual is also suitable for:

15011503n1509n1509w15121530

Table of Contents
